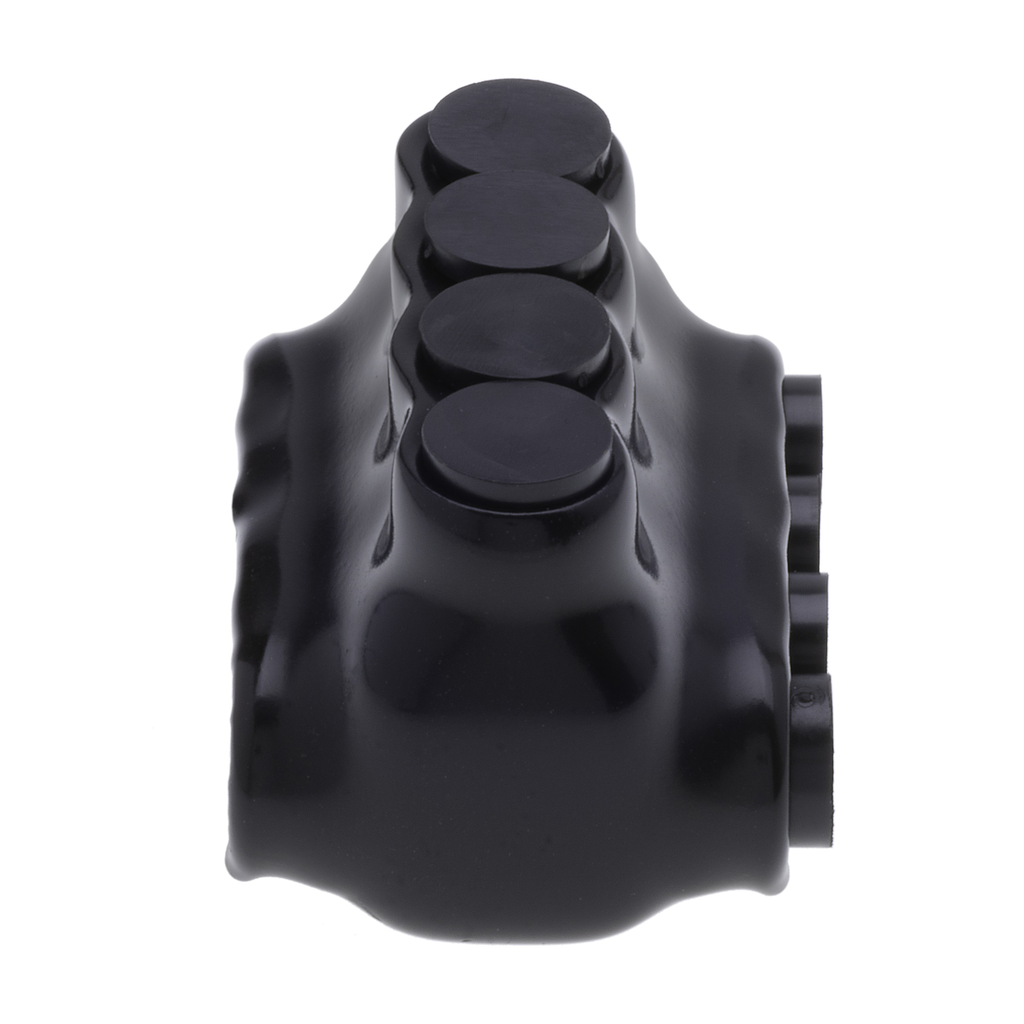

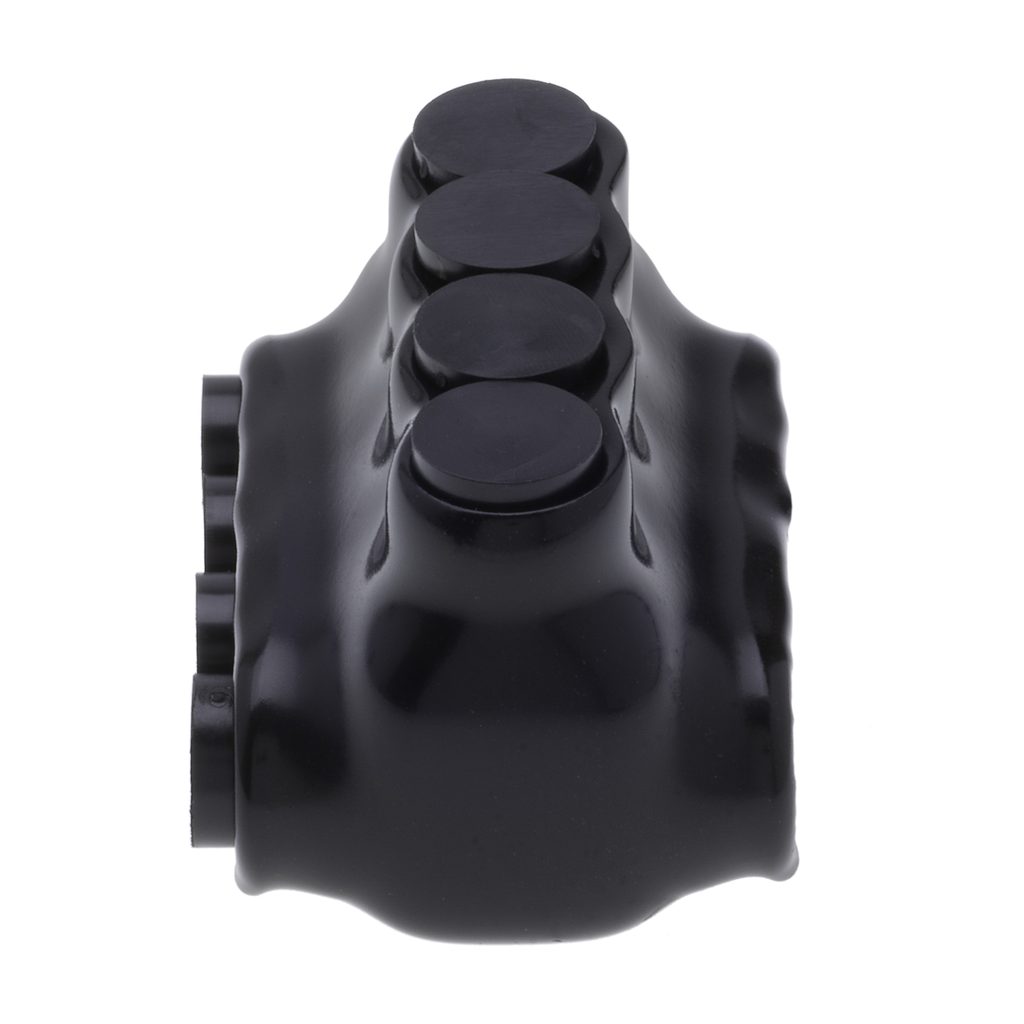

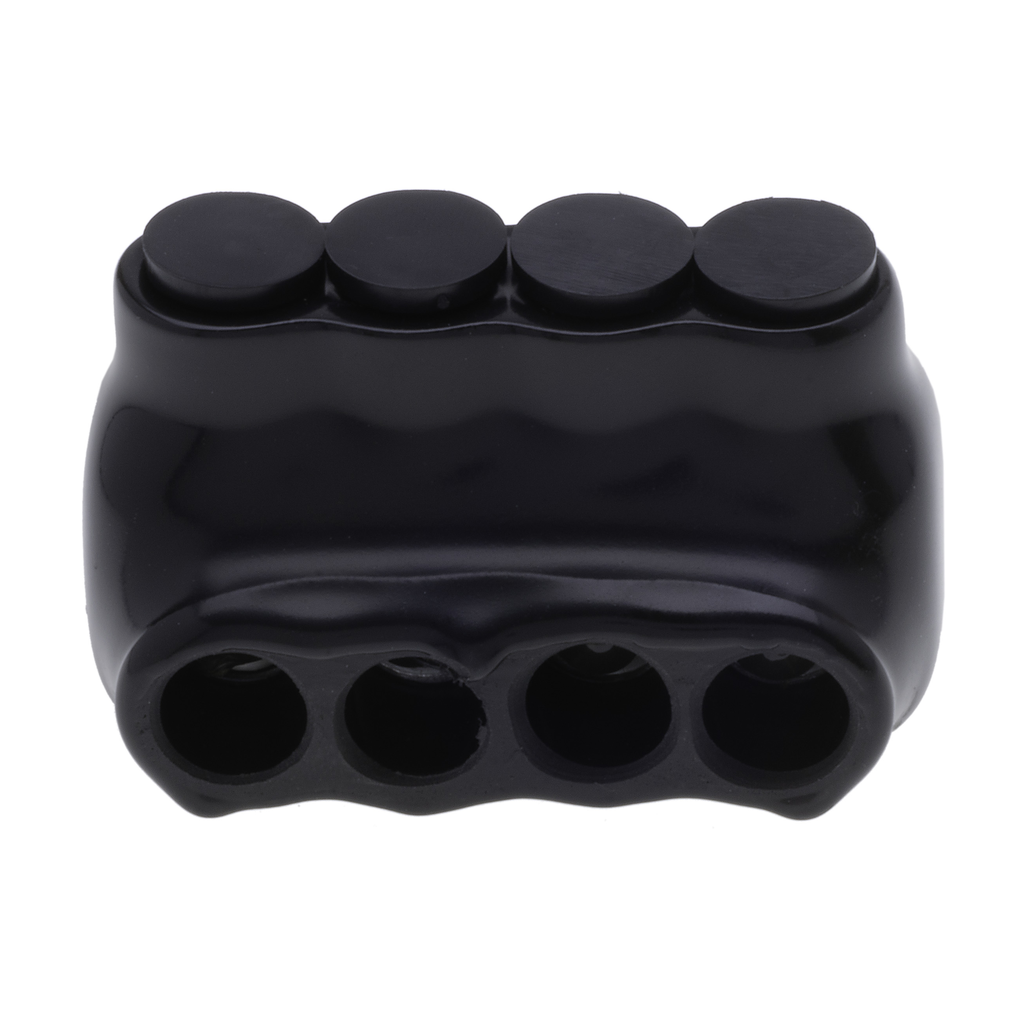

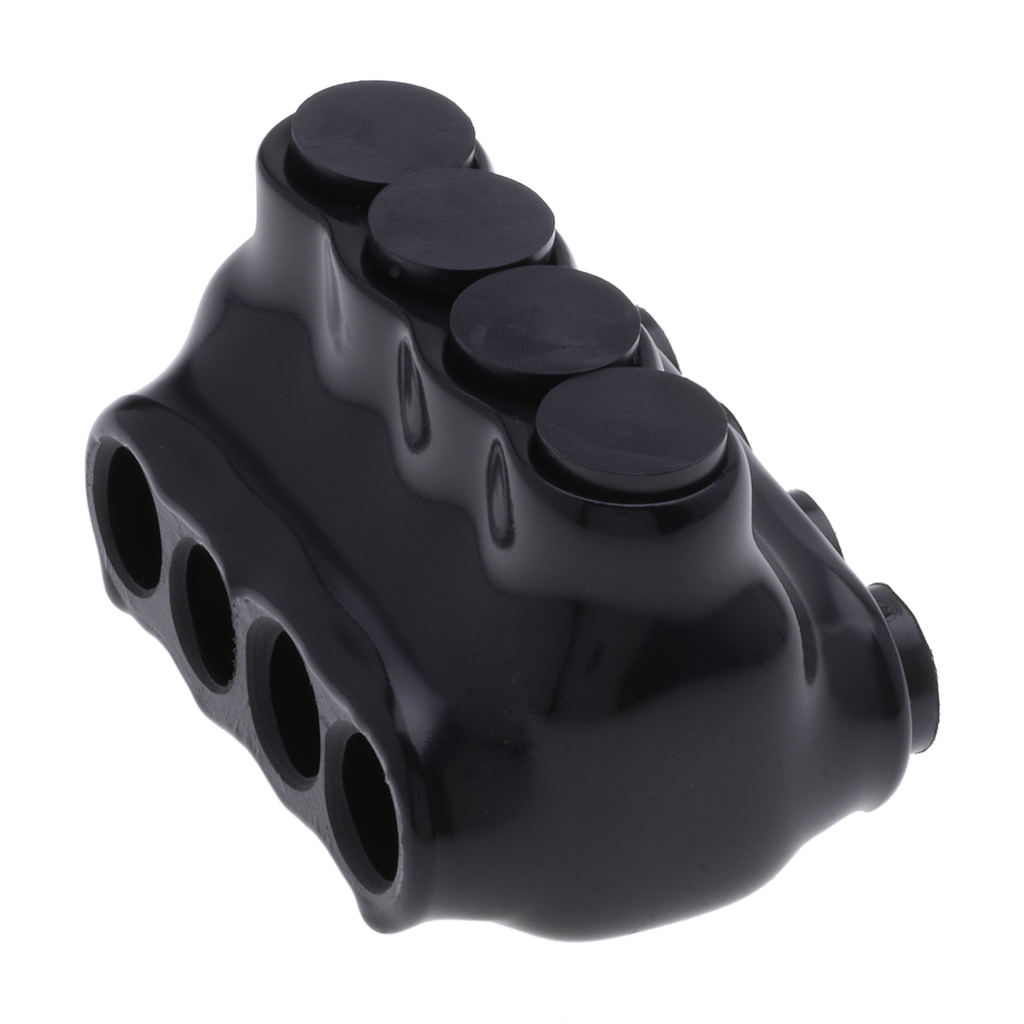

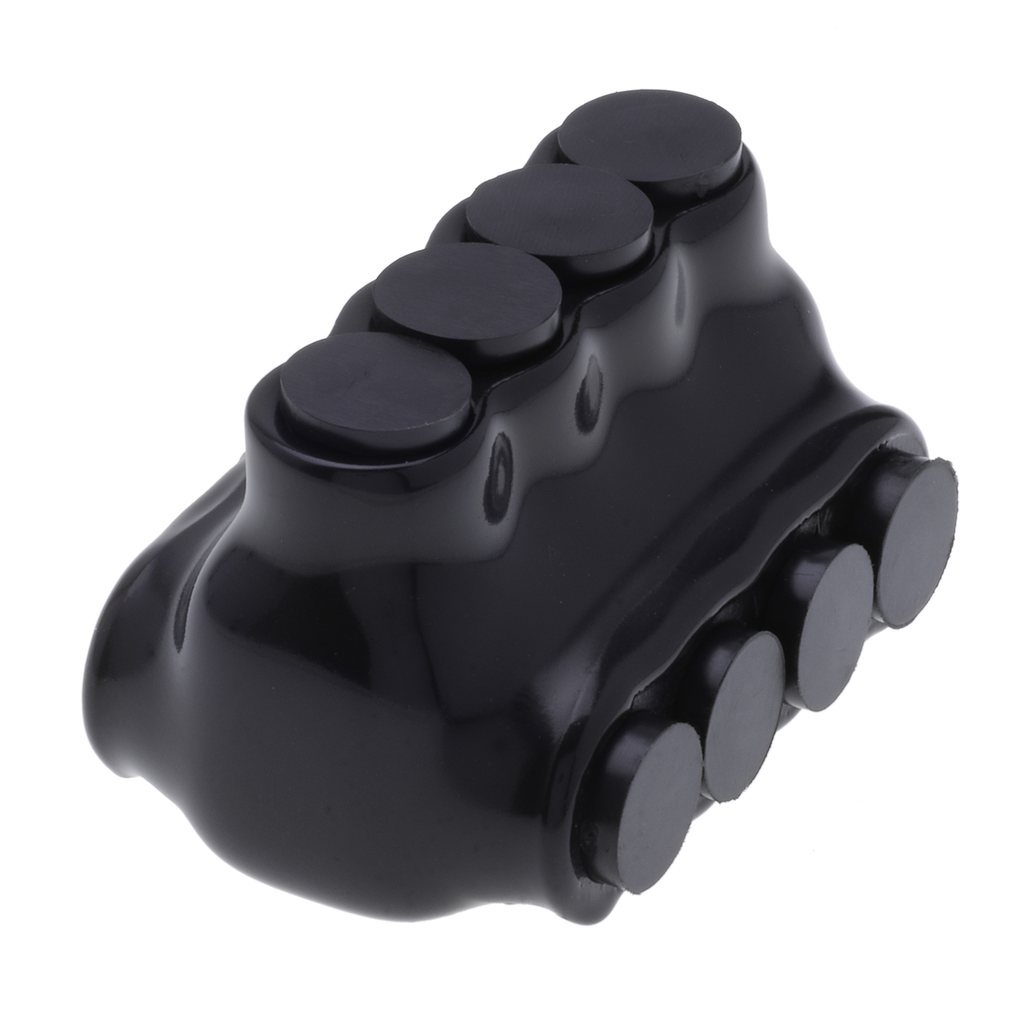

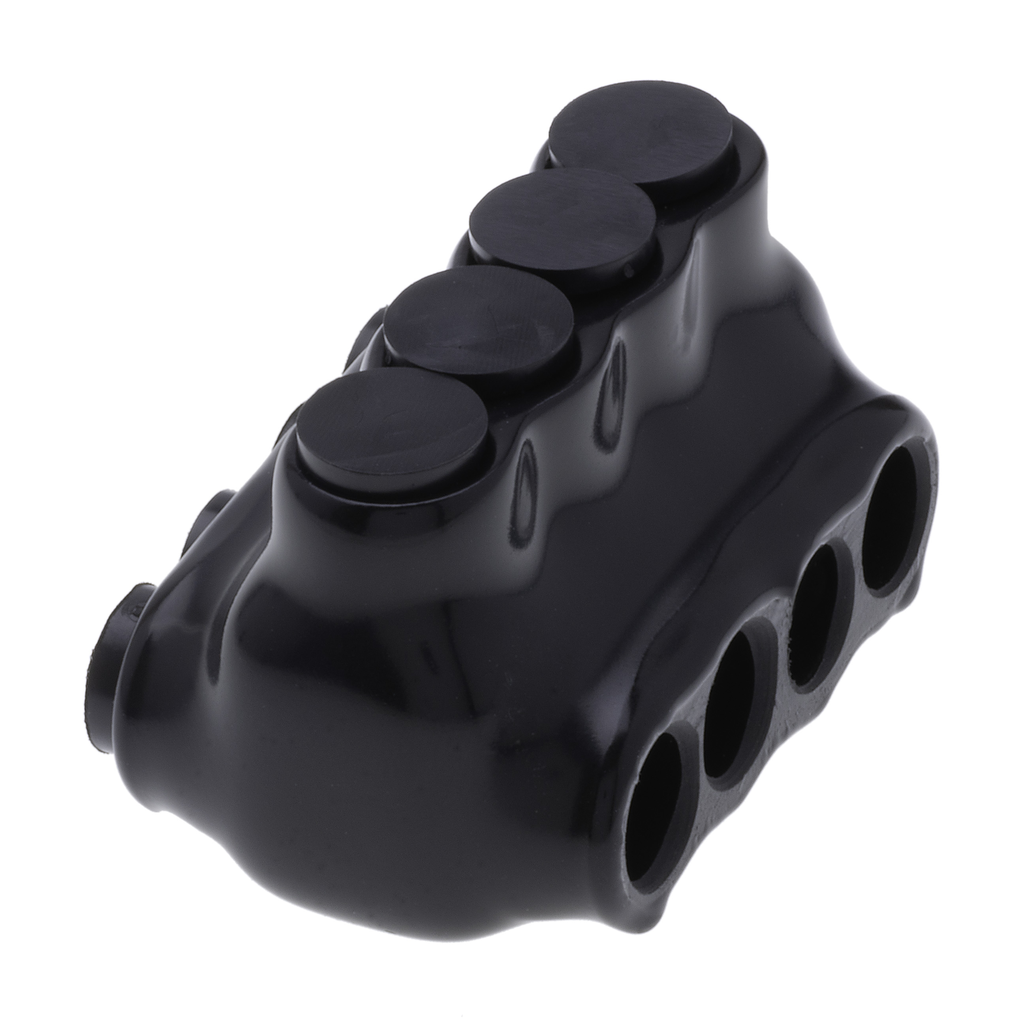

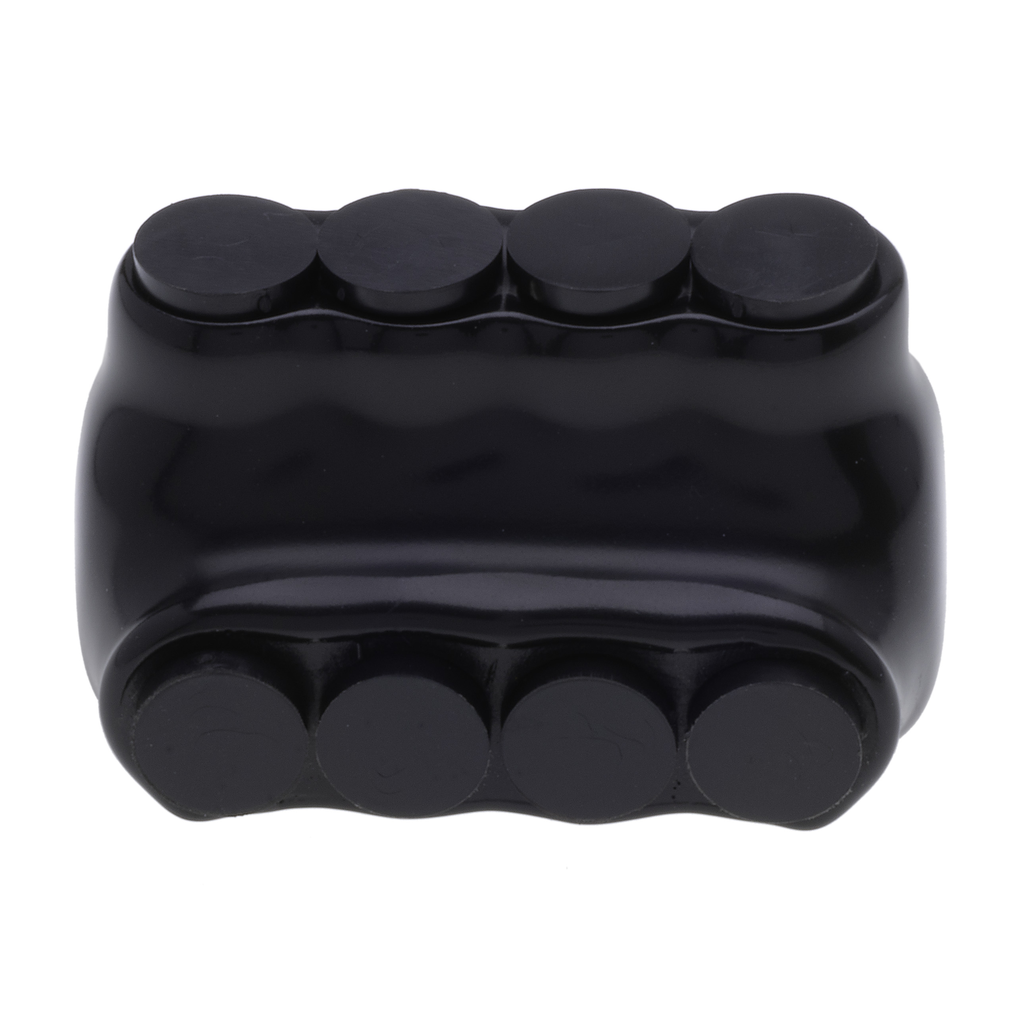

Polaris IPLD4-4 Multi-Tap Connector 4-Port 4 AWG-14 AWG Dual Entry 600V Black Plastisol
Specifications
Engineered for efficiency and durability, this 4-Port Multi-Tap Pre-Insulated Connector from Polaris offers a robust solution for electrical splicing and tapping. Each port is designed for dual entry, accommodating conductor sizes ranging from 4 AWG to 14 AWG, making it versatile for both copper and aluminum wire connections. Constructed with high-quality materials and featuring a black UV-coated finish, the connector ensures reliability in both indoor and outdoor applications, meeting stringent safety standards such as UL 486A/B and cULus certification. With a maximum voltage rating of 600 V and an operational temperature range extending from -45°C to 90°C, this unit is not only suitable for the line side of service but also built to withstand challenging environmental conditions. Additionally, the patented oxide inhibitor gel pre-filled in each port prevents corrosion, ensuring low contact resistance and long-lasting performance. The easy-to-install design, coupled with ergonomic rounded corners for enhanced grip, makes this connector an essential tool for professionals in the electrical industry seeking high-performance connectivity solutions.
- UL 486A/B and cULus certified for safety assurance
- Meets NEC 230.46 suitable for line side of service
- Operates reliably from -45°C to 90°C temperature range
- 600 V voltage rating suitable for line side service
- Patented oxide inhibitor gel prevents corrosion and reduces contact resistance
- Dual rated for use with copper and aluminum cables, excludes fine-stranded flexible cables
- Accommodates 4 AWG to 14 AWG conductors for versatility
- Four-port design enables multiple connections in one unit
- Ergonomic rounded corners for enhanced grip and ease of installation
- UV-coated black plastisol insulation for outdoor durability
- Voltage: 600 V
- Copper Conductor Max AMP: 95
- Aluminum Conductor Max AMP: 75
- Wire Size Range: 4 AWG - 12 AWG
- Number of Ports: 4
- Length: 2.06 in
- Width: 1.37 in
- Height: 1.36 in
- Hex Wrench Size: 8-Jan IN
- Material: Aluminum
- Insulation: Plastisol
- Compliance: cULus, UL 486A/B, UL File # E186991
- Application Standard: NEC 230.46
- Temperature Rating: 90C, AL9CU
- Environmental Temperature: Rated to -45C
- Conductor Type: Copper, Aluminum
- Wire/Cable Class: Class B, Class C
- Type: Dual-Side Entry
- Country of Origin: United States
