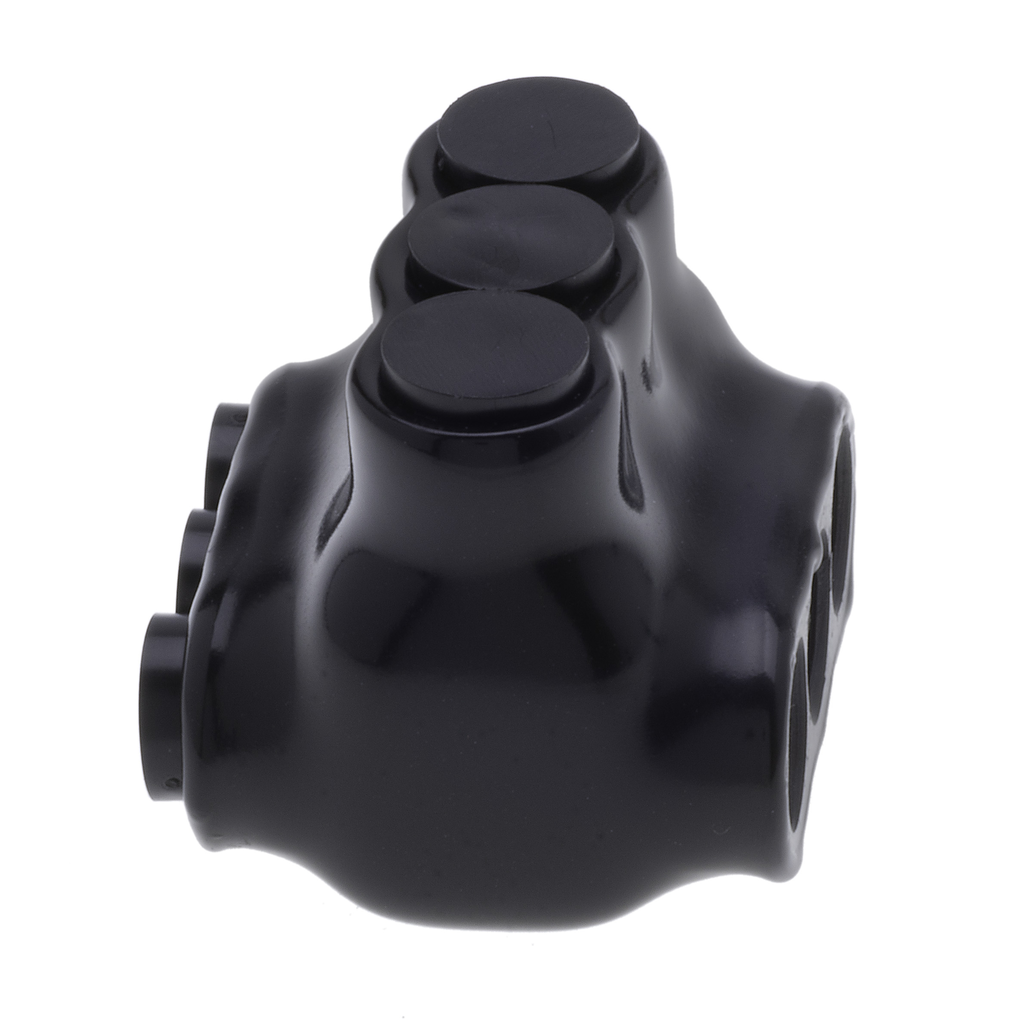

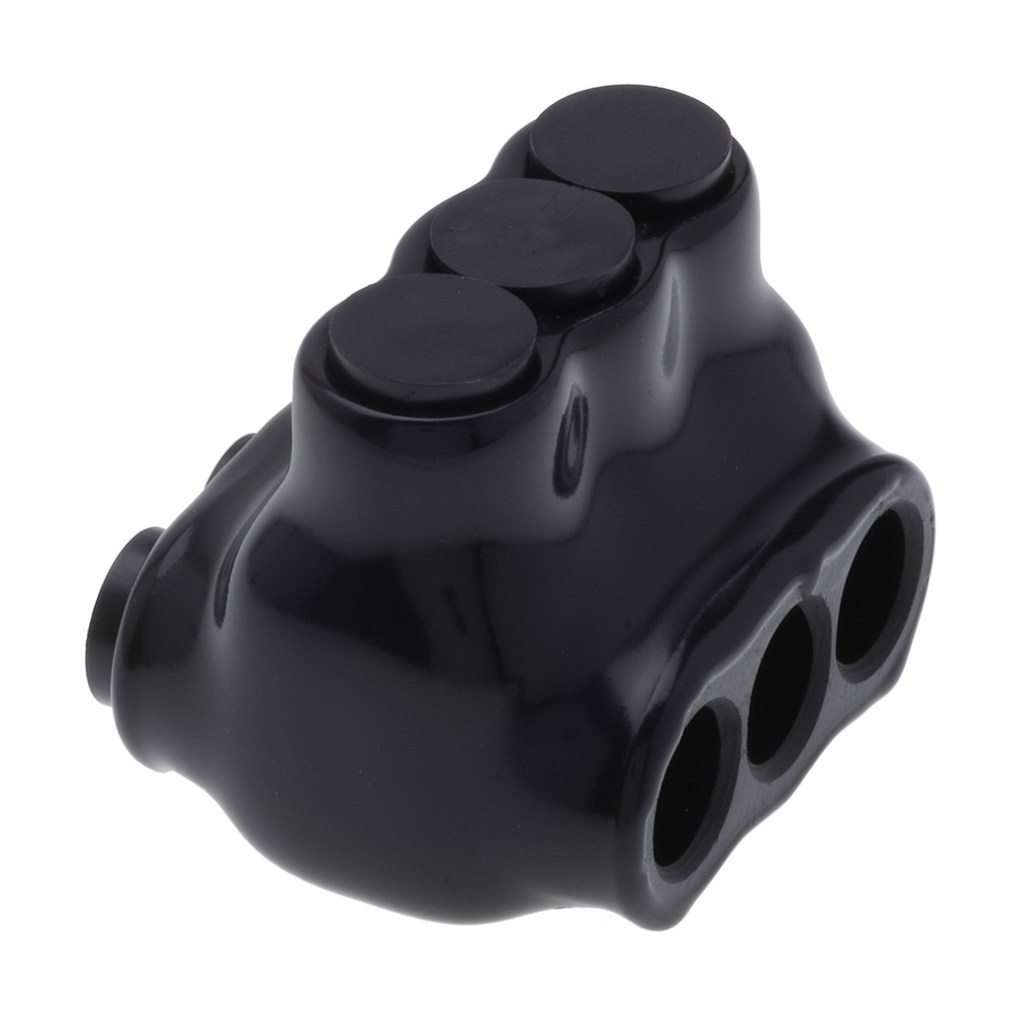

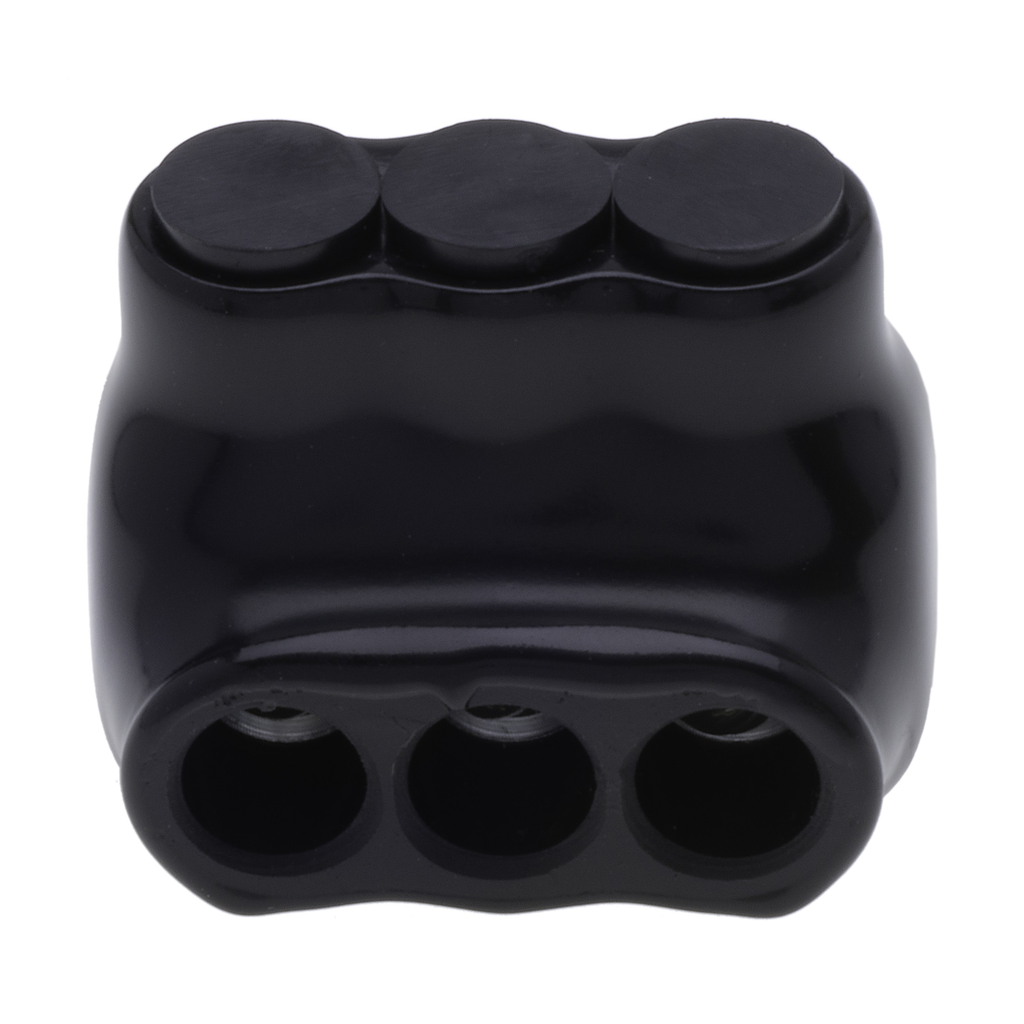

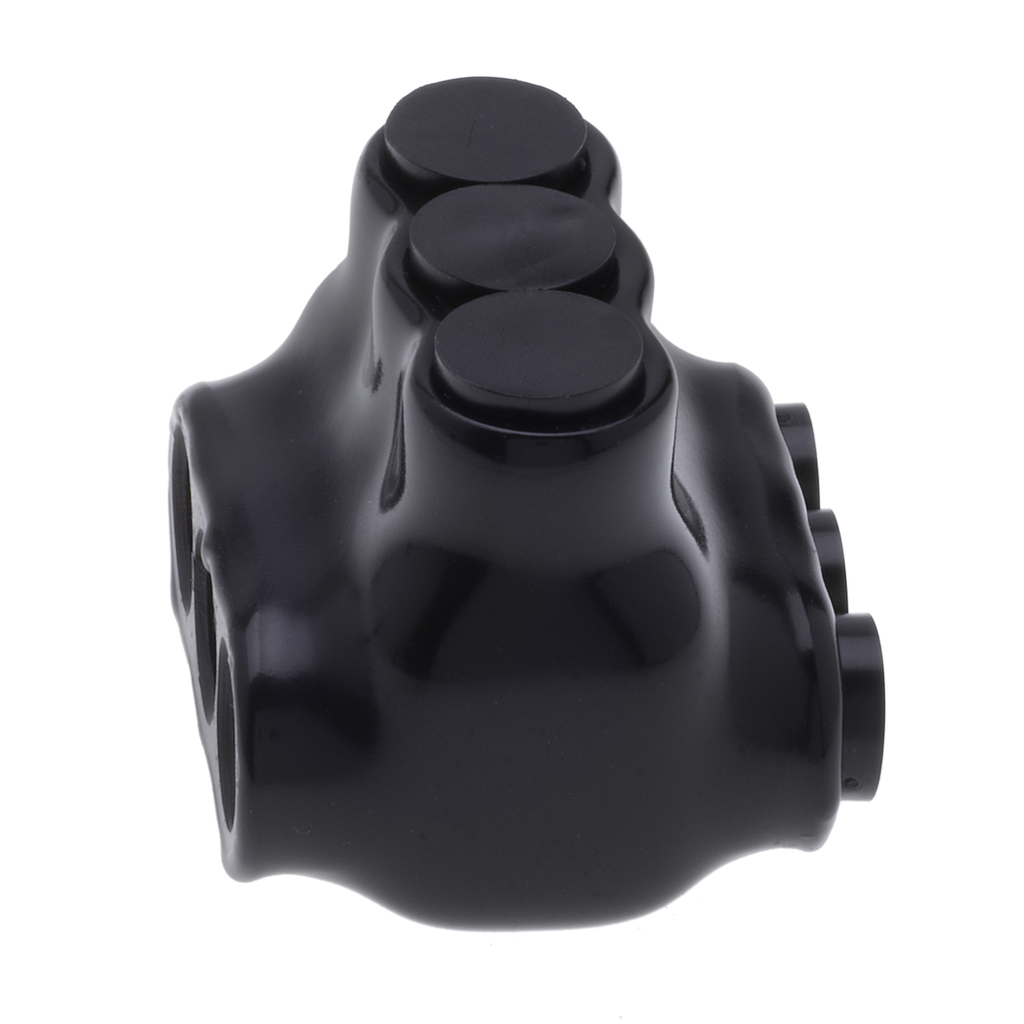

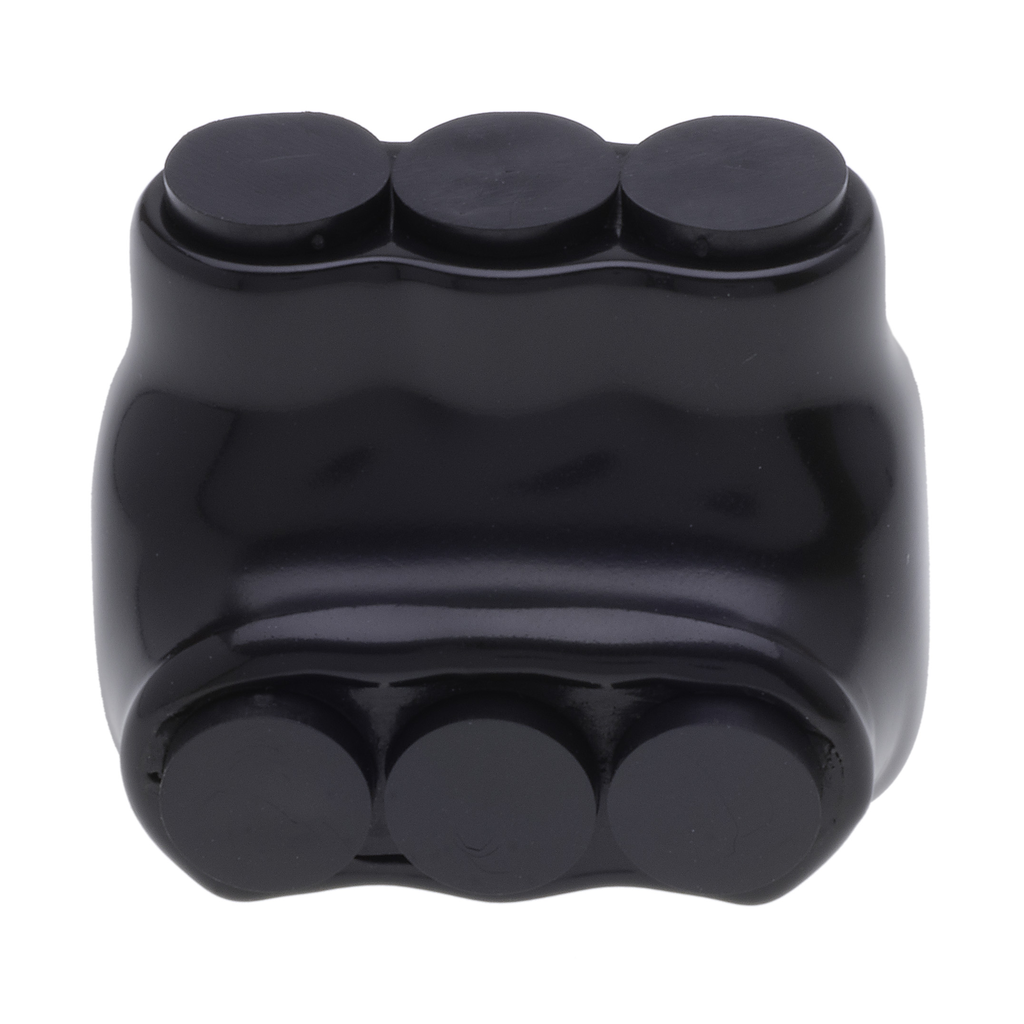

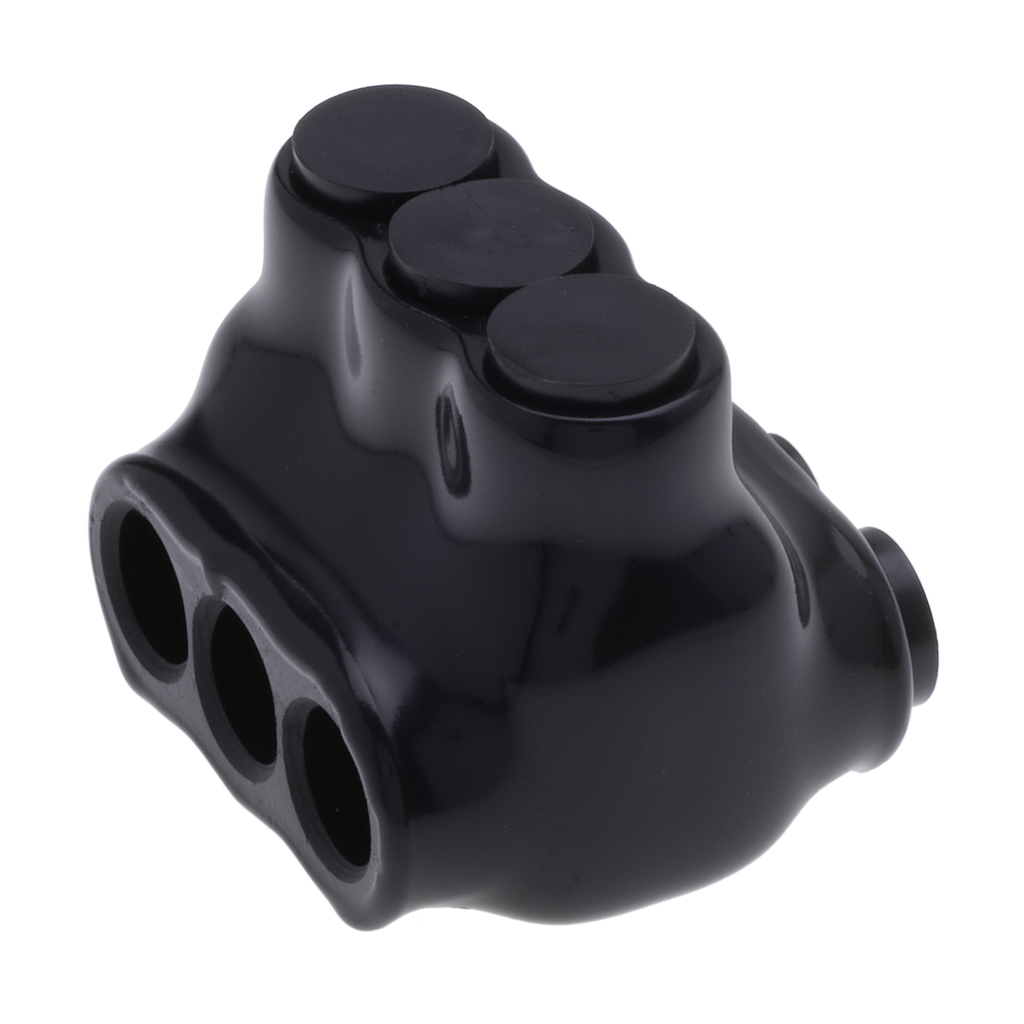

Polaris IPLD4-3 Pre-Insulated Mechanical Connector 3-Port Dual-Side Entry 4-14 AWG 600V Black Plastisol
Specifications
The 3-Port Black Multi-Tap Pre-Insulated Connector from Polaris is engineered for versatility and reliability in electrical applications. It features dual-rated compatibility, allowing use with both copper and aluminum cables, making it a practical solution for diverse wiring needs. This connector is suitable for the line side of service equipment as specified in NEC 230.46, ensuring compliance with safety regulations. Pre-filled with an oxide inhibitor gel in all three dual-sided entry ports, it effectively prevents corrosion and maintains low contact resistance, enhancing longevity and performance. Designed for easy handling and secure connections, its ergonomic shape aids in grasping while the removable plugs protect the internal components from debris, making installation smooth and efficient. With a robust temperature rating and maximum ampacity suited for both aluminum and copper conductors, it stands out as a dependable choice in the connectivity product family.
- UL Listed and cULus certified for safety compliance
- Meets NEC 230.46 suitable for line side of service equipment
- Dual rated for copper and aluminum cables, excluding fine-stranded flexible cables
- 600V voltage rating for safe electrical use
- Cold rated to -45°C for harsh environments
- Pre-filled with oxide inhibitor gel to prevent corrosion and reduce contact resistance
- Dual-sided wire entry ports sized for wires 4 AWG to 14 AWG
- High ampacity supporting up to 95A for copper and 75A for aluminum conductors
- Ergonomic shape for easy handling during installation
- Removable plugs protect internal components from debris during installation
- Number of Ports: 3
- Wire Size Range: 4 AWG - 12 AWG
- Temperature Rating: 90C, AL9CU
- Conductor Type: Copper, Aluminum
- Aluminum Conductor Max Amp: 75
- Copper Conductor Max Amp: 95
- Max Torque: 35 in/lbs
- Voltage Rating: 600 V
- Ports Pre-filled with Oxide Inhibitor: Yes
- Dual-Sided Wire Entry: Yes, sized for wires 4 AWG to 14 AWG
- Dimensions: Length 1.63 in, Width 1.37 in, Height 1.36 in
- Material: Aluminum Alloy with Plastisol Insulation
- Finish: Plastisol Insulated
- Environmental Temperature Rating: Cold rated to -45C
- UL File Number: E186991
- Compliance: cULus, UL 486A/B, Meets NEC 230.46
- Country of Origin: United States
