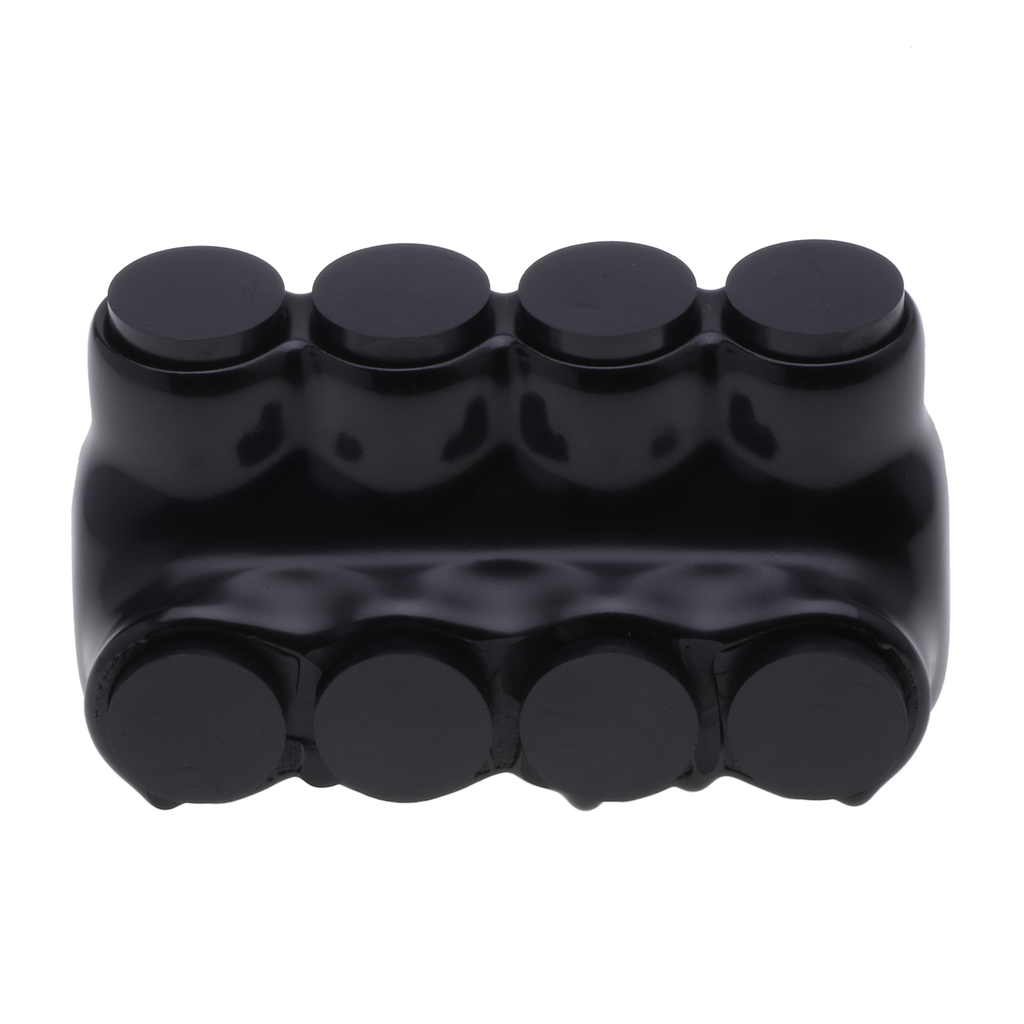

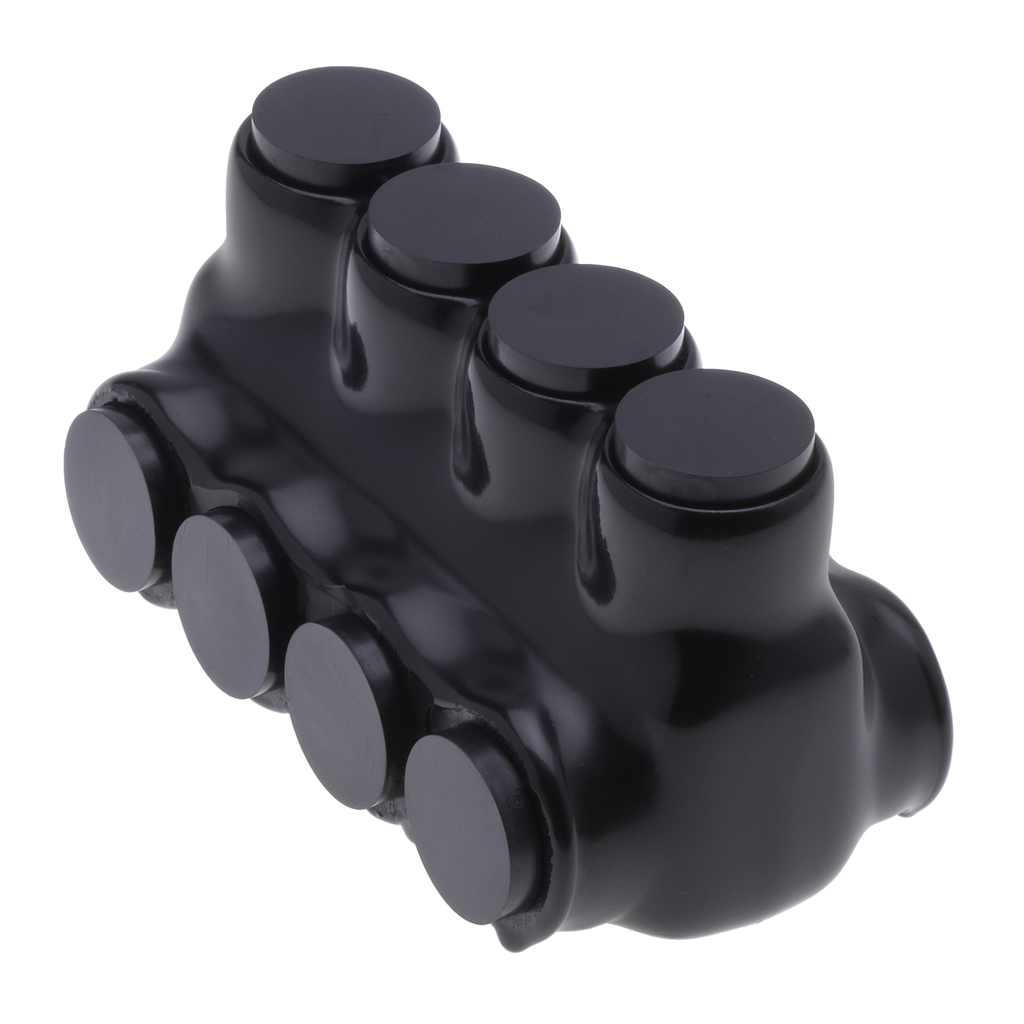

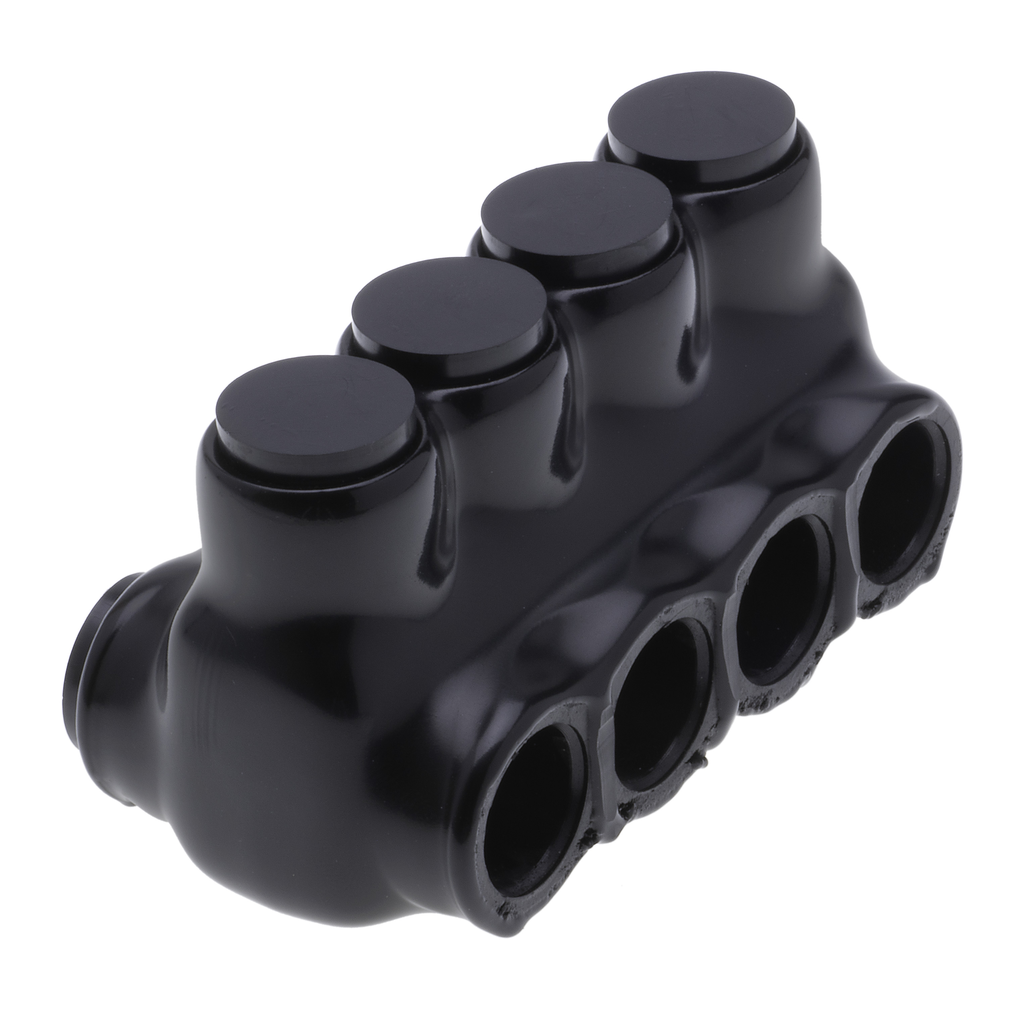

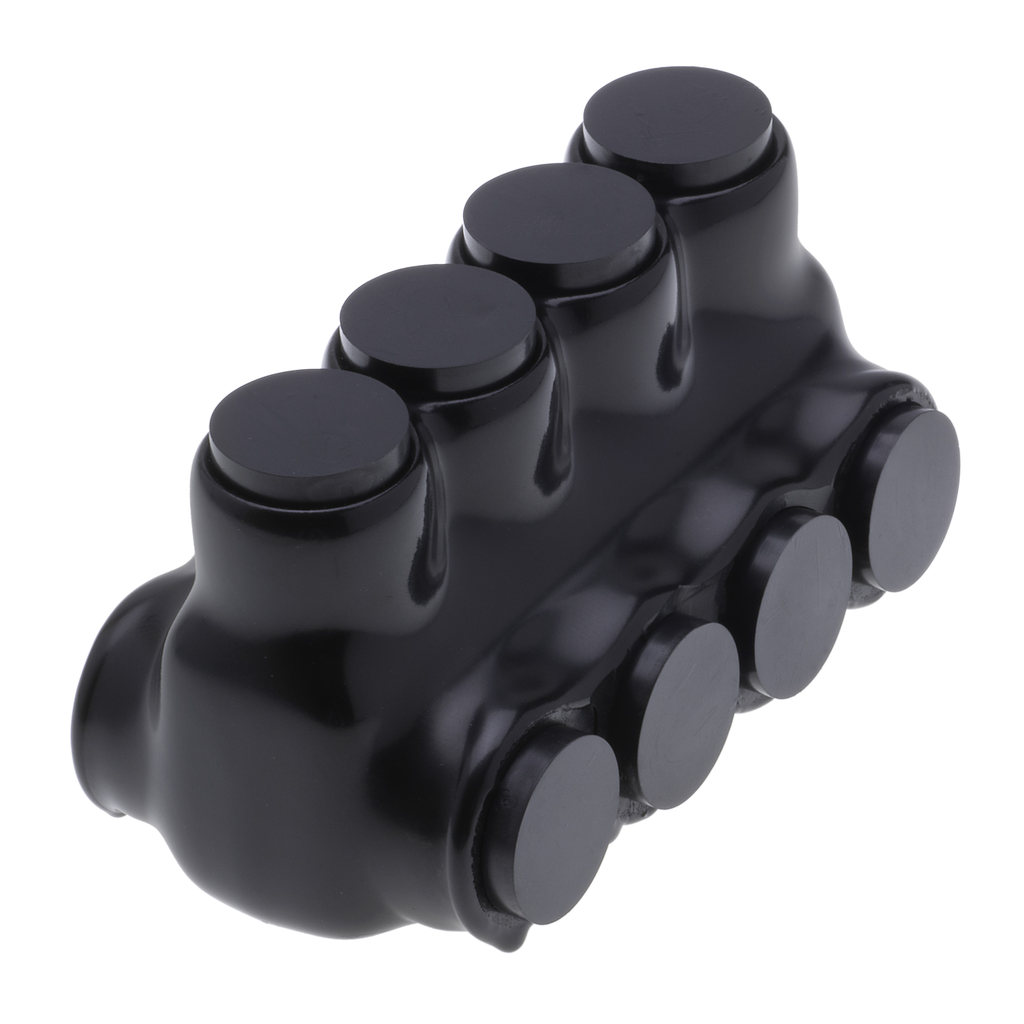

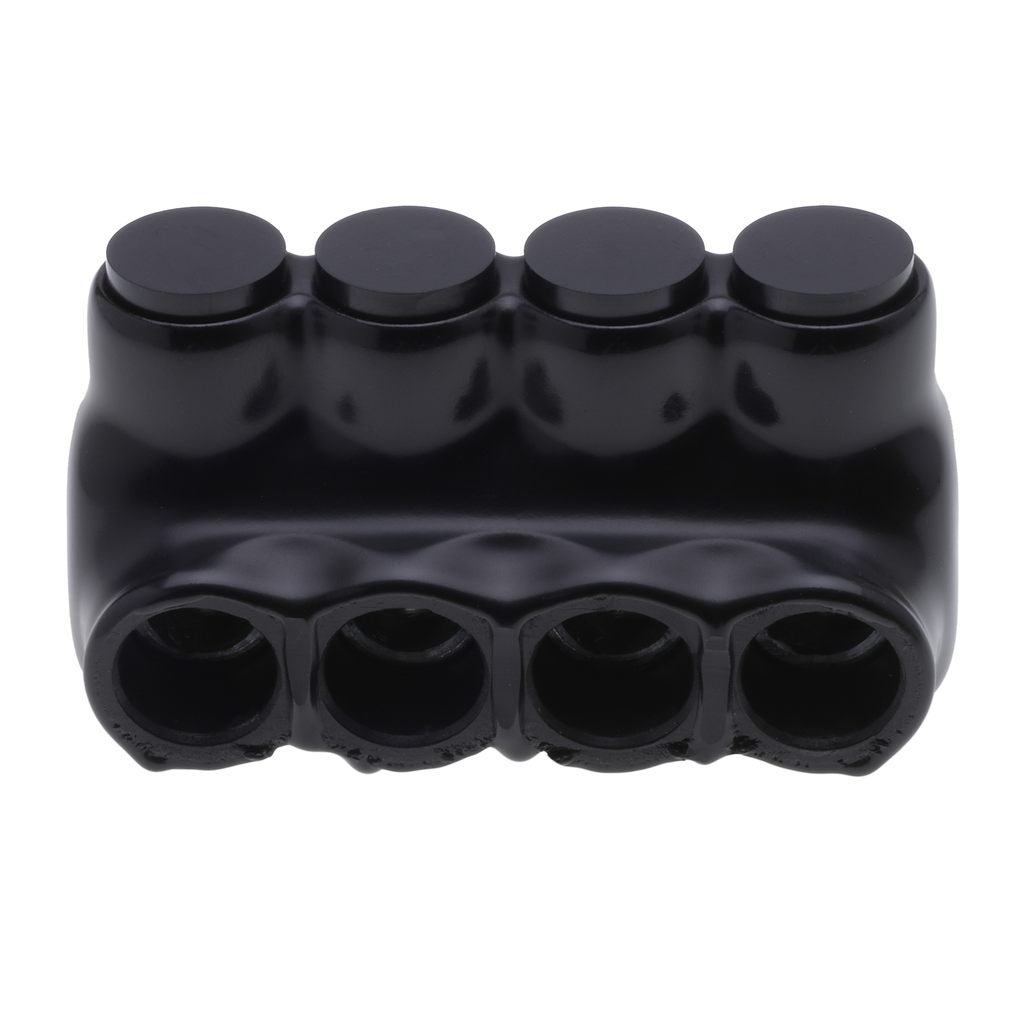

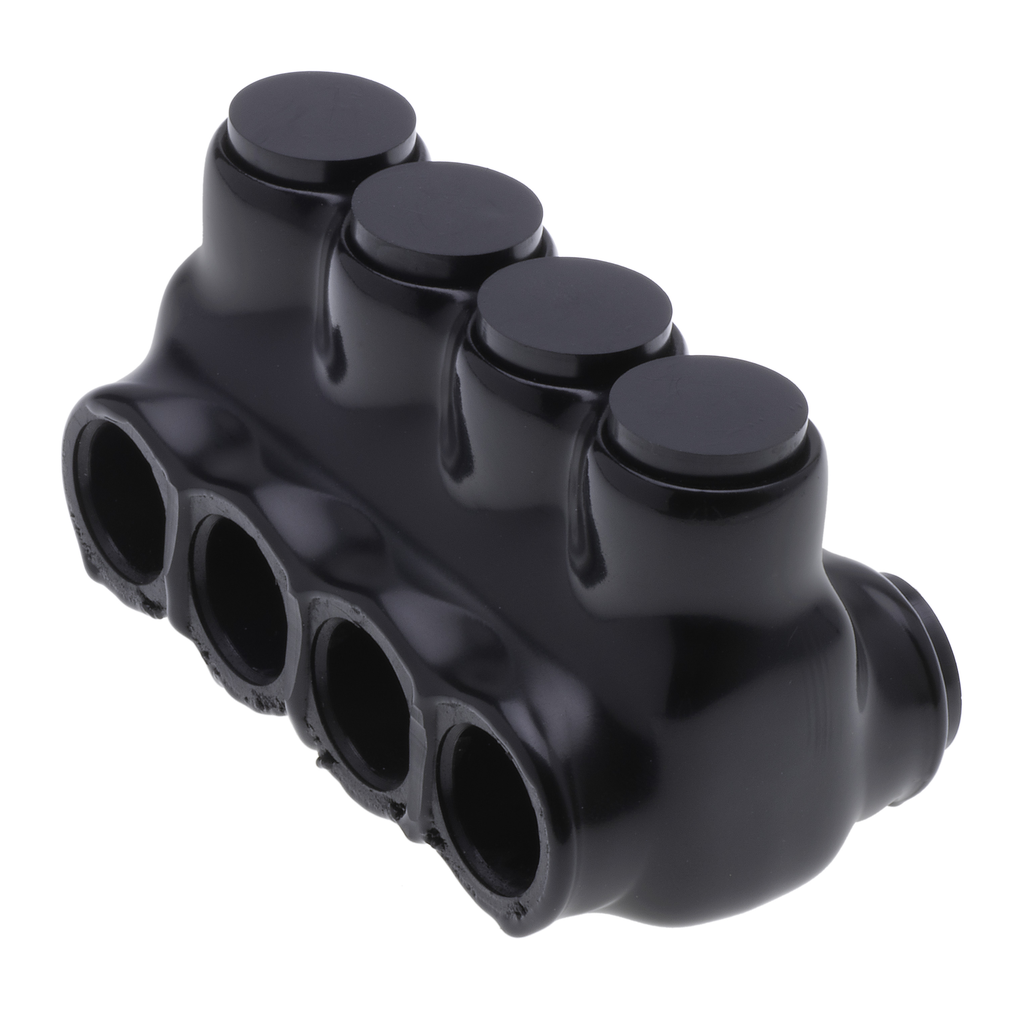

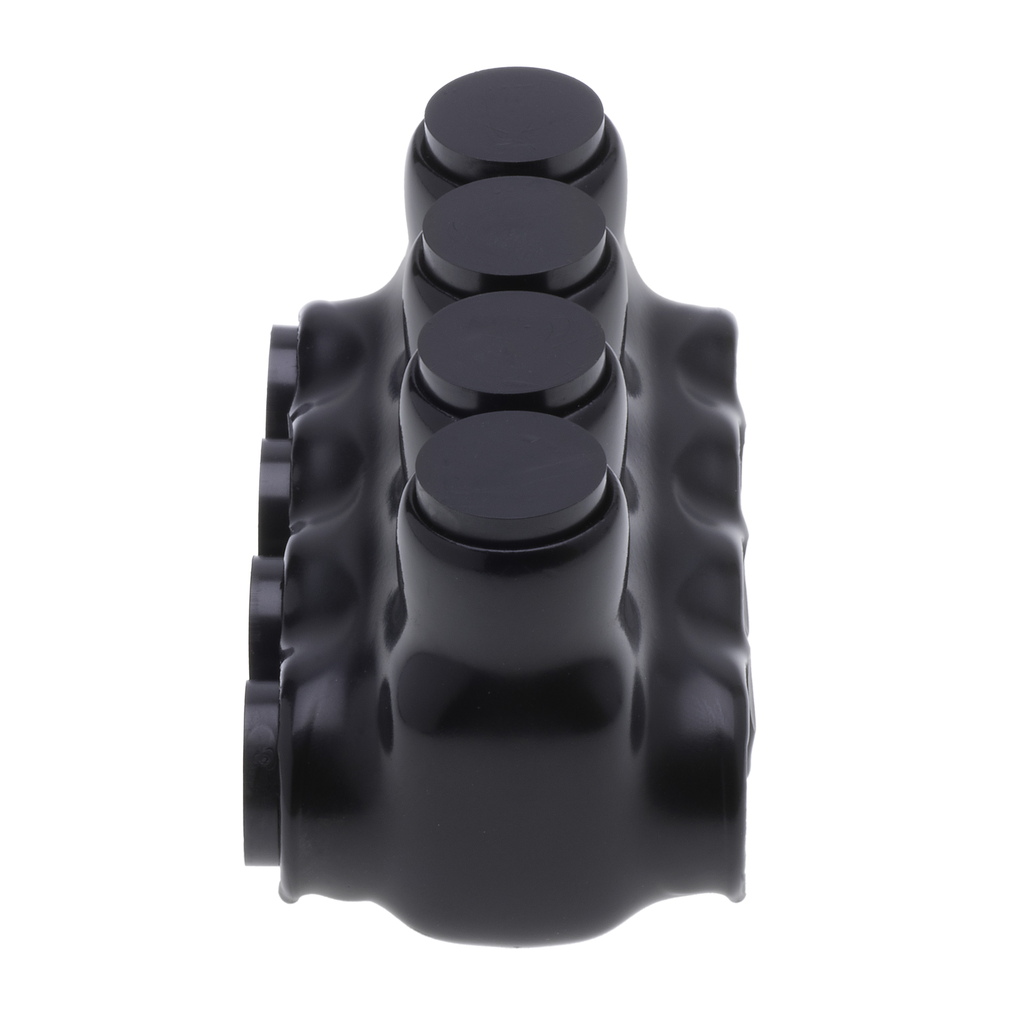

Polaris IPLD2/0-4 Multi-Tap Connector 4-Port 2/0 AWG-14 AWG Dual-Side Entry Black Plastisol
Specifications
The Polaris 4-Port Black Multi-Tap Pre-Insulated Connector stands out with its robust design, tailored for both copper and aluminum conductors ranging from 2/0 AWG to 14 AWG. Dual-sided wire entry ports facilitate quick and secure connections across four conductors, making it an excellent choice for splicing and tapping applications in electrical service setups, aligning with NEC 230.46 standards. Constructed with a durable plastisol insulation, this connector features ergonomic rounded corners for ease of handling, while the pre-filled oxide inhibitor gel in each port ensures effective corrosion prevention and low-contact resistance, enhancing the reliability of your connections. UL and cULus listed, this connector guarantees safety and efficiency in demanding environments, suitable for temperatures as low as -45°C.
- UL 486A/B and cULus listed for safety assurance
- Meets NEC 230.46 standard for line side electrical service tap
- Supports copper and aluminum conductors from 2/0 AWG to 14 AWG
- Dual-sided wire entry for quick, secure multi-conductor connections
- Four-port design supports multiple simultaneous connections
- Pre-filled oxide inhibitor gel prevents corrosion and reduces contact resistance
- Operates reliably in temperatures down to -45°C
- Plastisol insulation provides durable, protective casing
- Ergonomic rounded corners for improved handling comfort
- Voltage: 600 V
- Max Torque: 120 in/lbs
- Copper Conductor Max Amp: 195
- Aluminum Conductor Max Amp: 150
- Conductor Size Range: 2/0 AWG - 12 AWG (Aluminum), 2/0 AWG - 14 AWG (Copper)
- Number of Ports: 4
- Length: 3.28 in
- Height: 1.77 in
- Width: 1.75 in
- Material: Aluminum, Plastisol Insulated
- Conductor Type: Copper, Aluminum
- Temperature Rating: 90°C, cold rated to -45°C
- Compliance: UL 486A/B, cULus, NEC 230.46, UL File #E186991
- Country of Origin: United States
- Color: Black
