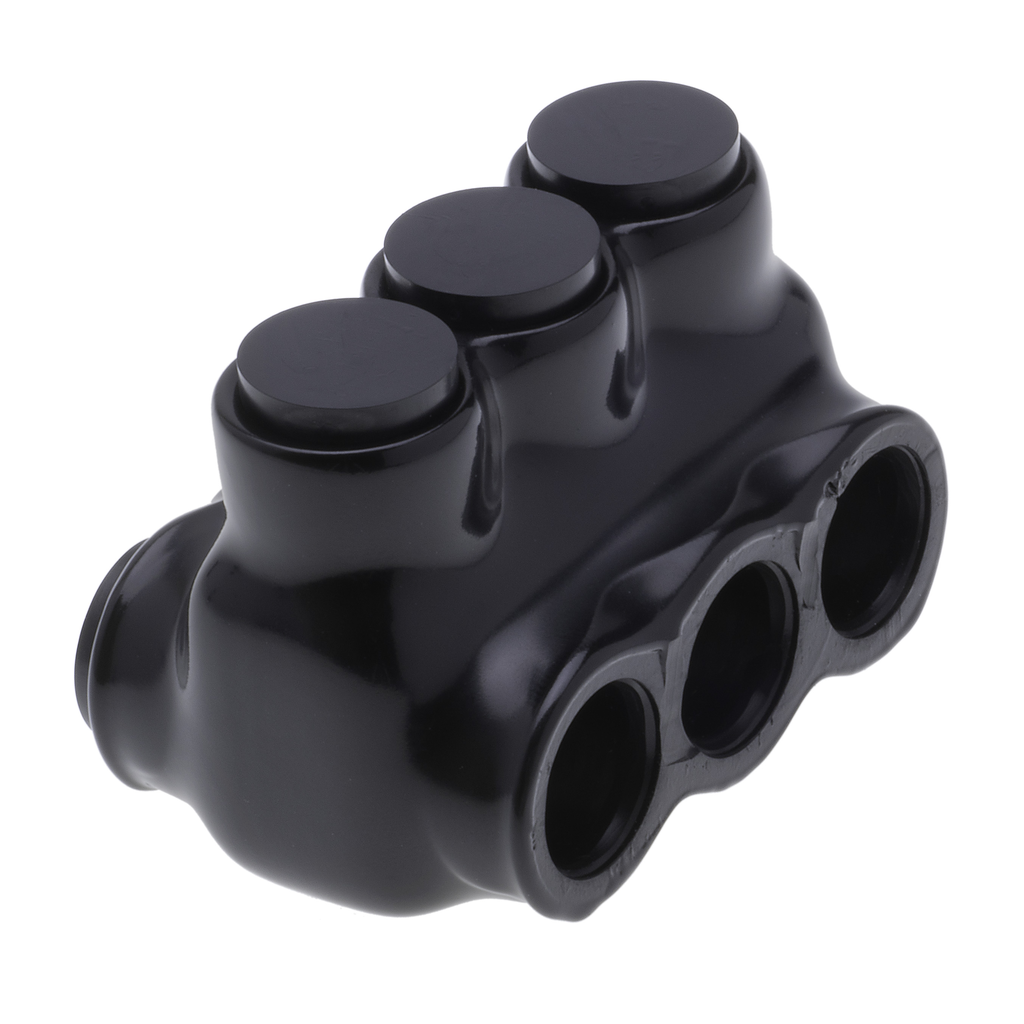

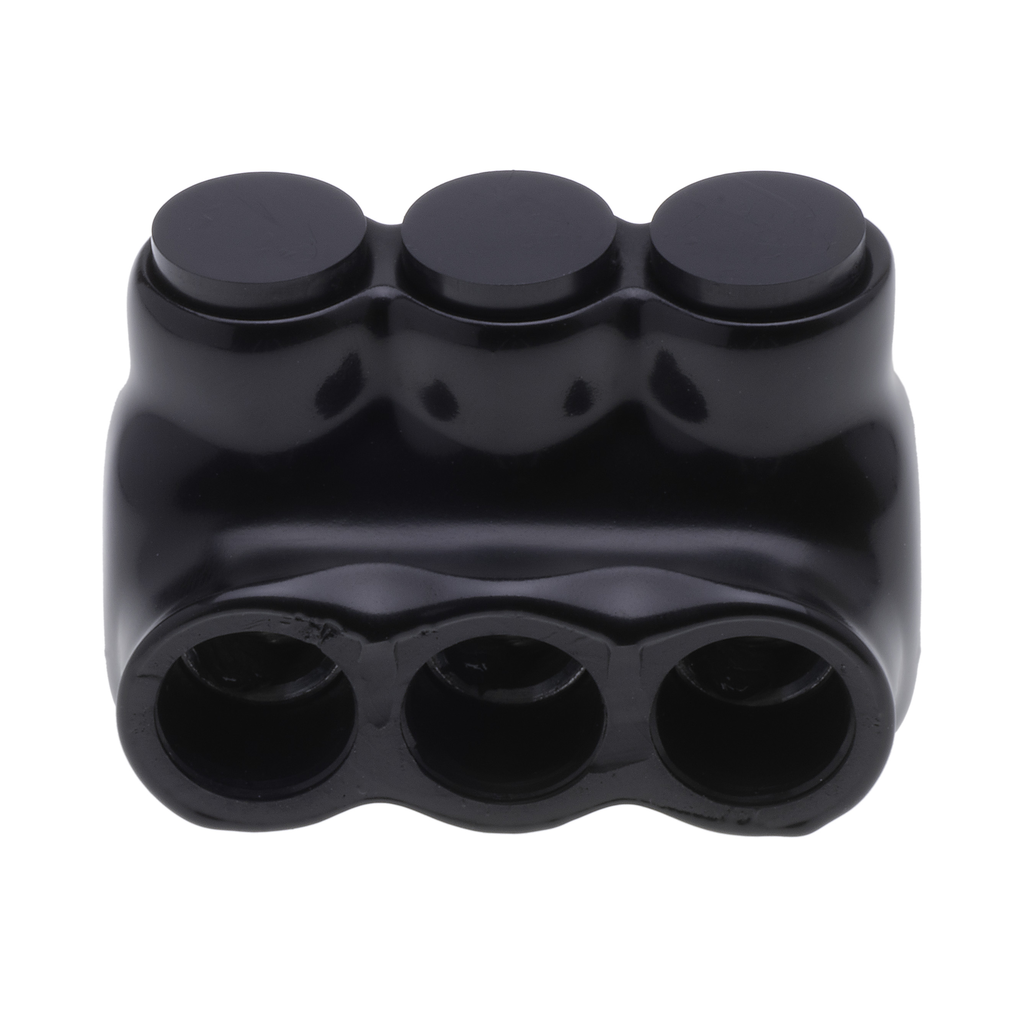

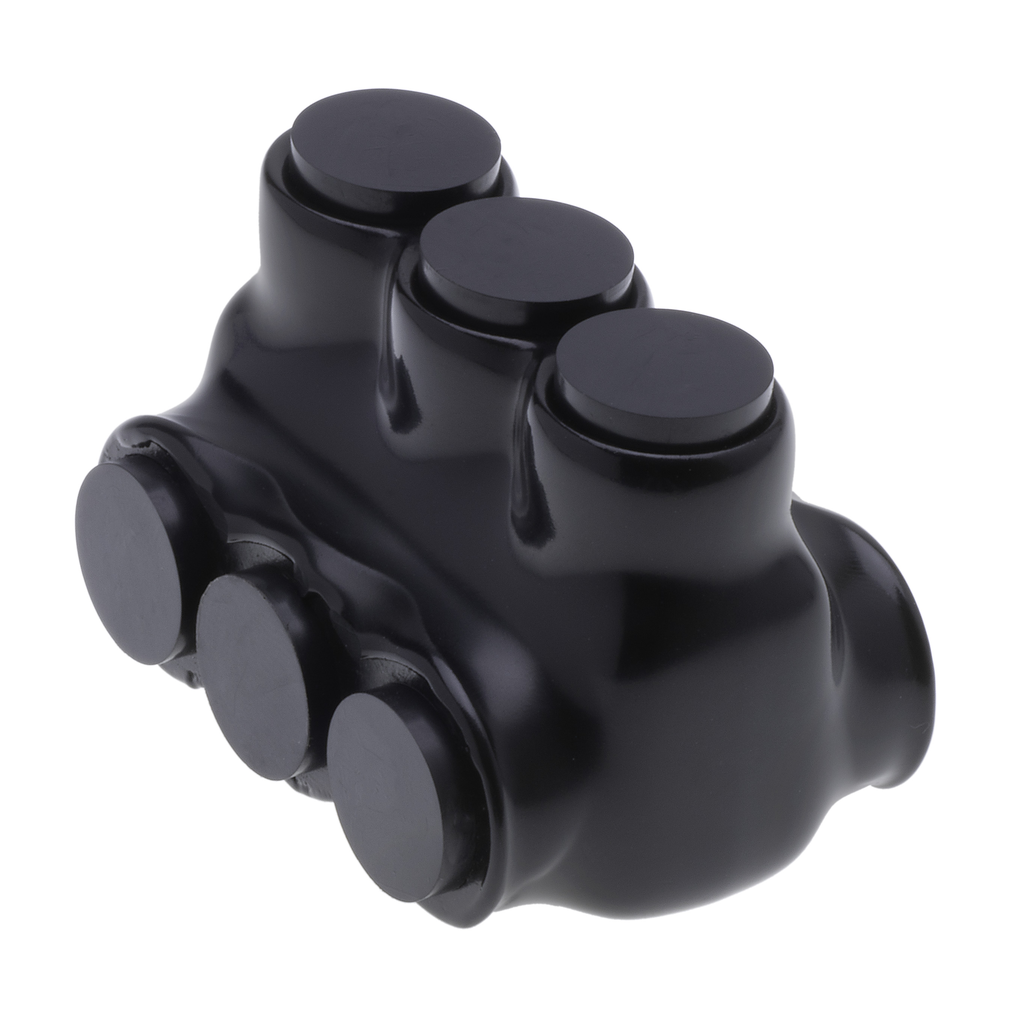

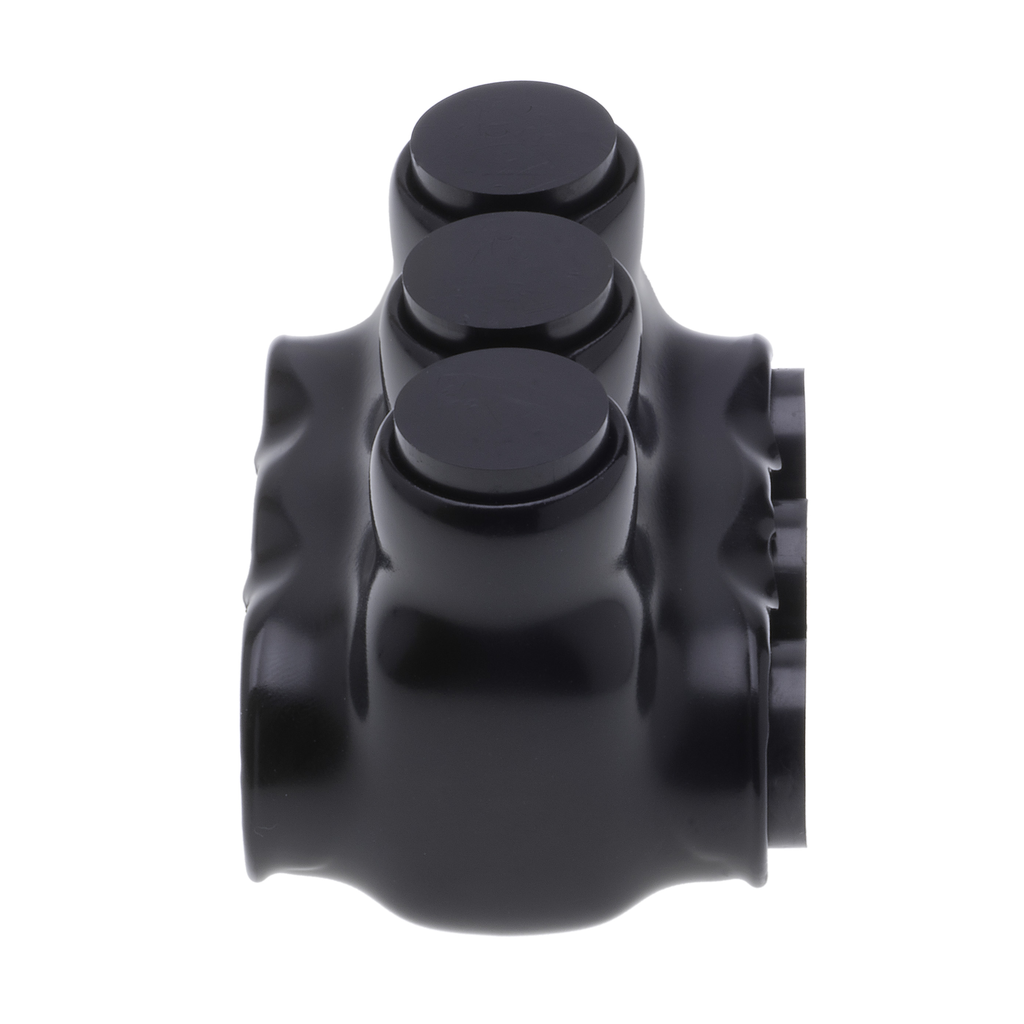

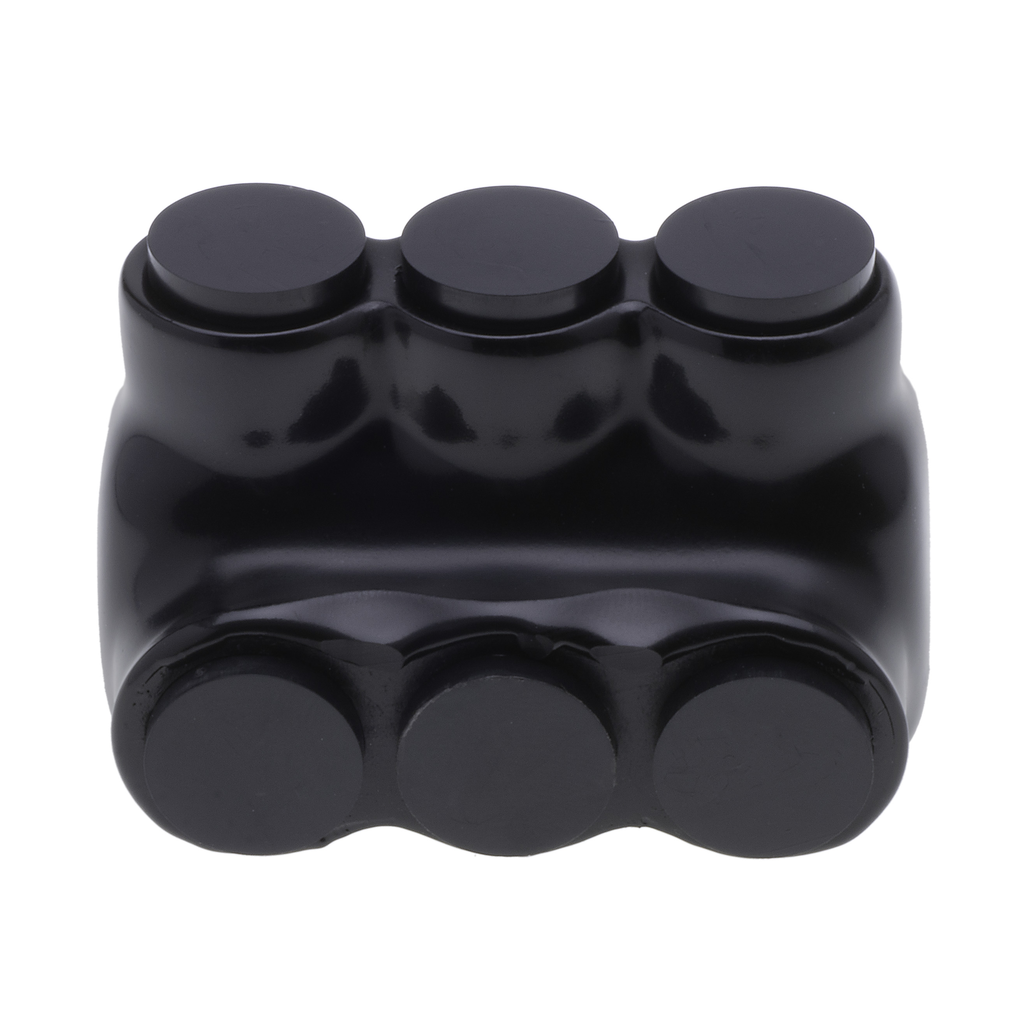

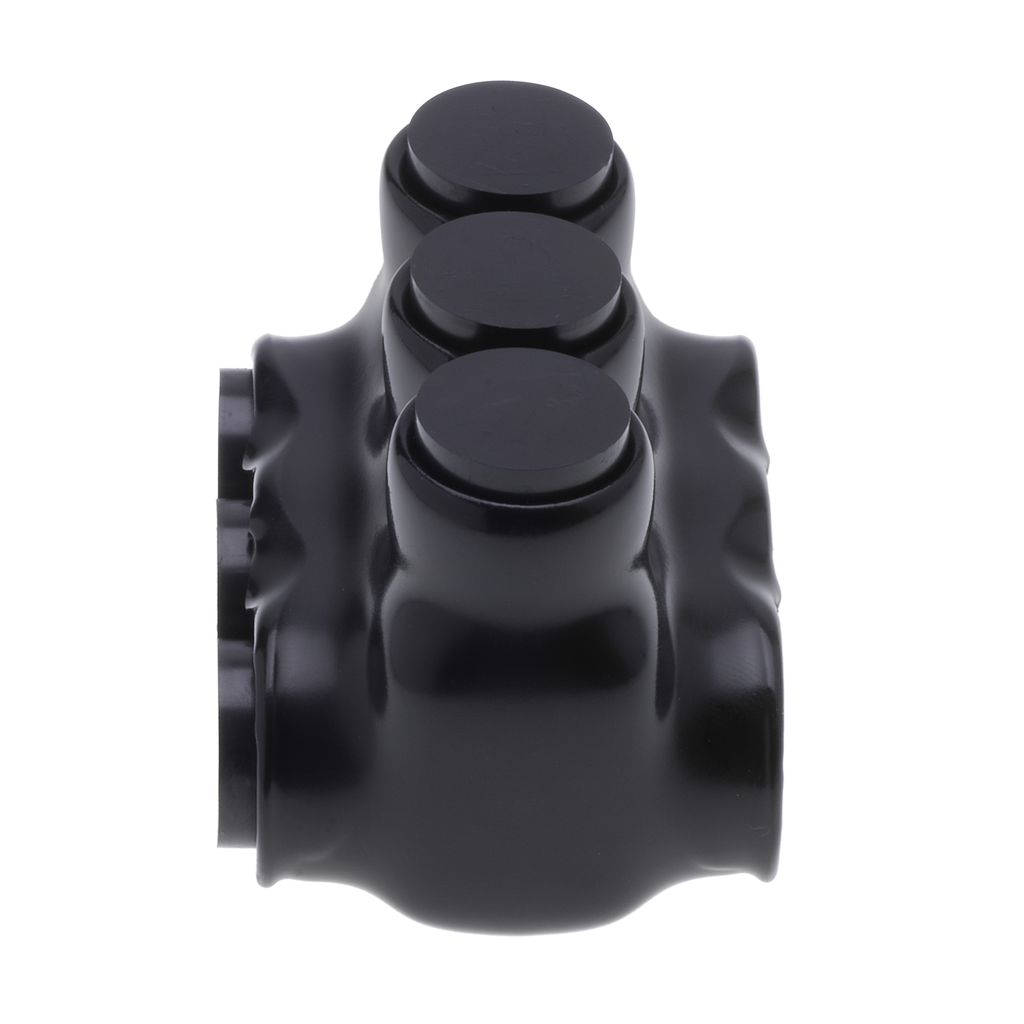

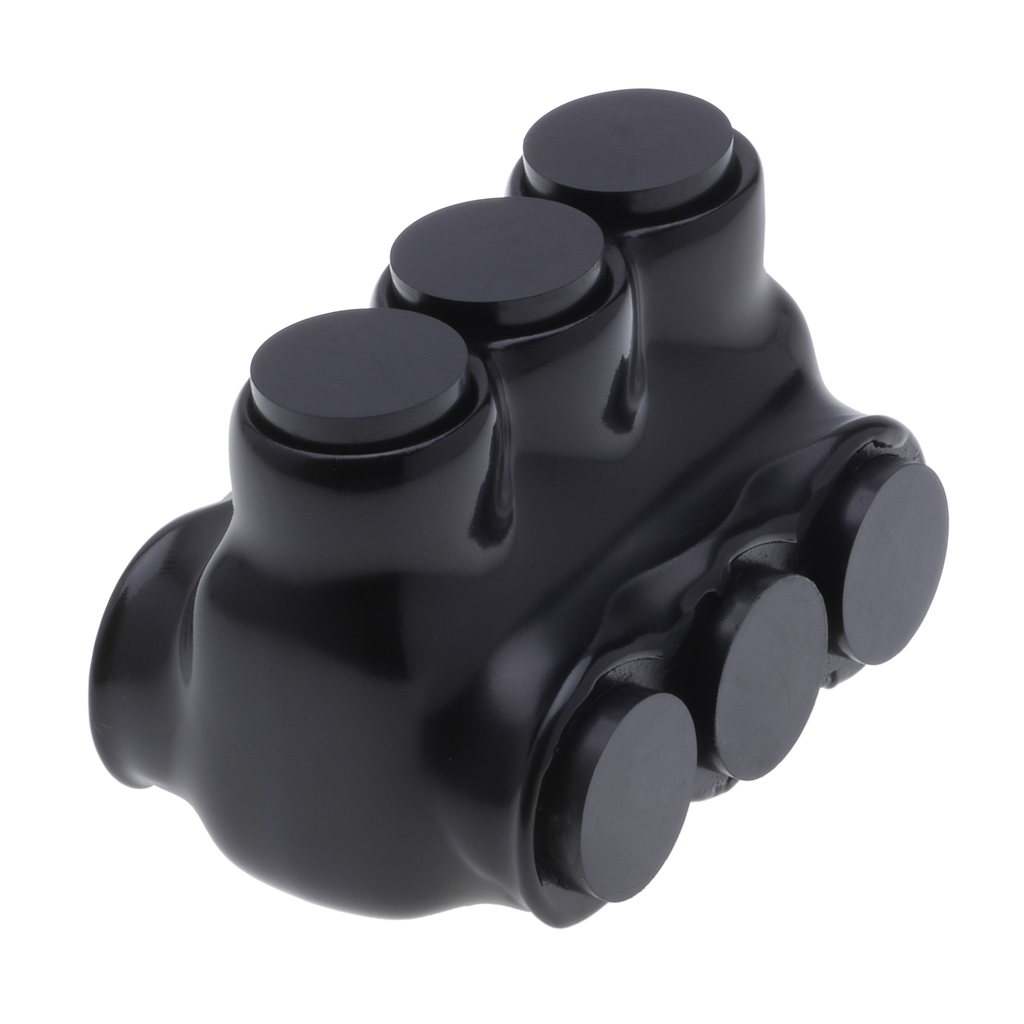

Polaris IPLD2/0-3 Pre-Insulated Connector 3-Port Dual-Side Entry 2/0-14 AWG 600V Black Plastisol
Specifications
Engineered for superior connectivity and performance, this 3-Port Black Multi-Tap Pre-Insulated Connector from Polaris is ideal for a variety of electrical applications, particularly on the line side of service equipment. It accommodates a wide range of conductor sizes, supporting both copper and aluminum cables from 2/0 AWG to 14 AWG, and is designed to meet strict industry standards, including UL 486A/B and NEC 230.46. The connector features dual-sided entry ports that facilitate easy and secure connections, while the pre-filled oxide inhibitor gel helps to prevent corrosion and minimize contact resistance. Its robust plastisol insulation not only enhances durability but also provides a smooth, comfortable grip. With a voltage rating of 600 V and an ergonomic design that includes rounded corners, this versatile connector is built to ensure reliable performance in cold temperatures down to -45°C, making it a solid choice for both industrial and commercial installations.
- UL 486A/B and NEC 230.46 compliant for safety assurance
- Supports copper and aluminum conductors from 2/0 AWG to 14 AWG
- Dual-sided entry ports for easy and secure connections
- Pre-filled oxide inhibitor gel prevents corrosion and reduces contact resistance
- Plastisol insulation with black UV coating for durability and corrosion resistance
- 600V voltage rating for safe electrical applications
- Ergonomic design with rounded corners for comfortable handling
- Cold temperature rated down to -45°C for reliable use in harsh environments
- Includes removable plugs to prevent debris ingress in unused ports
- Not suitable for fine-stranded, flexible cables as per specifications
- Voltage Rating: 600 V
- Aluminum Conductor Max AMP: 150 A
- Copper Conductor Max AMP: 195 A
- Temperature Rating: 90°C, AL9CU
- Length: 2.53 in
- Height: 1.77 in
- Width: 1.75 in
- Wire Size Range: 2/0 AWG - 14 AWG
- Ports: 3
- Max Torque Value: 120 in-lbs
- Hex Wrench Size: 16 mm
- Material: Aluminum, Plastisol insulation
- Finish: Plastisol Insulated, Black UV Coated
- Type: Dual-Side Entry
- Division: Electrical H1
- Sub-Division: Electrical-E H2
- Conductor Type: Copper, Aluminum
- Conductor Size Range - Aluminum: 2/0 AWG - 12 AWG
- Conductor Size Range - Copper: 2/0 AWG - 14 AWG
- Wire/Cable Class: Class B, Class C
- Environmental Temperature: Cold Rated to -45°C
- Pre-filled Oxide Inhibitor: All 3 dual-sided entry ports pre-filled with oxide inhibitor gel
- Removable Plugs: Each port includes a secure plug to prevent debris
- Compliance: cULus, UL 486A/B, UL File # E186991
- Application: Line Side Service per NEC 230.46
- Country of Origin: United States
- Product Series: IPLD
- Product Family: Connectivity
