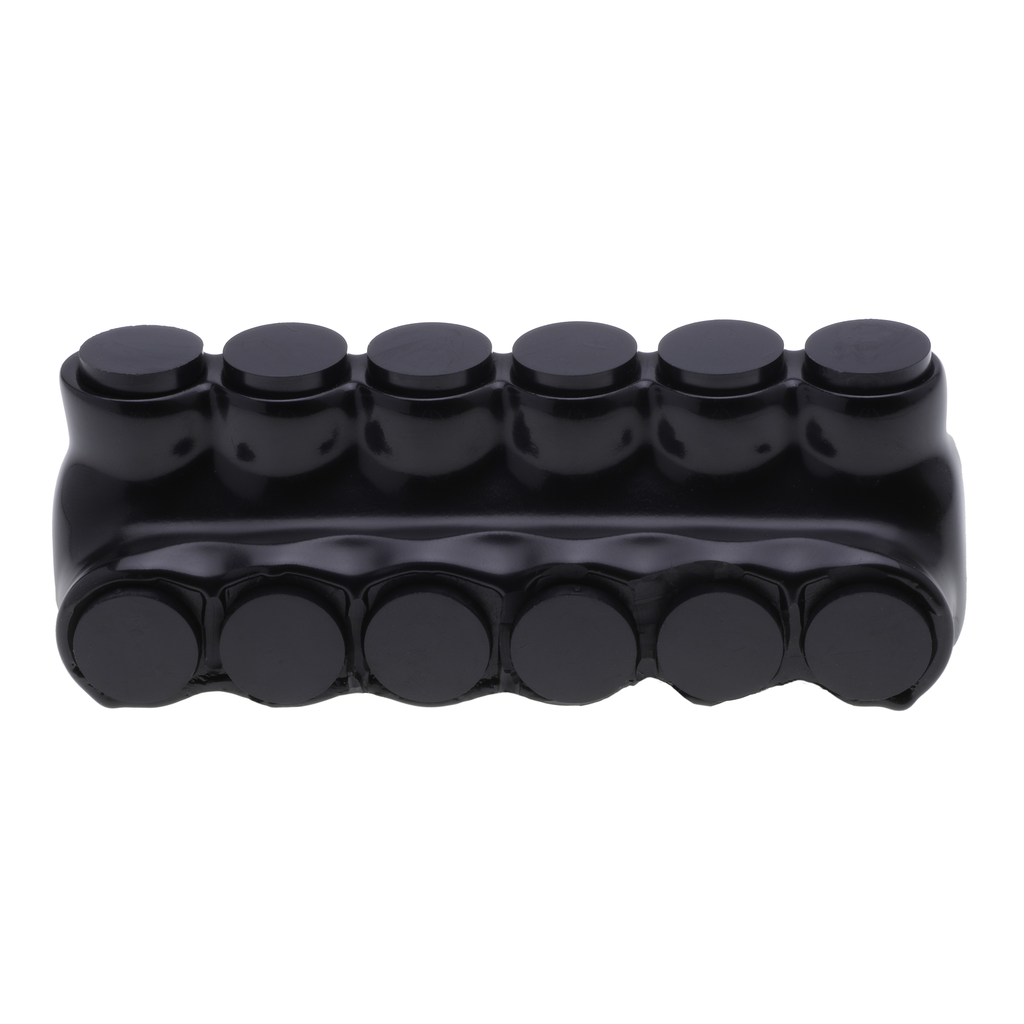

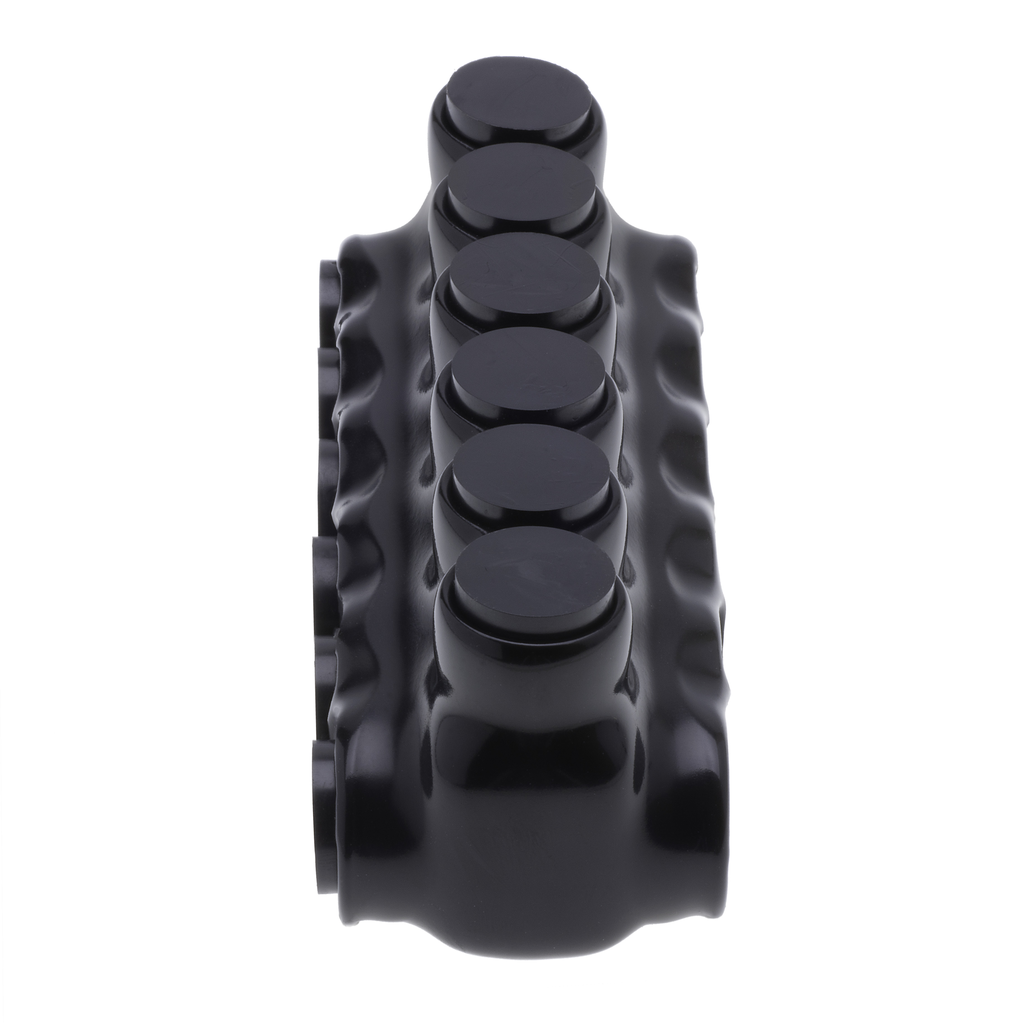

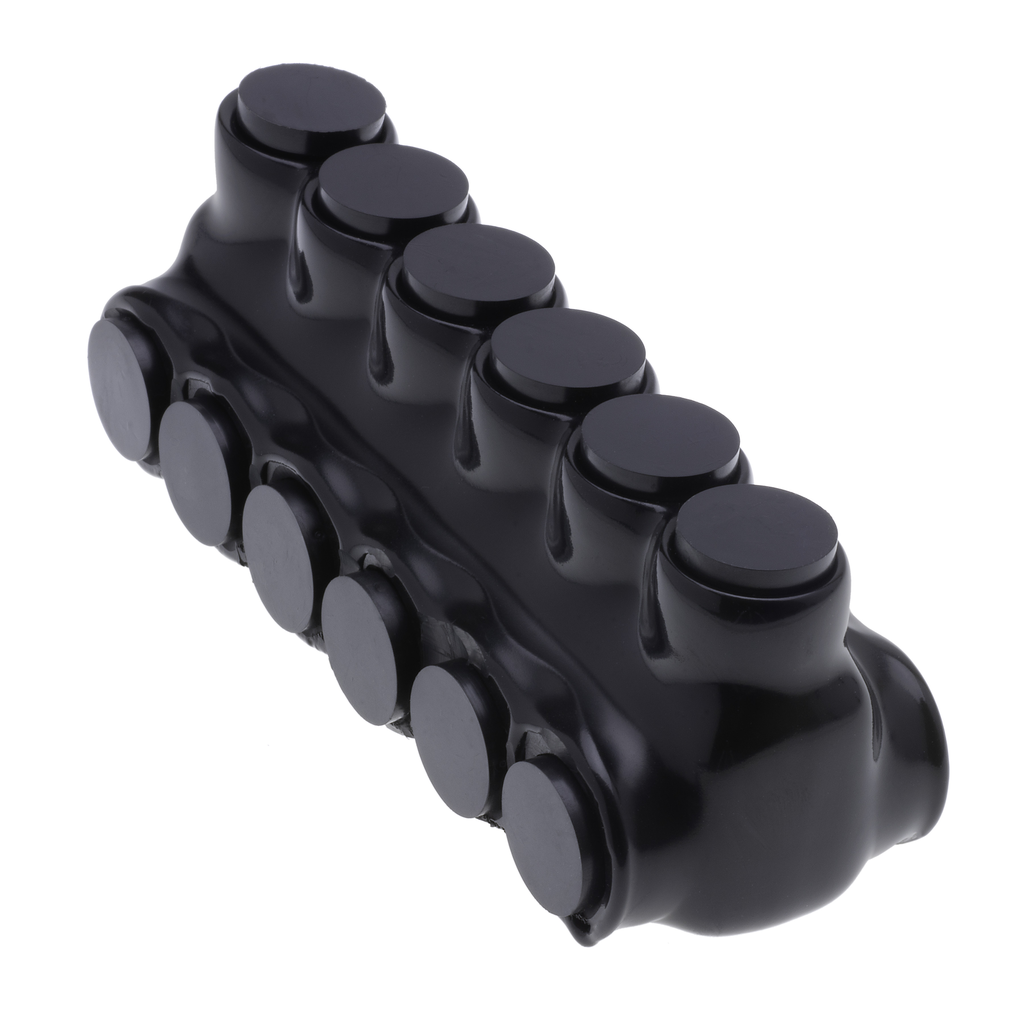

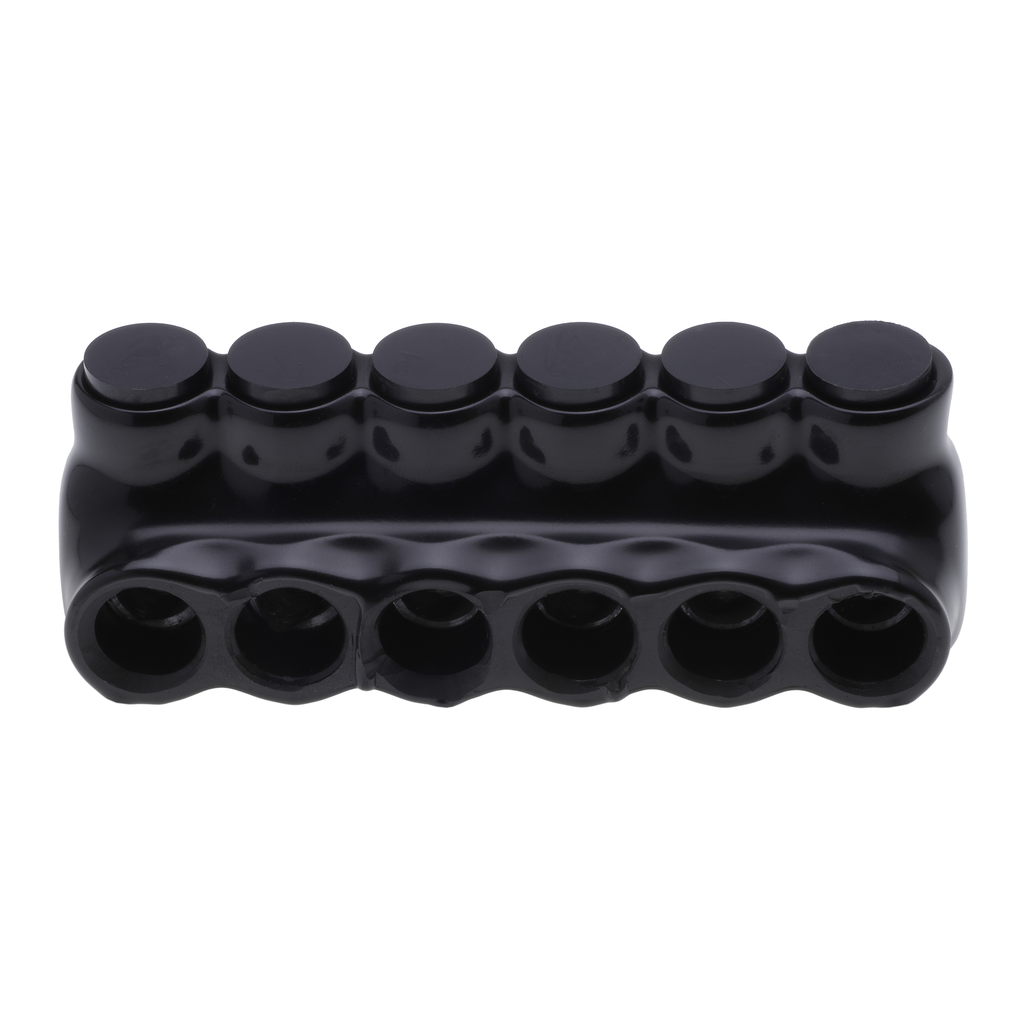

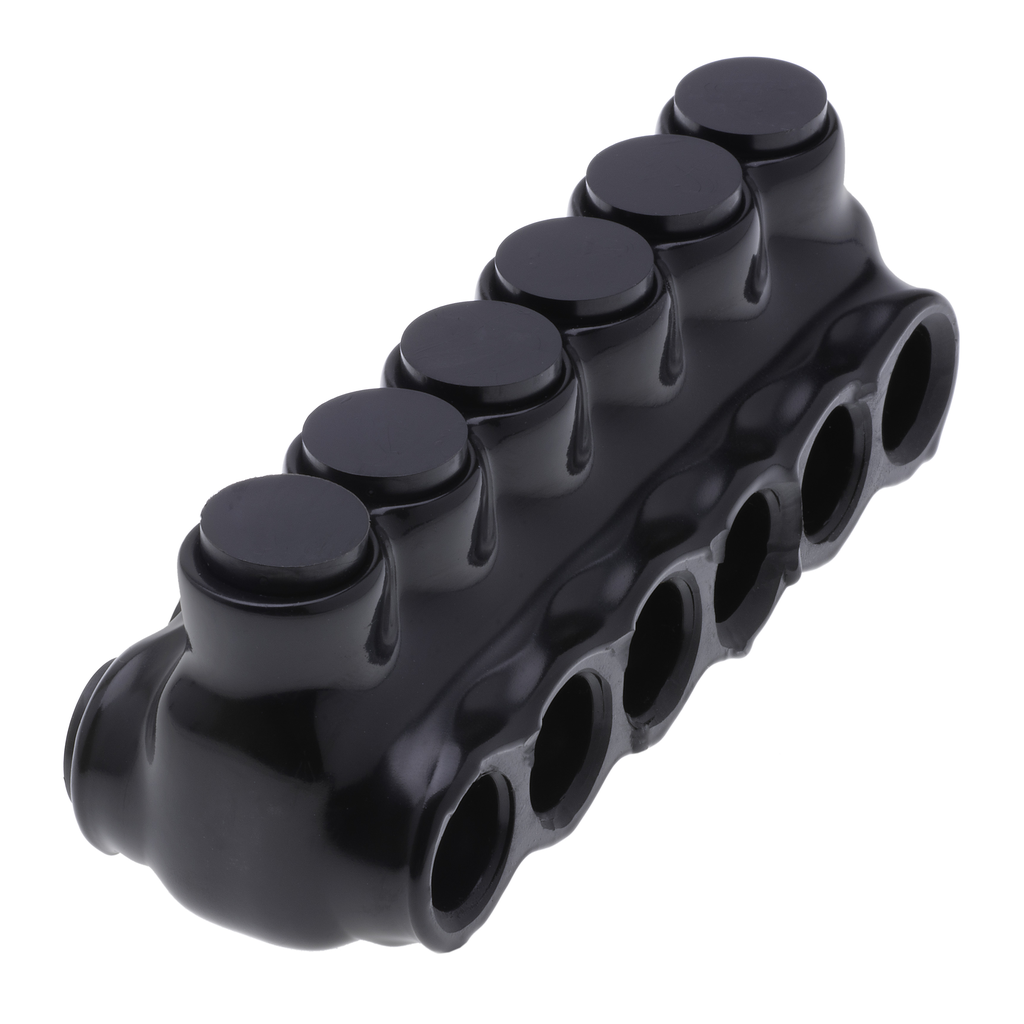

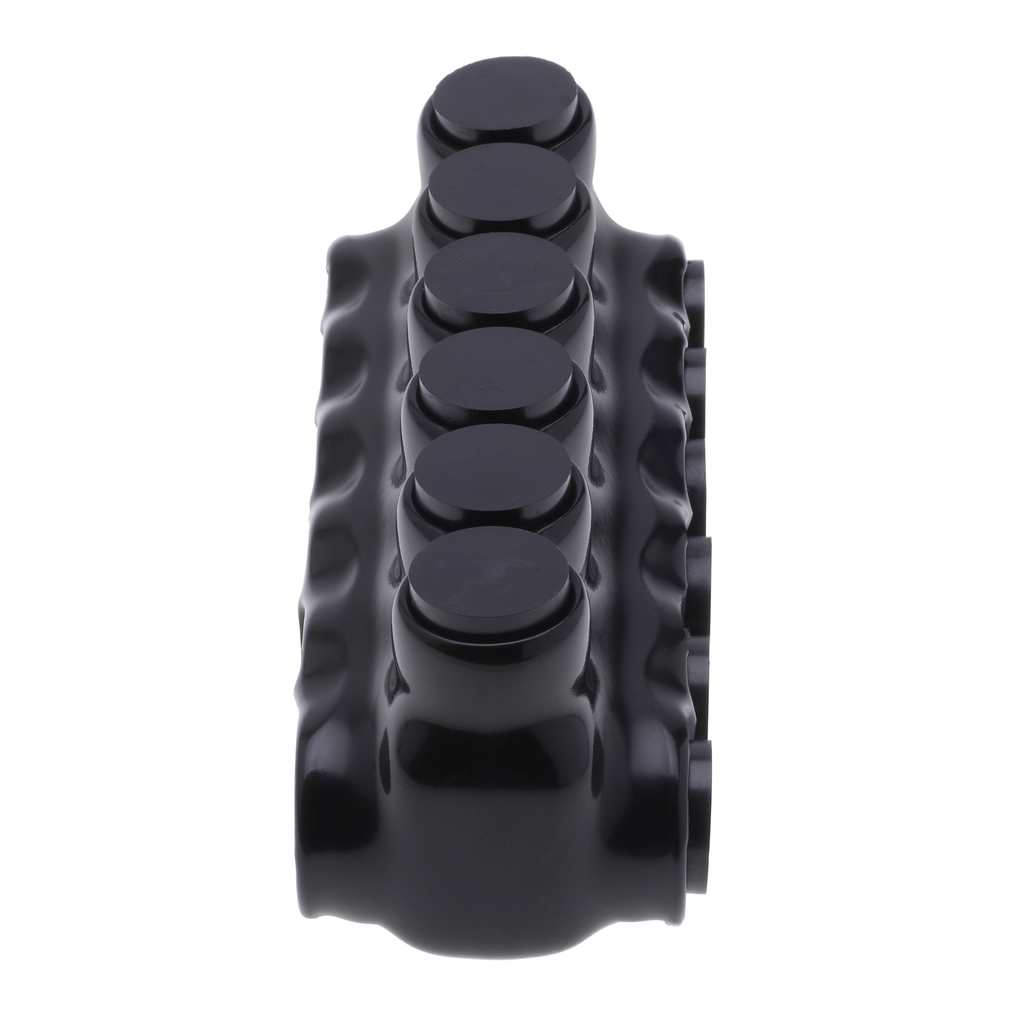

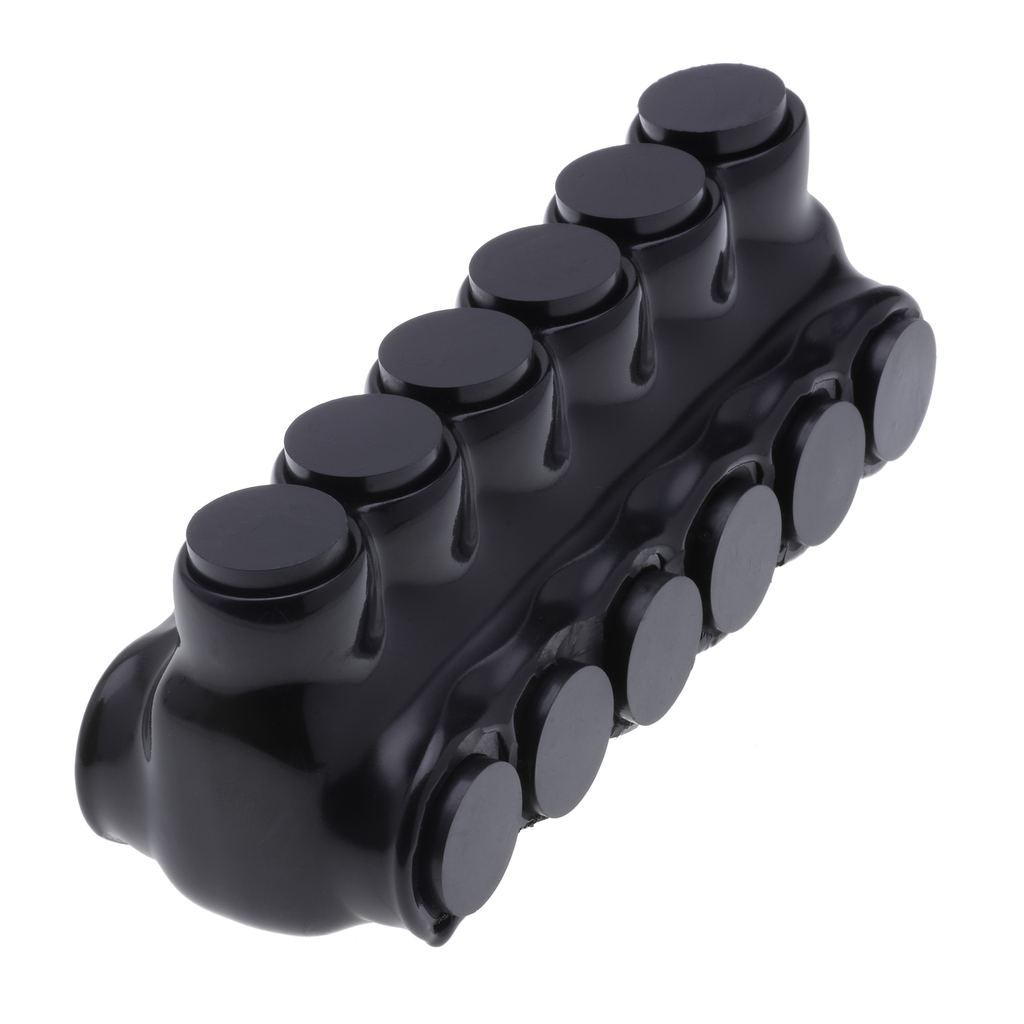

Polaris IPLD1/0-6 Multi-Tap Connector 6-Port Dual-Sided Entry 1/0 AWG-14 AWG 600V Black Plastisol Aluminum
Specifications
Constructed with versatility in mind, the 6-Port Black Multi-Tap Pre-Insulated Connector from Polaris is engineered to facilitate effective connections between multiple conductors. With its dual-sided wire entry design, this connector can accommodate a range of wire sizes from 1/0 AWG to 14 AWG, making it suitable for various applications including splicing and tapping. Each of the six ports is pre-filled with an oxide inhibitor gel, ensuring optimal connectivity by preventing corrosion and minimizing contact resistance. Compliance with UL 486A/B and cULus certifications demonstrates its reliability and safety for electrical installations. Additionally, the connector is designed to withstand rigorous environmental conditions, rated for temperatures as low as -45°C and capable of handling voltages up to 600 V. The polished plastisol insulation not only promotes a durable finish but also provides ergonomic comfort during installation. Whether for use in copper or aluminum applications, this pre-insulated connector is a robust choice, meeting the NEC requirements for line-side service connections.
- UL 486A/B and cULus certified for safety and reliability
- Meets NEC 230.46 requirements for line-side service connections
- Dual rated for use with copper and aluminum cables
- Dual-sided wire entry for versatile conductor connections
- Supports wire sizes from 1/0 AWG to 14 AWG
- Six pre-filled ports with oxide inhibitor gel prevent corrosion
- Rated for temperatures down to -45°C and voltages up to 600 V
- Polished plastisol insulation provides ergonomic comfort and durability
- Number of Ports: 6
- Voltage: 600 V
- Temperature Rating: 90C, AL9CU
- Max Torque: 80 in-lbs
- Aluminum Conductor Max AMP: 135 A
- Copper Conductor Max AMP: 170 A
- Wire Size Range: 1/0 AWG - 14 AWG
- Length: 4.28 in
- Height: 1.74 in
- Width: 1.74 in
- Type: Dual-Side Entry
- Material: Aluminum, Plastisol Insulated
- Finish: Plastisol Insulated
- Compliance: UL 486A/B, cULus, UL File # E186991
- Standard: NEC 230.46 Suitable for Line Side of Service
- Color: Black
- Country of Origin: United States
- Product Series: IPLD
