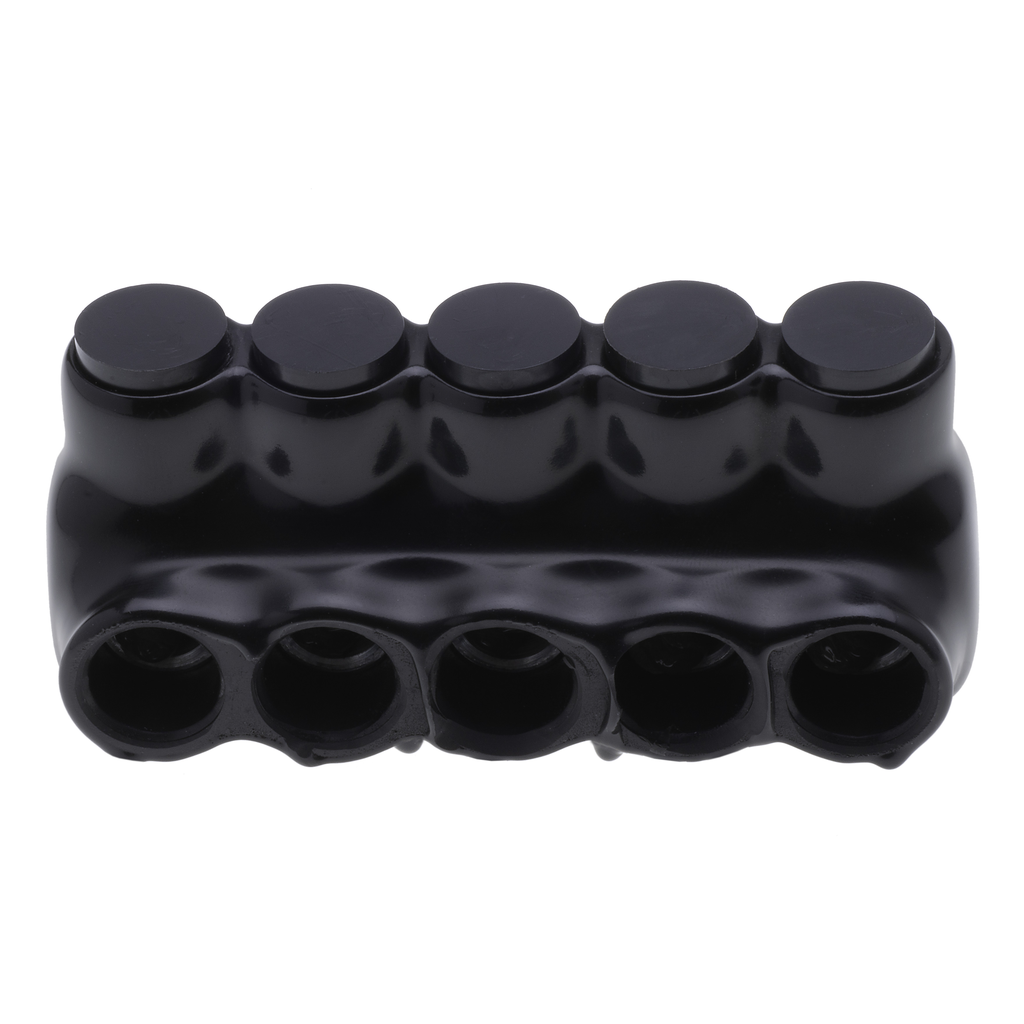

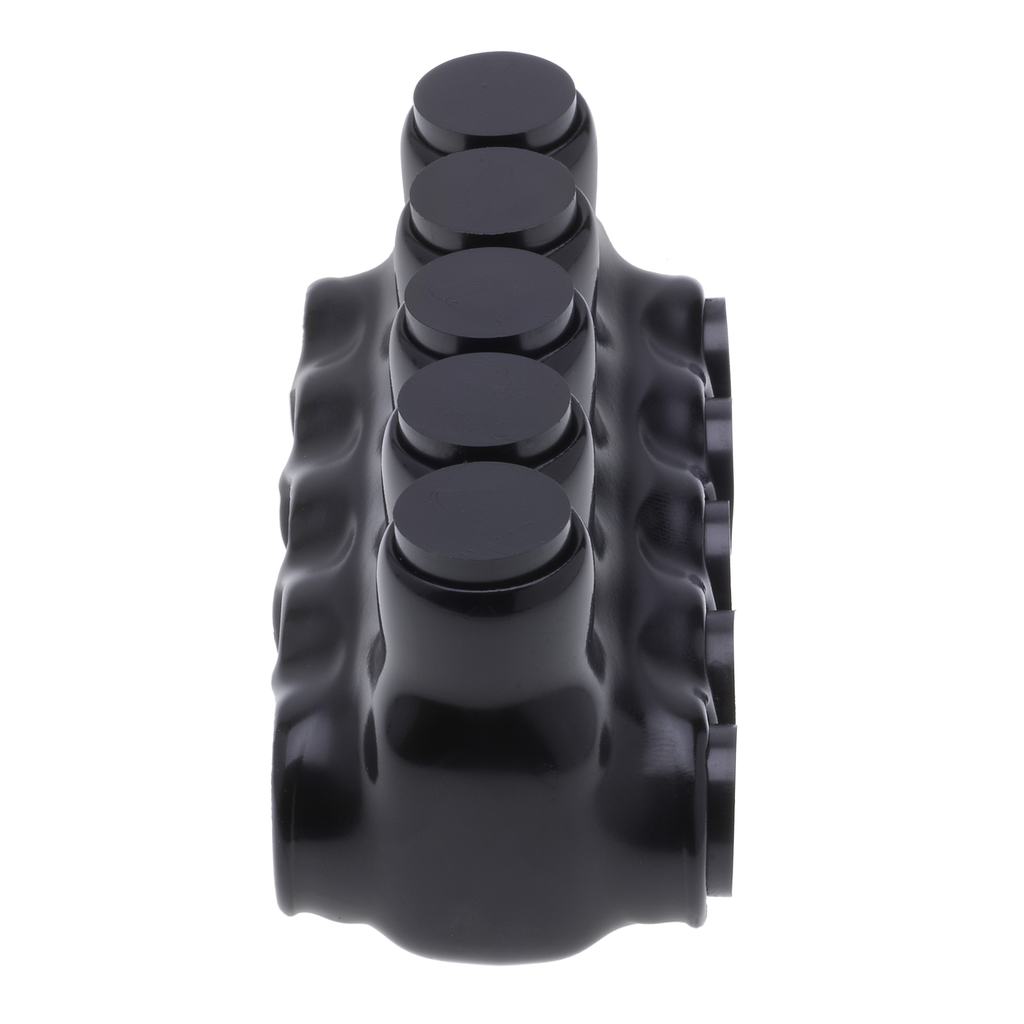

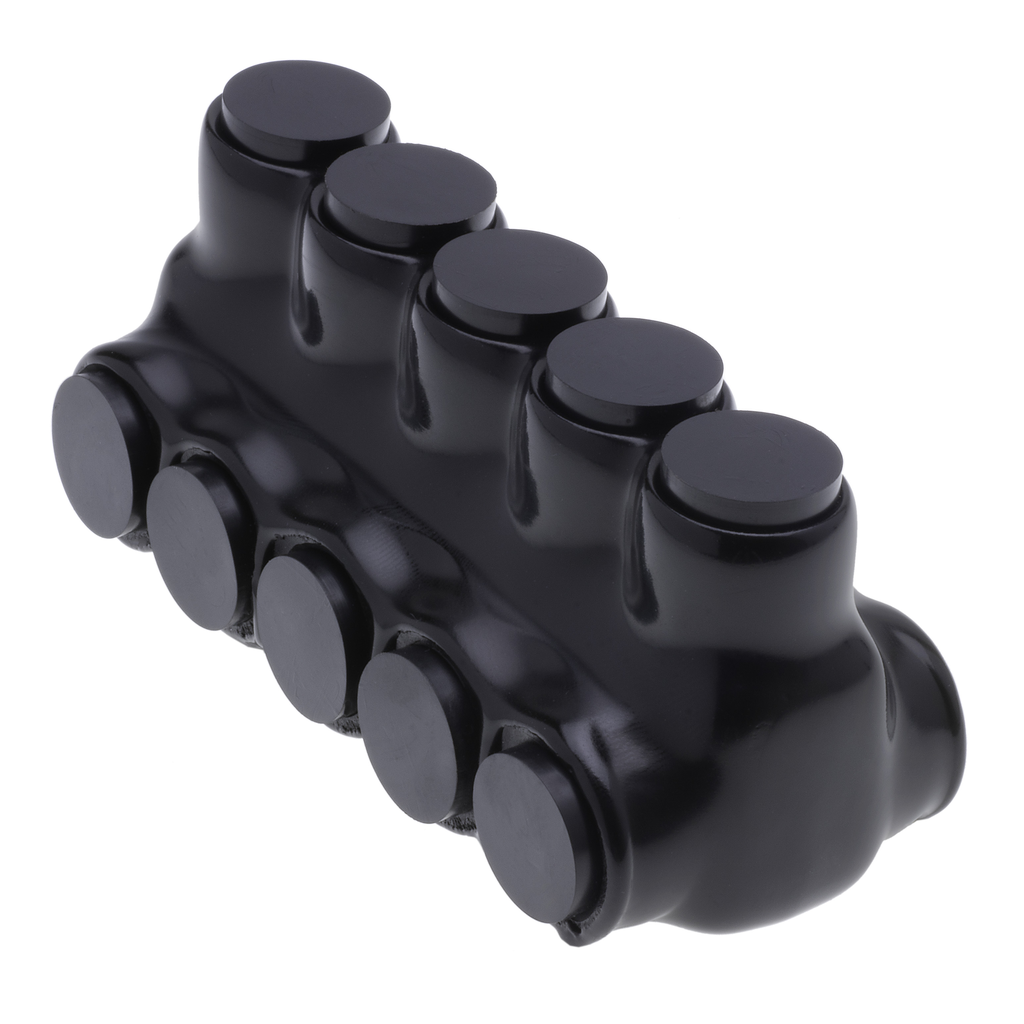

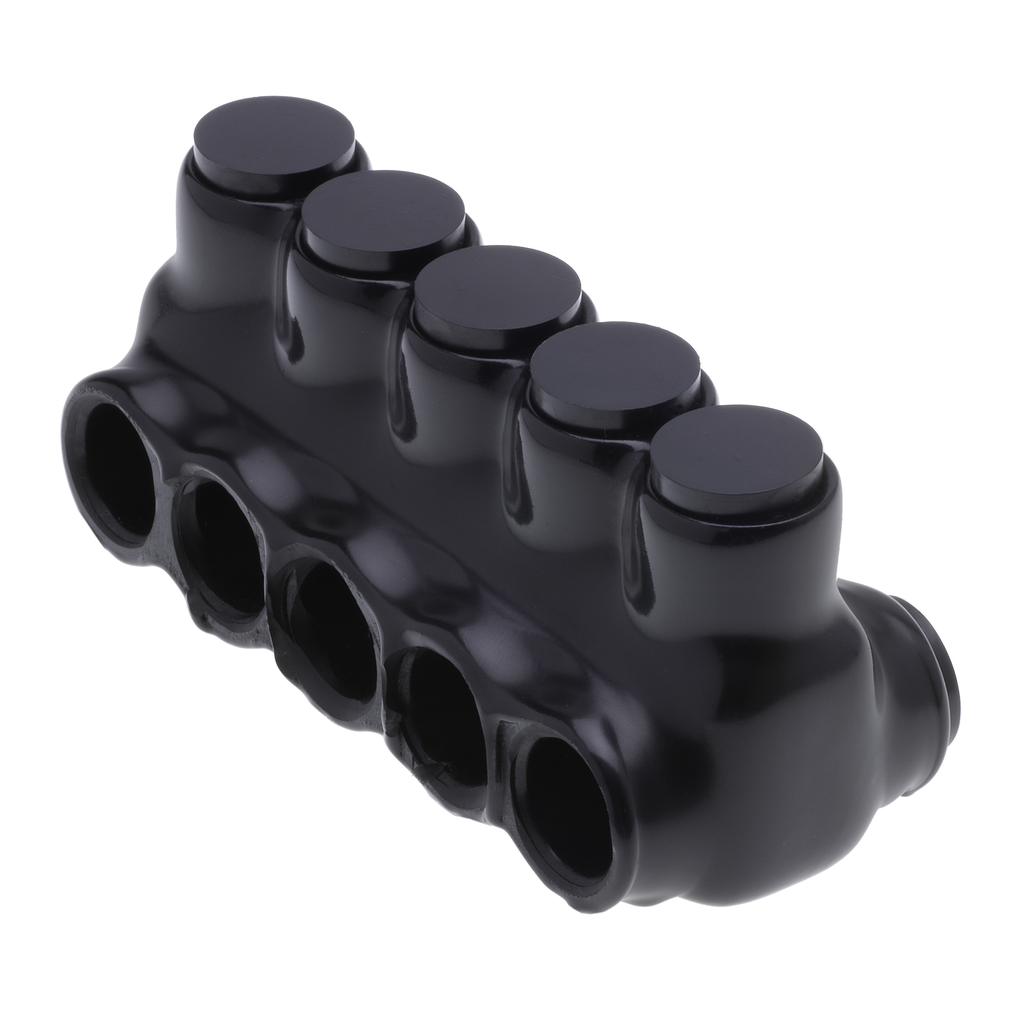

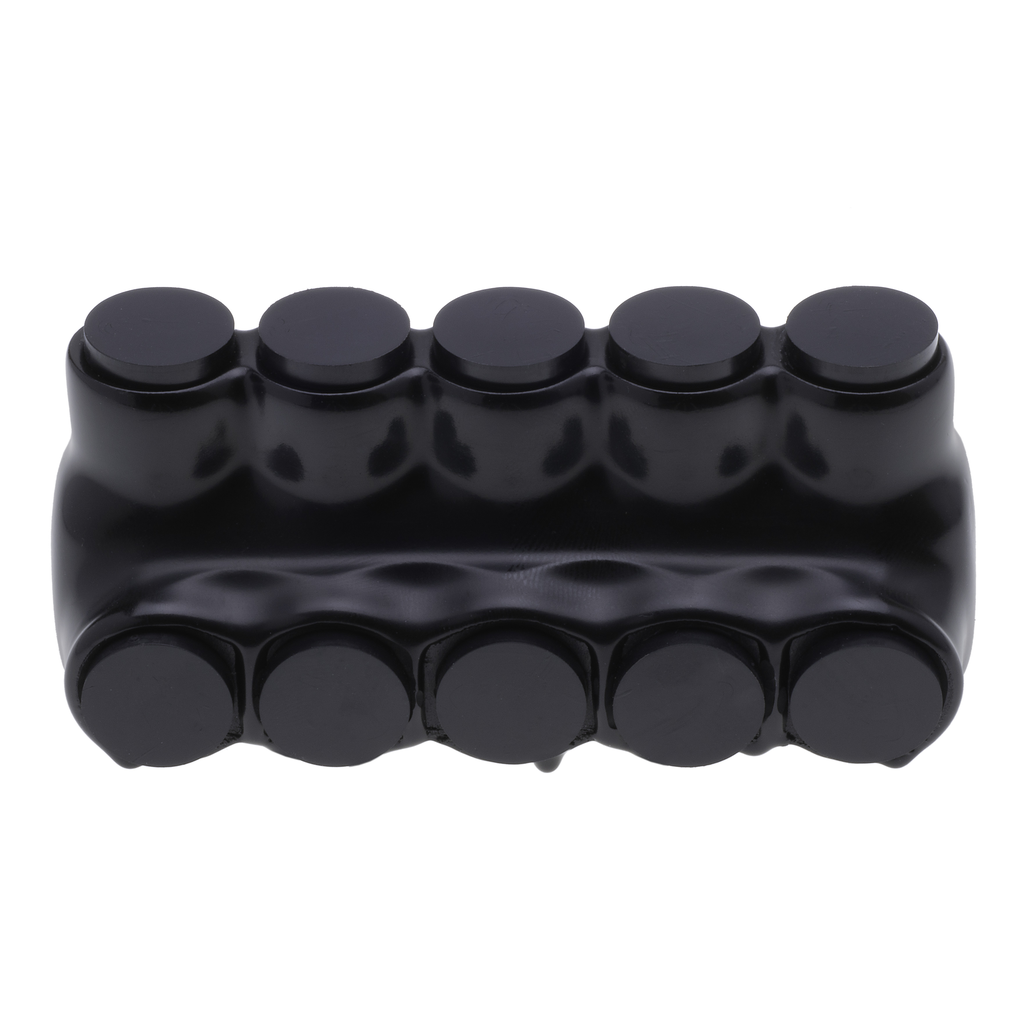

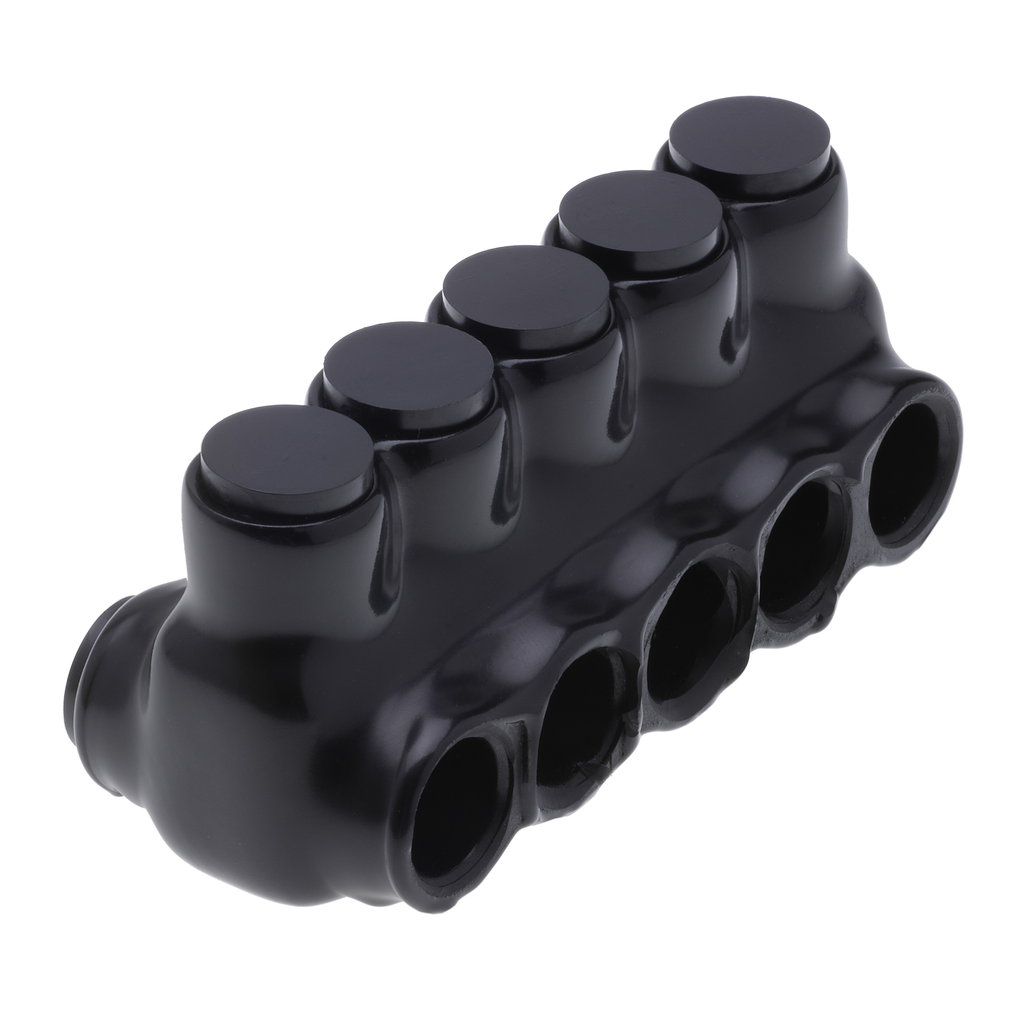

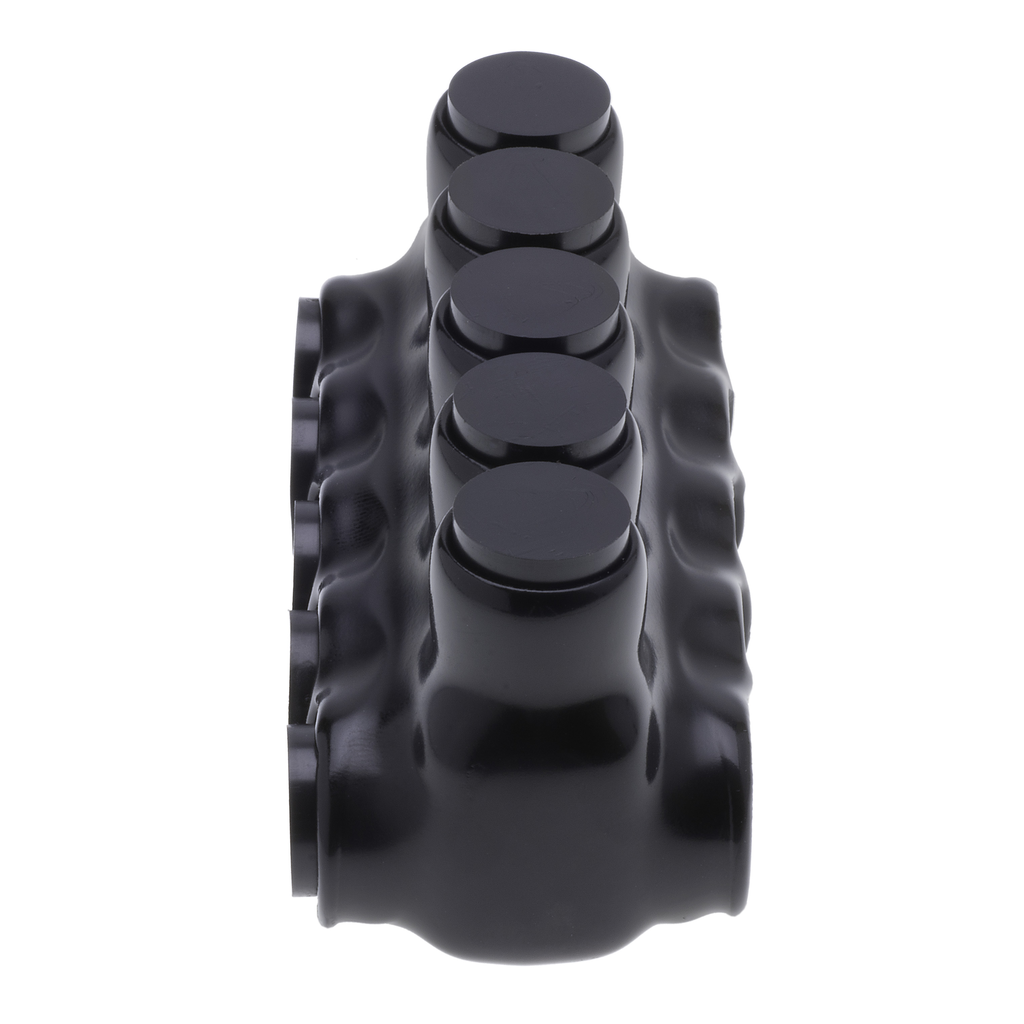

Polaris IPLD1/0-5 Multi-Tap Connector 5-Port Dual-Side Entry 600V Aluminum Black Plastisol
Specifications
The 5-Port Black Multi-Tap Pre-Insulated Connector from Polaris is engineered for efficiency and reliability in electrical applications, facilitating secure connections between up to five conductors ranging from 1/0 AWG to 14 AWG. This device is dual-rated for use with both copper and aluminum cables, meeting rigorous industry standards including cULus and UL 486A/B, making it suitable for the line side of service equipment as outlined in NEC 230.46. Its ergonomic design, featuring rounded corners and a smooth finish over durable plastisol insulation, ensures ease of handling while maximizing safety with pre-filled oxide inhibitor gel that combats corrosion and minimizes contact resistance. Designed for versatility, this connector thrives in a variety of field applications, supporting splicing and tapping tasks. Each port is equipped with removable plugs to keep the interior free from debris, enhancing longevity and performance under challenging conditions. With a robust voltage rating of 600 V and cold temperature resilience down to -45°C, this product is a practical solution for demanding electrical environments, ensuring dependable connectivity and efficient energy distribution.
- Meets cULus and UL 486A/B safety standards
- Suitable for line side of service equipment per NEC 230.46
- Dual rated for copper and aluminum cables
- Pre-filled oxide inhibitor gel prevents corrosion and reduces contact resistance
- Supports splicing and tapping with five secure conductor ports
- Removable plugs protect ports from debris and extend connector longevity
- Ergonomic design with rounded corners and smooth plastisol finish for ease of handling
- 600V voltage rating for reliable electrical distribution
- Cold temperature resilience down to -45°C for dependable performance
- Voltage Rating: 600 V
- Aluminum Conductor Max Ampacity: 135 A
- Copper Conductor Max Ampacity: 170 A
- Temperature Rating: 90°C, AL9CU
- Environmental Temperature: Rated to -45°C (cold)
- Number of Ports: 5
- Wire Size Range: 1/0 AWG - 14 AWG
- Length: 3.63 in
- Width: 1.74 in
- Height: 1.74 in
- Wire/Cable Class: Class B, Class C
- Material: Aluminum with Plastisol Insulation
- Finish: Plastisol Insulated
- Conductor Type: Copper, Aluminum
- Max Torque Value: 80 in-lbs
- UL File Number: E186991
- Compliance: cULus, UL 486A/B
- Country of Origin: United States
- Product Series: IPLD
- Product Family: Connectivity
