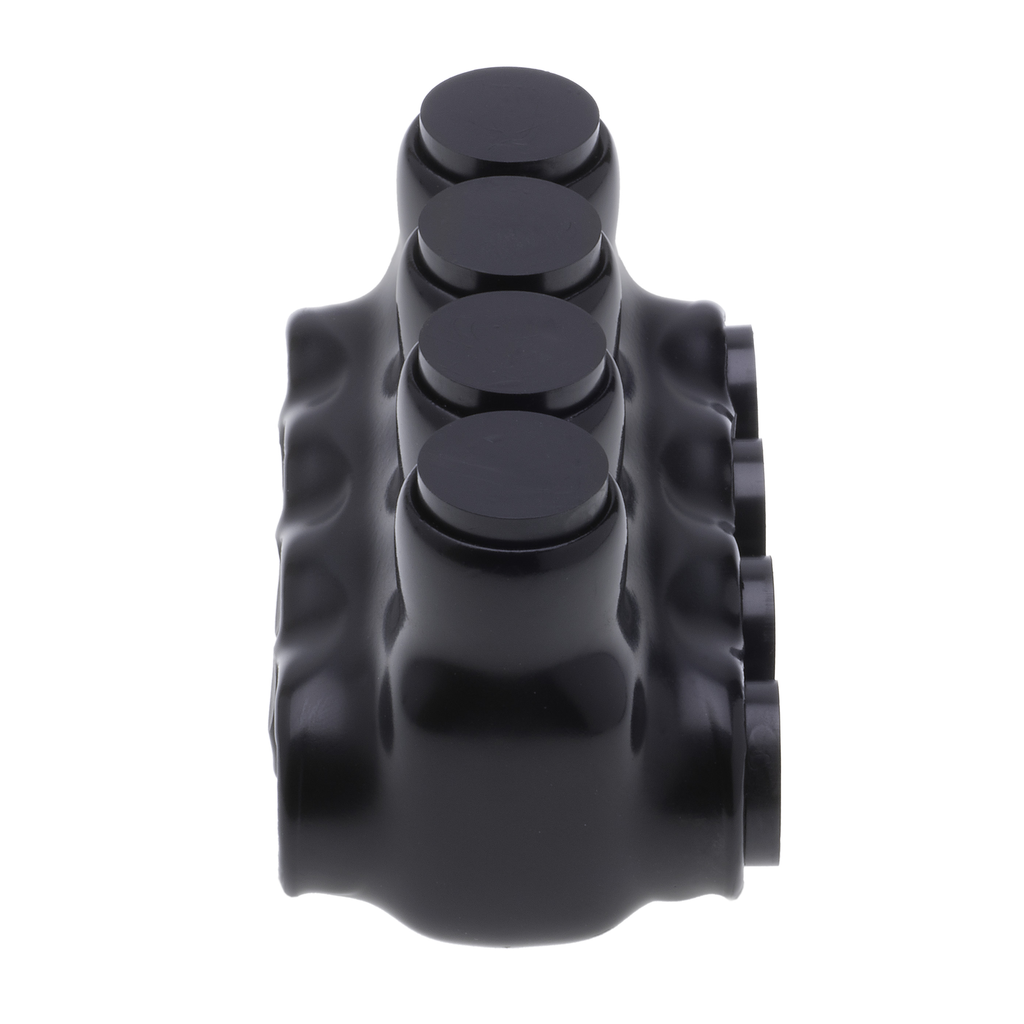

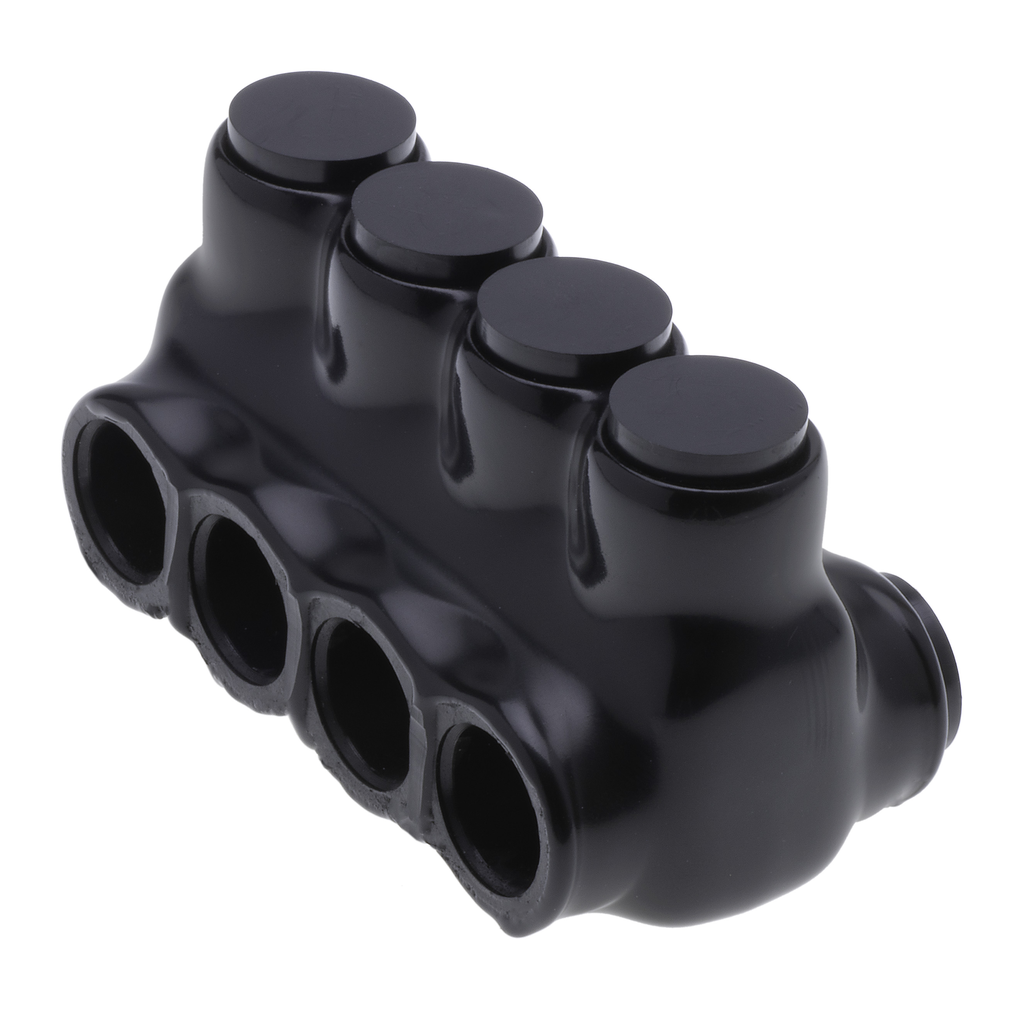

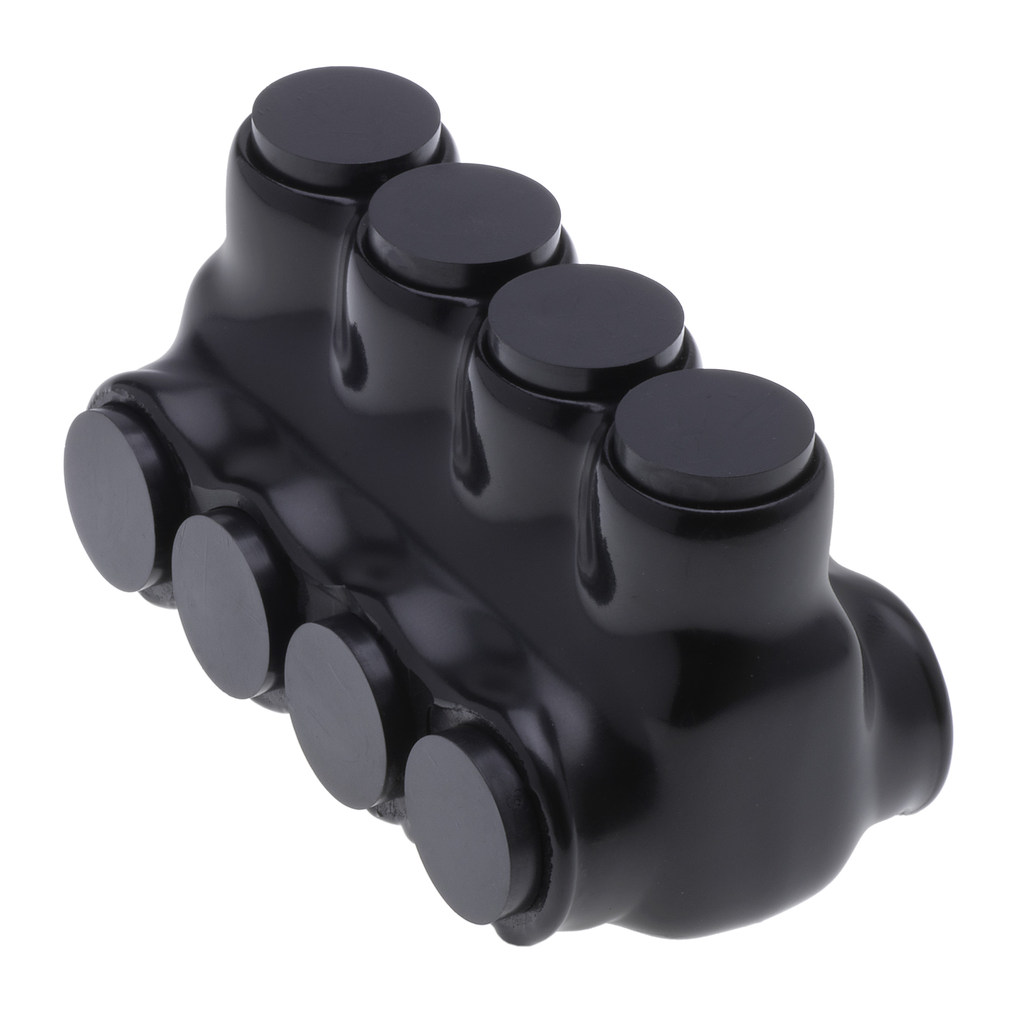

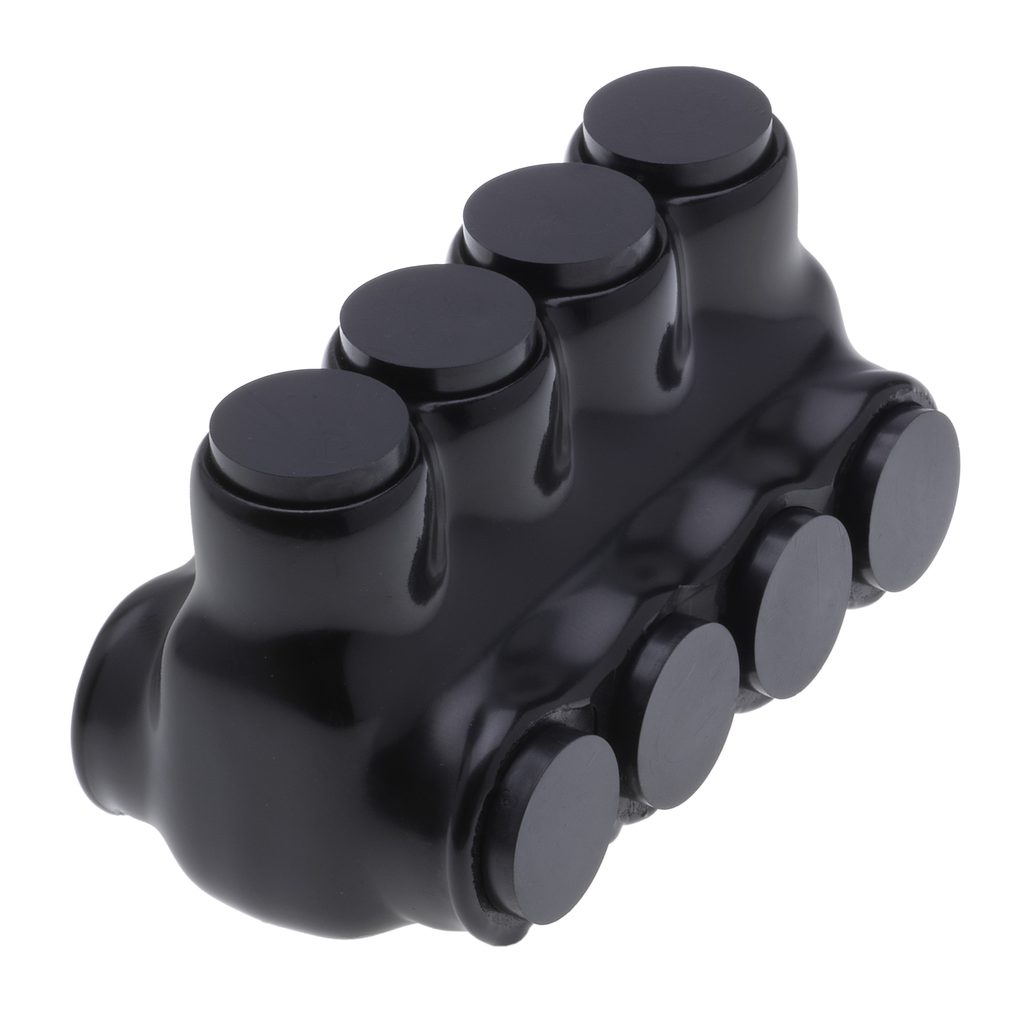

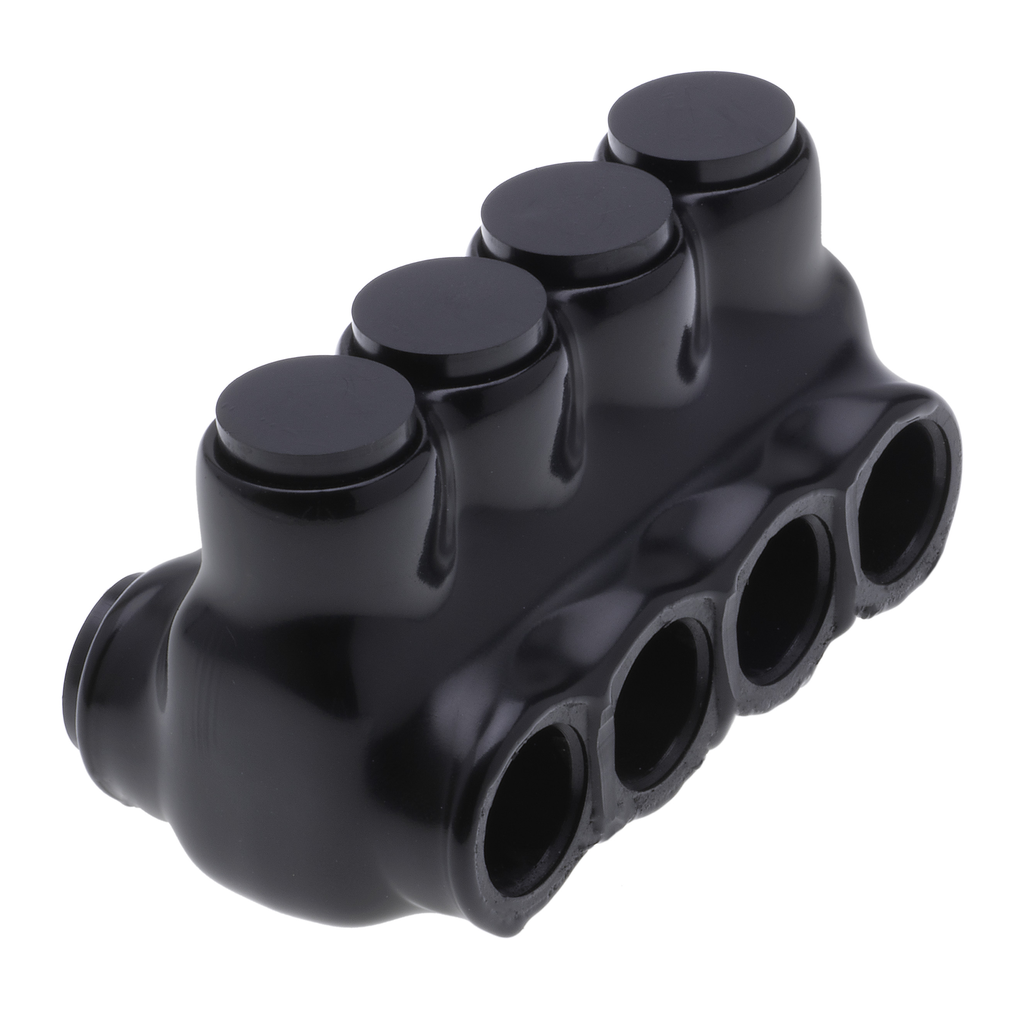

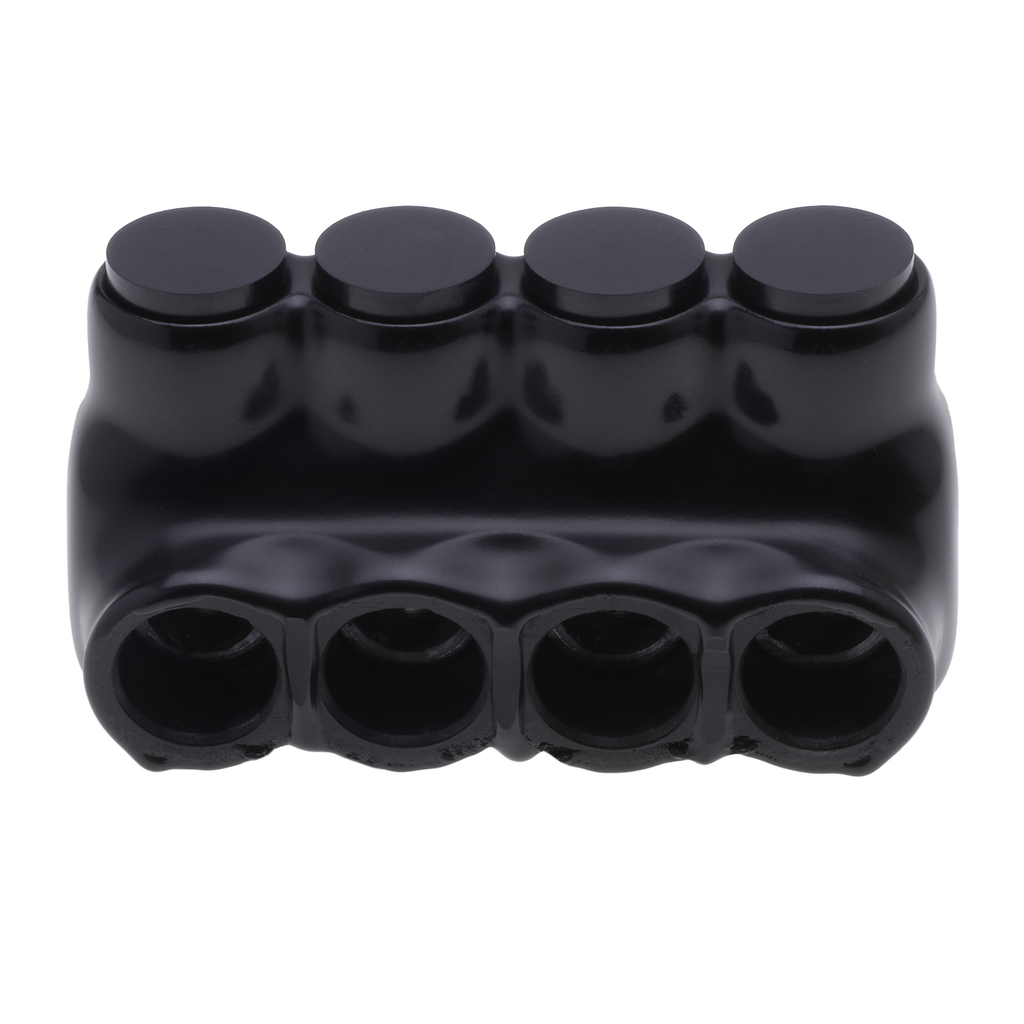

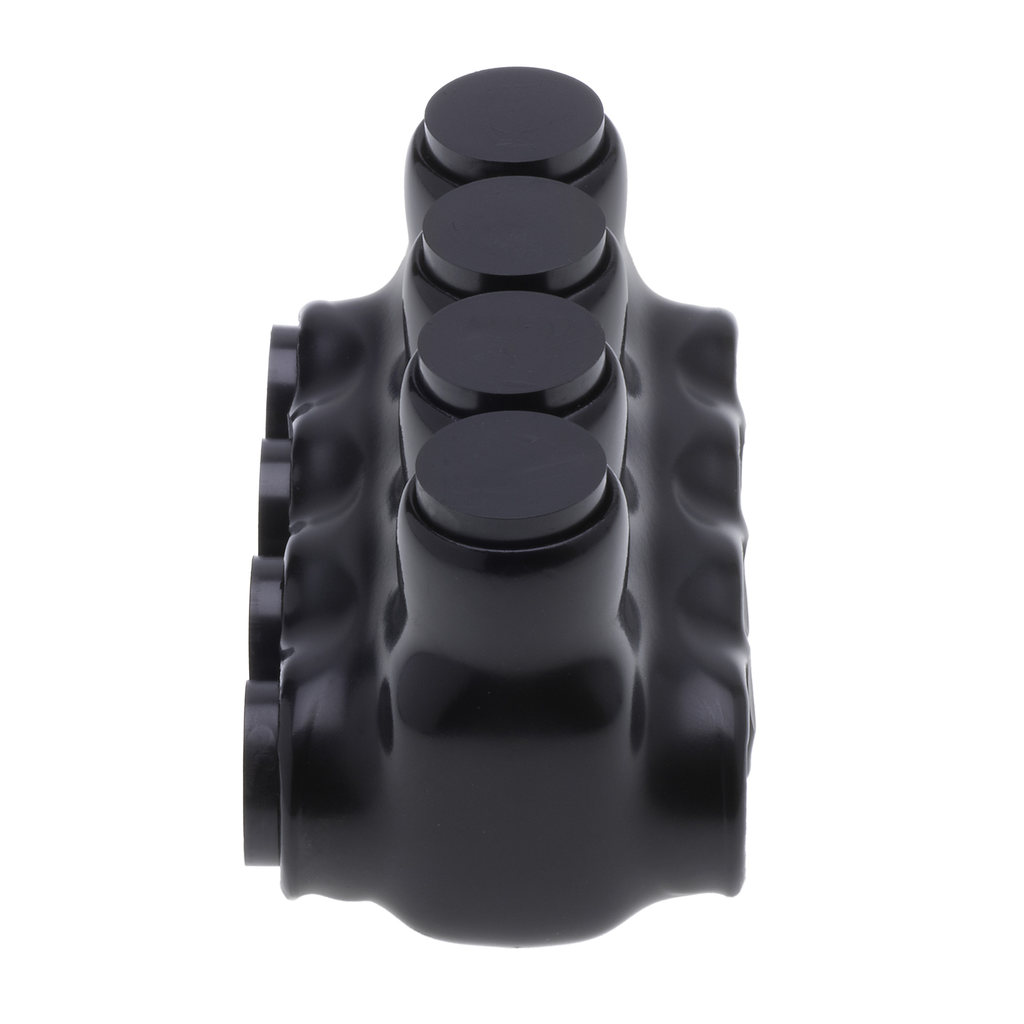

Polaris IPLD1/0-4 Pre-Insulated Connector 4-Port Dual-Side Entry 1/0-14 AWG 600V Black Aluminum Plastisol
Specifications
The Polaris 4-Port Black Multi-Tap Pre-Insulated Connector is designed to ensure secure and reliable connections for both copper and aluminum cables, accommodating wire sizes from 1/0 AWG to 14 AWG. This dual-sided entry connector is equipped with pre-filled oxide inhibitor gel in all ports, preventing corrosion and ensuring low-contact resistance. With a voltage rating of 600 V and a maximum torque value of 80 IN/LBS, it meets strict safety standards as outlined in UL 486A/B and is suitable for line-side service applications in compliance with NEC regulations. The ergonomic design promotes ease of handling, while the durable plastisol insulation protects against abrasion, making it a robust choice for electrical connectivity in various environments.
- Meets UL 486A/B and NEC 230.46 safety standards
- Dual rated for use with copper and aluminum cables
- Pre-filled oxide inhibitor gel prevents corrosion and low-contact resistance
- 600 V rating suitable for line-side applications
- Pre-insulated design for faster, safer installation
- Dual-side entry for versatile wiring configurations
- Compatible with wire sizes from 1/0 AWG to 14 AWG
- Durable plastisol insulation for abrasion protection
- Ergonomic design for ease of handling
- Rated for environmental temperatures down to -45°C
- Copper Conductor Max AMP: 170
- Aluminum Conductor Max AMP: 135
- Voltage: 600 V
- Temperature Rating: 90C, AL9CU
- Environmental Temperature: Rated to -45C
- Wire Size Range: 1/0 AWG - 14 AWG
- Number of Conductors: 4
- Length: 2.98 in
- Width: 1.74 in
- Height: 1.74 in
- Max Torque Value: 80 IN/LBS
- Hex Wrench Size: 16-Mar IN
- Material: Aluminum
- Finish: Plastisol Insulated
- Conductor Type: Copper, Aluminum
- Field Application: Splice, Tap
- Wire/Cable Class: Class B, Class C
- UL File #: E186991
- Compliance: UL 486A/B, cULus, NEC 230.46
- Country of Origin: United States
