Polaris IPLD1/0-3 Multi-Tap Connector 3-Port Dual-Side Entry 1/0 AWG-14 AWG 600V Black Aluminum Plastisol
Specifications

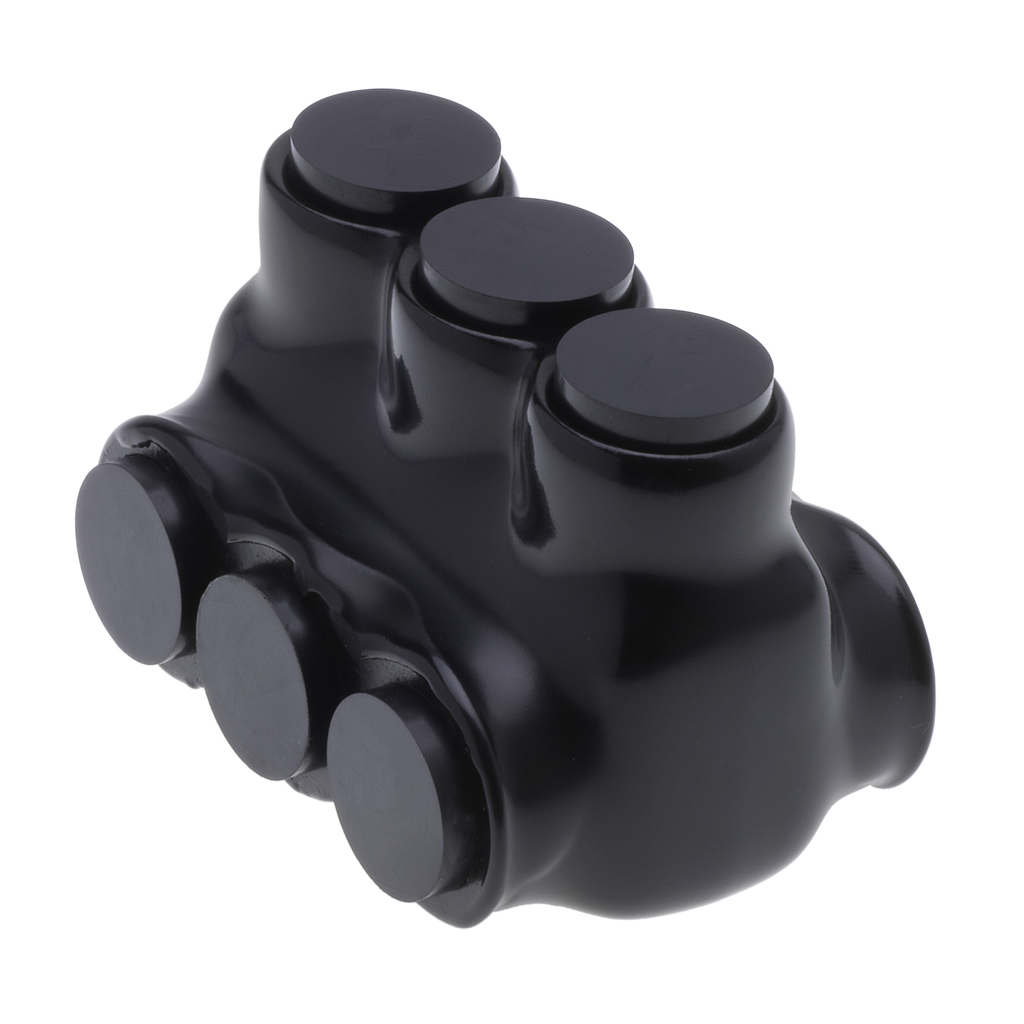

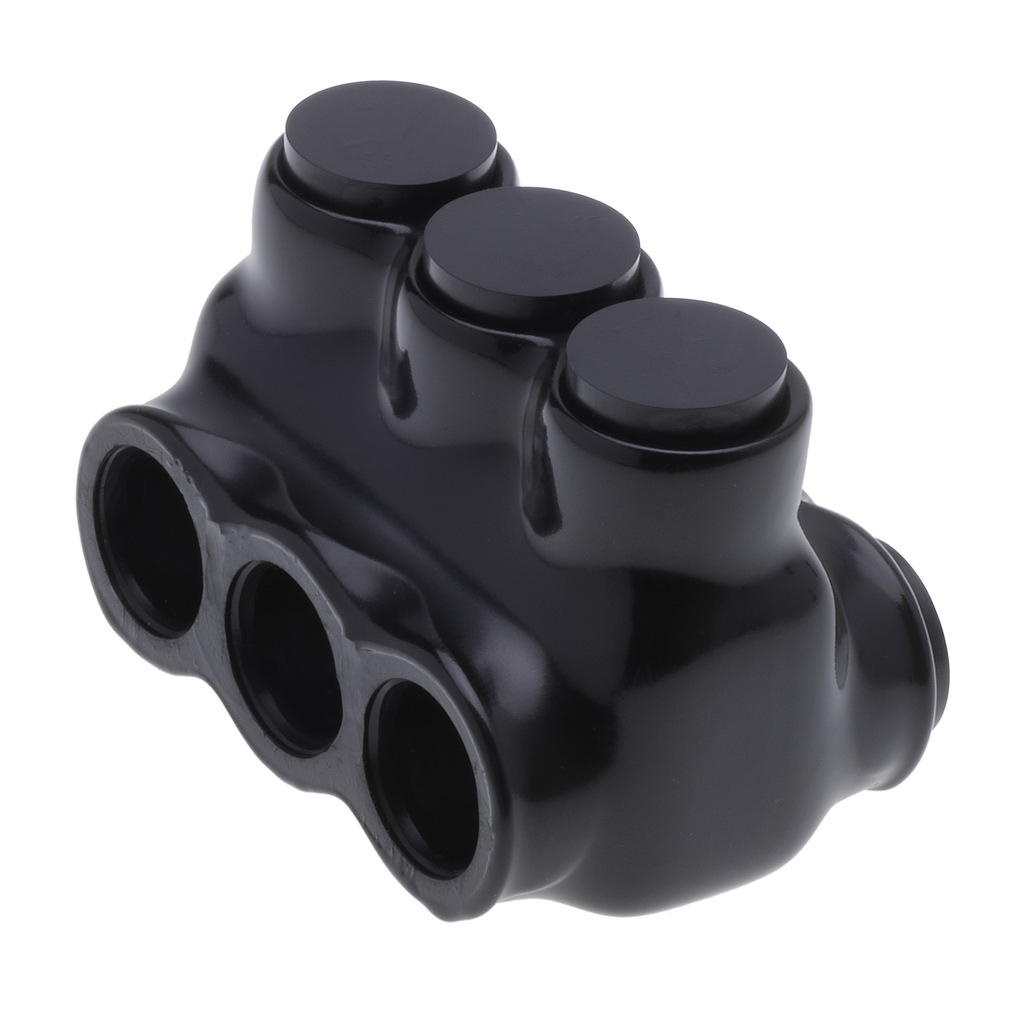

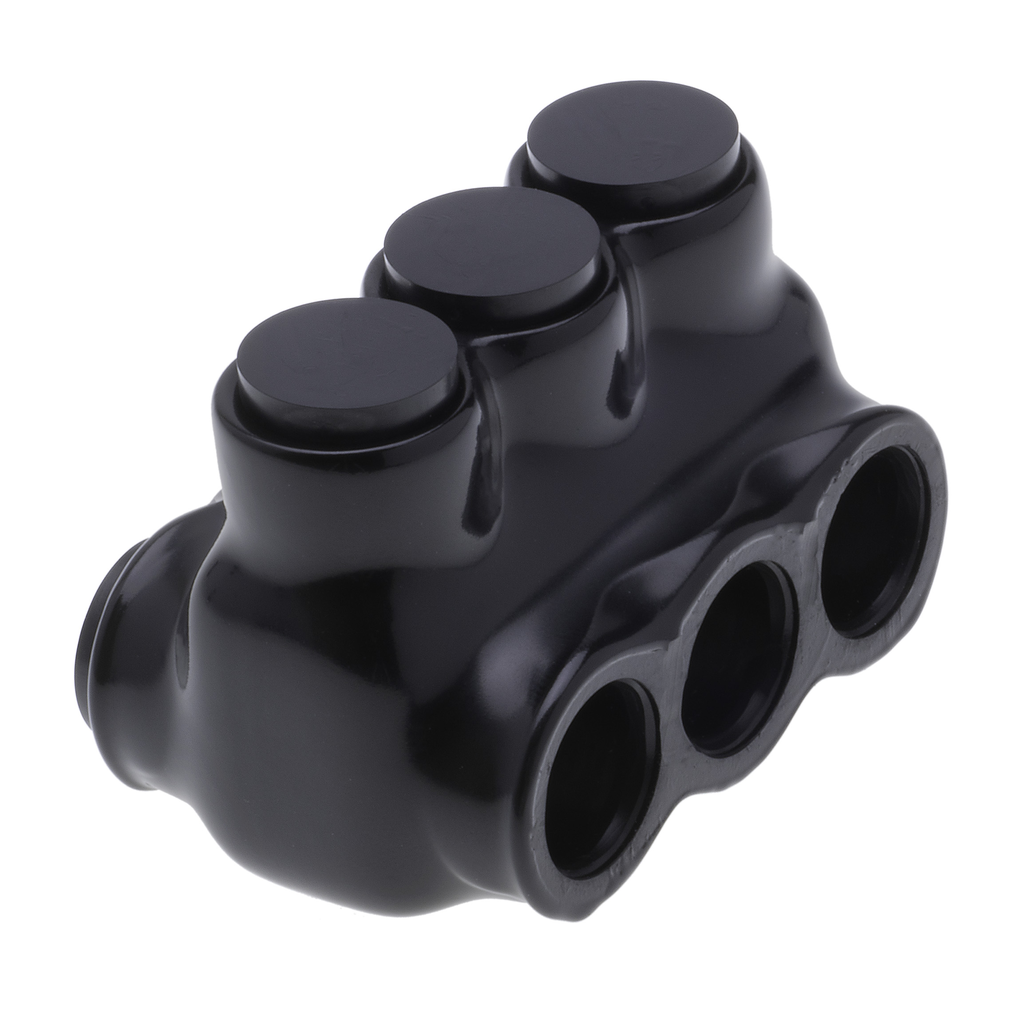

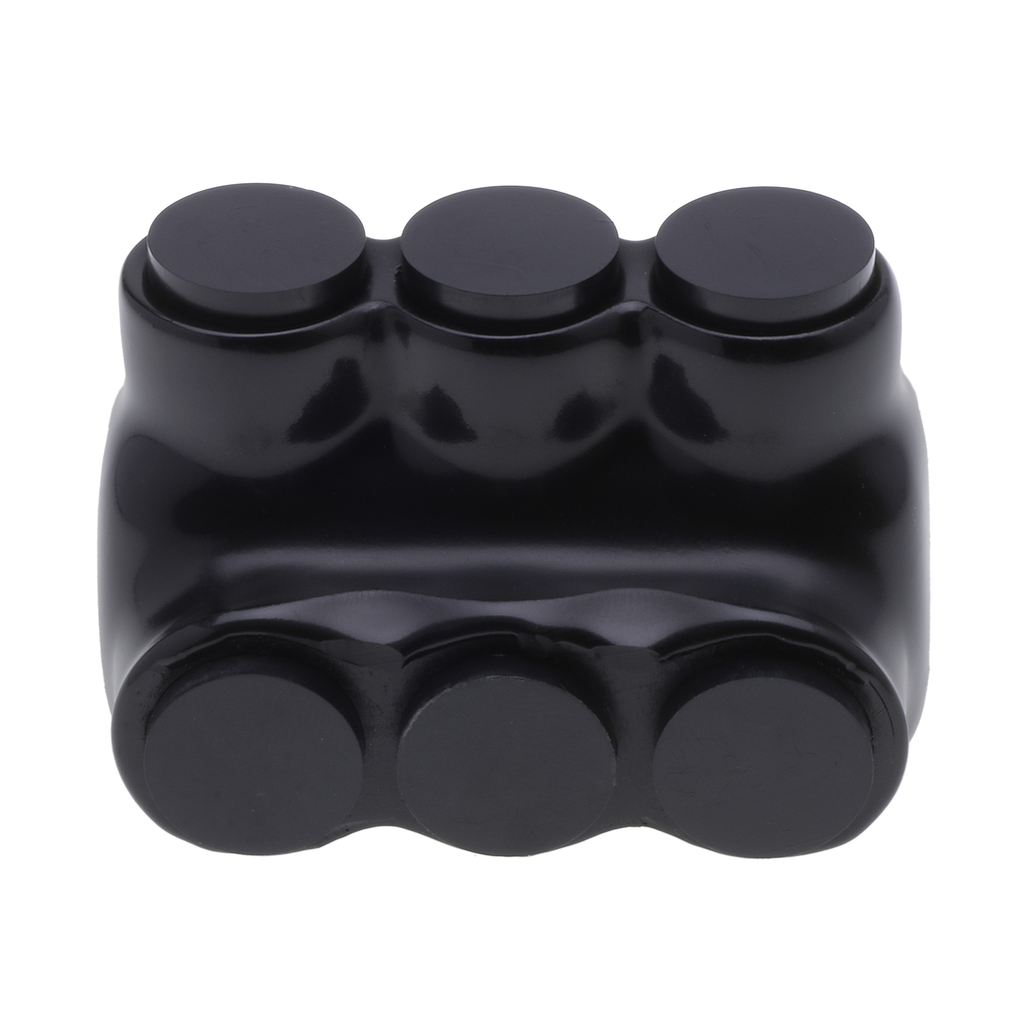

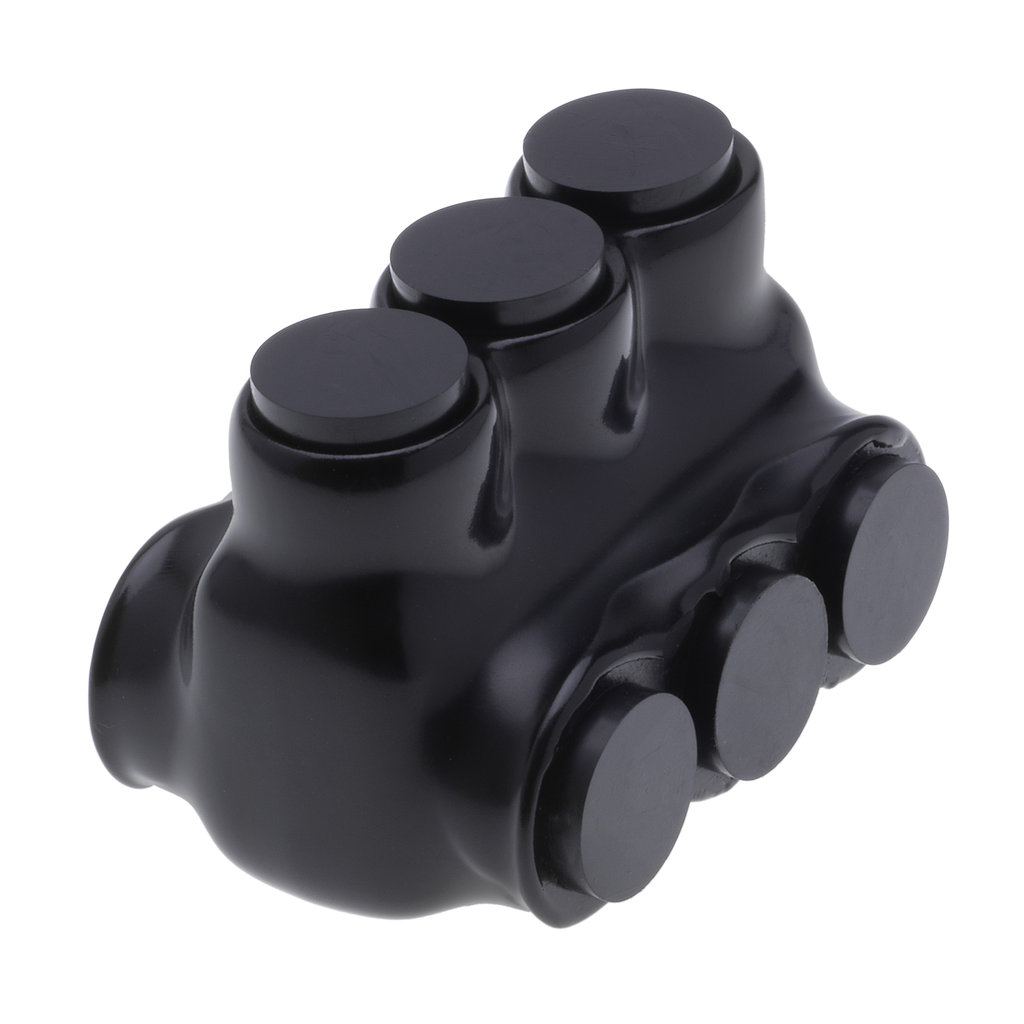

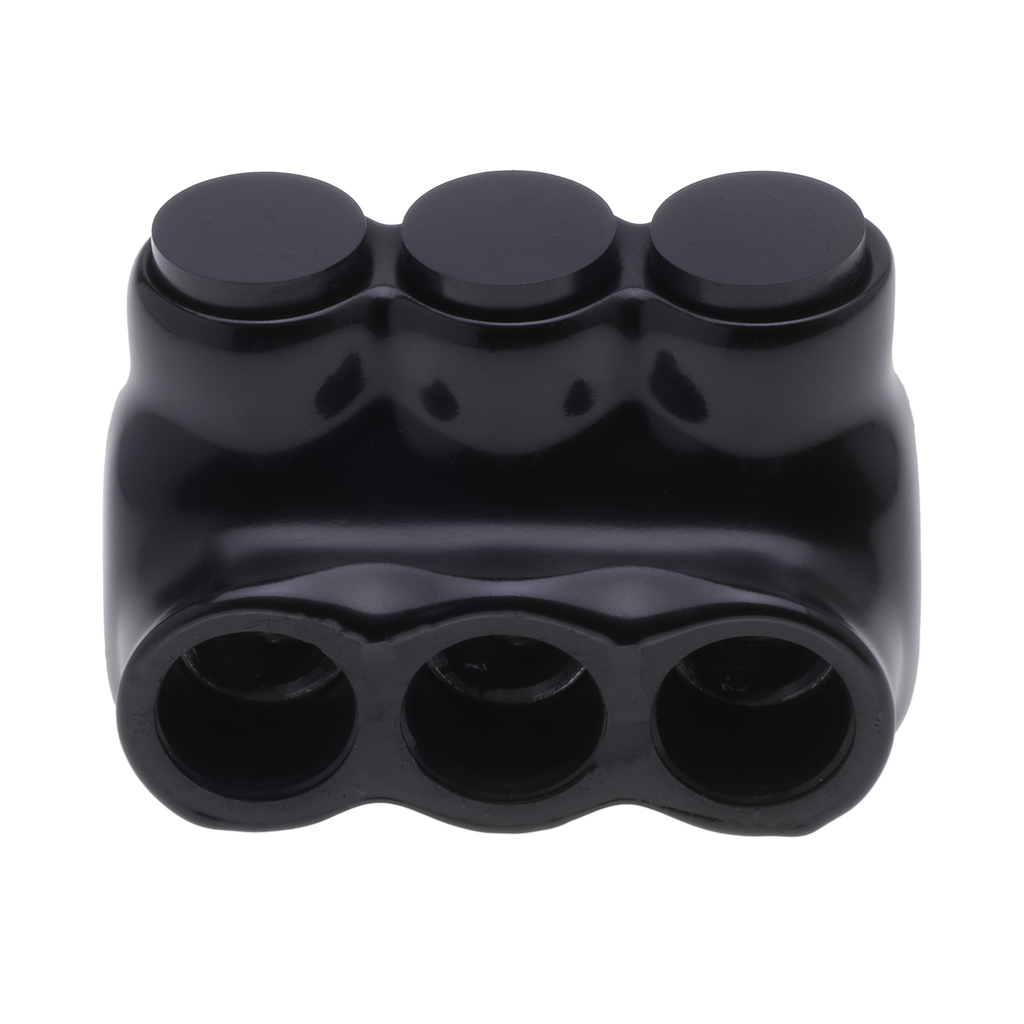

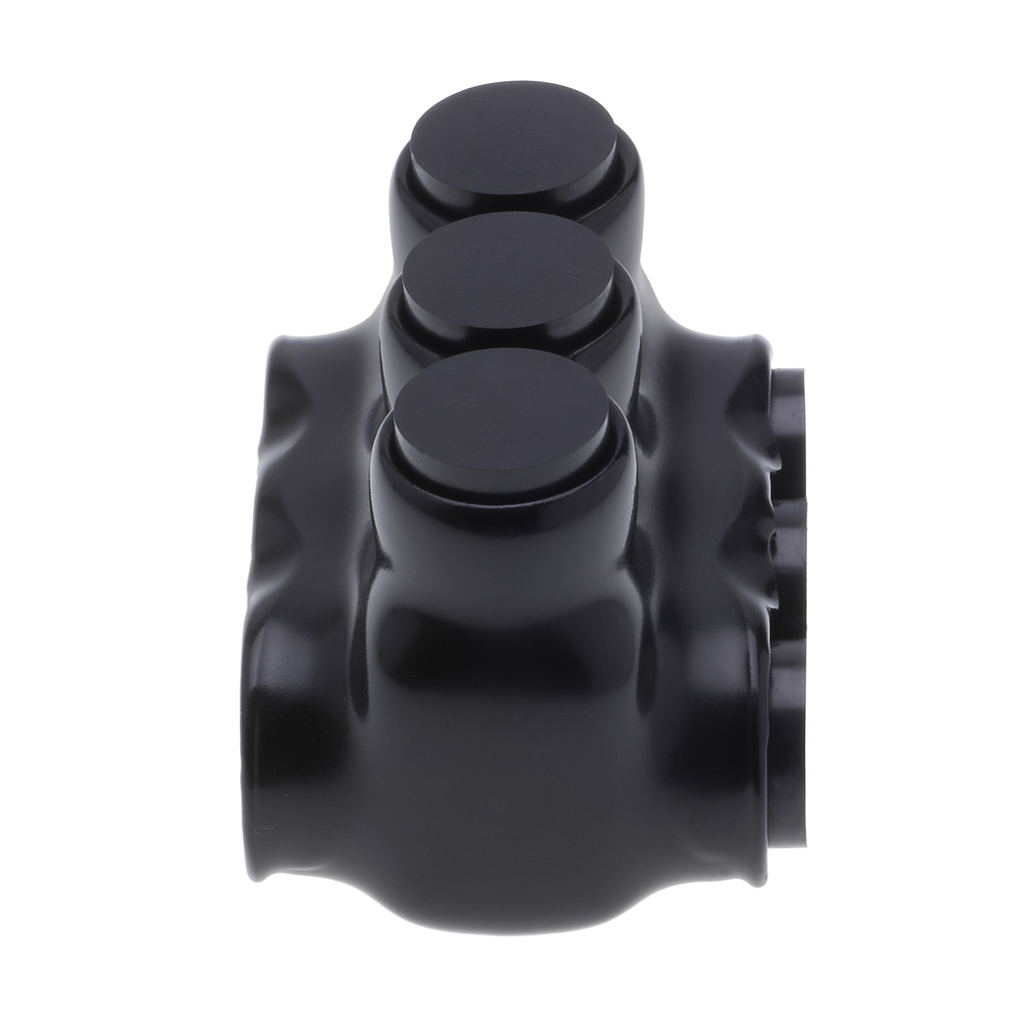

This 3-Port Black Multi-Tap Pre-Insulated Connector from Polaris is engineered for robust and reliable electrical connections. Designed to accommodate wires ranging from 1/0 AWG to 14 AWG, it effectively connects up to three conductors using dual-sided entry ports, making installation quick and efficient. Each port is pre-filled with an oxide inhibitor gel, ensuring corrosion resistance and low contact resistance, a critical feature for maintaining performance over time. Built from durable aluminum and insulated with abrasion-resistant plastisol, this connector not only meets NEC requirements for use on the line side of service equipment but also offers an ergonomic design with rounded corners for comfortable handling. With a temperature rating of 90°C and able to withstand cold temperatures down to -45°C, it is suitable for various environmental conditions. The inclusion of removable plugs for each port ensures that debris does not compromise the integrity of the connection, making this connector a dependable choice for electrical applications.
- UL 486A/B and cULus listed for safety assurance
- Meets NEC 230.46 requirements for line side of service
- Pre-filled oxide inhibitor gel for corrosion resistance
- Durable aluminum body with abrasion-resistant plastisol insulation
- Accommodates 1/0 AWG to 14 AWG wire sizes
- Dual-side entry ports for quick, efficient installation
- Rated for continuous use up to 90°C and down to -45°C
- Removable plugs protect ports from debris intrusion
- Ergonomic design with rounded corners for comfortable handling
- Dual rated for copper and aluminum cables, excluding fine-stranded flexible cables
- Number of Ports: 3
- Copper Conductor Size Range: 1/0 AWG - 14 AWG
- Aluminum Conductor Size Range: 1/0 AWG - 12 AWG
- Copper Conductor Max Amperage: 170 A
- Aluminum Conductor Max Amperage: 135 A
- Voltage Rating: 600 V
- Max Torque: 80 in-lbs
- Temperature Rating: 90°C, AL9CU
- Environmental Temperature: Rated to -45°C
- Height: 1.74 in
- Width: 1.74 in
- Length: 2.33 in
- Material: Aluminum with plastisol insulation
- Wire Insulation Finish: Plastisol Insulated
- Conductor Type: Copper, Aluminum
- UL Listing: UL 486A/B, cULus, NEC 230.46, File #E186991
- Country of Origin: United States
- Color: Black
- Product Series: IPLD
