Phoenix Support Systems L62-0000EG Channel Corner Angle 1/4 Thickness 45 Degree Bend 9/16 Hole Electrogalvanized Carbon Steel
Documents
Downloads

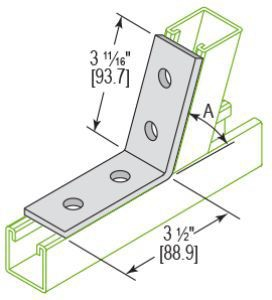

Crafted from durable carbon steel, this channel corner angle is engineered to provide robust support for various structural applications. The design features an open angle with a 45-degree bend, making it well-suited for use within channel frameworks. Each piece is treated with an electrogalvanized finish for enhanced corrosion resistance, ensuring longevity and reliability in demanding environments. With four strategically positioned holes for easy installation, this component measures 3-1/2 inches in length, 1-5/8 inches in width, and 3-11/16 inches in height, making it a practical choice for both industrial and commercial projects. Proudly made in the USA, it exemplifies quality craftsmanship tailored for professional use.
- Electrogalvanized finish providing enhanced corrosion resistance
- Durable carbon steel construction for structural support
- Solid 1/4 inch thickness for added strength and durability
- Open angle design with 45-degree bend for channel framework compatibility
- Four strategically positioned 9/16 inch holes for easy installation
- Made in USA ensuring quality craftsmanship
- Type: Open Angle
- Bend Angle: 45 Degree
- Number of Holes: 4
- Hole Size: 9/16 in. Diameter
- Size: 3.5 in x 1.625 in x 3.6875 in
- Material: Carbon Steel
- Finish: Electrogalvanized
- Thickness: 1/4 in.
- Weight: 0.760 lbs
- Series/Model: L62
- Used On: Channel
