Phoenix Support Systems L61-0000EG Channel Corner Angle Closed 45 Degree 2 Holes 9/16 in Electrogalvanized Carbon Steel
Documents
Downloads
Engineered for versatility and durability, the Channel Corner Angle from Phoenix Support Systems is a robust solution for your construction needs. Crafted from high-quality carbon steel with an electrogalvanized finish, this piece is designed to withstand various industrial applications, ensuring long-lasting performance. Its closed angle design features a 45-degree bend, making it ideal for securing channel setups, while the inclusion of two holes with a 9/16-inch diameter allows for easy installation and reliable connections. With dimensions that provide the right balance of size and strength, this advanced support component is essential for any serious project requiring solid structural integrity.
- Electrogalvanized finish for corrosion resistance in dry indoor environments
- Constructed from high-quality carbon steel for structural strength
- 1/4-inch thickness providing robust durability
- Closed 45-degree angle design for secure channel connections
- Two 9/16-inch diameter holes for easy installation and reliable fastening
- Compact size balancing strength and space efficiency
- Lightweight design at 0.56 lb for simplified handling and installation
- Made in USA
- Type: Closed Angle
- Bend Angle: 45 Degree
- Number of Holes: 2
- Hole Size: 9/16 in Diameter

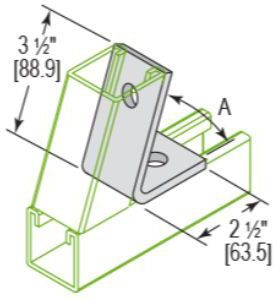

- Size: 2-1/2 in Length x 1-5/8 in Width x 3-1/2 in Height
- Material: Carbon Steel
- Finish: Electrogalvanized
- Thickness: 1/4 in
- Weight: 0.56 lb
- Used On: Channel
- Series/Model: L61
