Phoenix Support Systems L31-0000S6 Channel Corner Angle 3-Way 1/4 in Thickness 316 Stainless Steel
Documents
Downloads
This channel corner angle, part of the L31 series from Phoenix Support Systems, is designed for versatile structural applications. Crafted from 316 stainless steel, it ensures exceptional durability and corrosion resistance, making it an ideal choice for both indoor and outdoor projects. With its precise dimensions of 3-1/2 inches in length, 1-5/8 inches in width, and 4-1/8 inches in height, this 3-way corner angle features a thickness of 1/4 inch and is equipped with four 9/16 inch holes for straightforward installation. Proudly made in the USA, it provides reliable strength and stability, making it an essential component for various construction needs.
- Exceptional corrosion resistance from 316 stainless steel
- Strong support and stability with 1/4 inch thickness
- Equipped with four pre-drilled 9/16 inch holes for easy installation
- Durable construction suitable for indoor and outdoor use
- Versatile design for structural and electrical applications
- Compact dimensions fit efficiently in tight spaces
- Made in USA ensuring quality and reliability
- Type: 3-Way Corner

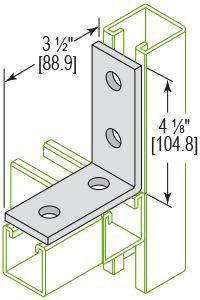

- Size: 3-1/2 in Length x 1-5/8 in Width x 4-1/8 in Height
- Number of Sides: 2
- Number of Holes: 4
- Hole Diameter: 9/16 in
- Thickness: 1/4 in
- Material: 316 Stainless Steel
- Weight: 0.71 lb
- Series/Model: L31
- Country of Origin: USA
