Phoenix Support Systems L13-0000EG Channel Corner Angle 9/16 in Hole Diameter 4 Holes Carbon Steel Electrogalvanized
Documents
Downloads
Engineered for strength and versatility, the Channel Corner Angle from Phoenix Support Systems is an essential component for a variety of structural applications. Constructed from durable carbon steel, this corner angle features an electrogalvanized finish that enhances its resistance to corrosion, ensuring longevity in demanding environments. With a size of 3-7/8 inches in length, 1-5/8 inches in width, and a height of 3-3/4 inches, it includes four strategically placed holes with a 9/16-inch diameter, facilitating easy installation and secure fastening. As part of the L13 series, this corner angle is designed to provide reliable support and stability wherever needed, making it a critical addition to any construction or fabrication project.
- Electrogalvanized finish enhances corrosion resistance
- Constructed from durable carbon steel for structural strength
- Four 9/16-inch diameter holes for easy and secure fastening
- Complies with ASTM A1011-00 SS GR 33 and ASTM A1011-00CS Type B standards
- Provides reliable support and stability in various applications
- Compact dimensions compatible with standard strut channels
- Versatile use in structural and fabrication projects
- Made in USA
- Hole Diameter: 9/16 in
- Number of Holes: 4
- Weight: 0.76 lb
- Material: Carbon Steel
- Type: Corner
- Thickness: 1/4 in

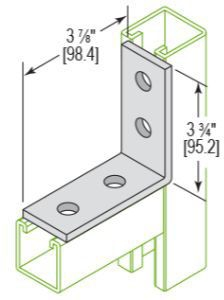

- Size: 3-7/8 in Length x 1-5/8 in Width x 3-3/4 in Height
- Number of Sides: 2
- Finish: Electrogalvanized
- Series/Model: L13
- Carbon Steel Specification: ASTM A1011-00 SS GR 33 or ASTM A1011-00CS Type B
