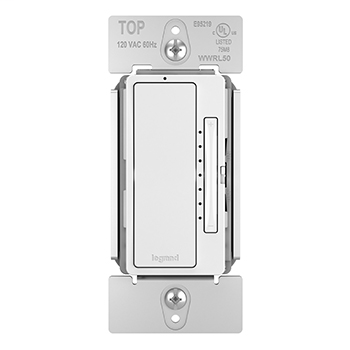

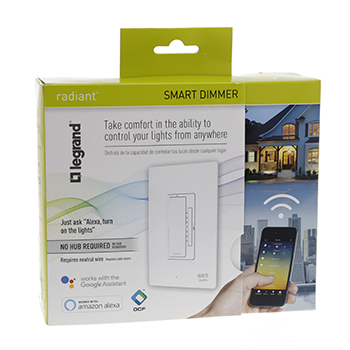

Pass & Seymour WWRL50WHCCV2 Wi-Fi Smart Tru-Universal Dimmer 120V 700W White Polycarbonate Lexan
Documents
Guide Form Specifications
Supporting Document
Brochure
Sell Sheet
Installation Instructions
Elevate your home lighting experience with the Smart Tru-Universal Dimmer by Pass & Seymour, which offers exceptional control and convenience through your existing Wi-Fi network. Designed to provide compatibility with any dimmable 120V bulb or fixture, this dimmer allows for precise adjustment of light levels to match your desired ambiance, all from your smartphone or tablet using the Smart Lights app. Whether you're at home or on the go, you can schedule your lighting, group multiple fixtures, or even create personalized scenes, ensuring your space feels just right at any moment. This modern smart dimmer seamlessly integrates with popular virtual assistants like Amazon Alexa and Google Assistant, allowing you to control your lighting effortlessly with voice commands. With a sleek white finish and options available in light almond and nickel, it is not only functional but also aesthetically pleasing, fitting into various home designs. Compliant with NEMA standards and California Title 24 regulations, this dimmer not only enhances convenience but also adheres to important safety and energy efficiency guidelines, making it a reliable choice for today’s smart homes.
- Complies with California Title 24 for energy efficiency and safety
- Meets NEMA WD-1 and WD-6 standards for safety and reliability
- Compatible with any dimmable 120V bulb or fixture
- Precise light level adjustment via smartphone app
- Remote control, scheduling, and grouping from anywhere
- Voice control integration with Amazon Alexa and Google Assistant
- Requires neutral wire for installation
- Sleek white polycarbonate Lexan finish
- Installer-friendly design fits standard electrical boxes
- Locator light for easy switch finding in the dark
- Voltage: 120V
- Amperage: 7A
- Watts: 450W
- Load: 700W incandescent/halogen, 450W LED/CFL, 5.5A EFL, 500VA MLV
- Height: 4.17 in.
- Width: 1.77 in.
- Depth: 1.53 in.
- Weight: 0.30 lbs
- Connection Type: IEEE 802.11 b/g/n Wi-Fi 2.4GHz radio
- Material: Polycarbonate Lexan
- Mounting: Standard electrical box
- Operating Temperature Range: 0°C to 43°C
- Humidity Range: 0-90% relative humidity, non-condensing
- IP Rating: IP Native
- UL Listing Number: UL1472
- UL Standard: Yes
- CSA Standard: Yes
- CSA Listing: CSA-C22.2 No. 184
- RoHS Compliant: Yes
- FCC Standard: Yes
- Compliance: California Title 24, SSL 7A, Prop 65, NEMA WD-1, NEMA WD-6, OCF
- Color: White
- Country of Origin: China
- Style: Rocker
- Neutral Wire Required: Yes
- Compatible Power Supplies: Google/Alexa
- Interoperability: OCF 1.3.1, Works with Alexa, Works with Google Home Assistant
