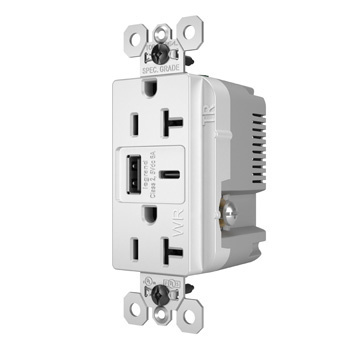

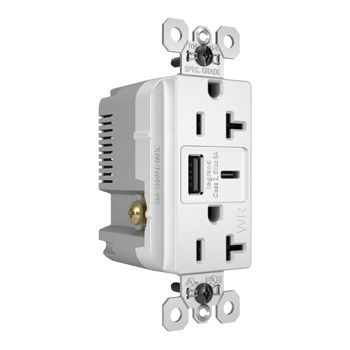

Pass & Seymour WRTR20USBAC6W USB Outlet 20A 15W Weather-Resistant Tamper-Resistant White

This weather-resistant USB outlet is expertly designed to meet the rigorous demands of both commercial and residential applications. Featuring a slim profile for easy installation in standard depth wall boxes, it incorporates stainless steel auto-ground clips that ensure a reliable grounding connection. Enhanced with tamper-resistant ports, the device utilizes a patented shutter system that prevents accidental insertion of foreign objects, making it ideal for safety-conscious environments. With an impressive capacity of 15 watts and a combined charging capability of 6 amps, it supports both Type-A and Type-C devices, enabling efficient power delivery while complying with the Department of Energy's Level VI no-load power requirement. The reinforced nylon ports are built to withstand extensive use, promising long-term durability through at least 10,000 insertions. This outlet not only combines functionality with safety but also offers multiple color options, making it a fitting choice for any decor. Whether for outdoor settings or healthcare facilities, this innovative product provides a dependable solution for powering devices safely and efficiently.

• Tamper-resistant ports with patented shutter system for child safety
• Weather-resistant design for outdoor and harsh environments
• Stainless steel auto-ground clips ensure reliable grounding connection
• 6A combined charging current supports fast charging for multiple devices
• Type-A and Type-C USB ports support a wide range of devices
• Reinforced nylon USB ports rated for 10,000 insertions ensure long life
• Slim profile enables installation in standard depth wall boxes
• Efficient power supply meets Department of Energy Level VI no-load requirements
• Posted terminal screws and external back-wire pressure plates for reliable terminations
• Multiple color options available for decor matching

• Power: 15.0 W
• Amperage: 20.0 A
• Voltage: 125.0 V
• Charging Current: 6.0 A total
• USB Port Types: Type A, Type C
• Tamper-Resistance: Yes
• Mounting Type: Box
• Connection Location: Side Only
• Number of USBs: 2
• Wire Size: 14 - 10 AWG copper wire
• Dimensions: 2.677 in H, 1.693 in W, 1.425 in D
• Material: Nylon, Stainless Steel, Brass, Polycarbonate, Zinc-Plated Steel
• Finish: Weatherproof, Weather-Resistant
• Flammability Rating: UL94 V2 (cover), V5 (body/frame)
• Compliance: UL Listed, RoHS, DOE Level VI
• Operating Temperature Range: -40b0C to +60b0C
• Dielectric Withstand Voltage: 1500 V minimum
• Maximum Temperature Rise: 30b0C after 50 cycles
• Color: White
• Country of Origin: China
• Product Line: Pass & Seymour
• Application Sector: Commercial, Healthcare, Multi-Dwelling Unit
• Wire Connection Type: Screw Terminals
• Warranty Type: 1-Year Limited Warranty
