Pass & Seymour TSDL153PW Trademaster Toggle Slide LED Dimmer 120V 150W No Neutral White Thermoplastic Steel Matte
Documents
Installation Instructions
CAD Drawings
Downloads
Cutsheet
Flyer
Enhance your residential lighting control with the Trademaster Toggle Slide LED Advanced Dimmer from Pass & Seymour, a device designed to seamlessly integrate into your home while optimizing your lighting experience. This dimmer features advanced technology that maximizes compatibility with dimmable LED bulbs, up to 150W, ensuring flicker-free performance and customizable dimming options tailored to your personal preferences. The calibration button allows for simple high-and-low end dimming limit adjustments, accompanied by a constant memory feature that restores your preferred settings after a power outage. Not only does this dimmer come in a sleek matte white finish that matches standard toggle switches, it also includes a QR code for instant access to installation guides and videos, making setup a breeze—no neutral wire required. Additionally, its optional LED Burst Mode reduces any turn-on delays associated with LED lighting. With easy wiring through back-wire screw and pressure plate terminations and cULus and CSA listings ensuring its quality, this dimmer is a dependable choice for elevating your home lighting experience.
- cULus, UL, and CSA safety listings with RoHS compliance
- Advanced dimming technology for flicker-free LED control
- Compatible with forward phase dimmable LED bulbs up to 150W
- No neutral wire required for new or retrofit installation
- Calibration button for simple high- and low-end dimming adjustments
- Constant memory restores user settings after power outages
- Optional LED Burst Mode reduces LED turn-on delay and pop-ons

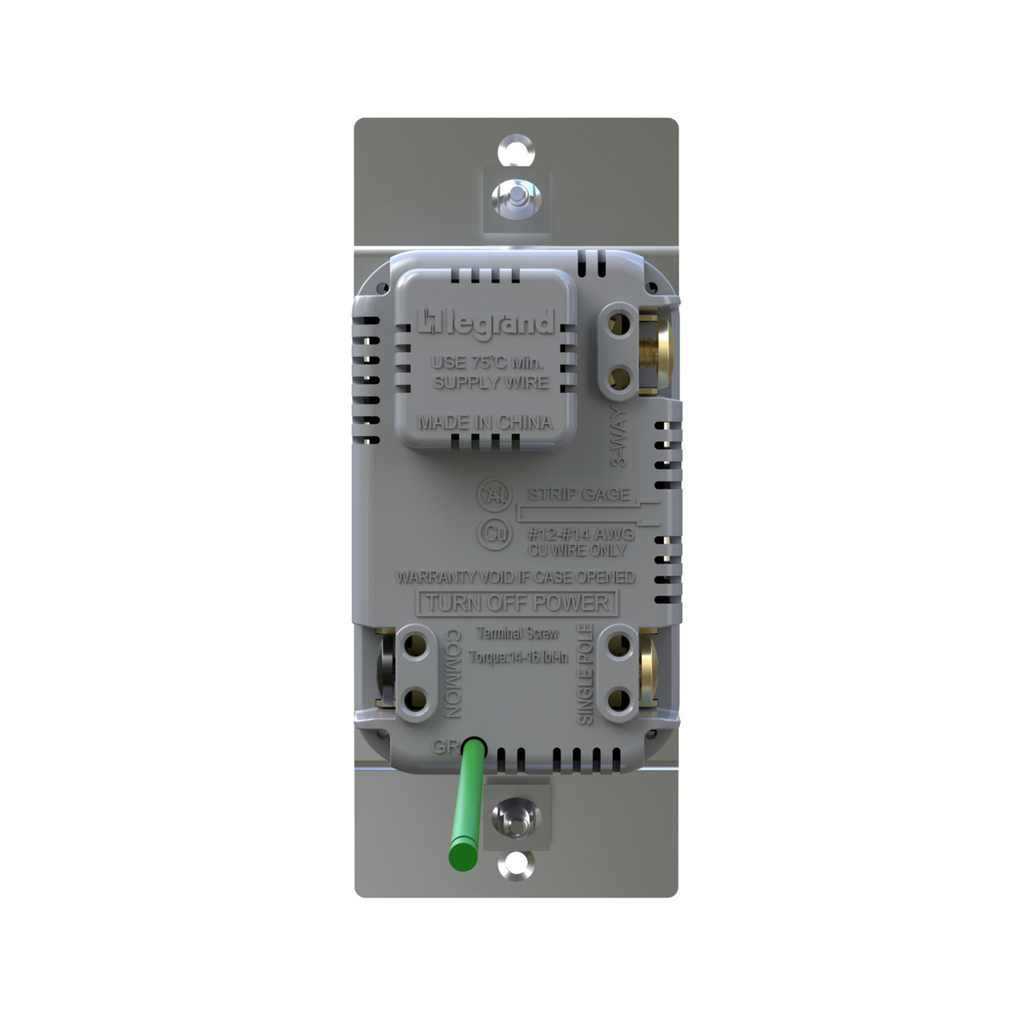

- Easy wiring with back-wire screw and pressure plate terminations
- Durable matte white thermoplastic and steel construction

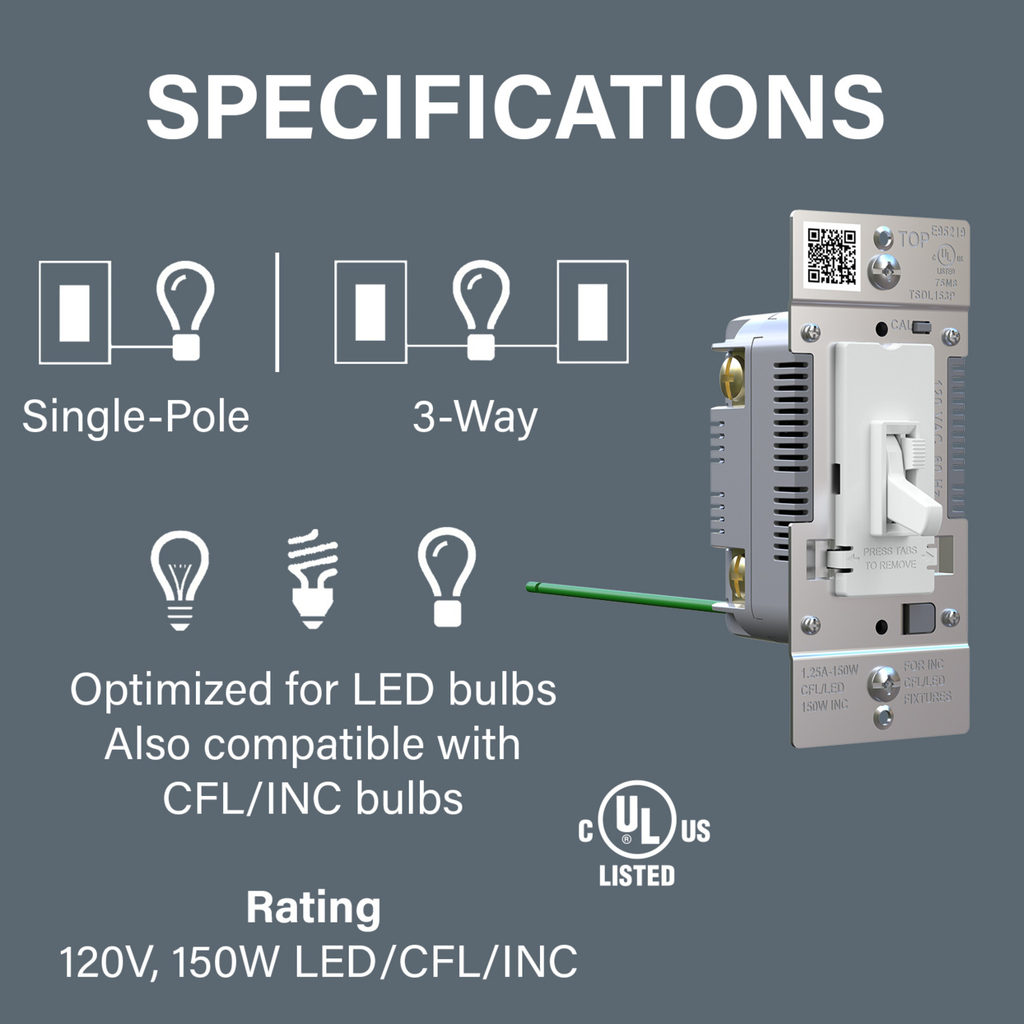

- Preset single-pole and 3-way toggle slide operation
- Load Rating: 120V 1.25A 150W (LED, CFL, Incandescent)
- Voltage: 120 VAC
- Amperage: 1.25A
- Frequency: 60 Hz
- Dimming Compatibility: Forward Phase
- Switch Type: Toggle
- Number of Poles: Single Pole 3-Way
- Mounting Type: Wall Box
- Depth: 1.57 in
- Height: 4.2 in
- Width: 1.74 in
- Length: 1.85 in
- Weight: 0.21 lb
- Material: Steel, Thermoplastic, Polycarbonate (Paddle/Face, Body), Tin Plated Brass (Terminal), Zinc Coated Cold-Rolled Steel .040" (Mounting Strap), Plated Steel (Terminal and Mounting Screws)
- Finish: Matte
- Requires Neutral Wire: No
- Wire Connection Type: Screw Terminals (Back-Wire, Screw & Pressure Plate)
- Screw Torque Requirement: 14-16 in-lb
- Operating Temperature: -40°C to +40°C
- Flammability: UL94 V2
- Compliance: cULus Listed, UL Listed, CSA Listed, RoHS Compliant
- Application Sector: Residential, Hospitality
- Application: Indoor Use Only
- Product Series: Trademaster
- Product Line: Pass & Seymour
- Preset: Yes
- Color: White
- Warranty Type: Limited Lifetime Warranty
