Pass & Seymour TSDL153PTC Trademaster Toggle Slide LED Advanced Dimmer 120V 1.25A 150W No Neutral Matte Tri-Color Steel Thermoplastic
Documents
Cutsheet
Downloads
CAD Drawings
Flyer
Installation Instructions

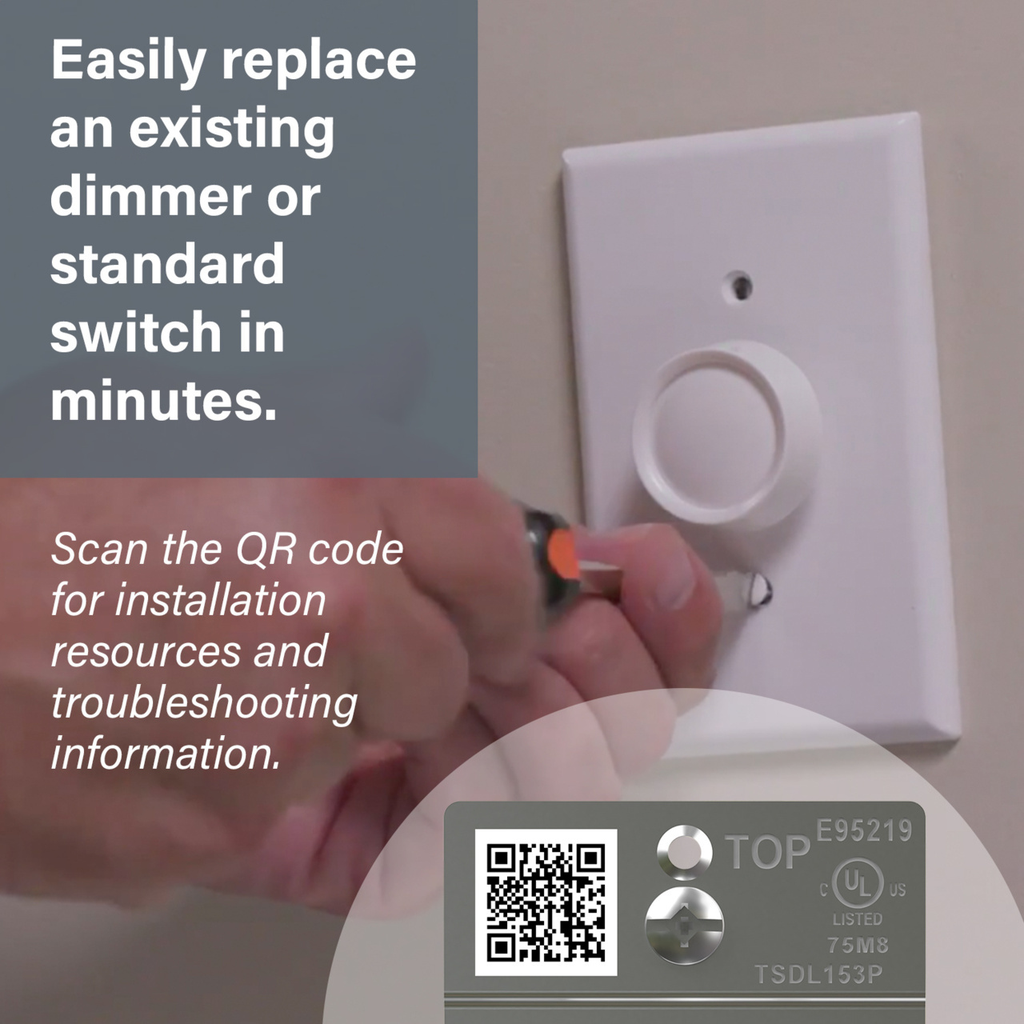

Elevate your lighting control with the Trademaster Toggle Slide LED Advanced Dimmer from Pass & Seymour, designed for seamless integration with dimmable LED bulbs and fixtures. This innovative dimmer features advanced technology that minimizes common LED dimming challenges, ensuring flicker-free performance for loads up to 150W at 120VAC. Its optional LED Burst Mode setting allows for quick activation to address any turn-on delays, enhancing the responsiveness of your lighting system. Designed with user convenience in mind, the dimmer includes a QR code on the front face, granting effortless access to installation guides and videos. Its modern matte finish and compatibility with standard toggle switch appearances provide a sleek aesthetic, while interchangeable face covers in seven colors allow for personalization to match your décor. Installation is straightforward, requiring no neutral wire and enabling retrofits in under 15 minutes, making it an ideal choice for both new and existing constructions. Enjoy consistent lighting levels with the constant memory feature that restores user settings after power outages, ensuring your desired ambiance is always just a switch away.

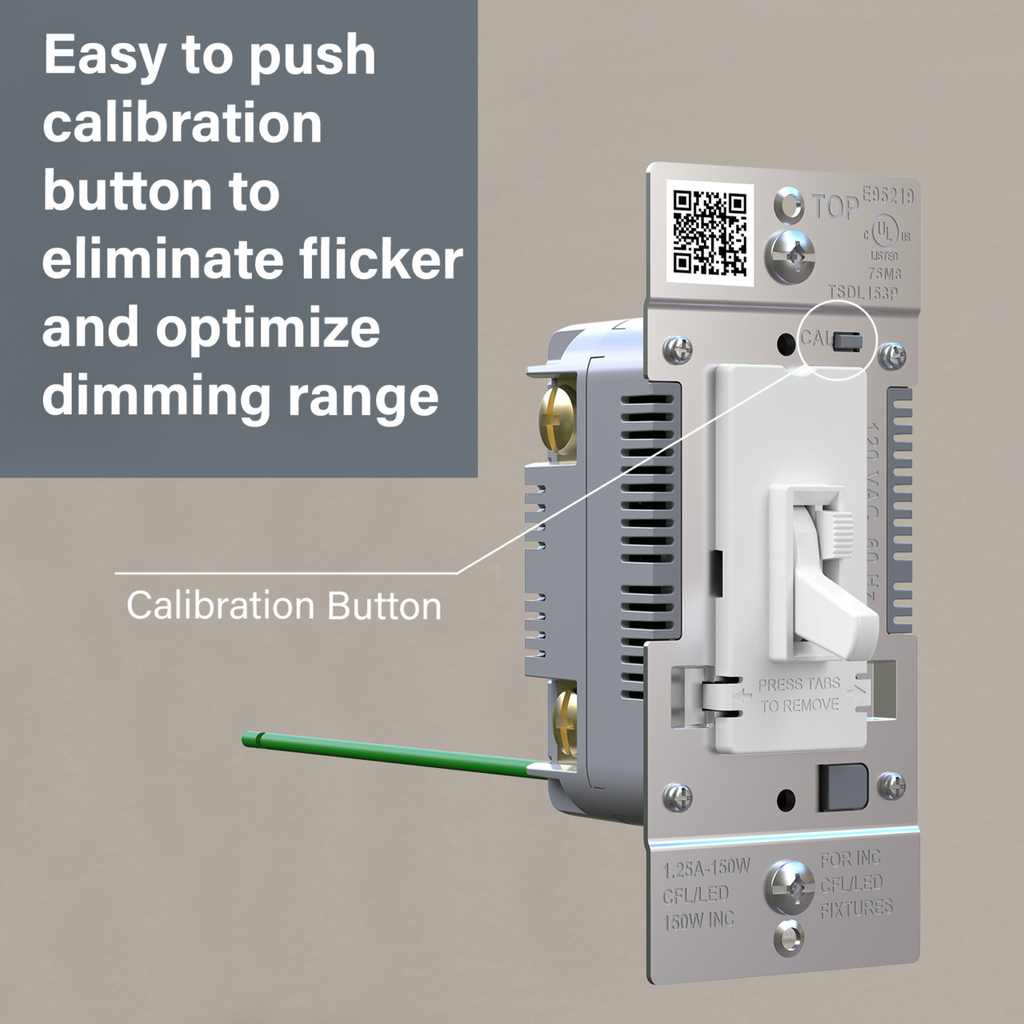

- Simple high-and-low end dimming adjustability with easy calibration to eliminate LED flickering
- Advanced dimming technology for full LED compatibility and flicker-free control
- Constant memory restores light levels and settings after power outages
- Optional Burst Mode reduces LED turn-on delays and pop-ons
- No neutral wire required for easy retrofit and new installation
- Back-wire screw and pressure plate terminals for secure, reliable wiring
- Matches standard Pass & Seymour toggle switch appearance with matte finish

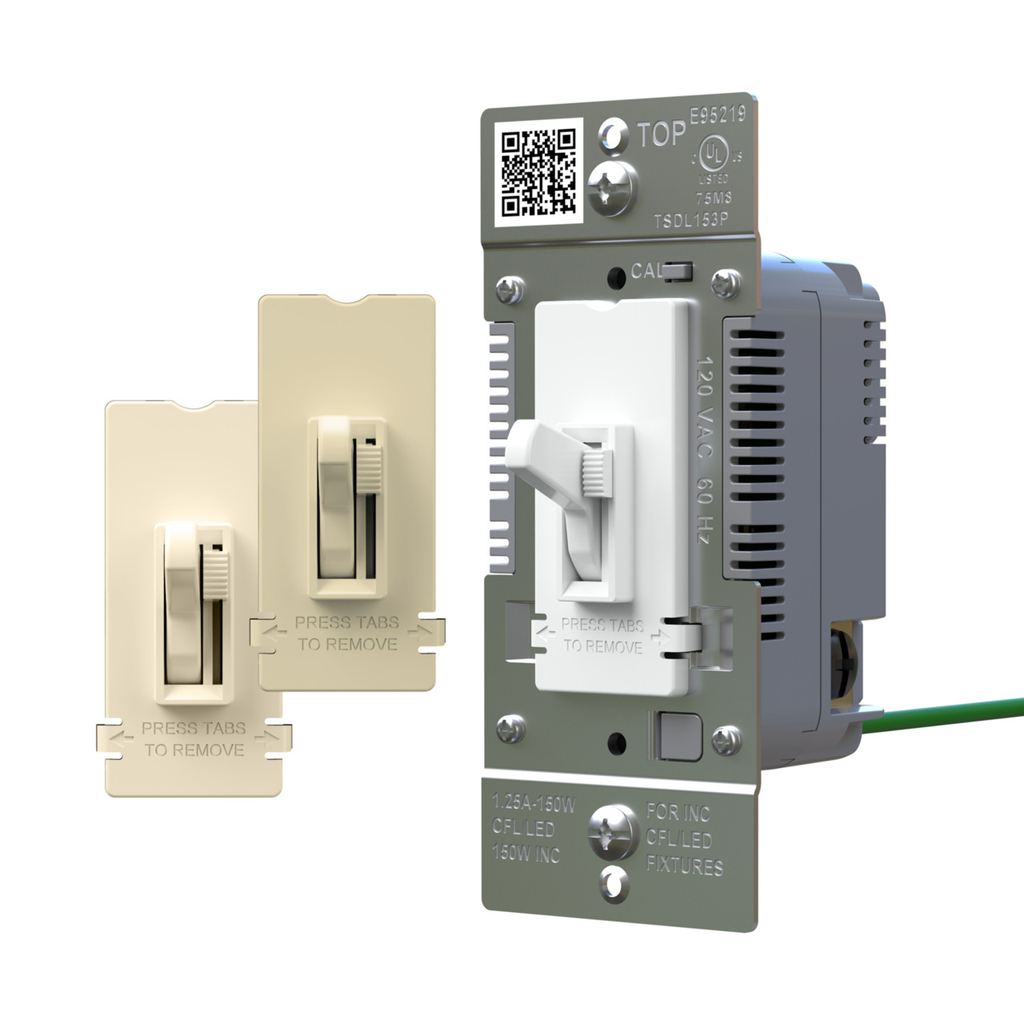

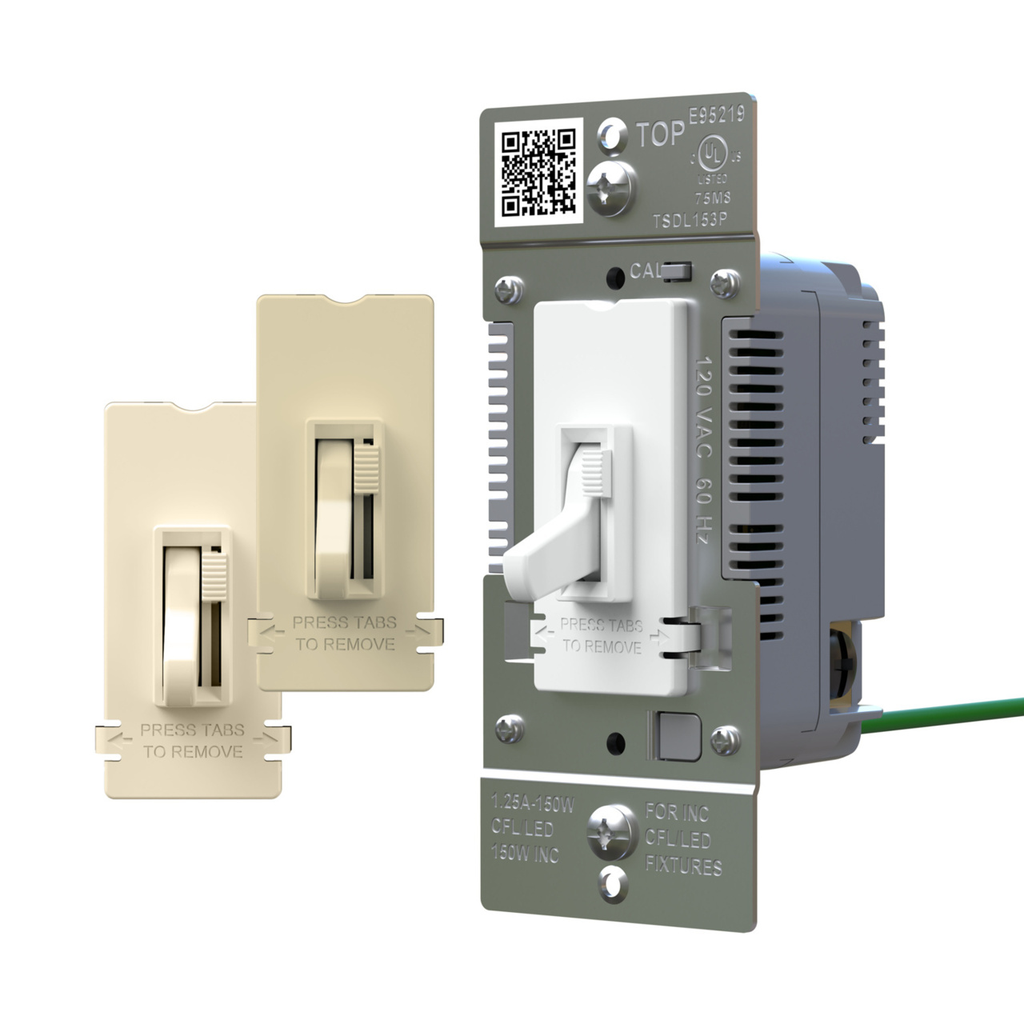

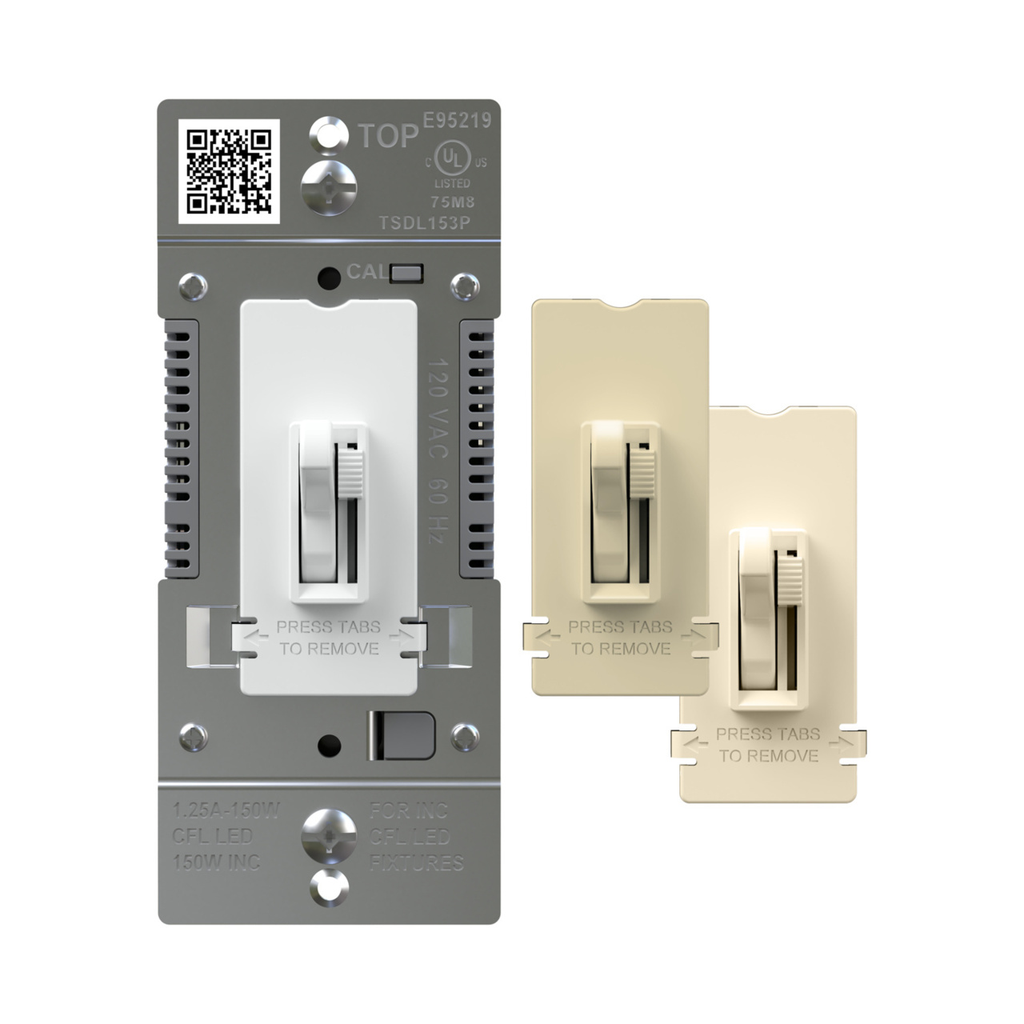

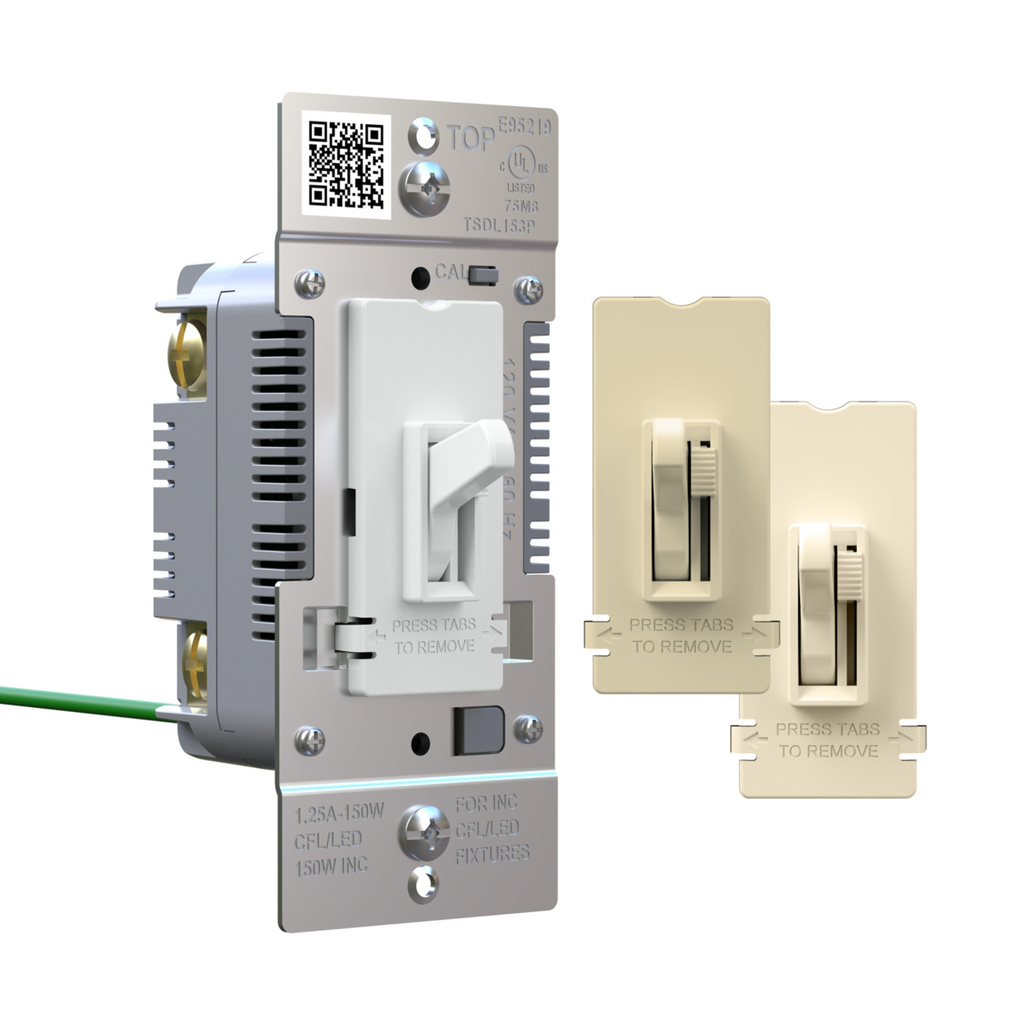

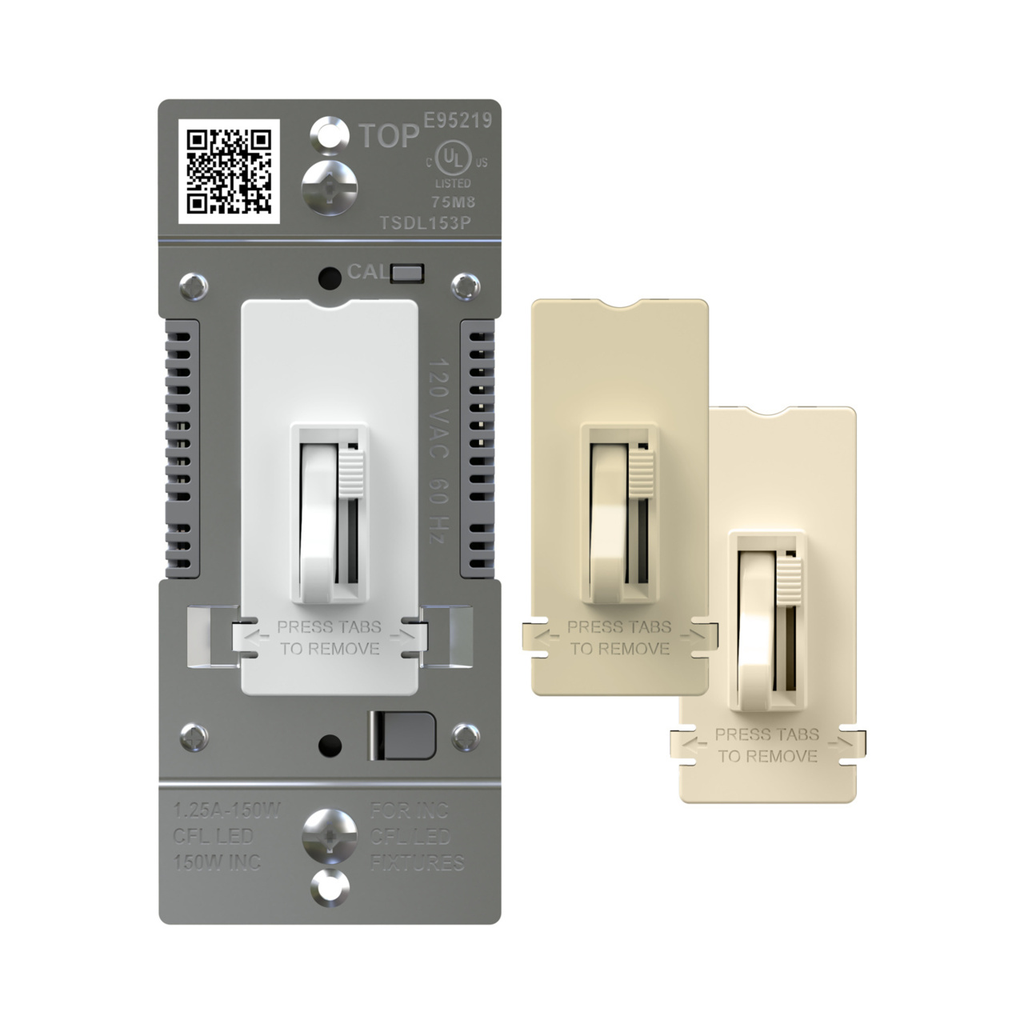

- Interchangeable face covers available in seven colors for customization
- Compact depth fits standard wall boxes for streamlined installation
- Complies with UL, cULus, CSA, RoHS, and California Title 24 standards

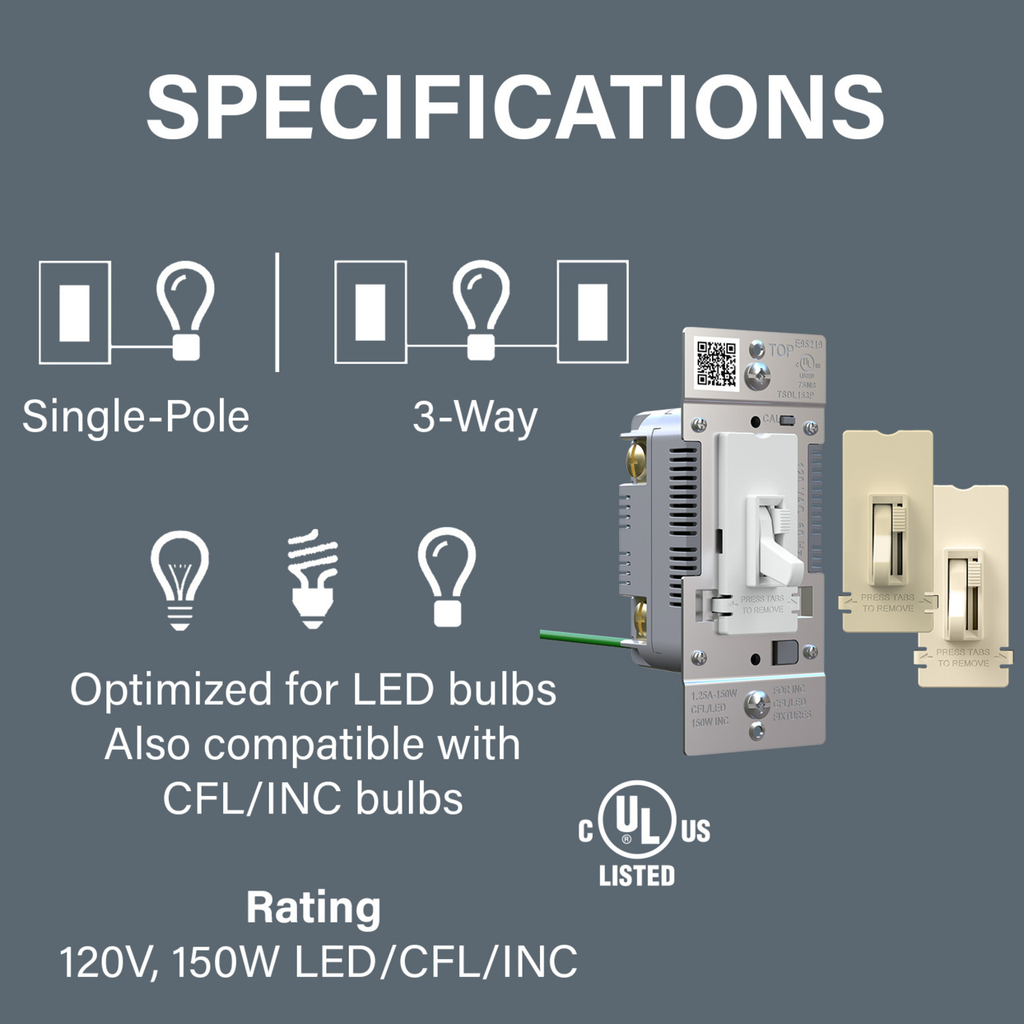

- Load Rating: 120V 1.25A 150W (CFL, LED, Incandescent)
- Voltage: 120 VAC
- Current: 1.25 A
- Dimming Compatibility: Forward Phase
- Number of Poles: Single Pole 3-Way
- Depth: 1.57 in
- Length: 1.85 in
- Width: 1.74 in
- Height: 4.2 in
- Weight: 0.21 lb
- Switch Type: Toggle
- Mounting Type: Wall Box
- Material: Steel, Thermoplastic, Polycarbonate face and body, Tin Plated Brass terminals, Zinc Coated Cold-Rolled Steel mounting strap, Plated Steel screws
- Flammability Rating: UL94 V2
- Compliance: cULus Listed, UL Listed, CSA Listed, RoHS Compliant, California Title 24, NEMA SSL-7A, NEMA WD-1 & WD-6
- Neutral Required: No
- Wire Connection Type: Screw Terminals (Back-Wire, Screw & Pressure Plate)
- Screw Torque Requirement: 14-16 in-lb
- Terminal Accommodation: #12 - #14 AWG solid & stranded
- Ground Wire: Wire Lead #18 AWG
- Product Line: Pass & Seymour
- Product Series: Trademaster
- Color: Ivory, Light Almond, White
- Application Sector: Residential, Hospitality
- Indoor/Outdoor: Indoor
- Preset: Yes
- Warranty Type: Limited Lifetime Warranty
