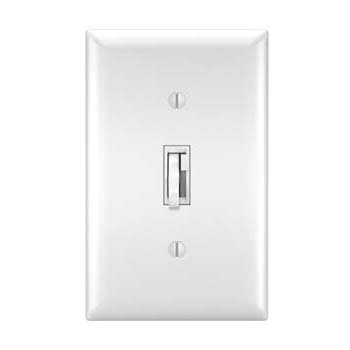

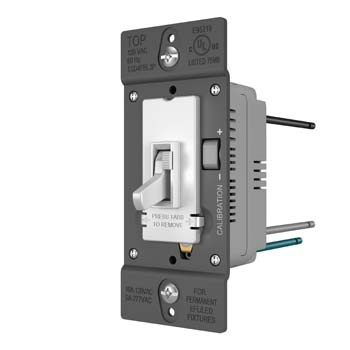

Pass & Seymour TSD4FBL3PTC 0-10V Fluorescent LED Single Pole 3-Way Toggle Slide Dimmer Preset Tri-Color Thermoplastic Steel

Engineered for versatility and compatibility, the TradeMaster® 0-10V Fluorescent/LED Single Pole/3-Way Toggle Slide Dimmer from Pass & Seymour allows for seamless integration into various lighting applications, whether residential or commercial. This dimmer supports both fluorescent and LED lighting, boasting impressive load ratings that ensure reliable performance in a range of settings. With its elegant toggle switch design and a range of interchangeable face covers available in seven colors, it not only operates effectively but also enhances the aesthetic of any space. Designed with user convenience in mind, the dimmer features a preset function and is capable of accommodating a variety of wire sizes, ensuring ease of installation and operation. With a limited lifetime warranty, this product offers long-lasting reliability for your lighting needs.

• Rated for 120V 10A and 277V 5A loads ensuring reliable performance
• Supports single pole and 3-way wiring configurations
• Compatible with both fluorescent and LED lighting for versatile use
• Preset dimming function for consistent light levels
• Toggle switch combined with slider for convenient ON/OFF and dimming control
• Mounts in standard wall boxes for easy installation
• Accommodates wire sizes from #14 to #10 AWG for flexible installation

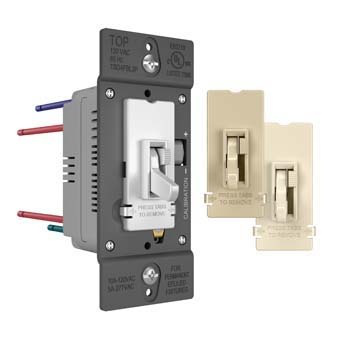

• Interchangeable face covers available in seven colors for aesthetic customization
• Gloss finish thermoplastic and steel construction for durability and style
• Suitable for indoor residential, commercial, and hospitality applications

• Load Rating: 120V 10A (Fluorescent, LED), 277V 5A (Fluorescent, LED)
• Voltage: 120/277 VAC
• Frequency: 60 Hz
• Control Current: 0-10 VDC 30 mA
• Number of Poles: Single Pole/3-Way
• Height: 4.19 in
• Width: 1.73 in
• Depth: 1.4 in
• Wire Size: #14 - #10 AWG

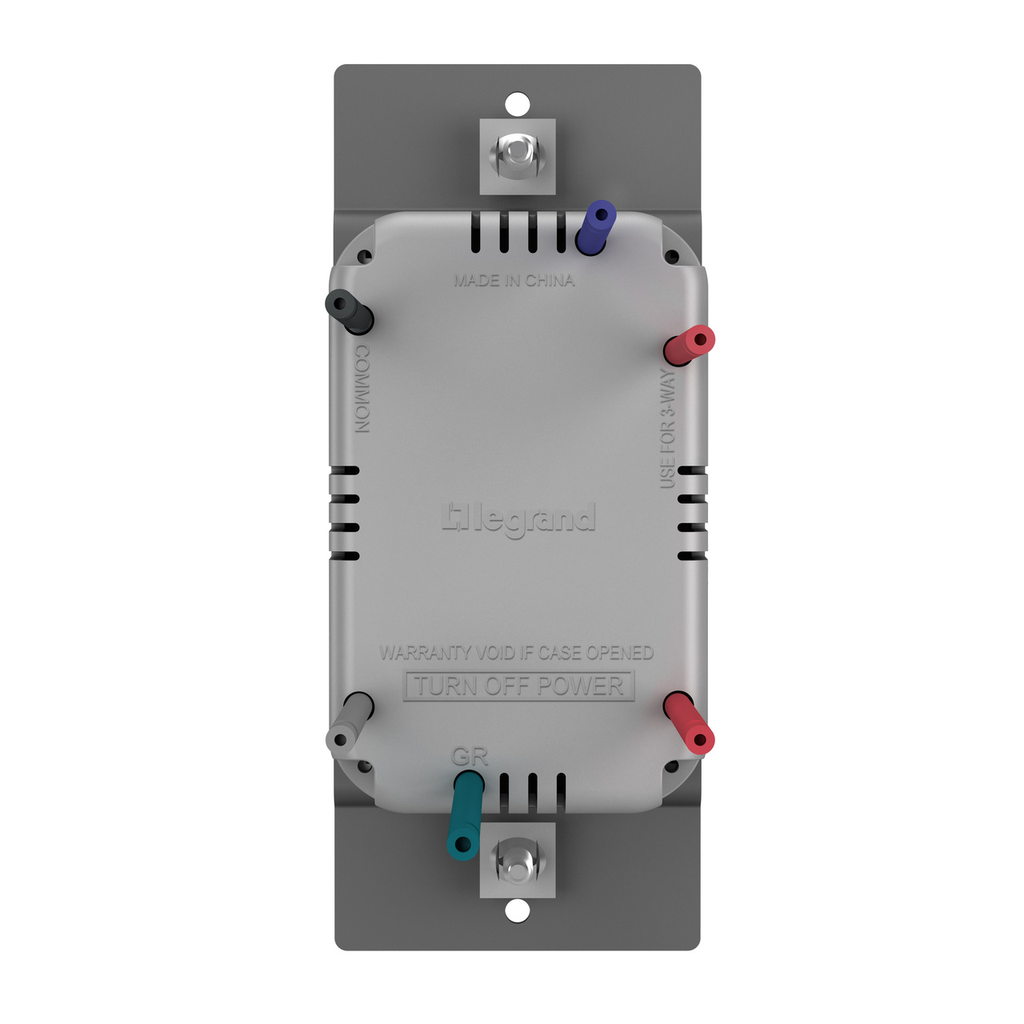

• Wire Connection Type: Flying Leads
• Mounting Type: Wall Box
• Material: Steel, Thermoplastic
• Finish: Gloss
• Preset: Yes
• Dimming Compatibility: 0-10 V
• Switch Type: Toggle, Slider
• Color: Ivory, Light Almond, White
• Face Cover Colors: Seven interchangeable colors
• Indoor/Outdoor: Indoor
• Application Sector: Commercial, Hospitality, Residential
• Country of Origin: China

Supporting Document

Installation Instructions

Downloads

Cutsheet
