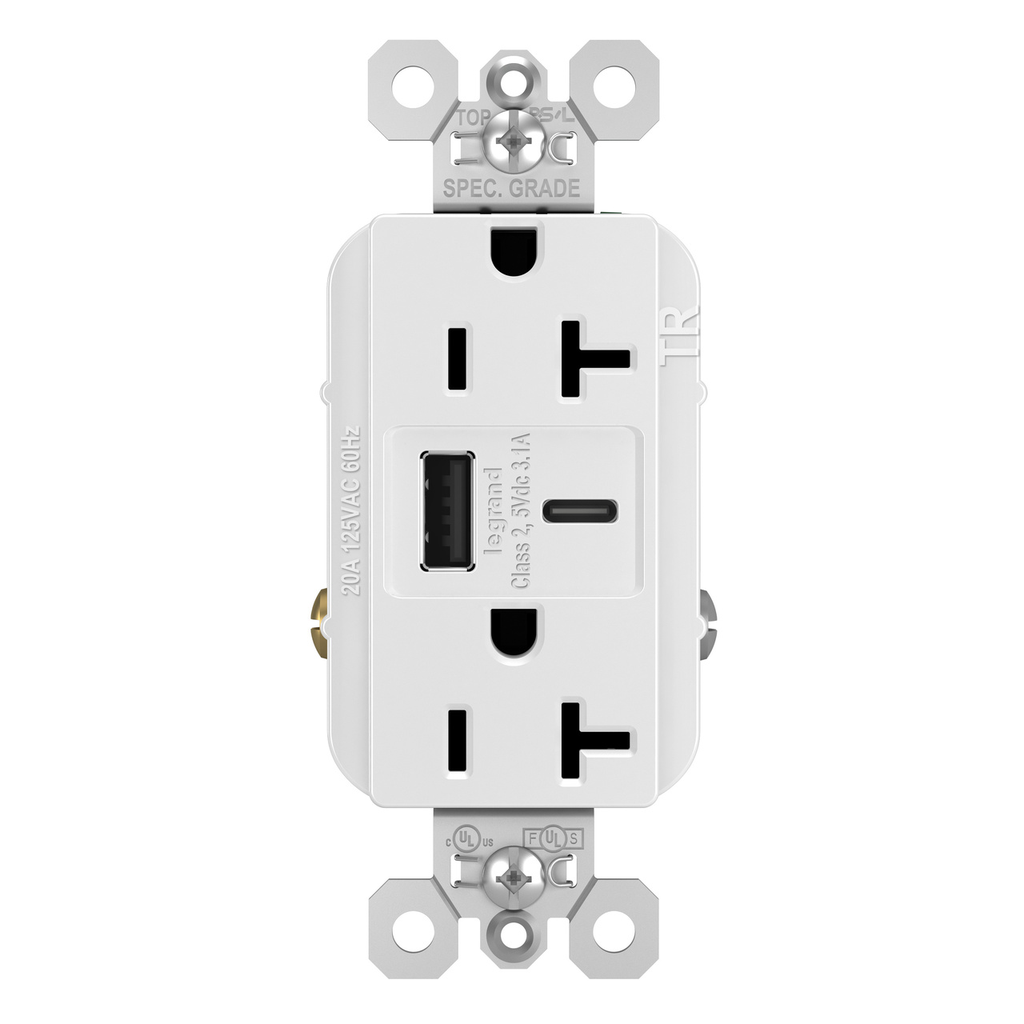

Pass & Seymour TR20USBACW USB Outlet 20A Tamper-Resistant 3.1A USB-A/C 2 Receptacles White Matte
Specifications
Documents
Supporting Document
Downloads
Instruction Sheet
Product Environmental Profile
Enhancing both functionality and safety, this tamper-resistant USB outlet from Pass & Seymour features two convenient USB ports to provide a total of 3.1A of charging power. Designed for various applications, including residential and commercial settings, the outlet's robust construction is highlighted by its UL and cUL listings, ensuring reliability and peace of mind. It accommodates two receptacles, allowing for simultaneous use of traditional electrical devices while also accommodating modern USB charging needs. Engineered for durability, the outlet incorporates two drive screws that effectively secure it against abrupt torque, making it a reliable choice for multi-dwelling units and other indoor environments. With a sleek matte white finish, it seamlessly blends into any decor while offering efficient and safe power management.
- Tamper-resistant design enhances safety by preventing foreign object insertion
- UL and cUL listed for reliable performance and safety assurance
- Two drive screws anchor strap to back body and face against abrupt torque
- Dual USB ports (Type A and Type C) provide combined 3.1A charging output
- Two standard receptacles allow simultaneous use of traditional and USB devices
- Side-only screw terminal connections ensure secure and reliable wiring
- Compatible with 14-10 AWG copper wiring for versatile installation
- Durable construction resists mechanical stresses during use
- Matte white finish blends seamlessly into various decor styles
- Engineered for indoor use in residential and commercial environments
- Amperage: 20 A
- Voltage: 125 V
- USB Charging Output: 3.1 A
- Number of USBs: 2
- USB Ports: Type A, Type C
- Number of Receptacles: 2
- Number of Wires: 3
- Wire Size: 14 - 10 AWG copper
- Wire Connection Type: Screw Terminals
- Connection Location: Side Only
- Mounting Type: Box
- Dimensions: 1.693 in W x 2.677 in H x 1.425 in D
- Mounting Strap Thickness: 0.049 in
- Height: 2.677 in
- Width: 1.693 in
- Depth: 1.425 in
- Material: Polycarbonate, Nylon, CDA 260 Brass, Zinc-Plated Steel, Stainless Steel
- Finish: Matte
- Is Tamper-Resistant: Yes
- Operating Temperature Range: -40 °C to 60 °C
- Maximum Temperature Rise: 30 °C after 50 cycles
- Dielectric Withstand Voltage: 1500 V minimum
- Flammability Rating: UL94 V2 (cover), 5V (body and frame)
- Frequency Rating: 60 Hz
- NEMA Configuration Code: 5-20R
- Standard: FEDSPEC
- Country of Origin: Vietnam
- Color: White
- Indoor/Outdoor: Indoor
