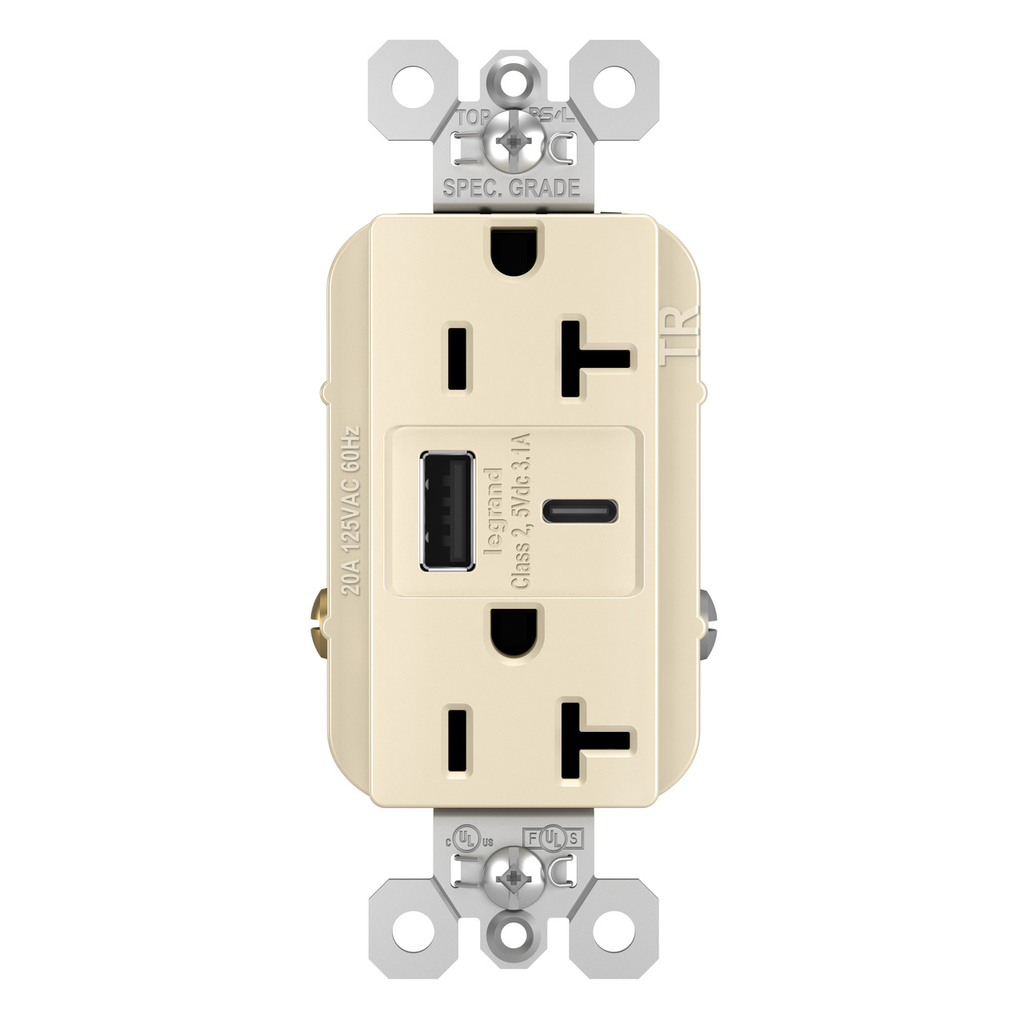

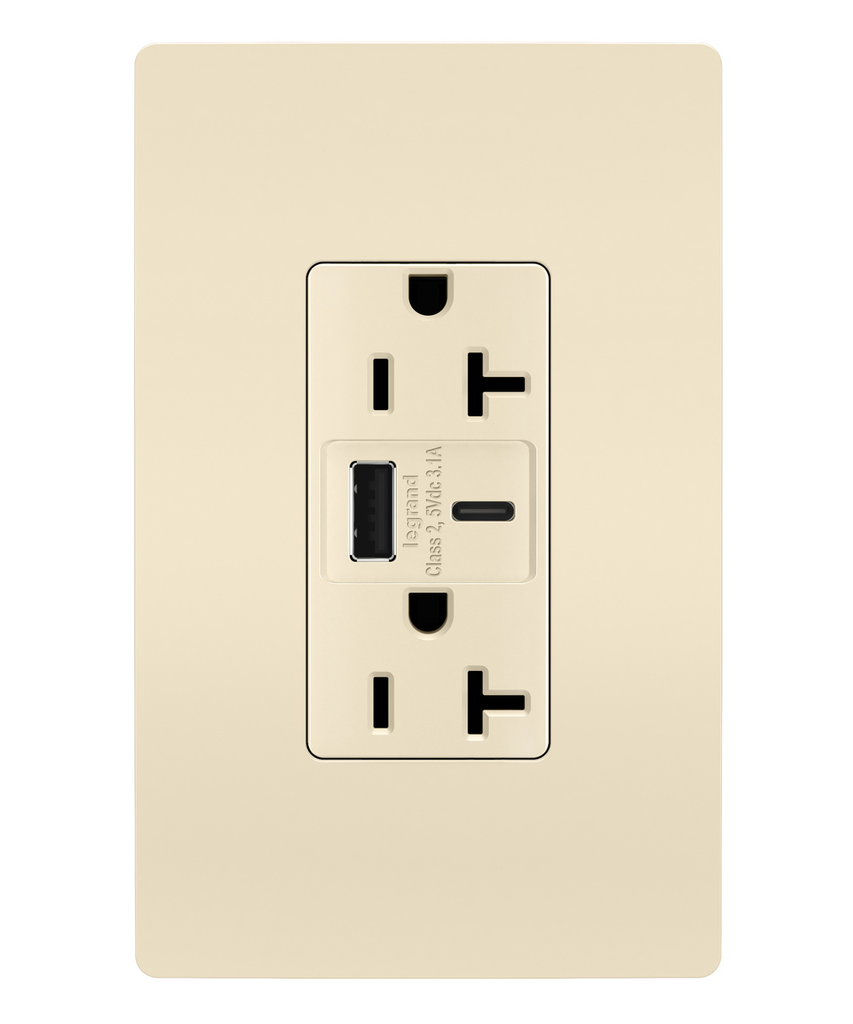

Pass & Seymour TR20USBACLA USB Charging Outlet 20A 3.1A Tamper-Resistant Light Almond
Specifications
Documents
Supporting Document
Downloads
Instruction Sheet
Product Environmental Profile
This tamper-resistant outlet from Pass & Seymour is designed to meet the demands of both residential and commercial applications, making it a versatile choice for multi-dwelling units. With two USB charging ports that provide 3.1A of power, this unit allows for convenient charging of your devices alongside traditional power access, all in a sleek light almond finish. Its robust construction includes two drive screws that anchor the strap securely, enhancing stability during use, and it has been rigorously tested to meet cULus and UL standards for safety and reliability. Whether you need it for a busy household or a commercial environment, this outlet ensures a seamless and efficient power solution while maintaining a tamper-resistant design for added safety.
- Tamper-resistant design for enhanced safety
- UL, cULus, and Federal Spec listed for safety compliance
- 3.1A total USB charging output with smart current sharing
- Dual USB Type-A and Type-C ports for versatile device charging
- 20A, 125V rating suitable for residential and commercial use
- Screw terminal connections compatible with 14-10 AWG wiring
- Durable polycarbonate face and nylon body for robust construction
- Triple-wipe brass contacts ensure reliable electrical retention
- Zinc-plated steel mounting strap anchored by two drive screws for secure installation
- Compact design fits standard depth wall boxes for easy installation
- Amperage: 20 A
- Voltage: 125 V
- USB Charging Output: 3.1 A
- Frequency Rating: 60 Hz
- Number of Poles: Double Pole
- Number of Wires: 3
- Number of Receptacles: 2
- USB Port Types: Type A, Type C
- USB Wattage: 15 W
- Operating Temperature Range: -40 to 60 b0C
- Mounting Type: Box
- Wire Connection Type: Screw Terminals
- Wire Size: 14 - 10 AWG
- Height: 2.677 in
- Width: 1.693 in
- Depth: 1.425 in
- Material - Face: Polycarbonate
- Material - Body: Nylon
- Material - Contacts: CDA 260 Brass
- Material - Mounting Strap: 0.049 in Zinc-Plated Steel
- Material - Terminal Screws: Tri-Drive Zinc-Plated Steel with Clear or Black Chromate
- Material - Ground Screw: Tri-Drive Steel with Green Chromate
- Material - Auto-Ground Clip: Stainless Steel
- Flammability Rating: UL94 V2 (cover), 5V (body and frame)
- Compliance: cULus Listed, UL Listed, FEDSPEC Standard
- Is Tamper-Resistant: Yes
- NEMA Configuration Code: 5-20R
- Indoor/Outdoor: Indoor
- Color: Light Almond
- Country of Origin: China
- Application Sector: Multi-Dwelling Unit, Commercial, Residential
- Connection Location: Side Only
- Outlet Type: USB-Charging, Tamper-Resistant
