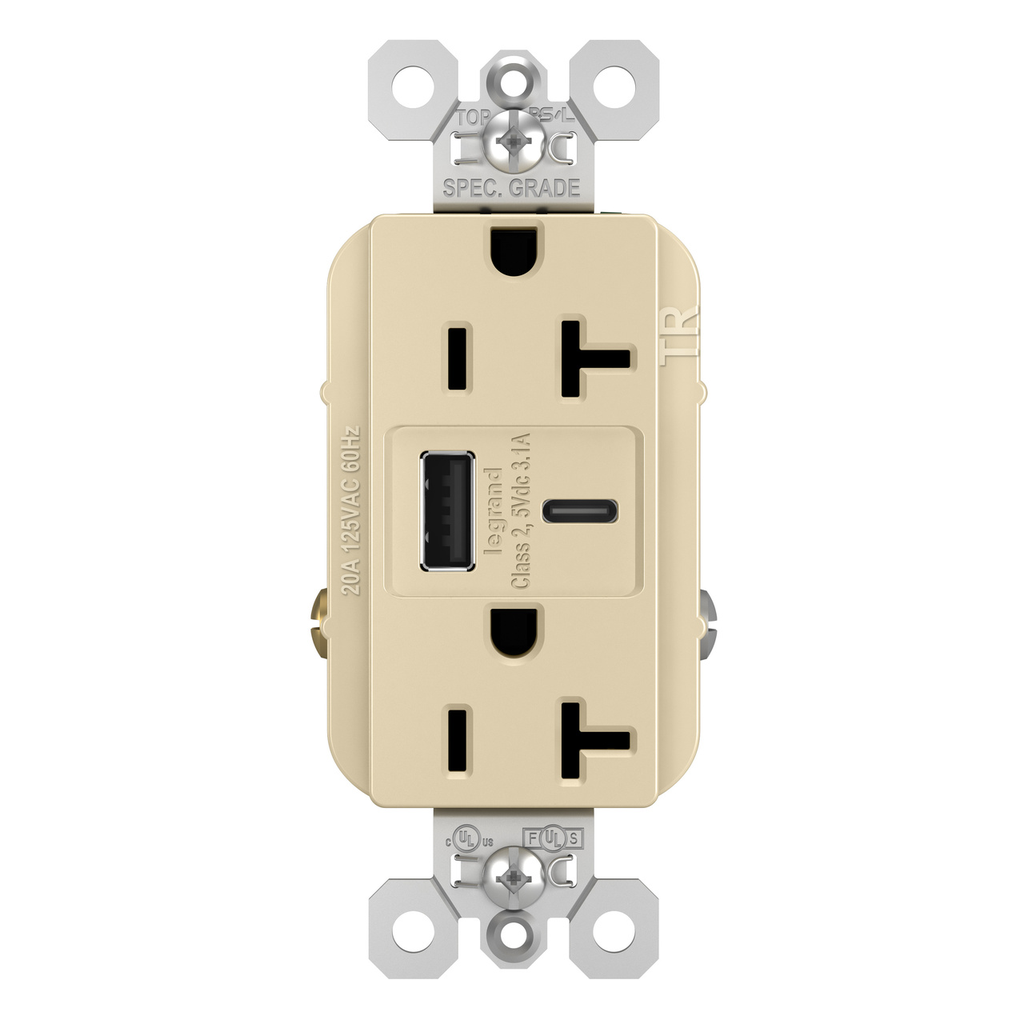

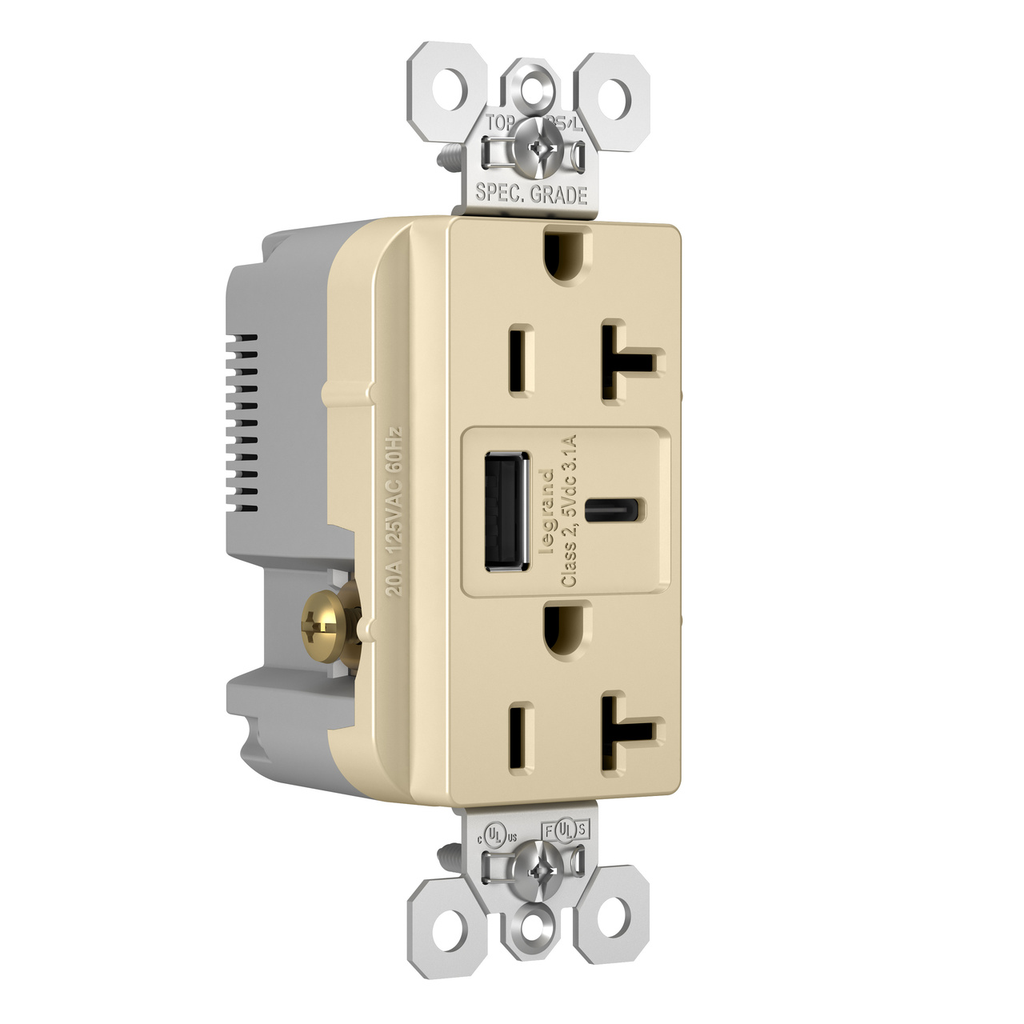

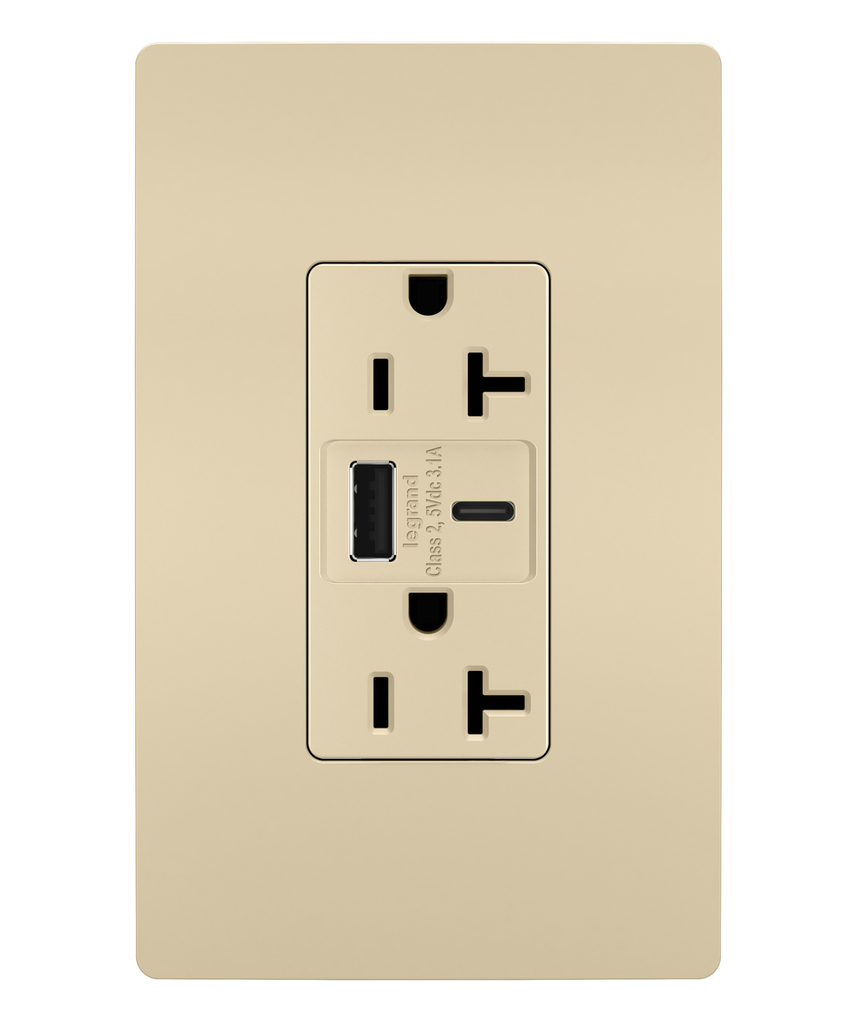

Pass & Seymour TR20USBACI USB Charging Outlet 125V 20A Tamper-Resistant Double Pole 3.1A USB Ivory
Specifications
Documents
Supporting Document
Downloads
Instruction Sheet
Product Environmental Profile
This tamper-resistant USB outlet combines functionality with safety, featuring two USB charging ports that deliver a robust 3.1A for quick device charging. Engineered for durability, it is equipped with drive screws that anchor the strap securely to the back body and face, ensuring reliability even under stress, and boasts a cULus and UL listing for quality assurance. Designed to accommodate a variety of installations in both residential and commercial settings, this outlet operates efficiently at a voltage of 125V and is compatible with wire sizes ranging from 14 to 10 AWG. With its sleek ivory finish and practical double-pole configuration, it is not only a smart choice for modern multi-dwelling units but also integrates seamlessly into any indoor environment.
- Tamper-resistant design prevents foreign object insertion
- cULus and UL listed for safety and code compliance
- Double-pole configuration supports 20A power applications
- 3.1A total USB charging current for fast device charging
- Equipped with Type A and Type C USB ports for versatile compatibility
- Drive screws secure mounting strap to face and back body for durability
- Compatible with 14 to 10 AWG wires via screw terminals
- Polycarbonate face and nylon body provide robust construction
- Stainless steel auto-ground clip ensures positive grounding
- Slim profile fits standard depth wall boxes for easy installation
- Voltage: 125 V
- Amperage: 20 A
- USB Charging Current: 3.1 A total
- USB Ports: Type A, Type C
- Mounting Type: Box
- Wire Size: 14 - 10 AWG
- Wire Connection Type: Screw Terminals
- Number of Poles: Double Pole
- Number of Wires: 3
- USB Wattage: 15 W
- Dimensions: 1.693 in W, 2.677 in H, 1.425 in D
- Material: Polycarbonate Face, Nylon Body, CDA 260 Brass Contacts, Zinc-Plated Steel Mounting Strap, Stainless Steel Auto-Ground Clip
- Temperature Range: -40°C to +60°C
- Tamper-Resistant: Yes
- Compliance: cULus Listed, UL Listed, FEDSPEC
- Color: Ivory
- Country of Origin: China
- Application Sector: Multi-Dwelling Unit, Residential, Commercial
- Frequency Rating: 60 Hz
- Connection Location: Side Only
- Number of Receptacles: 2
- NEMA Configuration Code: 5-20R
- Indoor/Outdoor: Indoor
- Product Line: Pass & Seymour
