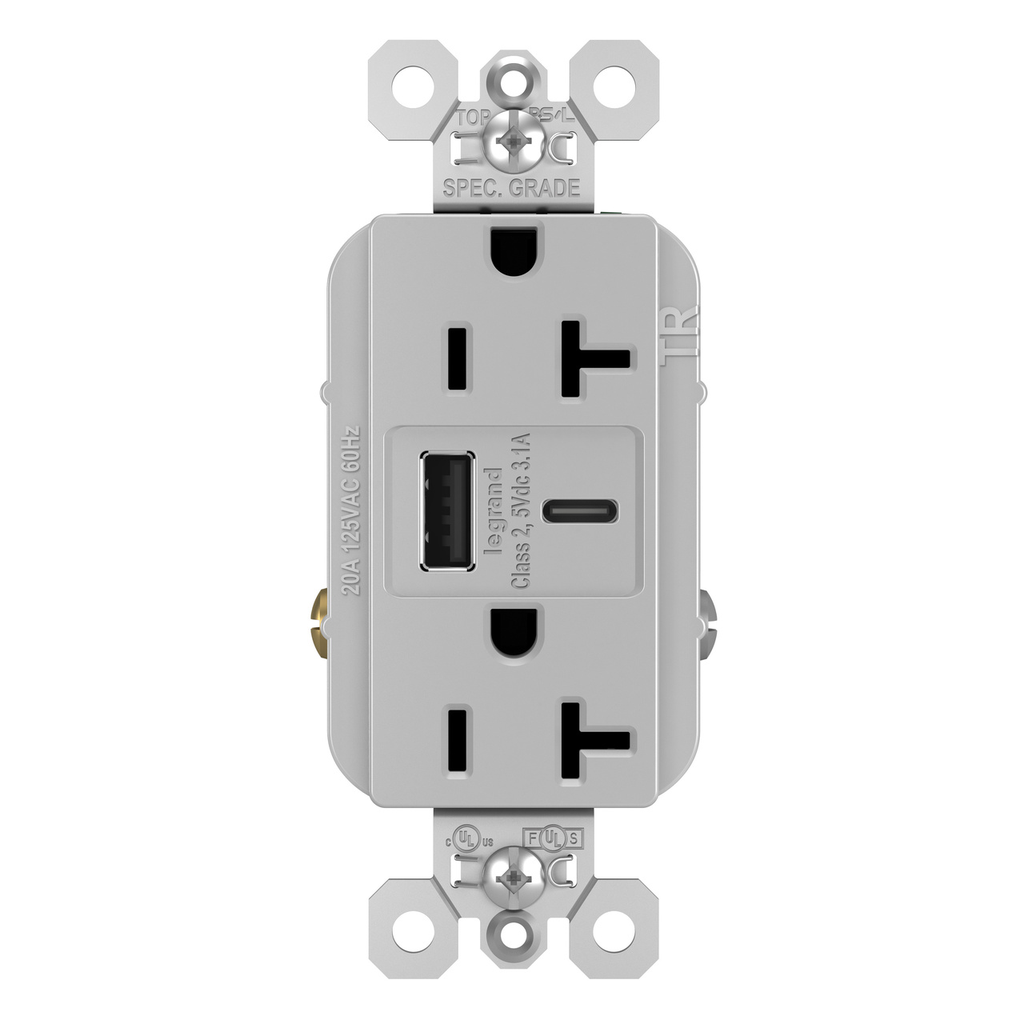

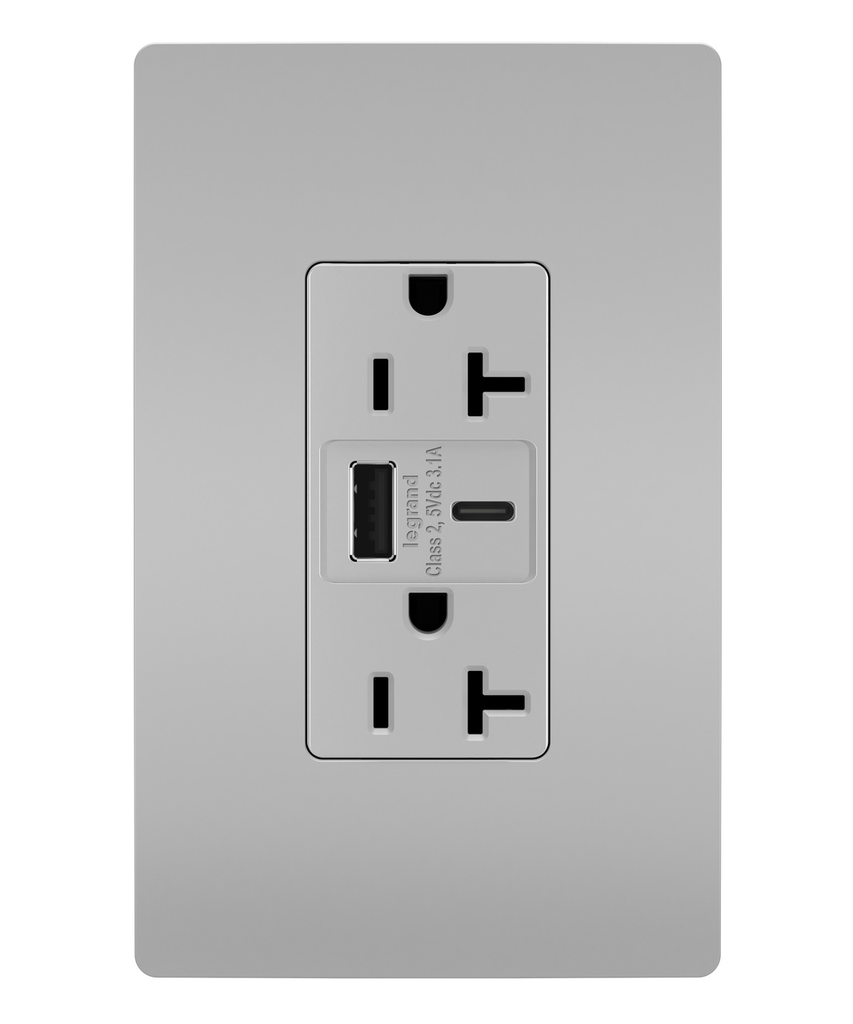

Pass & Seymour TR20USBACGRY USB Outlet 20A Tamper-Resistant USB-A/C Charging Gray Matte
Specifications
Documents
Supporting Document
Instruction Sheet
Product Environmental Profile
Guide Form Specifications
Downloads
This tamper-resistant USB outlet from Pass & Seymour combines functionality and safety in a sleek gray design, making it an ideal choice for both residential and commercial applications. With two USB charging ports providing a total output of 3.1 amps, it ensures that your devices stay powered without occupying valuable outlet space. Designed to withstand challenging environments, it operates effectively in temperatures ranging from -40°C to 60°C and is anchored securely with dual drive screws to prevent accidental removal. Federal Spec Listed and UL Listed, this outlet not only meets stringent safety standards but also exemplifies durability and user-friendly design, proving itself essential in modern multi-dwelling units and everyday home settings.
- Tamper-resistant design with patented shutter system for safety
- UL Listed, cULus Listed, and Federal Spec Listed for compliance and safety assurance
- Supports 20A, 125V electrical rating suitable for heavy-duty use
- Dual USB ports (Type A and Type C) with 3.1A combined charging output
- Operates effectively in extreme temperatures from -40°C to 60°C
- Two drive screws anchor strap to back body and face for secure mounting
- Durable polycarbonate face and nylon body construction
- Stainless steel auto-ground clips and zinc-plated terminal screws resist corrosion

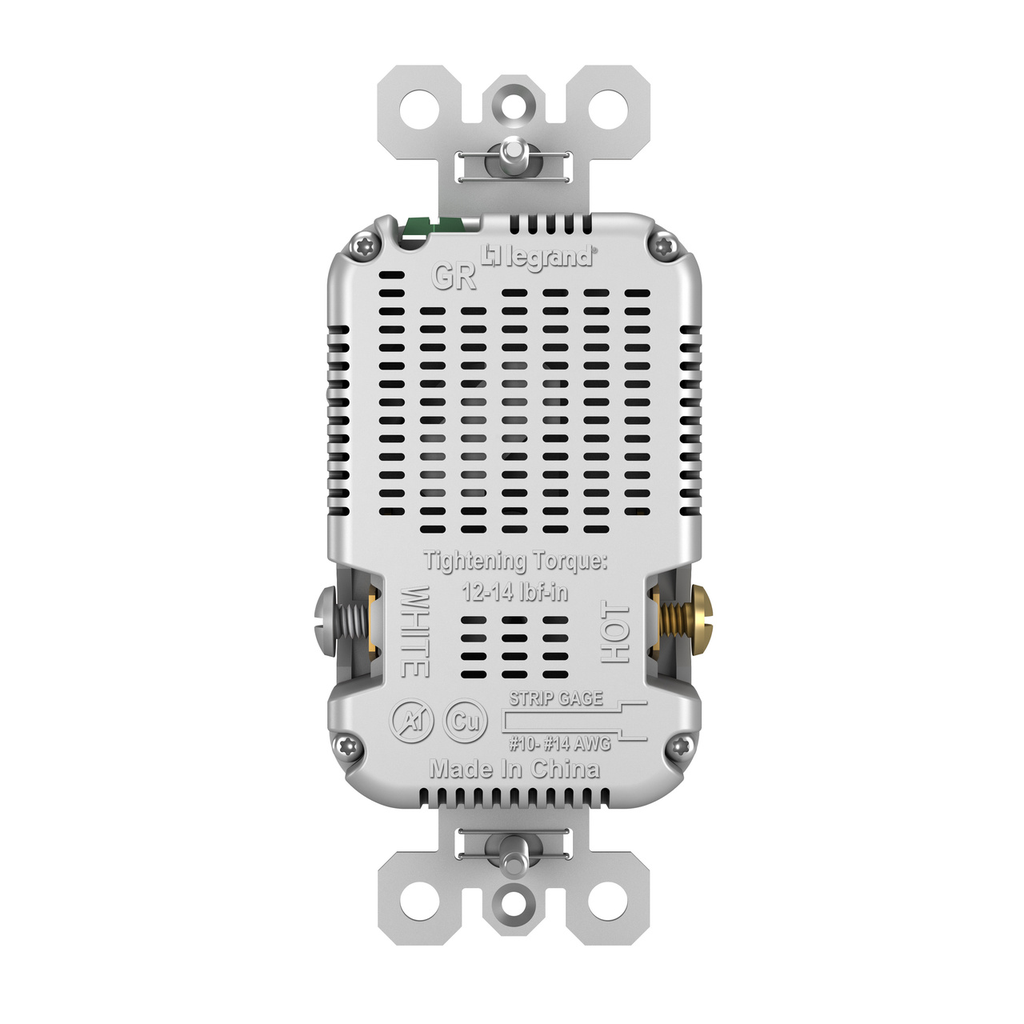

- Back and side wire terminations with screw terminals for reliable connections
- Slim design fits standard depth wall boxes for easy installation
- Amperage: 20 A
- Voltage: 125 V
- USB Charging Current: 3.1 A
- Frequency Rating: 60 Hz
- Maximum Temperature Rise: 30B0C after 50 cycles
- Operating Temperature: -40B0C to 60B0C
- Outlet Type: Tamper-Resistant, USB-Charging
- Number of USBs: 2 (Type A, Type C)
- NEMA Configuration Code: 5-20R
- Number of Poles: Double Pole
- Wire Size: 14-10 AWG copper
- Connection Location: Side Only
- Length: 3.28 in
- Width: 1.693 in
- Height: 2.677 in
- Depth: 1.425 in
- Mounting Type: Box
- Wire Connection Type: Screw Terminals
- Material Face: Polycarbonate
- Material Body: Nylon
- Material Contacts: CDA 260 Brass
- Material Mounting Strap: 0.049 in Zinc-Plated Steel
- Material Terminal Screws: Tri-Drive Zinc-Plated Steel
- Material Ground Screw: Tri-Drive Steel with Green Chromate
- Material Auto-Ground Clip: Stainless Steel
- Finish: Matte
- Dielectric Withstand Voltage: 1500 V minimum
- Flammability Rating: UL94 V2 cover, 5V body/frame
- Compliance: UL Listed, cULus Listed, Federal Spec Listed
- Color: Gray
- Country of Origin: China
