Engineered for both safety and convenience, this tamper-resistant USB outlet from Pass & Seymour is a vital addition for any multi-dwelling unit or residential setup. The device features a high-impact resistant nylon face, ensuring durability while providing powerful charging capabilities with two USB ports, including USB-A and USB-C, that deliver a total of 30 watts. Designed to handle a voltage of 125 volts and a frequency rating of 60 Hz, this outlet meets the rigorous demands of commercial environments as well as home use. With a sleek white matte finish, it blends seamlessly into any indoor space, while its robust specifications allow for reliable performance in a range of operating temperatures. As an added advantage, the connection points are situated on the side, facilitating easy installation in any standard electrical box.
- Tamper-resistant design for child safety
- Meets 20A, 125V electrical standards for residential and commercial use
- Total 6A charging capacity delivering up to 30W power
- Dual USB ports with Type-A and Type-C for versatile charging
- High-impact resistant nylon face for durability
- Screw terminal connections for secure wiring
- Compatible with 14-10 AWG wire sizes for versatile wiring
- Operates reliably within a -40 to 60 °C temperature range

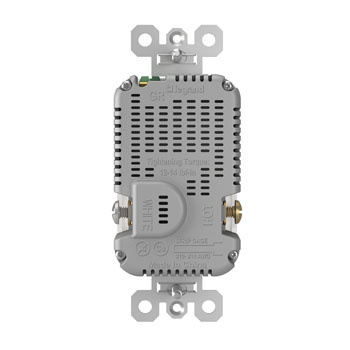

- Side wire terminals for easy installation in standard boxes
- White matte finish for seamless indoor integration
- Amperage: 20 A
- Voltage: 125 V
- USB Charging Ports: 2
- Charging Capacity: 6 A total
- USB Port Types: Type A, Type C
- Operating Temperature Range: -40 to 60 °C
- Number of Poles: Double Pole
- NEMA Configuration Code: 5-20R
- Wire Size: 14 - 10 AWG
- Wire Connection Type: Screw Terminals
- Mounting Type: Box
- Number of Wires: 3
- Height: 2.677 in
- Width: 1.693 in
- Depth: 1.425 in
- Material: Nylon
- Finish: Matte
- Color: White
- Application Sector: Multi-Dwelling Unit, Commercial, Residential
- Country of Origin: Vietnam
