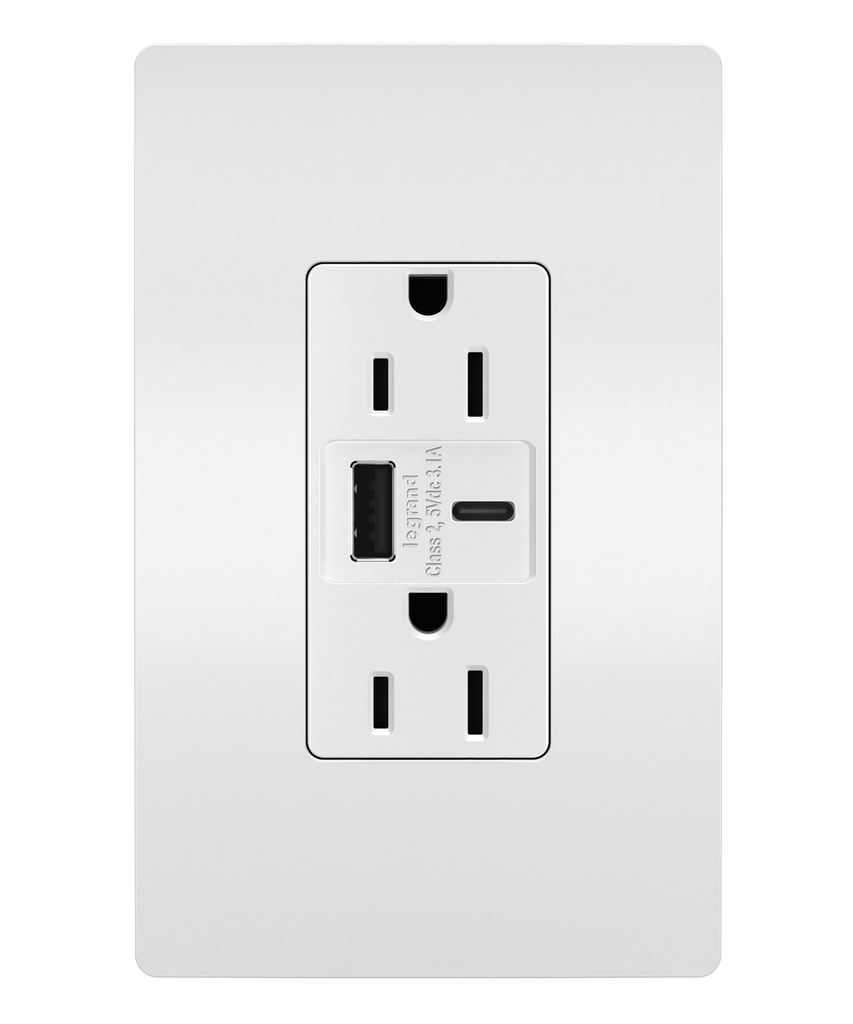

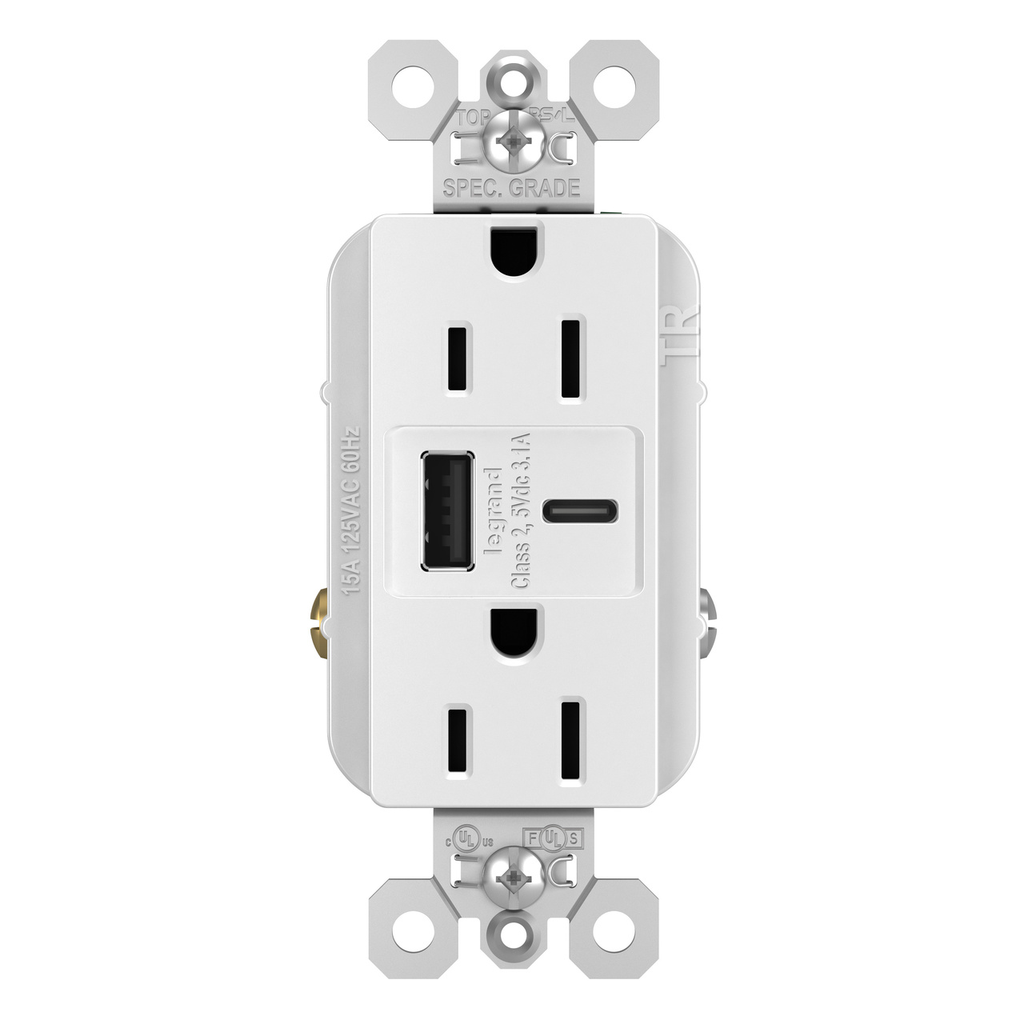

Pass & Seymour TR15USBACW USB Charging Outlet 15A 3.1A Dual USB Tamper-Resistant White Thermoplastic Matte
Specifications
Documents
Supporting Document
Downloads
Instruction Sheet
Product Environmental Profile
Elevate your charging experience with this advanced USB outlet featuring a dual USB-A/C design that delivers a total of 3.1A, perfect for powering multiple devices simultaneously. Crafted from high-impact-resistant thermoplastic, this outlet is engineered for durability and includes tamper-resistant features to protect children from improper insertion of foreign objects. With the integrated SafeLock® Protection, the device ensures that power is disconnected if critical components are damaged, while an automatic test conducted every three seconds guarantees its readiness to protect. This product is both UL and cULus Listed, meaning it meets rigorous safety standards, making it an excellent choice for residential, commercial, and multi-dwelling unit applications.
- Meets National Electrical Code® tamper-resistant requirement to protect children
- SafeLock® Protection disconnects power if critical components are damaged
- Automatic power readiness test every three seconds with failure indicator
- UL and cULus Listed for verified safety compliance
- High-impact-resistant thermoplastic construction with tri-drive terminal screws
- Dual USB Type-A and Type-C ports for simultaneous device charging
- Overall 3.1A USB charging output with smart current-sharing technology

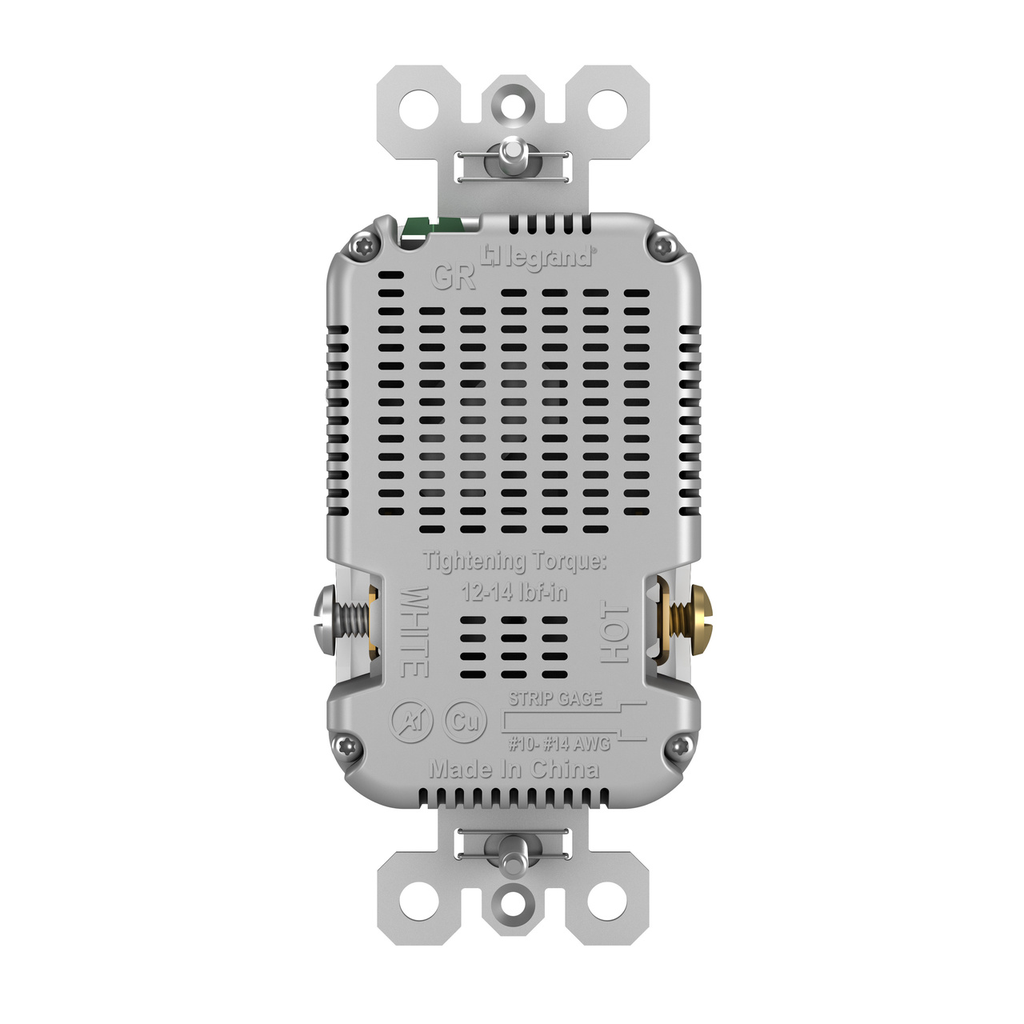

- Screw terminal side-only wiring for secure installation
- Matte finish for a subtle, professional appearance
- Suitable for residential, commercial, and multi-dwelling applications
- Amperage: 15 A
- Voltage: 125 V
- USB Charging Current: 3.1 A
- USB Wattage: 15 W
- Number of USBs: 2
- Number of Receptacles: 2
- Number of Poles: Double Pole
- Wire Size: 14 - 10 AWG
- Number of Wires: 3
- Wire Connection Type: Screw Terminals
- Connection Location: Side Only
- Width: 1.693 in
- Height: 2.677 in
- Depth: 1.425 in
- Material: Thermoplastic
- Finish: Matte
- Outlet Type: Tamper-Resistant USB-Charging
- Is Tamper-Resistant: Yes
- Terminal Screws: Tri-Drive
- Compliance: UL Listed, cULus Listed, FEDSPEC Tamper-Resistant
- Indoor/Outdoor: Indoor
- Application Sector: Commercial, Residential, Multi-Dwelling Unit
- Color: White
- Country of Origin: Vietnam
- Product Line: Pass & Seymour
- Warranty Type: 1-Year Limited Warranty
