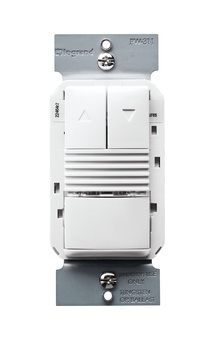

Pass & Seymour PW311W Wall Box Occupancy Sensor Passive Infrared 0-10V Dimming White Matte

Enhance energy efficiency and security in commercial spaces with this advanced occupancy sensor from Pass & Seymour. The Wattstopper® Multi-Way Passive Infrared Single-Relay 0-10V Dimming Wall Mounted Sensor is designed for indoor applications, featuring a streamlined white finish that blends seamlessly with any environment. Its customizable options allow for selectable audible and visual alerts, a walk-through mode that conserves energy by automatically turning lights off after three minutes of inactivity, and a test mode for easy coverage verification. The vandal-resistant lens ensures durability while providing precise coverage for optimal performance, and the integrated LED indicator offers clear visibility of occupancy detection. With the added capability of an optional Smart Light Level, the sensor can adapt its ambient light hold-off threshold to meet user preferences, making it a versatile choice for diverse settings. Elevate your spaces with a solution that not only automates lighting but also promotes sustainability.

• Passive infrared technology for accurate occupancy detection
• Vandal resistant lens for durable and precise coverage
• Selectable audible and visual alerts for impending shutoff
• Walk-through mode turns lights off after 3 minutes of inactivity
• Test mode allows quick and easy coverage verification
• Optional Smart Light Level adapts ambient light hold-off threshold
• Manual-ON default operation for maximum energy savings
• Multi-way control from up to four switch locations
• 0-10V dimming control compatible with LED and ballast lighting
• No neutral wiring required for flexible retrofit installation

Specifications

• Color: White
• Features: IR (Infrared)
• Sensor Type: Occupancy
• Features: Motion Sensor
• Finish: Matte
• Country of Origin: China
• Voltage: 120 to 277 V
• Requires Neutral Wire: No
• Number of Buttons: 3.0
• Switch Type: Motion Sensor
• Product Line: Pass & Seymour
• Wire Size: #14 - #10 AWG
• Response Frequency: 60 Hz
• Type: Switch
• Indoor/Outdoor: Indoor
• Seismic Tested: No
• Width: 1.75 in
• Height: 2.73 in
• Number of Poles: Multi-Location
• Depth: 1.81 in
• Length: 2.73 in
• Mounting Type: Box
• Application Sector: Commercial
• Connection Type: Wired
