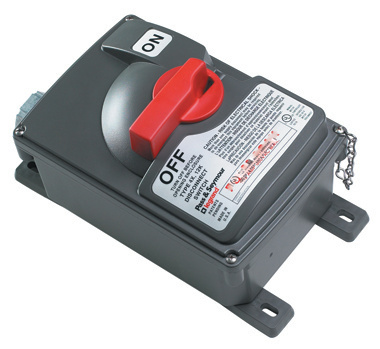

Pass & Seymour PS30SS Safety Switch 30A NEMA 4X Thermoplastic Gray Ergonomic Handle

Engineered for versatility and resilience, the Non-Fusible Safety Switch from Pass & Seymour offers a compact design that fits seamlessly into most I-beams, facilitating easy access while significantly reducing the risk of impact damage. Its adjustable mounting feet provide straightforward strut or pole mounting without the need for additional brackets or harnesses, making installation a breeze. The switch features a robust, watertight enclosure made from durable thermoplastic, achieving both NEMA 4X and 12 ratings, ensuring optimal protection against corrosion, heat, and impact in harsh industrial environments. Designed with user safety and convenience in mind, it incorporates a heavy-duty ergonomic switch handle that complies with OSHA Lockout/Tagout provisions, ensuring secure operation. The switch also boasts a unique side-sealed entry, enhancing water resistance further, while the well-marked ON/OFF indicators allow for clear status visibility from any angle. With multiple wiring access options and corrosion-resistant stainless steel components, this safety switch is built to withstand demanding applications, assuring reliability in critical conditions.

• Heavy-duty ergonomic switch handle complies with OSHA Lockout/Tagout for safe operation
• Watertight, corrosion, heat, and impact-resistant thermoplastic enclosure delivers NEMA 4X and 12 protection
• Rated for full current interrupting at up to 600V for reliable industrial use
• Side-sealed entry enhances water resistance
• Compact design fits most I-beams for versatile mounting and easy access
• Adjustable mounting feet allow direct strut or pole mounting without extra brackets
• Corrosion-resistant stainless steel captive screws speed installation and withstand abuse
• Clear ON/OFF indicators visible from multiple angles
• Multiple wiring access locations at top and bottom for installation flexibility
• IP67 and UL94 5VA/VO flammability classification ensure tough environmental resistance

• Amperage: 30 A
• Voltage: 120 to 600 V
• Horsepower Rating: 50 HP @ 3Y 347/600 VAC, 40 HP @ 3 480 VAC, 40 HP @ 3Y 277/480 VAC, 20 HP @ 3Y 120/208 VAC, 20 HP @ 480 VAC, 20 HP @ 3 240 VAC, 15 HP @ 277 VAC, 10 HP @ 240 VAC, 10 HP @ 208 VAC, 3 HP @ 120 VAC
• Enclosure Type: NEMA 4X, NEMA 12, Plastic
• Material: Valox thermoplastic
• Finish: Matte
• Wiring Location: Top, Bottom
• Terminal Accommodation: #14 AWG - #10 AWG
• Connection: Hardwired
• Width: 7.38 in
• Depth: 4.88 in
• Height: 9.69 in
• Current Interrupting: Full-rated current and voltage
• Short Circuit Withstand Rating: Use on circuit delivering RMS amps at 600VAC (see chart)
• Mechanical Operations: 15,000 cycles
• Electrical Operations: 10,000 cycles
• Auxiliary Contacts: 10A @ 600VAC; 1 N.O. & 1 N.C.
• Impact Resistance: Per UL746C
• Terminal Identification: Per UL and CSA
• Mounting: External adjustable feet with five positions, fits channel or strut
• Moisture Resistance: UL50 section 35, NEMA 4X (watertight, hosedown), NEMA 12K (dusttight, falling dirt), IP67
• Flammability: UL94 5VA and VO Classification
• Operating Temperature: -500b0C to +600b0C continuous
• UV Resistance: All enclosure materials UV stabilized
• Switch Handle Material: Valox 357 thermoplastic
• Switch Handle Seal: Neoprene
• Switch Key Material: 10% Glass-Filled Nylon
• Mounting Feet Material: Valox 357
• Mounting Feet Screws: 300 Series Stainless Steel
• Enclosure Assembly Screws: 300 Series Stainless Steel
• Cover Chain Material: 300 Series Stainless Steel
• Grounding Plate Material: Galvanized Steel
• Country of Origin: United States
• Type: Safety Switch
• Standard: UL 498
• Product Line: Pass & Seymour
• Application Sector: Industrial
• Color: Gray
