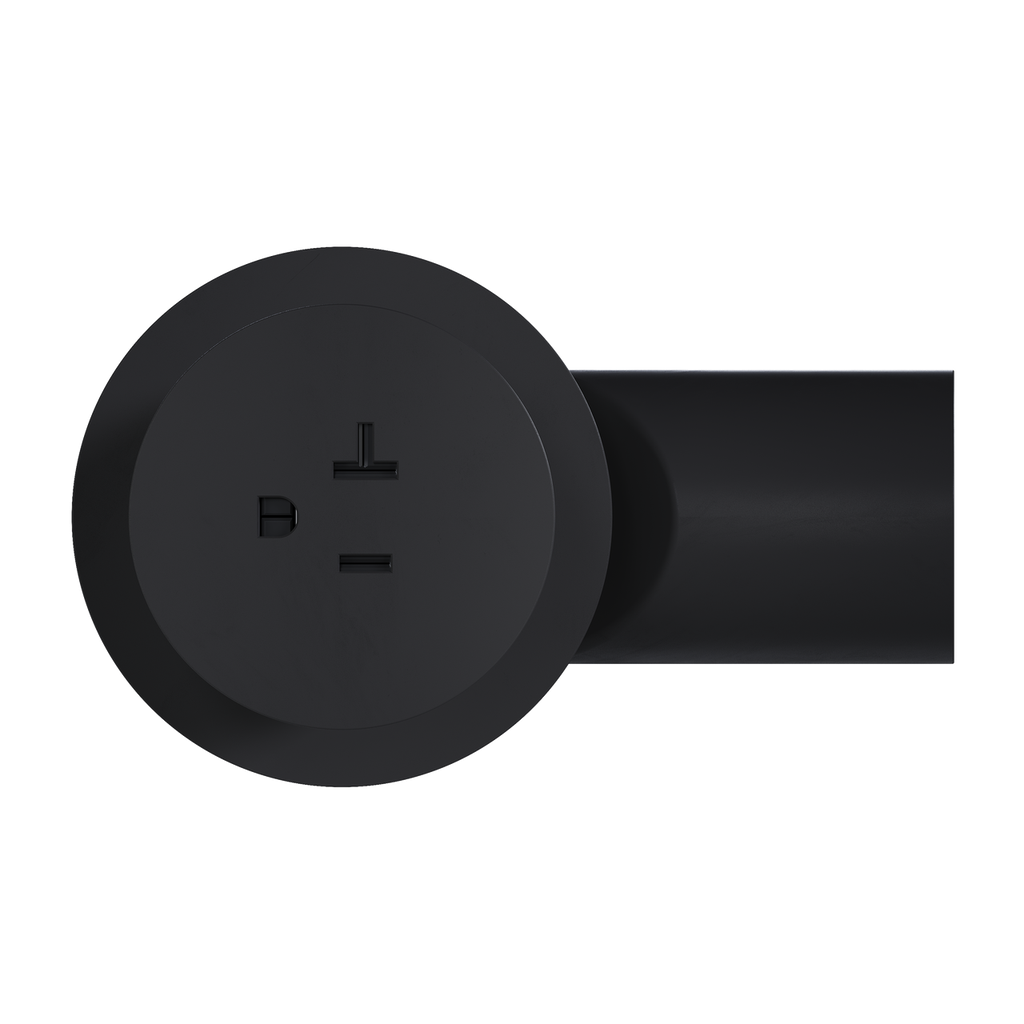

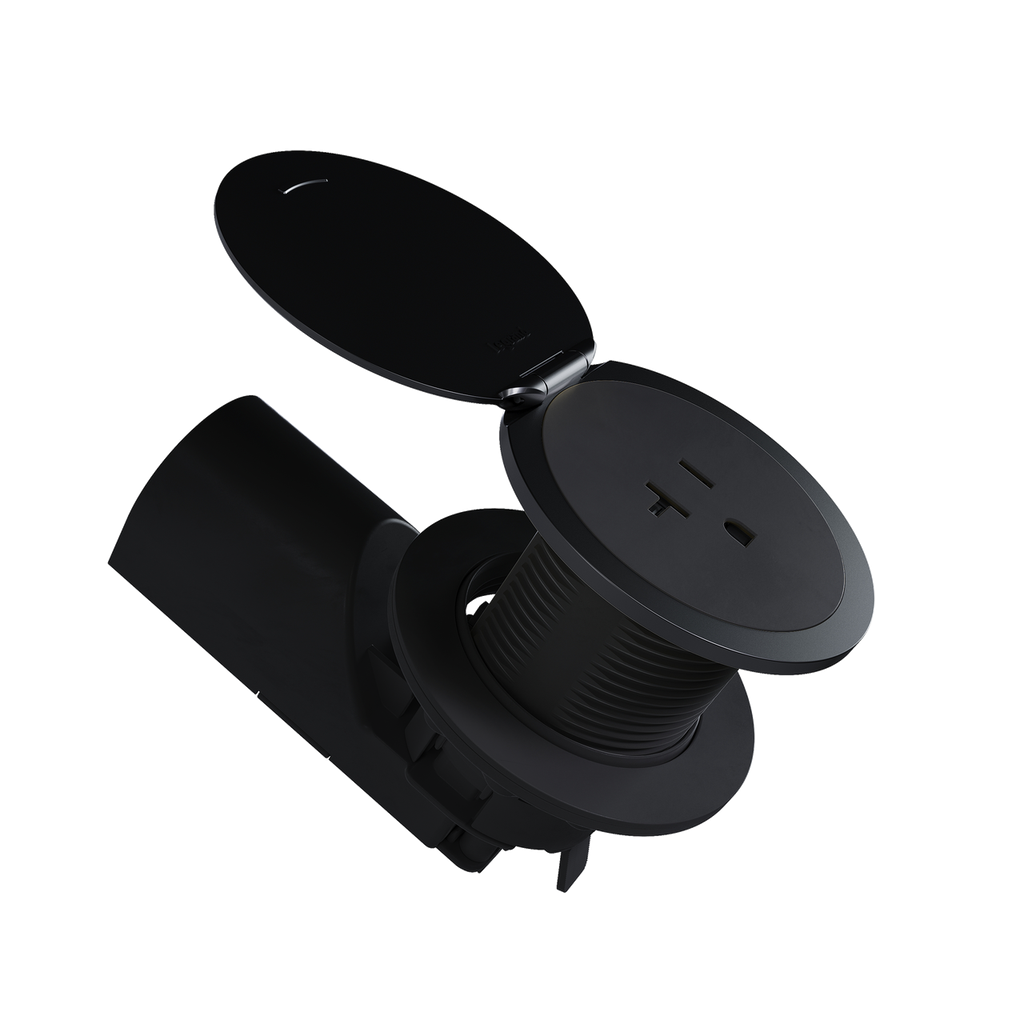

Pass & Seymour CP498TR20BK Kitchen Countertop Outlet 20A 125V Tamper-Resistant Matte Black
Documents
Downloads
CAD Drawings
Installation Instructions
Cutsheet
Sell Sheet

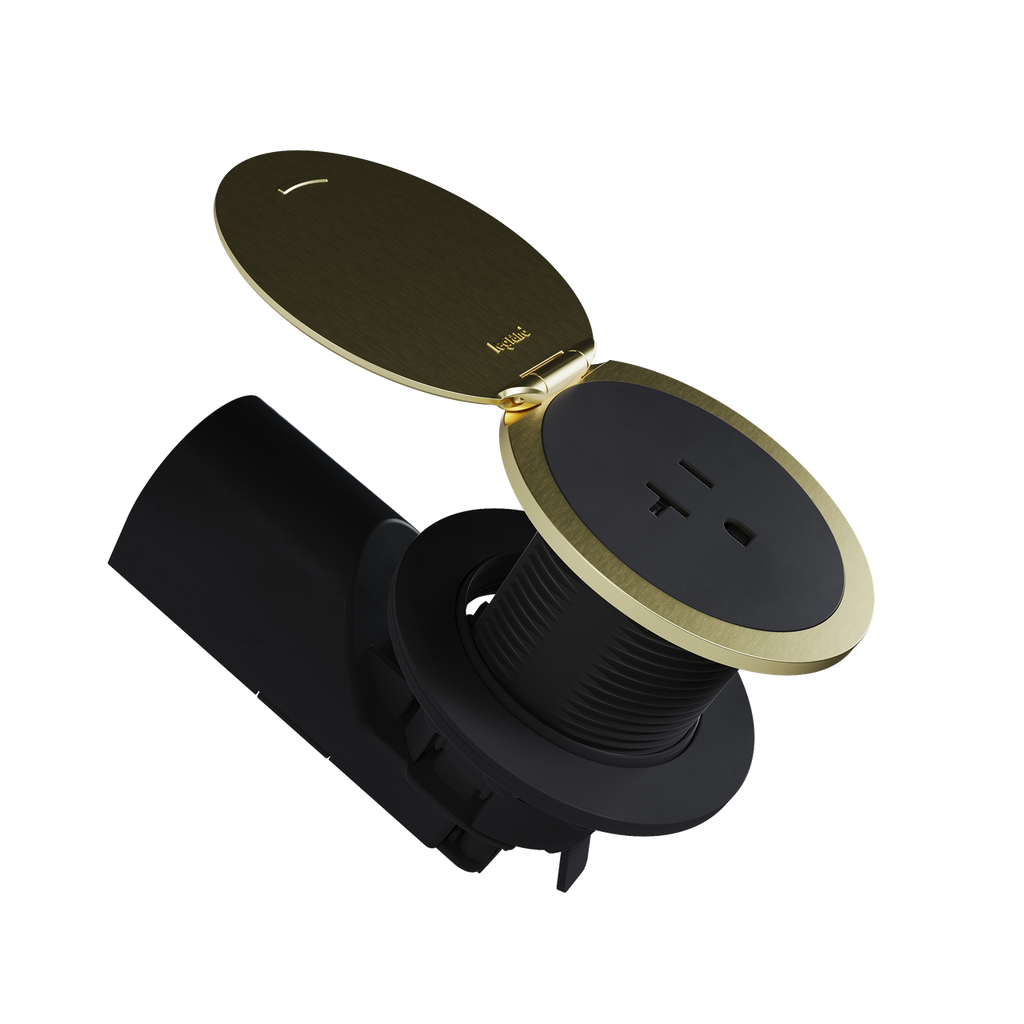

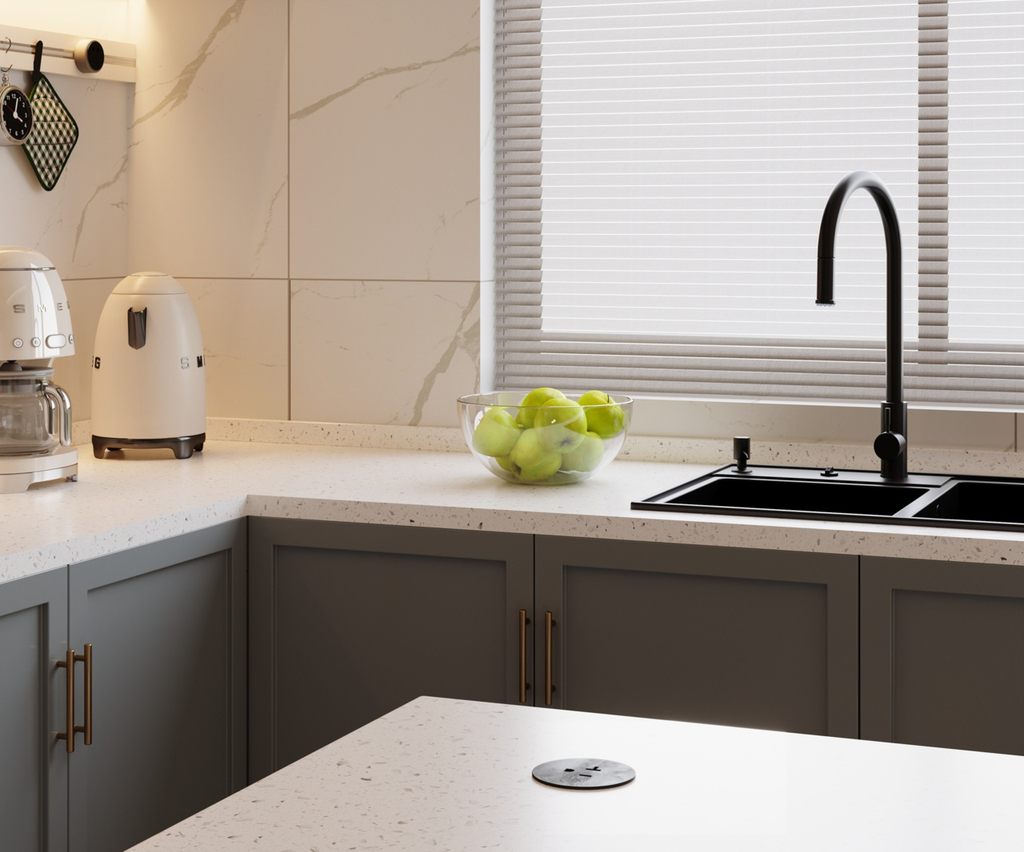

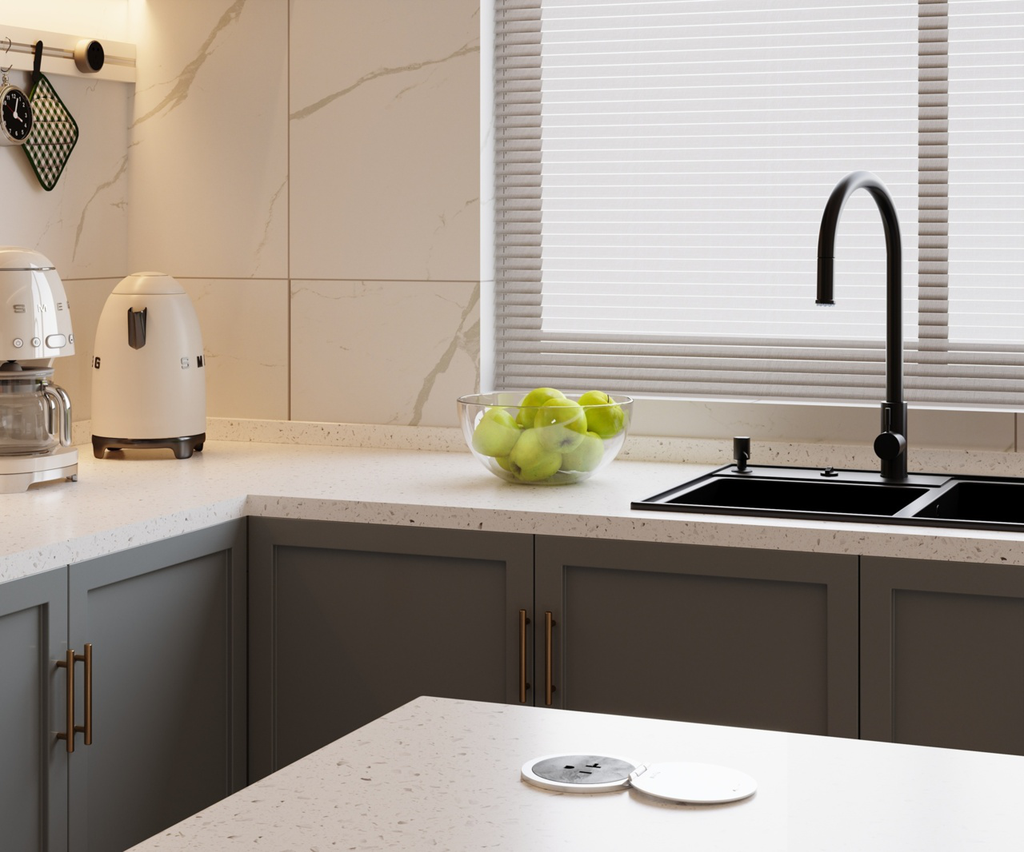

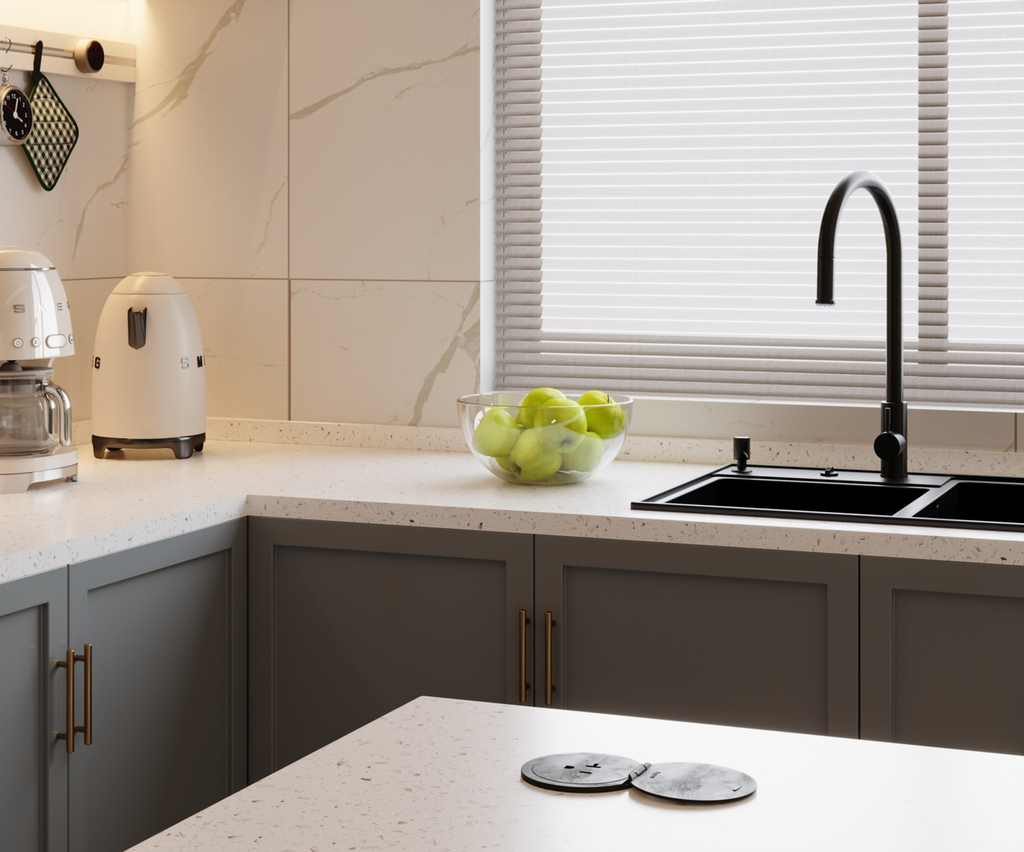

The Kitchen Countertop Outlet from Pass & Seymour, featuring a sleek matte black finish, combines innovative design with practical functionality, making it an essential addition for any modern kitchen setting. Its compact, surface-mount design allows for easy installation on kitchen islands or peninsulas, seamlessly blending with various kitchen aesthetics while taking up nearly 40% less space than traditional outlets. This outlet is equipped with tamper-resistant shutters to enhance safety and is compliant with the latest NEC 2023 standards, ensuring reliability and adherence to electrical codes. Designed for heavy-duty use, the outlet withstands corrosion and chemical exposure, making it perfect for high-traffic areas. Installation is simplified by a quick-connect termination tail that requires no tools beneath the counter, and it can be installed without a junction box, further enhancing convenience. With options for attractive cast metal finishes and a UL 498 rating, this outlet not only serves a functional purpose but also adds a refined touch to your kitchen environment.
- Tamper-resistant shutters enhance child safety

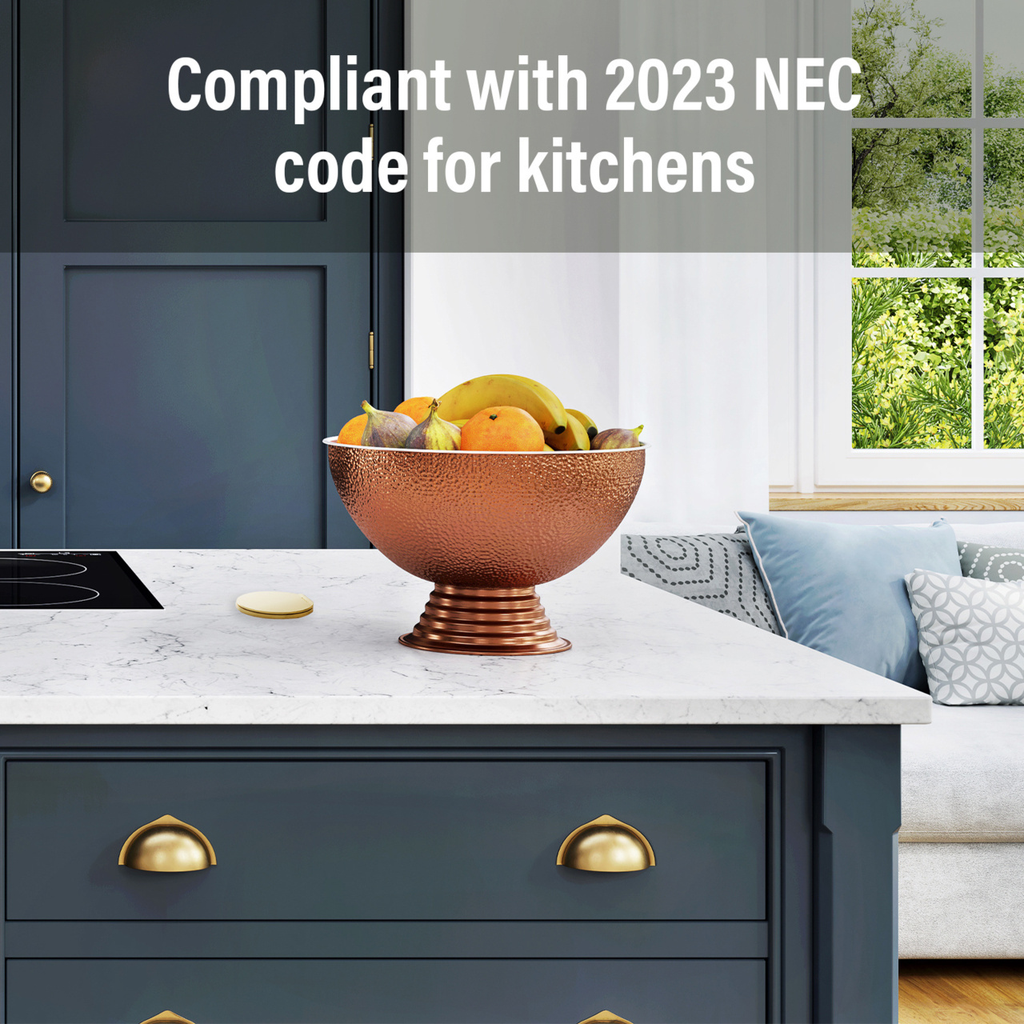

- Complies with NEC 2023 electrical code requirements

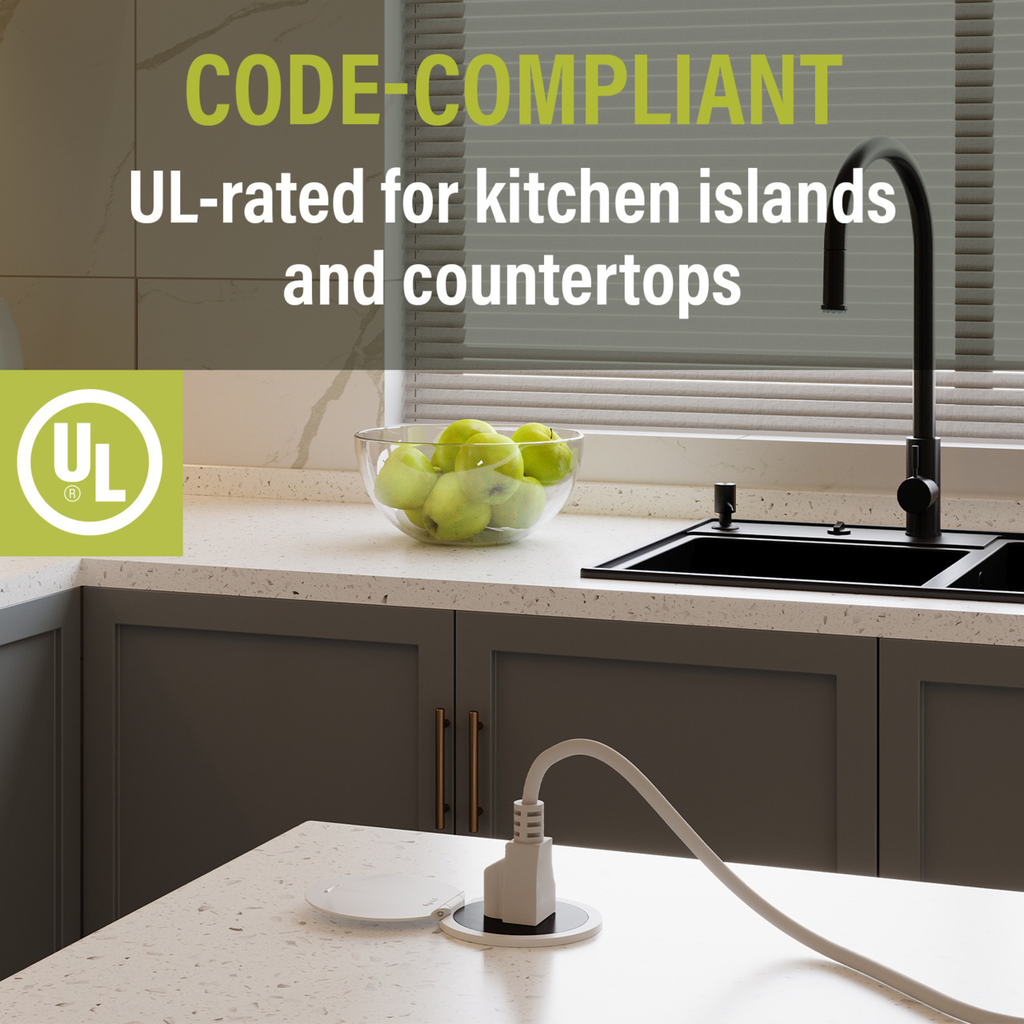

- UL 498 and cULus listed for certified safety and reliability
- Built to withstand corrosion and chemical exposure for heavy-duty use

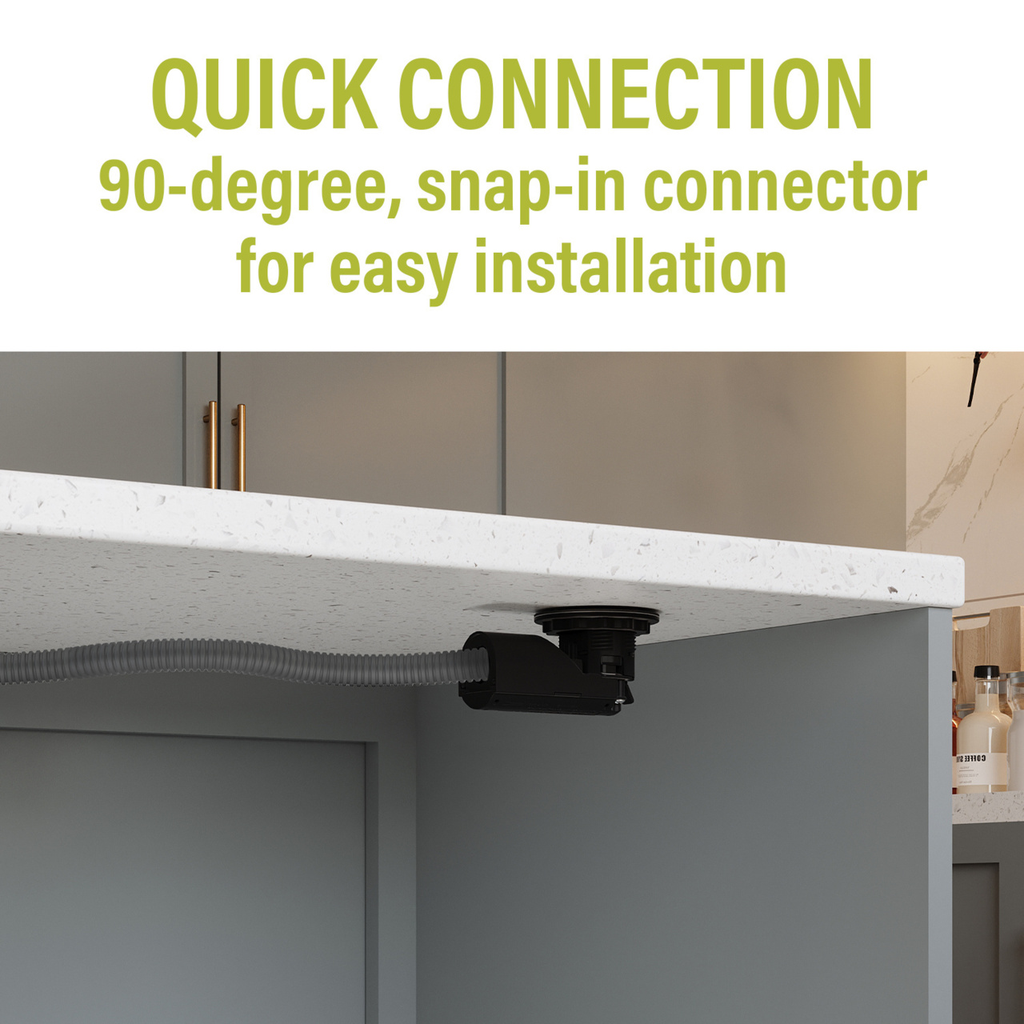

- Quick-connect termination tail enables tool-free installation beneath counter
- Can be installed without a junction box for added convenience

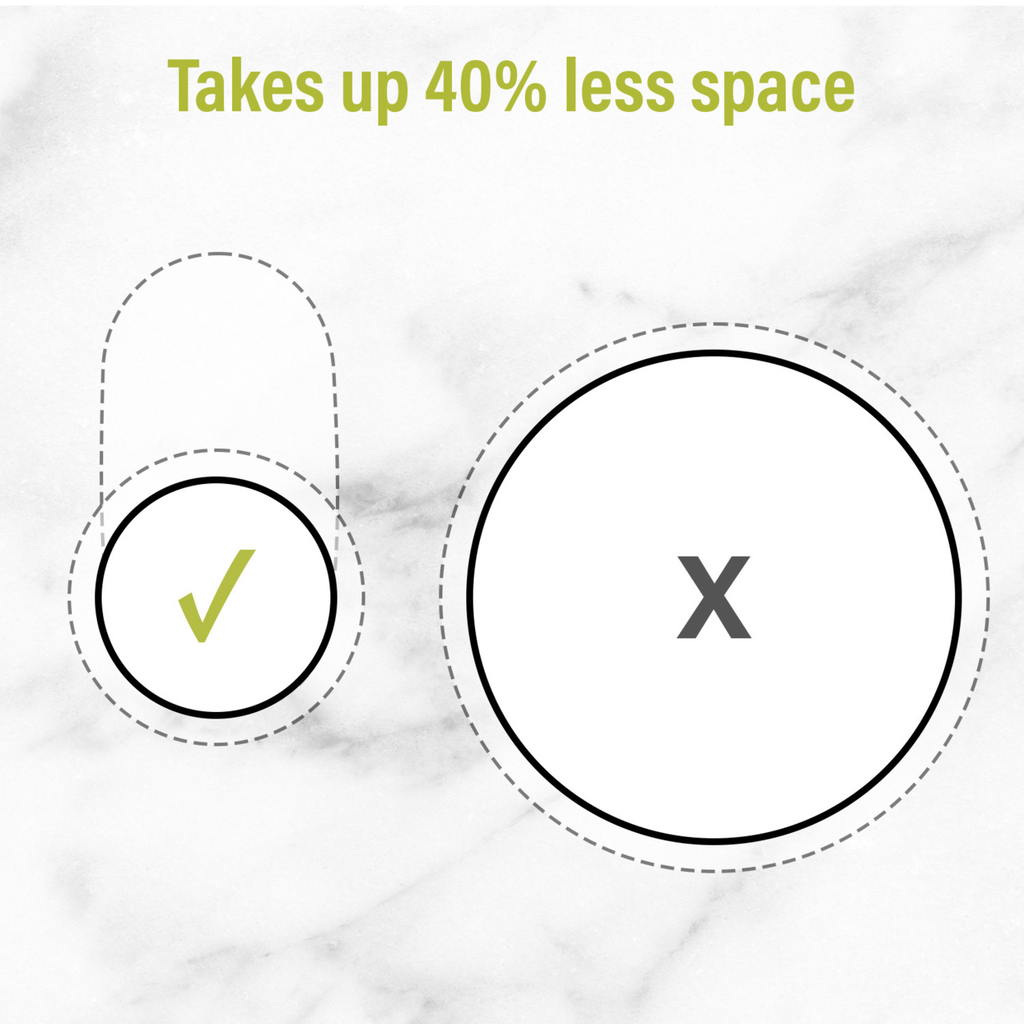

- Compact surface-mount design saves nearly 40% space on and under counter
- Suitable for indoor use in up to 95% non-condensing humidity
- Mounts in vertical or horizontal positions in materials 0.50 in to 1.6 in thick
- Durable materials including glass filled nylon and nickel plated brass
- Amperage: 20 A
- Voltage: 125 V
- NEMA Configuration: 5-20R
- Temperature Rise: Max 306C rise at full load after 50 cycles at 150% rated current
- Number of Poles: Double Pole
- Number of Phases: 1
- Wire Size: #14 - #10 AWG solid and stranded copper and copper-clad
- Wire Connection Type: Screw Terminals
- Connection Location: Back Only
- Width: 2.3 in
- Height: 3.7 in
- Depth: 3.6 in
- Weight: 0.35 lb

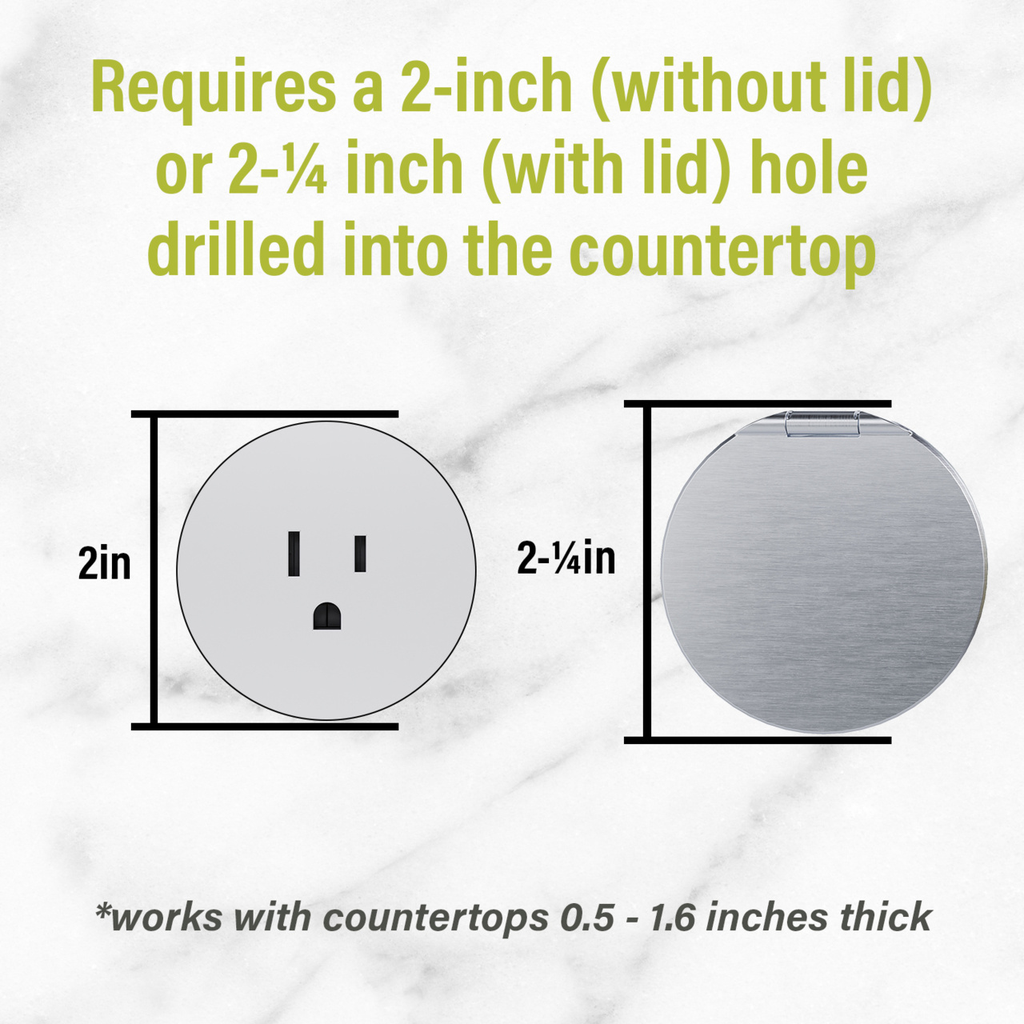

- Hole Diameter Requirement: 2 in to 2.25 in
- Mounting Thickness: 0.50 in to 1.6 in
- Material: Glass Filled Nylon, Nickel Plated Brass, Polyacetal
- Color: Matte Black
- Indoor/Outdoor: Indoor, 95% max humidity non-condensing
- Country of Origin: China
- Standard: UL 498, cULus Listed Receptacle
- Application Sector: Multi-Dwelling Unit, Hospitality, Residential
- Warranty: 1-Year Limited
