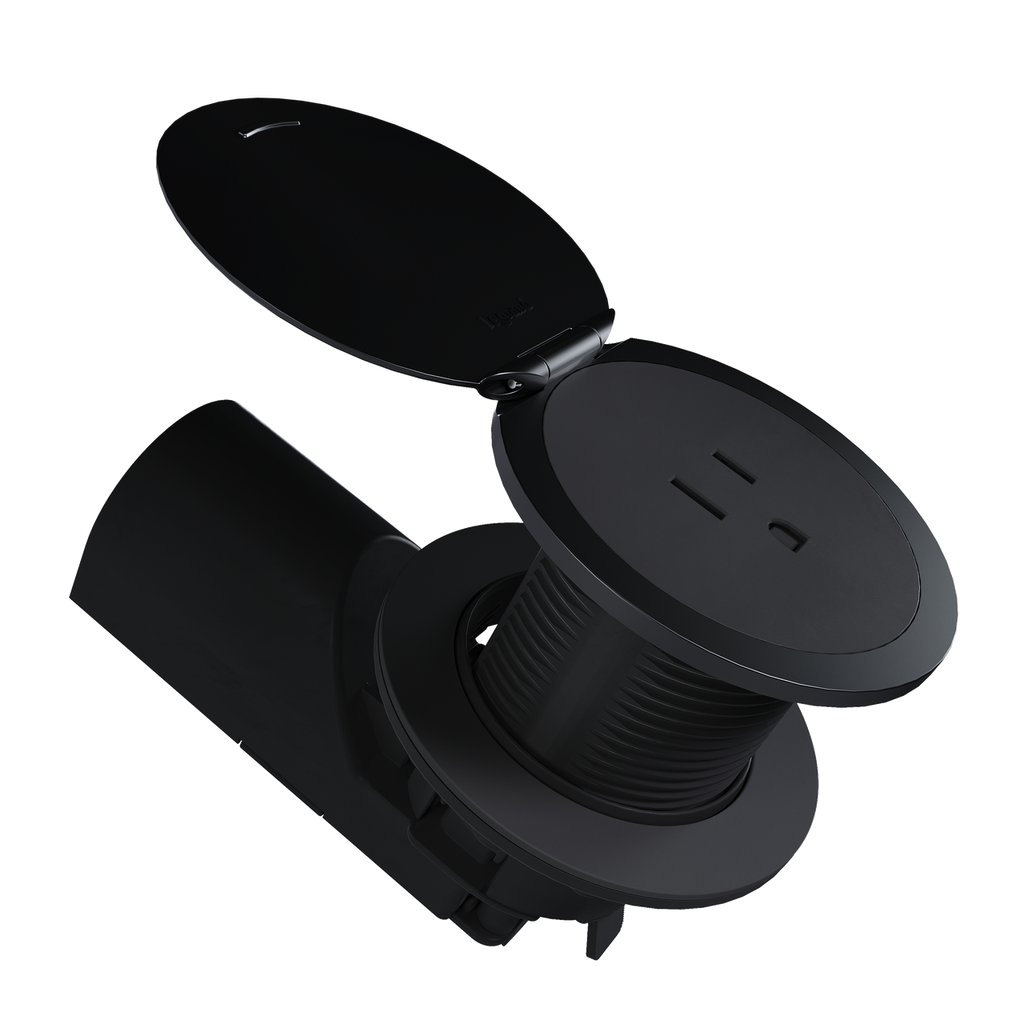

Pass & Seymour CP498TR15BK Countertop Outlet 15A 125V Tamper-Resistant Matte Black
Documents
Cutsheet
Sell Sheet
Installation Instructions
CAD Drawings
Downloads
Transform your kitchen space with this sleek matte black countertop outlet from Pass & Seymour. Engineered for durability and performance, it features tamper-resistant shutters to prevent the insertion of foreign objects, making it a safe choice for family kitchens. The compact design not only complements a variety of kitchen aesthetics but also boasts the smallest profile in its category, with nearly 40% less space required compared to other options. Designed specifically for countertop or work surface assemblies, it conforms to the NEC 2023 standards and requires a simple installation process, typically involving a 2-inch to 2.25-inch hole in the countertop. With a quick connecting termination tail that can be wired above the counter, setup is user-friendly and tool-free underneath. This outlet is not only ideal for kitchen islands and peninsulas but is also built to withstand heavy wear, thanks to its corrosion and chemical resistance, ensuring long-lasting performance in any busy culinary environment.
- Tamper-resistant dual mechanical shutters for child safety
- UL 498 and cULus listed for safety and compliance
- Built-in corrosion and chemical resistance for long-lasting durability

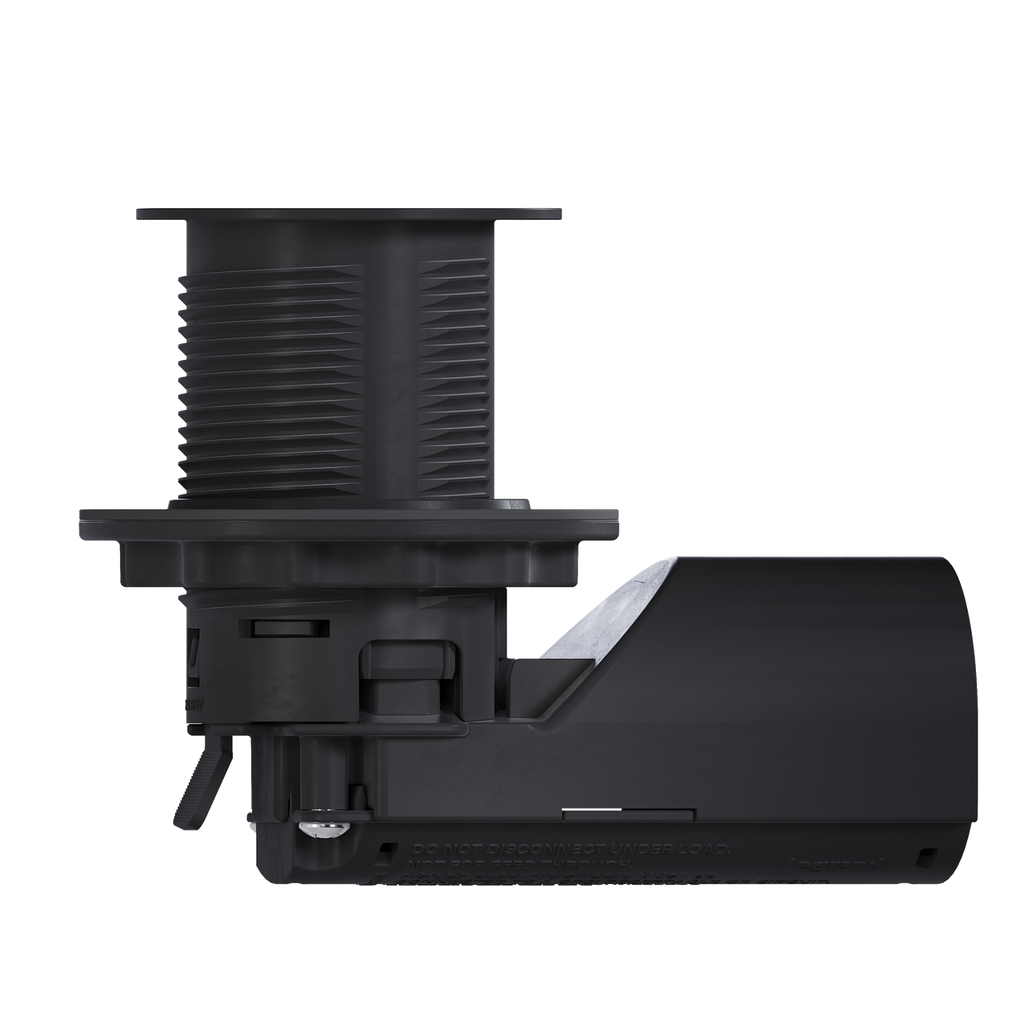

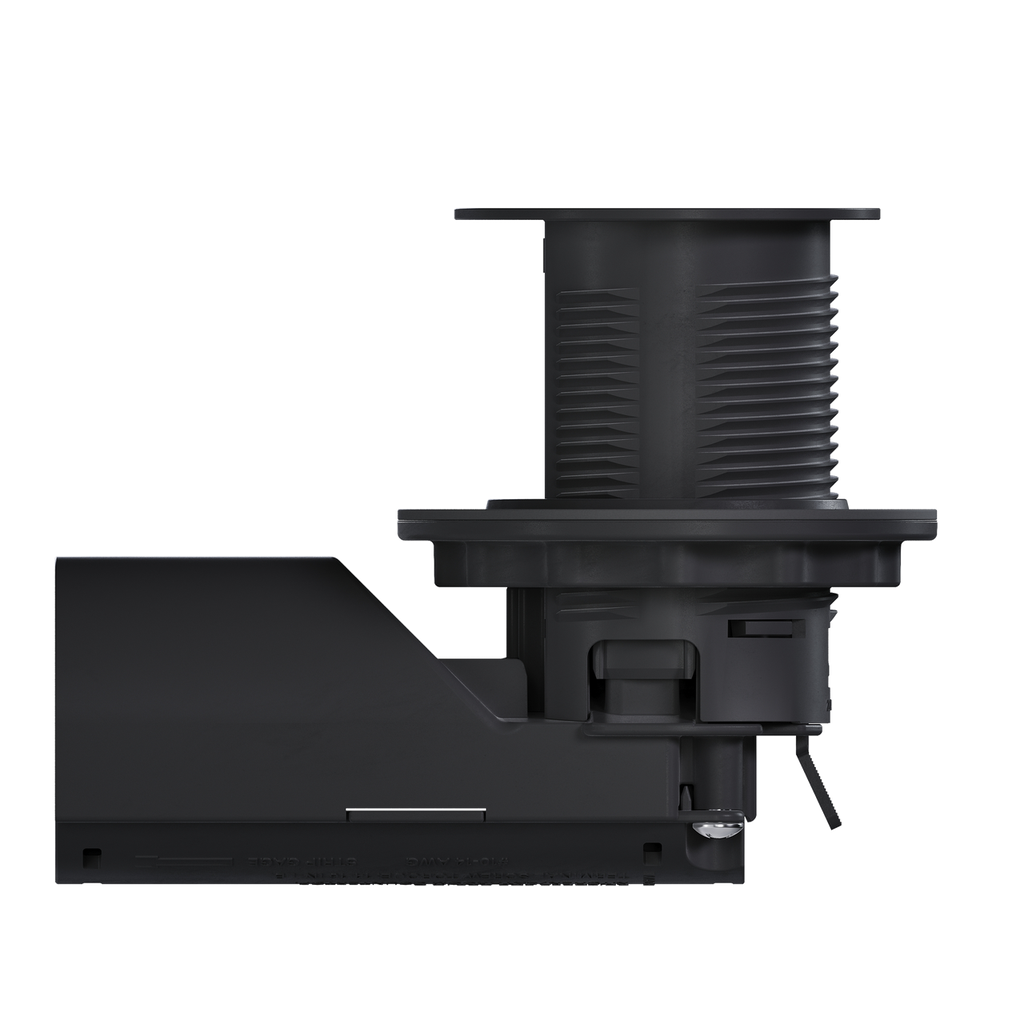

- Quick connecting termination tail enables tool-free installation under the counter

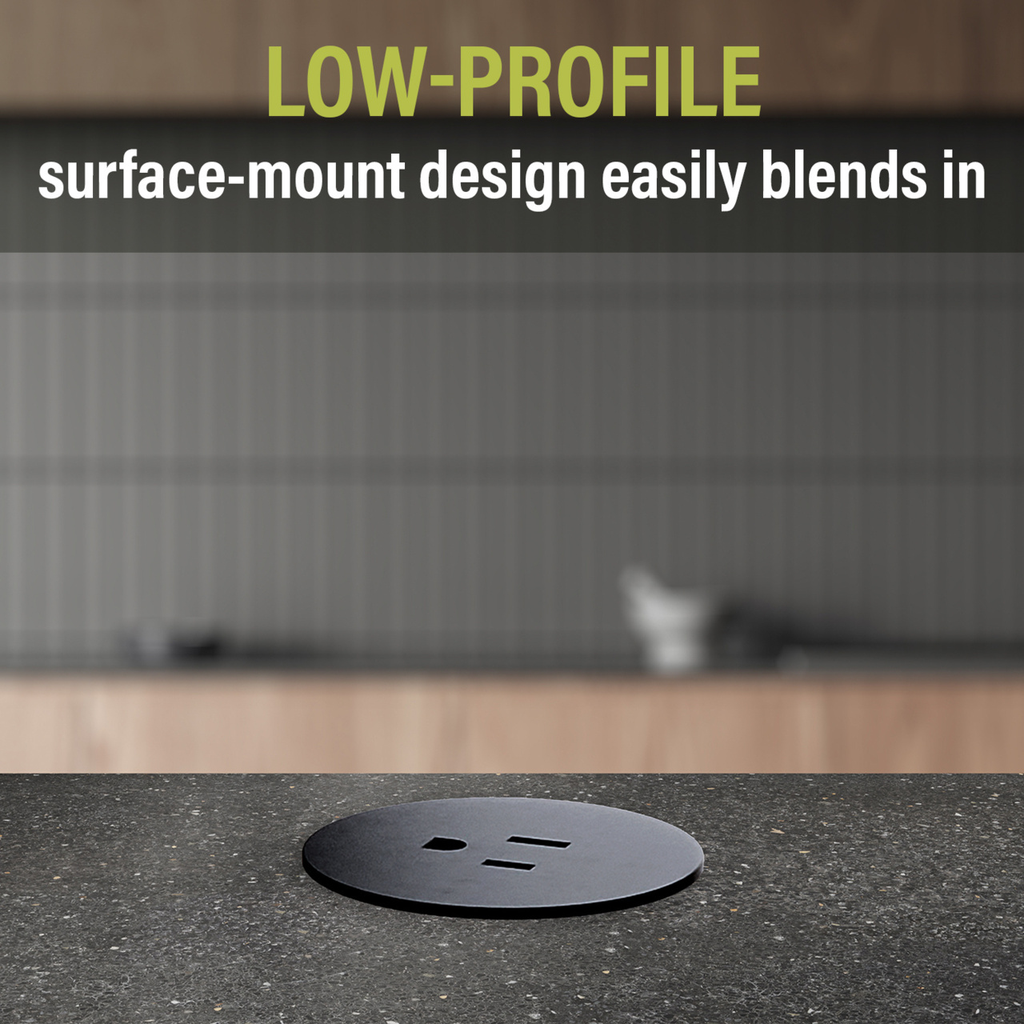

- Compact surface-mount design with nearly 40% smaller profile
- Mounts vertically or horizontally on countertops 0.50 to 1.6 inches thick
- Accepts #14 to #10 AWG wire compatible with NM, MC, and EMT cables
- Nickel plated brass contacts for reliable electrical performance
- Suitable for installation without a junction box

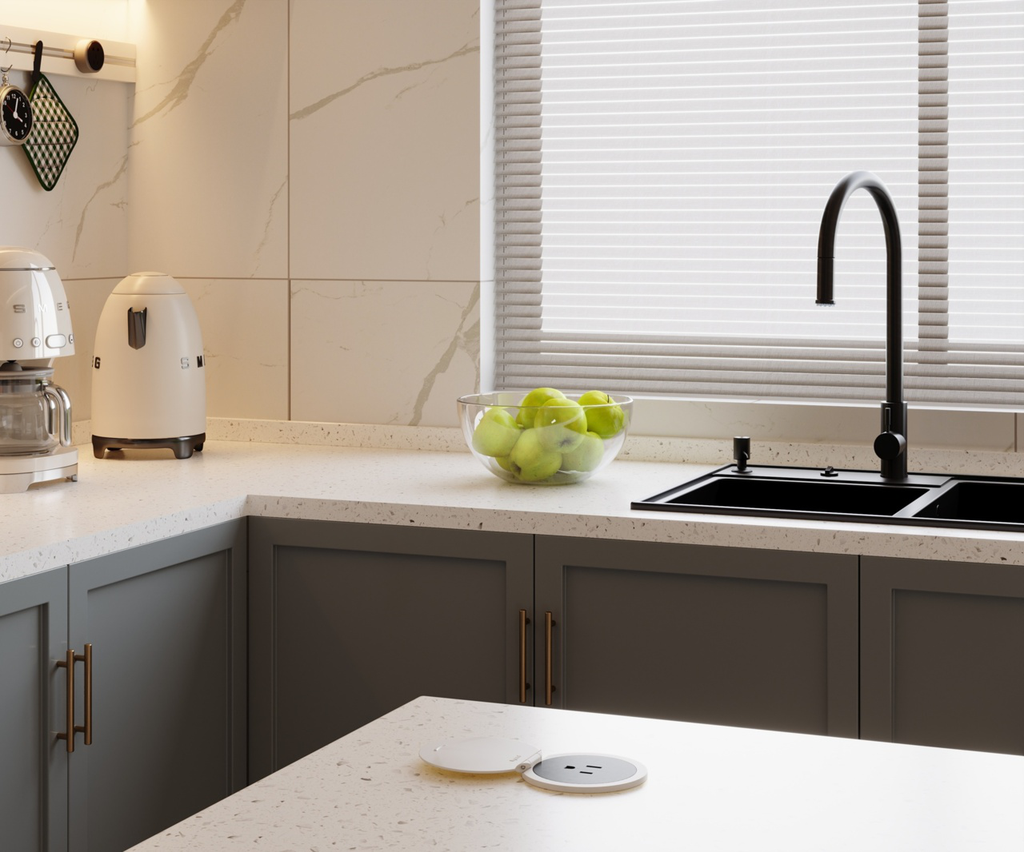

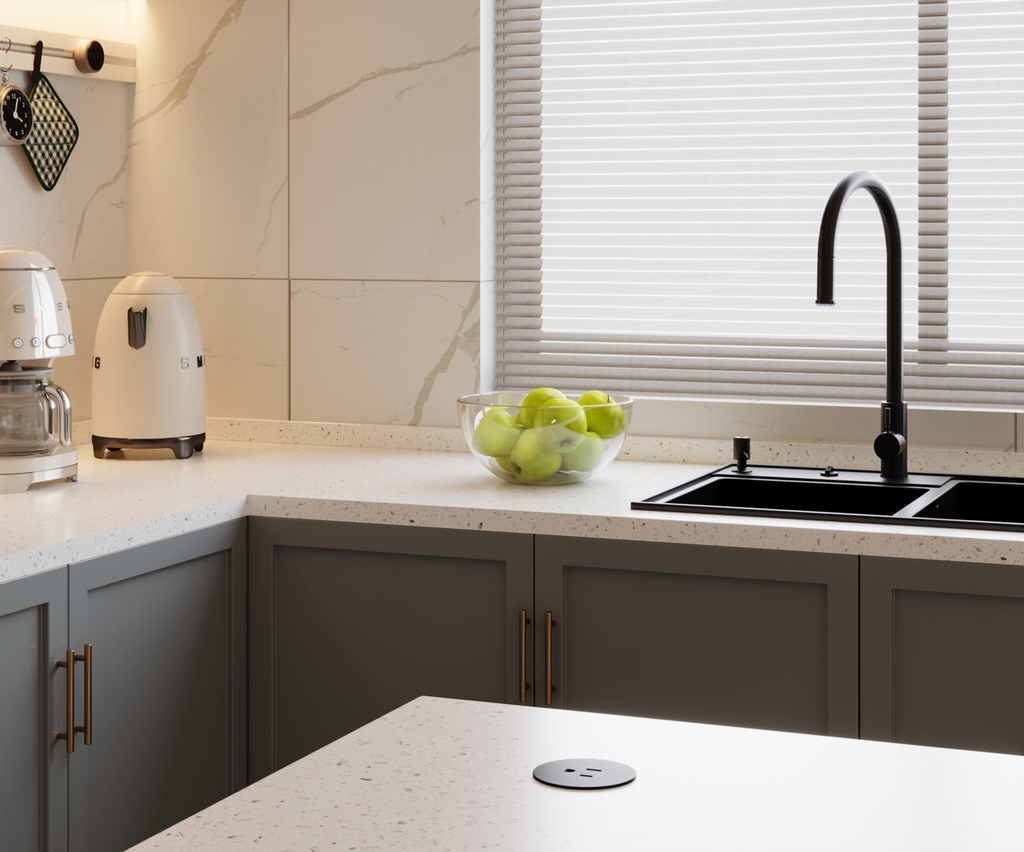

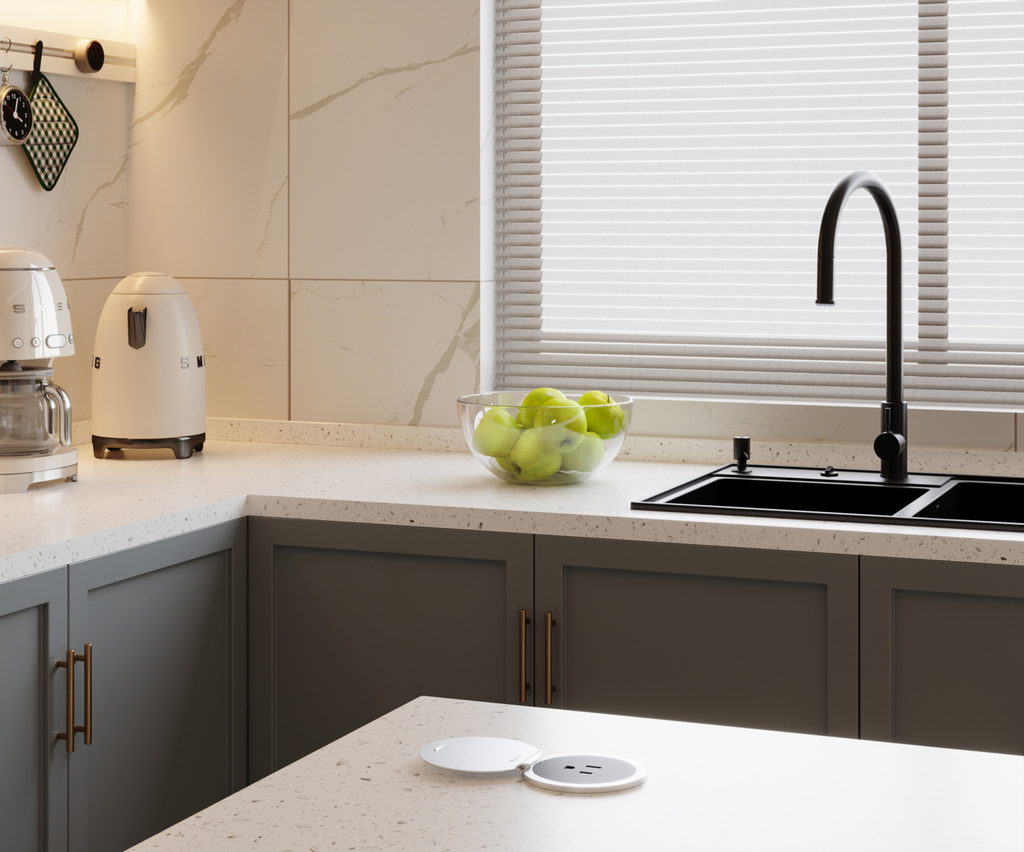

- Designed for use on kitchen island or peninsula countertops
- Amperage: 15 A
- Voltage: 125 V
- NEMA Configuration: 5-15R
- Temperature Rise: Max 30°C rise at full-rated current after 50 overload cycles at 150% rated current DC
- Number of Receptacles: 1
- Number of Phases: 1
- Number of Poles: Double Pole
- Wire Connection Type: Screw Terminals
- Connection Location: Back Only

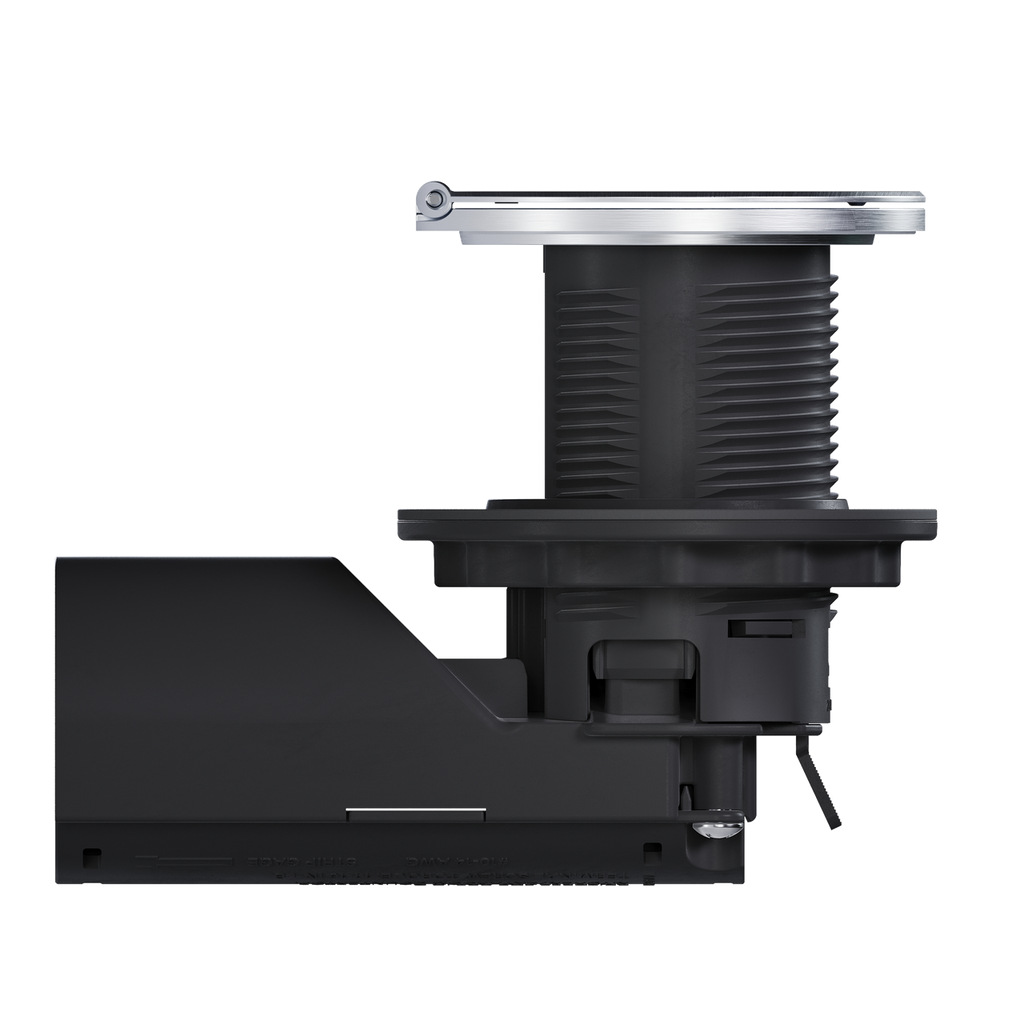

- Hole Diameter Requirement: 2 in without lid, 2.25 in with lid
- Mounting Thickness Range: 0.50 in to 1.6 in
- Depth: 3.6 in
- Width: 2.3 in
- Height: 3.7 in
- Weight: 0.35 lb
- Material: Glass Filled Nylon, Nickel Plated Brass
- Tamper Resistant: Yes, dual mechanical shutters
- Corrosion Resistance: Yes
- Standard: UL 498, cULus Listed
- Country of Origin: China
- Product Line: Pass & Seymour
- Warranty Type: 1-Year Limited Warranty
- Application Sector: Multi-Dwelling Unit, Hospitality, Residential
- Indoor/Outdoor: Indoor
- Wire Size: #14 - #10 AWG
- Outlet Type: Tamper-Resistant
