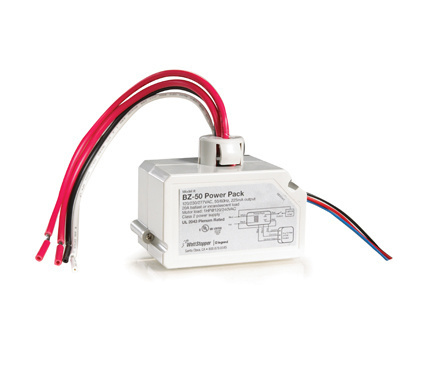

Pass & Seymour BZ50 Power Pack 24 VDC 20A UL 2043 Plenum Rated Wired

With its innovative self-contained power supply relay system, this 24 VDC Universal Voltage Power Pack is designed for reliable performance in a variety of commercial applications. Featuring an LED status indicator that alerts users to relay conditions and potential low-voltage overcurrent, it ensures efficient monitoring and control of connected systems. The UL 2043 plenum rating allows for versatile installation in ceiling spaces, while the zero crossing circuitry enhances reliability and extends the product's lifespan. Additionally, optimized current output is achieved based on the number of sensors connected, making it a smart choice for energy management solutions. Easy to install with a 1/2-inch snap-in nipple that fits standard electrical enclosures, this power pack combines functionality with quality assurance.

• Over-current protection with automatic low voltage shutdown
• UL 2043 plenum rated for safe ceiling space installation
• UL and CUL listed with RoHS compliance for safety and environmental standards
• Self-contained power supply relay system for reliable operation
• Zero crossing circuitry to reduce in-rush current and extend lifespan
• Optimized current output based on connected sensors
• LED status indicator for relay monitoring and overcurrent alert
• Easy installation with 1/2-inch snap-in nipple for standard enclosures
• Capable of switching 20A ballast and incandescent loads at multiple voltages
• 14 AWG wiring for reliable 20A operation

• Amperage: 20 A
• Voltage: 120/230/277 VAC, 50/60 Hz
• Output Voltage: 24 VDC
• Output Current: 225 mA
• Relay Contact Rating: 20A ballast and incandescent @ 120 VAC, 60 Hz; 20A ballast @ 277 VAC, 60 Hz; 1 hp @ 120-250 VAC, 60 Hz
• Length: 2.916 in
• Width: 1.673 in
• Depth: 1.634 in
• Connection Type: Wired
• Mounting: 1/2 in snap-in nipple for 1/2 in knockouts
• Wire Gauge: 14 AWG
• Protection: Over-current protection; low voltage output shuts down at >225 mA
• Compliance: UL 2043 plenum rated; UL and CUL listed; RoHS
• Seismic Tested: No
• Warranty Type: 5-Year
• Product Line: Pass & Seymour
• Application Sector: Commercial
• Country of Origin: China
