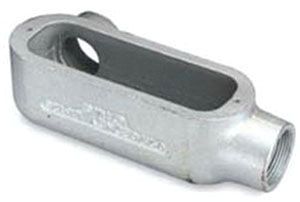

O-Z Gedney LL-300A Conduit Outlet Body 2 Hubs 3 Inch Hub LL Configuration Epoxy Powder Coated Copper-Free Aluminum

The LL-300A IMC/Rigid Conduit Outlet Body from O-Z Gedney is expertly designed for utility in electrical conduit systems. Serving multiple functions, it allows for efficient pulling and provides convenient openings for splicing, making it an essential component for any installation. The outlet body boasts a capacity of 175 cubic inches and is constructed from lightweight copper-free aluminum, which not only offers excellent corrosion resistance but also facilitates easy handling and installation. With its accurately tapped, tapered threads, you can achieve tight, rigid joints that ensure excellent ground continuity. The unit features two hubs and is designed to connect and change the direction of conduit runs effectively. Furthermore, its roomy interior allows for ample wiring space, and the integrated smooth, rounded bushings protect conductor insulation, ensuring longevity and reliability in any electrical setup. When equipped with a suitable cover and gasket, this outlet body is also rain tight, making it suitable for various environmental conditions.

• Rain tight when used with cover and gasket
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Lightweight copper-free aluminum construction with corrosion resistance
• Roomy 175 cubic inch interior for ample wiring space and efficient wire pulling
• Smooth, rounded integral bushings protect conductor insulation
• Two hubs connect and change direction of conduit runs
• Threaded installation for secure and straightforward mounting
• Serve as pulling fittings and provide openings for splicing
• Compliant with UL 514A/514B, CSA C22.2, and NEMA FB-1 standards
• Designed for use with rigid and IMC conduit systems

• Capacity: 175 Cu In
• Size: 13.69 in. L x 5.75 in. W
• Hub Size: 3 in.
• Number of Hubs: 2
• Hub Location: 90 Degree
• Access Opening: Left Side
• Configuration: LL
• Installation: Threaded
• Used On: Rigid/IMC Conduit
• Cover Type: Aluminum, Malleable Iron, Steel
• Material: Epoxy Powder Coated Sand Cast Copper Free Aluminum
• Approval: UL 514A/514B, CSA C22.2
• Compliance: NEMA FB-1
