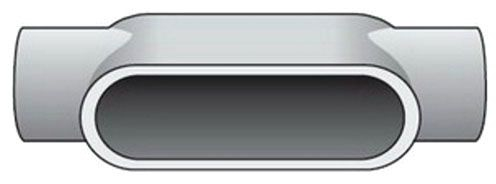

O-Z Gedney C67 Conduit Outlet Body 2 in Hub Taper Threaded Zinc Electroplated Grayloy Iron

The O-Z Gedney C67 IMC/Rigid Conduit Outlet Body is expertly designed to enhance the efficiency and durability of conduit systems. Its flat back design not only provides greater cubic content for easier wire pulling and more room for splicing but also ensures a snug fit against flat surfaces, contributing to a more stable installation. With accurately tapped and tapered threads, it creates tight, rigid joints that facilitate excellent ground continuity, while the smooth, rounded integral bushings in the hubs protect conductor insulation, ensuring reliability. This outlet body allows for connections between branch runs and provides necessary access for maintenance, making it an invaluable component in any electrical system. With two hubs positioned for straight application, it can effectively make bends in the conduit system and change the direction of runs. Constructed from high-quality materials such as zinc electroplated/Chromate/Epoxy powder-coated Grayloy iron, it meets industry standards, including UL 514A/B and CSA C22.2, ensuring compliance and safety in your installations.

• Meets UL 514A/B and CSA C22.2 safety standards
• Accurately tapped and tapered threads for tight, rigid joints and excellent ground continuity
• Flat back design provides greater cubic content for easier wire pulling and more room for splicing
• Fits flush and snug against flat surfaces for stable installation
• Smooth, rounded integral bushings protect conductor insulation
• Allows connections for branch runs and access for maintenance
• Two hubs positioned straight to change conduit direction and make bends
• Constructed from corrosion-resistant zinc electroplated and epoxy powder-coated Grayloy iron
• Designed for use with IMC and rigid conduit systems

• Hub Size: 2 in.
• Number of Hubs: 2
• Size: 9.19 in. L x 3.13 in. W x 3 in. H
• Access Opening: Side
• Installation: Taper Threaded
• Hub Location: Straight
• Configuration: C
• Form Type: Form 7
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy Iron (Body), Neoprene (Gasket), Stainless Steel (Cover Screw)
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy Iron/Steel
• Approval: UL 514A/B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Type: Conduit Outlet Body
• Design: Flat Back
• Standards: NEC, CEC, NEMA FB-1
