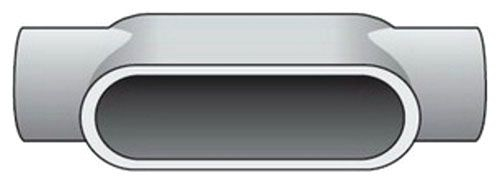

O-Z Gedney C57 Conduit Outlet Body Form 7 1-1/2 in Hub Zinc Electroplated Grayloy Iron

Designed for optimal performance in electrical installations, this conduit outlet body from O-Z Gedney facilitates seamless connections in conduit runs while ensuring stability with its flat back design. It features accurately tapped, tapered threads that ensure tight, rigid joints and exceptional ground continuity, which are essential for safe electrical systems. The hub's smooth, rounded integral bushings provide protection for conductor insulation, while the spacious interior allows for easier wire pulling and ample room for splicing. This outlet body is crafted from durable materials such as zinc electroplated grayloy iron, making it suitable for use in both IMC and rigid conduit applications, adhering to stringent standards including UL 514A/B and CSA C22.2. With convenient access openings and the ability to permit access to conductors for maintenance, it stands out as a reliable component in any conduit system.

• Flat back design fits flush for stable installation
• Accurately tapped, tapered threads ensure tight, rigid joints
• Exceptional ground continuity for electrical safety
• Smooth rounded integral bushings protect conductor insulation
• Spacious interior allows easier wire pulling and more splicing room
• Compatible with IMC and rigid conduit systems
• Zinc electroplated, chromate, and epoxy powder coated grayloy iron resist corrosion
• Convenient side access openings for easy maintenance
• UL 514A/B and CSA C22.2 certified for safety compliance

• Size: 8.19 in. Length x 2.56 in. Width x 2.44 in. Height
• Hub Size: 1-1/2 in.
• Number of Hubs: 2
• Hub Location: Straight
• Access Opening: Side
• Form Type: Form 7
• Configuration: C
• Used On: IMC/Rigid Conduit
• Installation: Taper Threaded
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy Iron/Steel
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy Iron (Body), Neoprene (Gasket), Stainless Steel (Cover Screw)
• Approval: UL 514A/B, CSA C22.2
• Applicable Standards: NEC, CEC, NEMA FB-1
