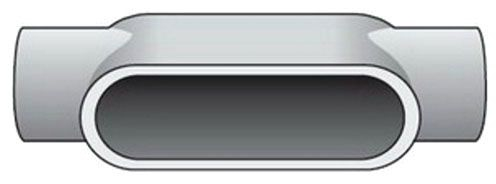

O-Z Gedney C47 Conduit Outlet Body 1-1/4 in Hub 2 Hubs Zinc Electroplated Grayloy Iron

The C47 IMC/Rigid Conduit Outlet Body from O-Z Gedney is engineered to facilitate connections for branch runs while serving as pulling fittings within your conduit systems. Its flat back design enhances cubic content, making wire pulling and splicing easier, while the smooth, rounded integral bushings in the hubs work to protect conductor insulation. Designed for versatility, this outlet body allows for the connection and change of direction of conduit runs, providing essential access to conductors for maintenance. Crafted from zinc electroplated, chromate, and epoxy powder-coated Grayloy iron, it ensures both durability and corrosion resistance. Appropriately tapped and featuring tapered threads, the outlet body guarantees tight, rigid joints with excellent grounding continuity. This product meets various industry standards, including UL 514A/B and CSA C22.2, making it a reliable choice for professionals in need of a robust conduit solution. With its two hubs and side access openings, installation is streamlined, and it fits flush against flat surfaces for enhanced stability.

• Allow connections for branch runs
• Serve as pulling fittings
• Flat back design provides greater cubic content for easier wire pulling and more room for splicing
• Smooth, rounded integral bushings protect conductor insulation
• Enable connection and change of conduit run directions
• Side access openings provide access to conductors for maintenance
• Durable zinc electroplated, chromate, and epoxy powder-coated Grayloy iron resists corrosion
• Tapered threads ensure tight, rigid joints and excellent grounding continuity
• UL 514A/B and CSA C22.2 listed for compliance and reliability
• Two hubs facilitate streamlined installation and fit flush against flat surfaces for enhanced stability

• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy Iron (Body), Neoprene (Gasket), Stainless Steel (Cover Screw)
• Hub Size: 1-1/4 in.
• Size: 7.44 in. L x 2.31 in. W x 2.19 in. H
• Hub Location: Straight
• Number of Hubs: 2
• Used On: IMC, Rigid Conduit
• Installation: Taper Threaded
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy Iron/Steel
• Access Opening: Side
• Form Type: Form 7
• Configuration: C
• Approval: UL 514A/B, CSA C22.2
