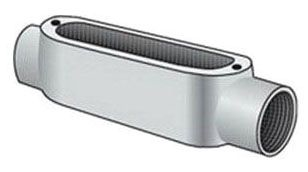

O-Z Gedney C-350A Conduit Outlet Body 3-1/2 in Hub 2-Hub C Configuration Threaded Epoxy Coated Copper-Free Aluminum

Engineered for versatility and efficiency, the C-350A IMC/Rigid Conduit Outlet Body from O-Z Gedney is an essential component for any electrical installation. Its roomy interior allows for ample wiring space and accommodates connections for branch runs, while accurately tapped and tapered threads ensure tight, rigid joints that maintain excellent ground continuity. Constructed from copper-free aluminum, which is both lightweight and highly resistant to corrosion, this outlet body features smooth, rounded integral bushings to protect conductor insulation and facilitate easier maintenance access. Designed with two hubs and compatibility with various conduit systems, it provides reliable performance and flexibility in creating bends, ensuring your wiring systems remain both functional and compliant with NEMA standards.

• Rain-tight design with cover and gasket
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Constructed of lightweight, epoxy powder coated copper-free aluminum for high corrosion resistance
• Smooth, rounded integral bushings protect conductor insulation
• Roomy interior provides ample wiring space
• Two hubs accommodate varied conduit configurations
• Compatible with rigid and IMC conduit systems
• Allows making bends and connections for branch runs in conduit systems
• Permits access to conductors for maintenance and pulling fittings
• Complies with UL 514A/514B, CSA C22.2, and NEMA FB-1 standards

• Capacity: 303 Cu In
• Installation: Threaded
• Size: 18.13 in L x 5.5 in W x 5.19 in H
• Hub Size: 3-1/2 in
• Number of Hubs: 2
• Material: Epoxy Powder Coated Sand Cast Copper Free Aluminum
• Cover Type: Aluminum, Malleable Iron, Steel
• Form Type: Form 85
• Configuration: C
• Hub Location: Straight
• Access Opening: Side
• Approval: UL 514A/514B, CSA C22.2
• Used On: Rigid/IMC Conduit
• Thread Type: Tapered Threads
• Standard: NEMA FB-1
• Ingress Rating: Rain Tight (with cover and gasket)
