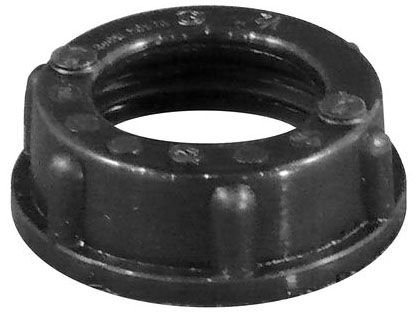

O-Z Gedney A-50 Insulating Bushing Female 1/2 in Trade Size High Impact Black Thermosetting Phenolic

Offering robust protection for wires and cables, the O-Z Gedney A-50 is an insulating bushing designed specifically for the entry and exit points of threaded rigid conduit and intermediate metal conduits (IMC). Crafted from high impact black thermosetting phenolic, this bushing is engineered to withstand extreme conditions, with a UL temperature rating of up to 150 degrees Celsius, ensuring reliable performance in commercial and industrial applications. Its innovative design not only provides insulation but also features a plug option that helps to prevent the entry of dust and dirt, maintaining the integrity of your conduit system. With a diameter of 1.13 inches and a trade size of 1/2 inch, this bushing seamlessly fits into existing installations, combining efficiency with durability for a dependable solution in conduit management.

• UL and CSA approved for safety assurance
• High impact black thermosetting phenolic construction for durability
• Temperature rated up to 150°C (302°F) for extreme condition performance
• Insulating design protects wires and cables from abrasion
• Plug option prevents dust and dirt ingress
• Compatible with 1/2 inch trade size threaded rigid and IMC conduits
• Female threaded design for secure conduit attachment
• Maintains conduit system integrity in commercial and industrial settings

• Temperature Rating: 302 Deg F
• Diameter: 1.13 in
• Trade Size: 1/2 in
• Height: 0.5 in
• Type: Female
• Throat Type: Insulated
• Material: High Impact Black Thermosetting Phenolic
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Series/Model: A
• Color: Black
