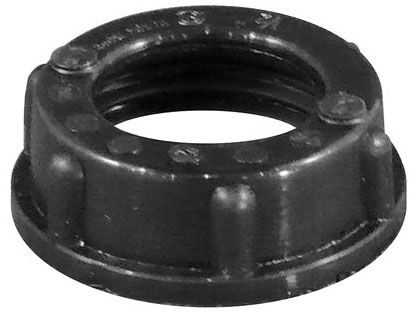

O-Z Gedney A-400 Conduit Bushing Female Threaded 4 Inch Thermoset Phenolic Black
Documents
The A-400 IMC/Rigid Conduit Bushing from O-Z Gedney is designed to provide robust protection for wires and cables at the points where they enter and exit threaded rigid conduit and IMC. Constructed from high-impact thermosetting phenolic material, these bushings can withstand high temperatures up to 150 degrees Celsius, ensuring longevity and reliability in demanding environments. They not only insulate the ends of the conduit but also feature an option for a plug to prevent the ingress of dust and dirt, enhancing the overall integrity of your electrical installations. With a diameter of 5-1/8 inches and a female threaded design, this bushing is an essential component for maintaining safety and performance in your conduit systems.
- UL and CSA approved for safety assurance
- Insulates end of threaded rigid and IMC conduit
- High-impact thermoset phenolic construction resists softening, melting, and burning
- Heat resistant up to 150 degrees Celsius
- Female threaded design for secure conduit attachment
- Optional plug available to prevent dust and dirt ingress
- Compatible with rigid and IMC conduit systems
- Temperature Rating: 150 Deg C
- Height: 7/8 in
- Diameter: 5-1/8 in
- Trade Size: 4 in
- Material: Thermoset Phenolic
- Throat Type: Thermoset Phenolic Insulated
- Type: Female Threaded
- Approval: UL, CSA
- Used On: Rigid/IMC Conduit
- Series/Model: A
