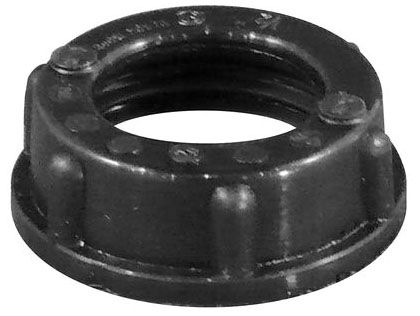

O-Z Gedney A-350 Conduit Bushing 3-1/2 in Female Threaded 150 Deg C Thermoset Phenolic
Documents
Offering robust protection for electrical installations, the A-350 IMC/Rigid Conduit Bushing from O-Z Gedney is crafted from high-impact black thermosetting phenolic. It boasts a temperature rating of up to 150 degrees Celsius, ensuring exceptional performance under demanding conditions. Designed specifically for insulating the ends of threaded rigid and IMC conduits, these bushings effectively safeguard wires and cables at their entry and exit points, eliminating concerns of softening, melting, or burning. Each female-threaded bushing features a thermoset phenolic throat for reliable insulation and is suitable for use with both metallic and non-metallic components, providing added versatility in preventing dirt or dust ingress. Compliance with UL and CSA standards further underscores its reliability and safety for a range of applications.
- UL and CSA certified for safety and compliance
- Thermoset phenolic construction rated to 150°C
- Insulates ends of threaded rigid and IMC conduits
- Prevents softening, melting, or burning under high heat
- Female threaded design ensures secure conduit connection
- Thermoset phenolic throat provides reliable electrical insulation
- Compatible with metallic and non-metallic components
- Prevents dirt and dust ingress at conduit entry and exit points
- Temperature Rating: 150 Deg C
- Trade Size: 3-1/2 Inch
- Diameter: 4-5/8 Inch
- Height: 7/8 in
- Type: Female Threaded
- Material: Thermoset Phenolic
- Throat Type: Thermoset Phenolic Insulated
- Approval: UL, CSA
- Used On: Rigid/IMC Conduit
- Color: Black
- Series/Model: A
