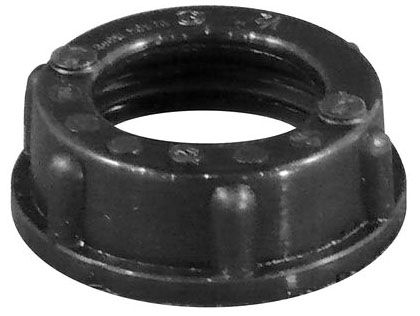

O-Z Gedney A-300 Conduit Bushing Female Threaded 3 in Thermoset Phenolic Black 150 Deg C UL CSA
Documents
O-Z Gedney's A-300 IMC/Rigid Conduit Bushing is engineered for robust performance in electrical installations. Constructed from high impact thermosetting phenolic material, this bushing maintains its integrity even at high temperatures, boasting a UL temperature rating of 150°C. Designed specifically to insulate the ends of threaded rigid and IMC conduits, it efficiently protects wires and cables at the entry and exit points, ensuring reliability under demanding conditions. This durable component will not soften, melt, or burn, providing lasting protection against environmental factors, while the option to use a plug with either metallic or non-metallic bushings further safeguards against dirt and dust ingress.
- Certified UL and CSA for safety assurance
- Insulates ends of threaded rigid and IMC conduits to protect wiring
- High impact thermosetting phenolic construction for durability
- UL temperature rating of 150°C for heat resistance
- Resists softening, melting, and burning under extreme conditions
- Compatible with plugs to prevent dirt and dust entry
- Material: Thermoset Phenolic
- Temperature Rating: 150 Deg C
- Type: Female Threaded
- Throat Type: Thermoset Phenolic Insulated
- Trade Size: 3 Inch
- Diameter: 4 Inch
- Height: 7/8 in
- Used On: Rigid/IMC Conduit
- Approval: UL, CSA
- Color: Black
- Series/Model: A
