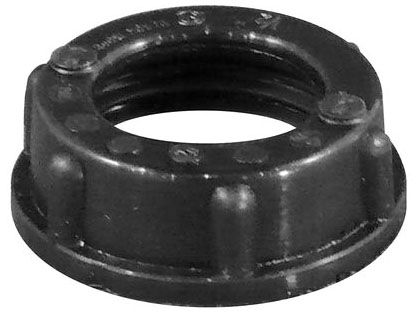

O-Z Gedney A-250 Conduit Bushing Female Threaded 2-1/2 in Thermoset Phenolic Black
Documents
The A-250 IMC/Rigid Conduit Bushing from O-Z Gedney is engineered to provide robust insulation at the ends of threaded rigid and IMC conduits, ensuring effective protection for wires and cables during entry and exit. Crafted from high-impact thermosetting phenolic, this bushing withstands temperatures up to 150 degrees Celsius, making it suitable for demanding environments without compromising durability. Its thoughtful design includes a throat that effectively insulates and a plug option that helps to avert the entry of dirt or dust, ensuring the integrity of electrical systems. With a UL and CSA approval, this product not only adheres to safety standards but also guarantees reliability in electrical installations.
- UL and CSA approved for safety assurance
- High-impact thermoset phenolic material resists heat and damage
- Withstands temperatures up to 150 °C for demanding environments
- Provides robust insulation for threaded rigid and IMC conduits
- Throat design effectively insulates wires and cables
- Female threaded type ensures secure conduit connections
- Optional plug prevents entry of dirt and dust
- Temperature Rating: 150 °C
- Trade Size: 2-1/2 in.
- Diameter: 3-3/8 in.
- Height: 7/8 in.
- Type: Female Threaded
- Throat Type: Thermoset Phenolic Insulated
- Material: Thermoset Phenolic
- Approval: UL, CSA
- Used On: Rigid/IMC Conduit
- Color: Black
- Series/Model: A
