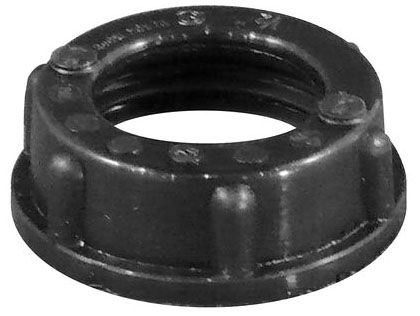

O-Z Gedney A-200 Threaded Female Conduit Bushing 2 Inch Trade Size 150 Deg C Black Thermosetting Phenolic

The A-200 IMC/Rigid Conduit Bushing from O-Z Gedney is specifically designed to ensure the protection of wires and cables at the entry and exit points of threaded rigid conduit and Intermediate Metal Conduit (IMC). Made from high-impact black thermosetting phenolic, this bushing boasts a temperature rating of 150 degrees Celsius, guaranteeing exceptional durability and resistance, as it will not soften, melt, or burn under extreme conditions. Additionally, for those looking to maintain clean installations, O-Z Gedney offers a plug that can be used with both metallic and non-metallic bushings to prevent dirt or dust ingress, further enhancing the reliability of your conduit systems. With approvals that comply with UL 514B and CSA C22.2, the A-200 is a dependable choice for meeting the stringent requirements outlined in the NEC and CEC standards.

• Protects wires and cables at threaded conduit entry and exit points
• High-impact black thermosetting phenolic construction
• 150°C temperature rating resists softening, melting, or burning
• Insulated throat design for enhanced wire protection
• Optional plug prevents dust and dirt ingress
• Compatible with metallic and non-metallic bushings
• Complies with UL 514B and CSA C22.2 safety standards
• Meets NEC and CEC electrical code requirements

• Temperature Rating: 150 °C
• Diameter: 2.88 in
• Height: 0.75 in
• Trade Size: 2 in
• Type: Threaded Female
• Throat Type: Insulated
• Material: High Impact Black Thermosetting Phenolic
• Approval: UL 514B, CSA C22.2
• Standards: NEC, CEC
• Used On: IMC/Rigid Conduit
• Series/Model: A
• Color: Black
