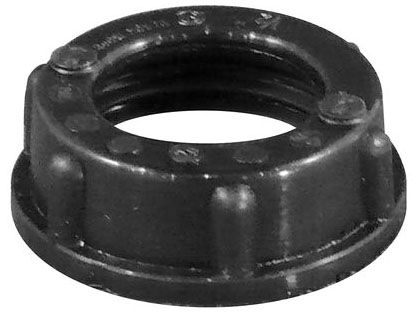

O-Z Gedney A-150 Conduit Bushing Threaded Female Insulated 1-1/2 in Black Thermoset Phenolic
Documents
Designed for superior protection and durability, the A-150 IMC/Rigid Conduit Bushing from O-Z Gedney features high-impact black thermosetting phenolic material, ensuring resilience in demanding environments. With a UL temperature rating of 150 degrees Celsius, this bushing will not soften, melt, or burn, making it an excellent choice for safeguarding wires and cables at the entry and exit of threaded rigid conduit or IMC. Its insulated throat type enhances the overall safety and functionality, while the added option of a plug serves to effectively prevent dirt and dust ingress. The A-150 model is crafted to meet UL 514B and CSA C22.2 approvals, assuring you of its reliability in electrical installations.
- UL temperature rated to 150°C for heat resistance
- High-impact black thermosetting phenolic for durability
- Will not soften, melt, or burn under high temperatures
- Insulated throat type for enhanced electrical safety
- Protects wires and cables at conduit entry and exit points
- Threaded female design for secure conduit connection
- Meets UL 514B and CSA C22.2 certifications for reliability
- Optional plug prevents dirt and dust ingress
- Temperature Rating: 302 Deg F (150 Deg C)
- Trade Size: 1-1/2 Inch
- Diameter: 2.13 Inch
- Height: 0.75 in
- Throat Type: Insulated
- Type: Threaded Female
- Material: High Impact Thermoset Phenolic
- Approval: UL 514B, CSA C22.2
- Used On: IMC/Rigid Conduit
- Color: Black
- Series/Model: A
