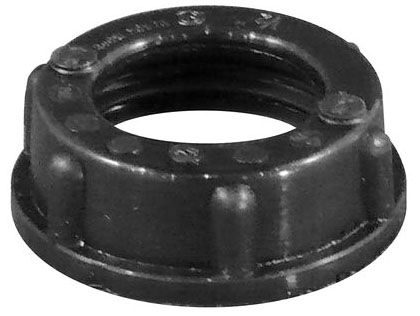

O-Z Gedney A-125 Conduit Bushing 1-1/4 in Trade Size Female Threaded Thermoset Phenolic Black
Documents
The A-125 IMC/Rigid Conduit Bushing from O-Z Gedney is an essential component designed to insulate the ends of threaded rigid and IMC conduits. Crafted from high-impact thermosetting phenolic, this bushing boasts an impressive UL temperature rating of 150 degrees Celsius, ensuring it remains durable under heat without softening, melting, or burning. It effectively protects wires and cables at both entry and exit points of conduits, providing an added layer of safety in electrical installations. Additionally, O-Z Gedney offers a plug option to accompany these bushings, further preventing the entry of dirt or dust and enhancing the longevity of your wiring systems.
- UL listed to 150 degrees Celsius for heat resistance
- Insulates ends of threaded rigid and IMC conduits
- Protects wires and cables at conduit entry and exit points
- Durable thermoset phenolic construction prevents softening and melting under heat
- Female threaded design for secure conduit connection
- Effective barrier against dirt and dust when used with plug option
- Temperature Rating: 150 Deg C UL Listed
- Height: 3/4 in
- Diameter: 2-1/8 in
- Trade Size: 1-1/4 in
- Type: Female Threaded
- Throat Type: Thermoset Phenolic Insulated
- Material: Thermoset Phenolic
- Approval: UL, CSA
- Used On: Rigid/IMC Conduit
- Series/Model: A
- Color: Black
