Mulberry Metal Products 30270 Weatherproof Box 30.5 cu in 5 Hubs NEMA 3R Gray Die-Cast Aluminum

Engineered for performance and durability, the Mulberry Metal Products weatherproof box ensures reliable electrical connections in various environmental conditions. Its rugged die-cast aluminum construction provides a strong defense against weather elements, supported by a superior powder coat finish that enhances both weatherability and scratch resistance. Designed to accommodate diverse applications, this box is compliant with NEMA 3R standards, making it suitable for dry, damp, and wet locations alike. Featuring a generous interior capacity of 30.5 cubic inches, it offers versatile hub configurations with multiple entry points for efficient wiring. Included components such as detachable mounting lugs and a self-tapping ground screw simplify installation and enhance overall functionality. With its UL approval for both Canada and the US, this weatherproof box stands as a trusted choice for robust outdoor electrical installations.

• UL listed for safety assurance in Canada and the US
• NEMA 3R rated for use in wet, damp, and dry locations
• Rugged die-cast aluminum construction for durability and weather resistance
• Superior powder coat finish for enhanced scratch and weather protection

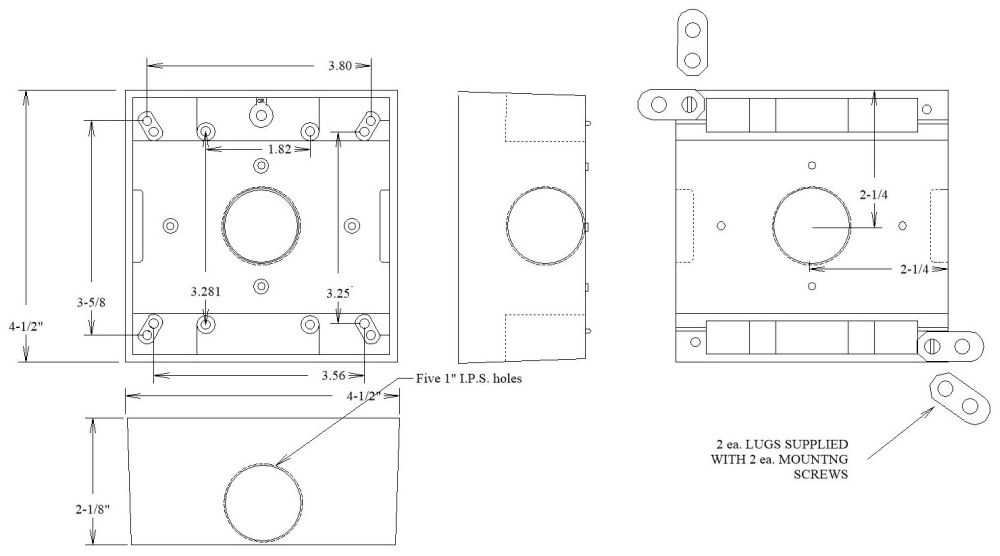

• Five 1-inch hubs on back, sides, and ends for versatile wiring access
• Generous 30.5 cubic inch interior capacity for various devices
• Includes detachable mounting lugs for flexible installation
• Self-tapping ground screw included for secure grounding
• Compact 2-gang design fits standard electrical configurations

• Capacity: 30.5 Cubic Inch
• Approval: UL (Canada and US), c-UL-us
• Hub Location: (1) Back, (1) Each Side, (1) Each End
• Hub Size: 1 Inch
• Number of Hubs: 5
• Number of Gangs: 2
• Dimensions: 4.5 in wide x 4.5 in high x 2 in deep
• Mounting Hardware: Lug
• Material: 0.094 Inch Thick Heavy Duty Die-Cast Aluminum
• Finish: Powder Coated Painted
• Color: Gray
• Enclosure Rating: NEMA 3R
• Country of Origin: USA
