Mulberry Metal Products 30254 Weatherproof Box NEMA 3R 30.5 cu in 2 Gang 3/4 in Hub Gray Die-Cast Aluminum

Constructed from rugged die-cast aluminum, the weatherproof box from Mulberry Metal Products is designed to withstand the elements while ensuring reliable performance in various environments. Its superior powder coat paint finish not only enhances weatherability but also provides exceptional scratch resistance, making it ideal for use in dry, damp, and wet locations. With an enclosure rating of NEMA 3R, it includes essential components such as detachable mounting lugs, a self-tapping ground screw, and two closure plugs for versatile installation options. This product meets ARRA compliance and has received UL approval for both Canada and the US, demonstrating its suitability and safety for a wide range of applications.

• UL listed for safety and compliance in Canada and the US
• NEMA 3R enclosure rating for wet, damp, and dry locations
• Rugged die-cast aluminum construction for durability
• Superior powder coat paint finish for weatherability and scratch resistance
• Includes detachable mounting lugs, self-tapping ground screw, and closure plugs for flexible installation

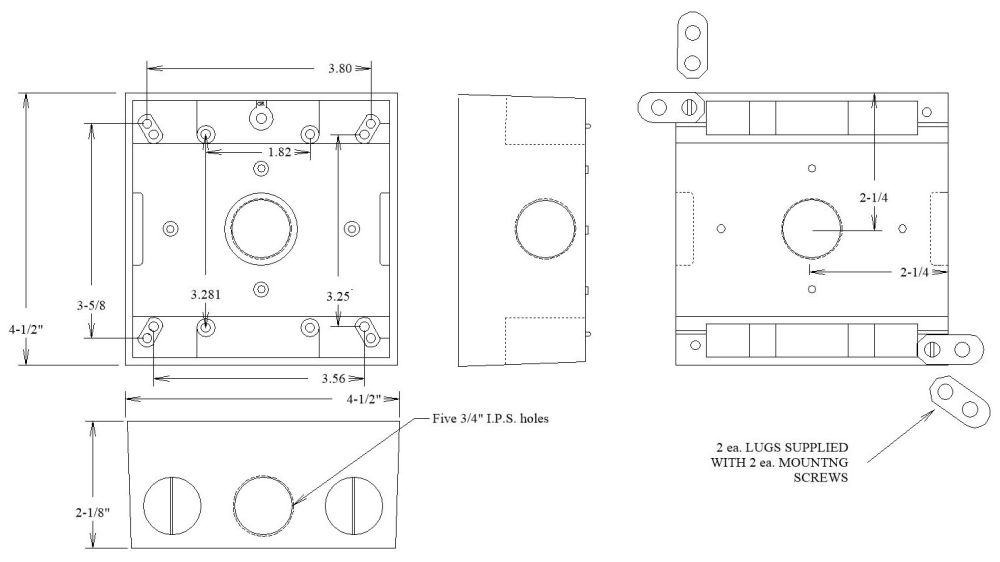

• Five 3/4 inch threaded hubs on back, sides, and ends for versatile wiring options
• 30.5 cubic inch capacity accommodates standard electrical devices
• ARRA compliant for government project eligibility
• Made in USA for quality assurance

• Material: 0.094 Inch Thick Heavy Duty Die-Cast Aluminum
• Capacity: 30.5 Cubic Inch
• Depth: 2 in.
• Number of Hubs: 5
• Number of Gangs: 2
• Height: 4.5 in.
• Width: 4.5 in.
• Color: Gray
• Mounting Hardware: Lug
• Approval: UL (Canada and US)
• Hub Location: (1) Back, (1) Each Side, (1) Each End
• Hub Size: 3/4 in.
• Finish: Powder Coated Painted
• Origin: Made in USA
• Enclosure Rating: NEMA 3R
