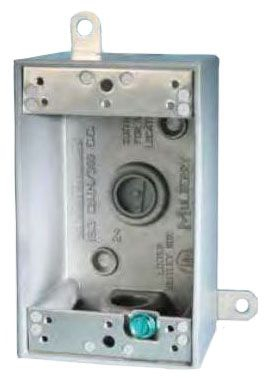

Mulberry Metal Products 30224 Weatherproof Box 18 cu in 5 Hubs 3/4 in Hub Powder Coated Gray Die-Cast Aluminum

Engineered to provide reliable housing for electrical connections, the weatherproof box from Mulberry Metal Products is designed for use in a wide range of environments, including wet, damp, or dry locations. Its NEMA 3R rating signifies robust protection against moisture and debris, making it a durable choice for branch circuit wiring. The enclosure features a superior powder coat finish that ensures maximum weatherability and is constructed from heavy-duty die-cast aluminum that exceeds all UL pull tests for added durability. With five strategic hub locations allowing for versatile installation, this product includes a permanently attached mounting lug, a grounding screw, and two close-up plugs to enhance usability. The accessible pre-tapped ground screw hole simplifies the installation process, further ensuring that this weatherproof box meets both safety and compliance standards, including being ARRA compliant. Its compact size and substantial capacity of 18 cubic inches make it a practical solution for various electrical configurations.

• Enclosure rated NEMA 3R for moisture and debris protection
• Heavy-duty die-cast aluminum construction
• Superior powder coat finish for weatherability and scratch resistance
• Exceeds UL pull-test standards for mounting durability
• Five 3/4 inch threaded hubs for versatile wiring
• Permanently attached rotating mounting lug for installation flexibility
• Accessible pre-tapped ground screw hole simplifies grounding
• Includes ground screw and closure plugs for secure connections
• Compact 18 cubic inch capacity suits various electrical setups
• Made in USA ensuring quality and compliance

• Capacity: 18 Cubic Inch
• Number of Hubs: 5
• Hub Size: 3/4 Inch
• Number of Gangs: 1

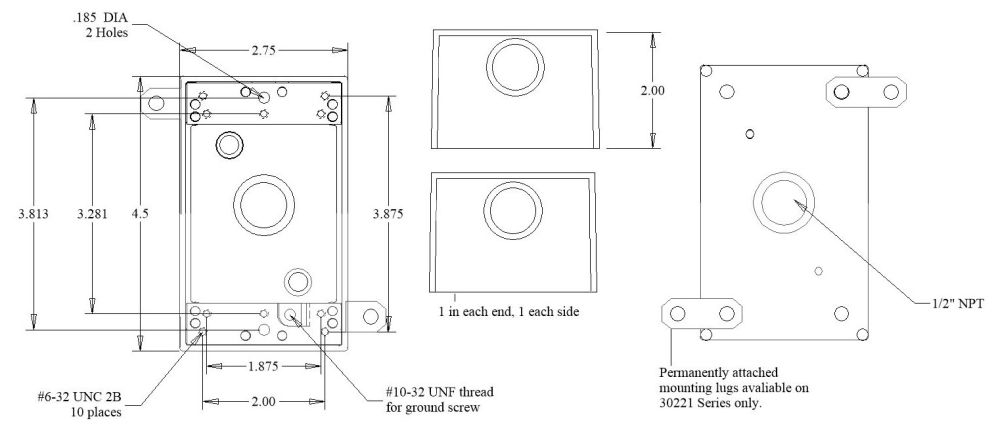

• Depth: 2 Inch
• Height: 4.5 in
• Width: 2.75 in
• Hub Location: (1) Back, (1) Each Side, (1) Each End
• Material: 0.094 Inch Thick Heavy Duty Die-Cast Aluminum
• Finish: Powder Coated Painted
• Approval: UL, UL 514A
• Mounting Hardware: Lug
• Color: Gray
• Origin: Made in USA
• Enclosure Rating: NEMA 3R
