Mulberry Metal Products 30215 Weatherproof Outlet Box 1 Gang 2 in Depth 18 Cu Inch 1/2 in Hub Die-Cast Aluminum Gray Powder Coated

Crafted by Mulberry Metal Products, this weatherproof outlet box is designed for superior performance in both indoor and outdoor damp or wet locations. Its rugged construction features a durable die-cast aluminum body, finished with a state-of-the-art powder coat that provides exceptional resistance to weathering and scratches. The strategically placed, permanently attached lugs offer versatile mounting options, while heavy-duty mounting straps ensure a secure installation that exceeds all applicable UL pull-tests. Additionally, the inclusion of a ground screw and closure plugs supports ease of use, making this outlet box a reliable choice for any electrical project that requires safety and adaptability in challenging environments.

• UL Listed and NEMA 3R rated for wet, damp, and dry locations
• Durable 0.094 inch thick die-cast aluminum body for robust protection
• Superior powder coat finish resists weather and scratches
• Permanently attached swivel lugs for versatile mounting options
• Heavy-duty mounting straps exceed all applicable UL pull-tests for secure installation
• Includes ground screw and closure plugs for safety and convenience
• Easy-access ground screw hole on mounting strap for simplified installation
• Five 1/2 inch threaded outlets positioned for flexible conduit connections
• Compact 1-gang design with 18 cubic inch capacity
• Made in USA ensuring quality and compliance

• Capacity: 18 Cu Inch
• Number of Hubs: 5
• Number of Gangs: 1

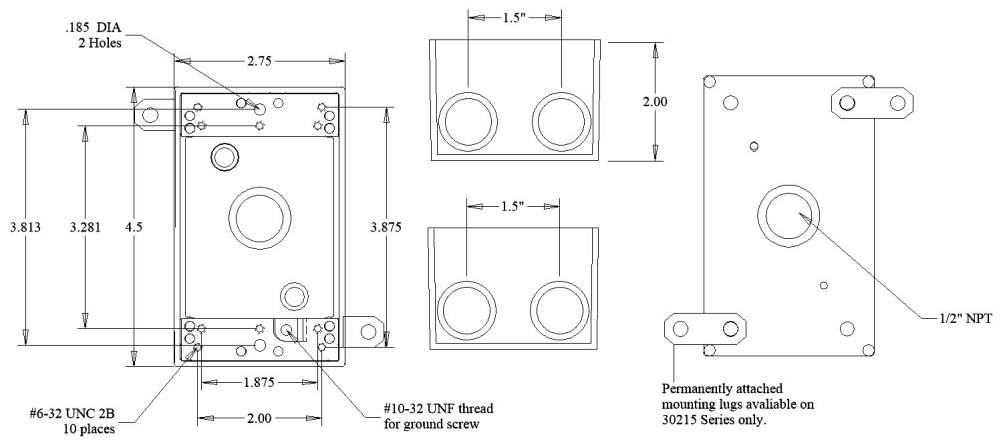

• Width: 2.75 in
• Height: 4.5 in
• Depth: 2 in
• Material: 0.094 Inch Thk Die-Cast Aluminum
• Finish: Powder Coated
• Approval: UL Listed, UL Standard 514A, NEMA 3R Rated
• Hub Size: 1/2 in
• Hub Location: (1) Back, (2) Each End
• Color: Gray
• Mounting Hardware: (1) Swivel Lug, Ground Screw, (2) Close-Up Plug
• Country of Origin: USA
