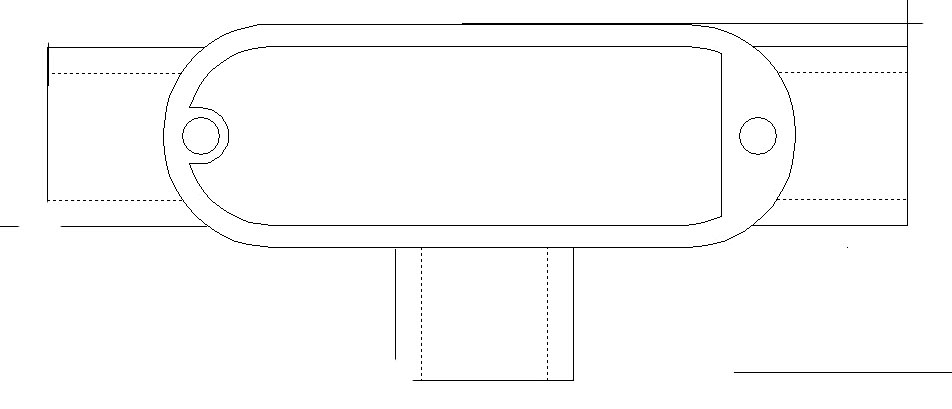

Mulberry Metal Products 12843 Conduit Body Tee 3 Hubs 1 Inch Electrostatic Powder Coated Aluminum Neoprene Gasket

Engineered by Mulberry Metal Products, this conduit body is crafted from high-strength, corrosion-resistant aluminum alloy, ensuring durability in challenging environments. Featuring a smooth, electrostatic powder coating and a nickel-plated flat back design, it allows for easy installation near walls while maintaining a sleek appearance. Each unit includes pre-assembled steel cover and neoprene rubber gasket, along with clearly marked cubic capacity and listings for straightforward identification. With a tee configuration and three hubs, this conduit body is designed to meet UL approval standards, making it a reliable choice for your electrical installations.

• UL Listed and CSA approved for safety and compliance assurance
• Die-cast high-strength aluminum alloy resists corrosion and weather
• Electrostatic powder coated finish for enhanced surface protection
• Pre-assembled steel cover with neoprene rubber gasket for weather resistance
• Smooth, tapered NPT threaded hubs ensure secure conduit connection
• Combination nickel-plated screws provide corrosion resistance and longevity
• Nickel-plated flat back design allows easy mounting close to walls
• Tee configuration with three hubs enables versatile conduit routing
• Accommodates up to 3 #4 AWG wires safely

• Configuration: T
• Number of Hubs: 3
• Hub Location: Tee
• Hub Size: 1 in.
• Material: Electrostatic Powder Coated Die-Cast Aluminum Body, Neoprene Gasket
• Cover Type: Galvanized Steel
• Approval: UL
• Installation: Threaded
• Access Opening: Side
• Finish: Electrostatic Powder Coating
• Cover Material: Steel
• Gasket Material: Neoprene Rubber
• Screw Type: Combination, Nickel Plated
• Hub Thread Type: NPT Threaded, Smooth, Tapered
• Internal Volume: 12.2 cubic inches
• Maximum Wire Size: 3 #4 AWG
• Compliance: UL Listed, CSA Approved
• Dimensions: 6.22 in x 1.75 in x 1.91 in
• Country of Origin: United States
