Louisville Ladder FE3232 Fiberglass Extension Ladder 32 ft Type IA 300 lb D-Rung
Documents
This Louisville Ladder 32-Foot Fiberglass Extension Ladder exemplifies safety and strength, boasting an impressive load capacity of 300 pounds, making it ideal for both professional and DIY tasks. Engineered for stability, it features D-shaped rungs for superior footing, along with a patented Quicklatch Runglock System that simplifies adjustments while ensuring security during use. The robust fiberglass construction is not only OSHA and ANSI certified, but also incorporates innovative elements such as outside slide guides and mar-resistant rail end caps, enhancing durability and user experience. Designed with thoughtful safety features like a steel swivel safety shoe and the unique MAXLOCK, this ladder merges advanced technology with practical design, ensuring maximum reliability for reaching elevated spaces.
- OSHA and ANSI certified for safety compliance
- 300-pound load capacity for heavy-duty tasks
- Fiberglass construction for electrical non-conductivity and durability

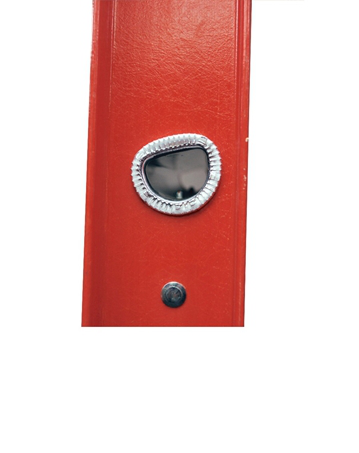

- D-shaped rungs provide superior footing and comfort

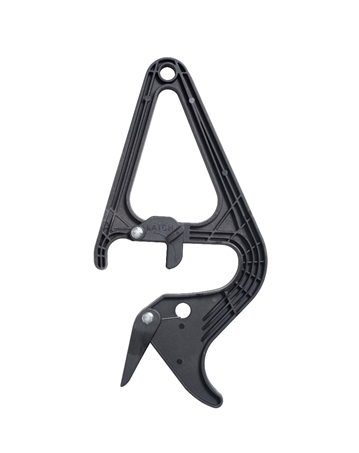

- Patented Quicklatch Runglock System for easy and secure height adjustment
- Outside slide guides enhance stability during use

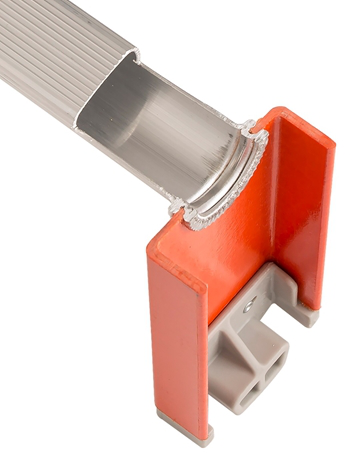

- Mar-resistant rail end caps protect ladder from damage

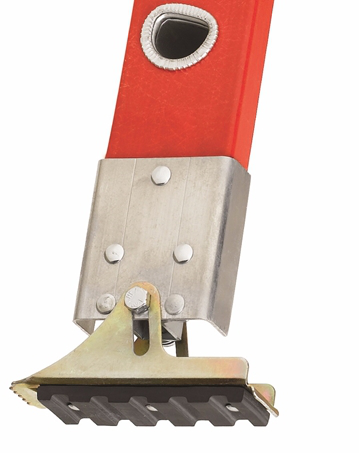

- Steel swivel safety shoes improve grip and prevent slipping
- MAXLOCK system ensures maximum locking reliability
- Direct rung-rail connection for enhanced structural strength
- Duty Rating: Type IA
- Load Capacity: 300 lb
- Total Length: 32 ft
- Max. Extended Length: 29 ft
- Closed Height: 197.5 in
- Closed Width: 18.437 in
- Outside Width Base: 17.688 in
- Outside Width Fly: 16.713 in
- Inside Width Base: 15.270 in
- Inside Width Fly: 14.313 in
- Closed Depth: 6.25 in
- Number of Steps: 32
- Step Depth: 1.5 in
- Rail Depth: 3.3125 in
- Maximum Standing Height: 25 in
- Weight: 70 lb
- Material: Fiberglass
- Rung Type: D-rung
- Style: Standard
