Louisville Ladder FE3224 Fiberglass Extension Ladder 24 ft Type IA 300 lb Load Capacity D-Rung
Documents
Engineered for durability and performance, the 24-Foot Fiberglass Extension Ladder from Louisville Ladder is the perfect tool for tackling a wide range of tasks. With a robust Type IA duty rating, it supports up to 300 pounds, making it suitable for both professional and residential use. The ladder features mar-resistant rail end caps and D-shaped rungs for enhanced stability and comfort, while the patented Quicklatch rung lock system ensures that each rung is securely locked in place. Designed with safety in mind, this ladder incorporates OSHA and ANSI certifications, as well as steel swivel safety shoes with a metal shield for reliable footing. Additionally, innovative outside slide guides allow for smooth extension and retraction, providing ease of use. The custom-engineered MAXLOCK, made from a breakthrough molecular polymer, is recognized as the strongest and lightest rung lock available, further enhancing the ladder's durability. This 24-foot extension ladder not only meets stringent safety standards but also stands out as a reliable partner for reaching lofty heights with confidence.
- OSHA and ANSI certified for safety compliance
- Supports up to 300 pounds load capacity

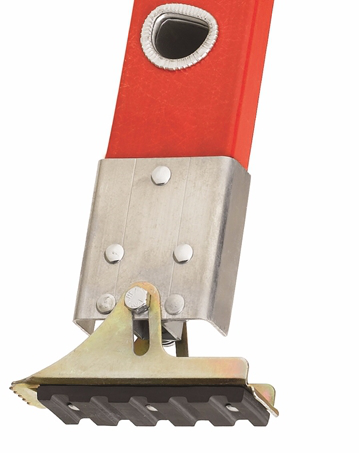

- Steel swivel safety shoes with metal shield for reliable footing

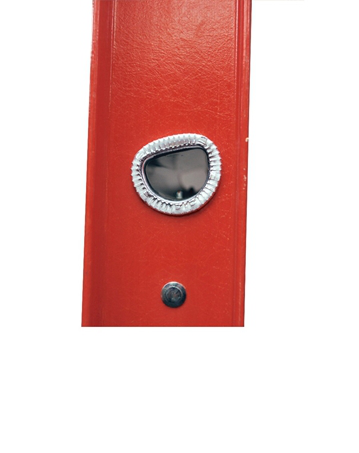

- Serrated, slip-resistant D-shaped rungs for enhanced stability and safety
- Patented Quicklatch rung lock system ensures secure locking

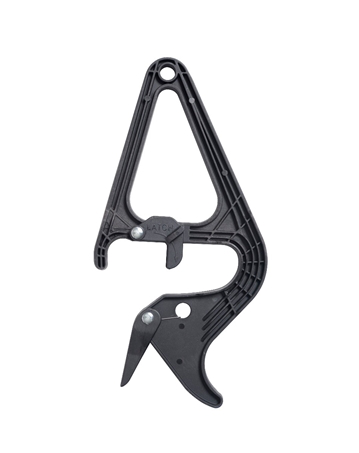

- MAXLOCK rung lock made from advanced molecular polymer for strength and lightness
- Mar-resistant, non-marring rail end caps protect surfaces
- Outside slide guides enable smooth extension and retraction
- Fiberglass material offers electrical non-conductivity and durability

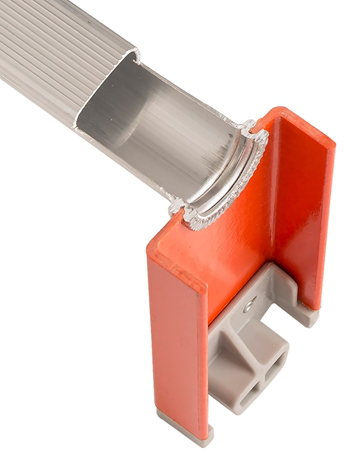

- Direct rung-rail connection provides sturdy ladder construction
- Load Capacity: 300 lb
- Duty Rating: Type IA
- Total Length: 24 ft
- Max. Extended Length: 21 ft
- Number of Steps: 24
- Step Depth: 1.5 in.
- Closed Height: 149.5 in.
- Closed Width: 17.812 in.
- Closed Depth: 6.25 in.
- Outside Width Base: 17.063 in.
- Outside Width Fly: 16.088 in.
- Inside Width Base: 14.645 in.
- Inside Width Fly: 13.688 in.
- Rail Depth: 3.25 in.
- Material: Fiberglass
- Rung Type: D-shaped
- Load Capacity: 300 lb
- Weight: 51 lb
- Rung Surface: Serrated, slip resistant
- Rail End Caps: Non-marring
- Rung Lock Material: Advanced molecular polymer
- Safety Shoe Material: Steel with metal shield
- Compliance: ANSI, OSHA
