Louisville Ladder FE3220 Extension Ladder 20 ft Type IA 300 lb Load Capacity D-Rung Fiberglass
Documents

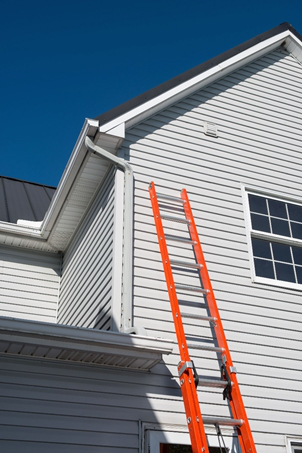

The Louisville Ladder 20-Foot Fiberglass Extension Ladder stands out with its robust Type IA rating, making it capable of supporting loads up to 300 pounds. Engineered for safety and durability, this ladder features OSHA and ANSI certifications, ensuring it meets the highest industry standards. The patented Quicklatch Runglock System, coupled with steel swivel safety shoes, offers enhanced stability, while the innovative MAXLOCK technology provides a lightweight yet exceptionally strong rung lock. With 20 D-shaped rungs designed for comfortable footing and a direct rung-rail connection, this ladder combines practicality with advanced design. Additionally, mar-resistant rail end caps and outside slide guides contribute to its longevity, making it an essential tool for both professional and DIY projects alike.
- OSHA and ANSI certified for industry-standard safety compliance
- Type IA rating supports up to 300 lb load for heavy-duty use

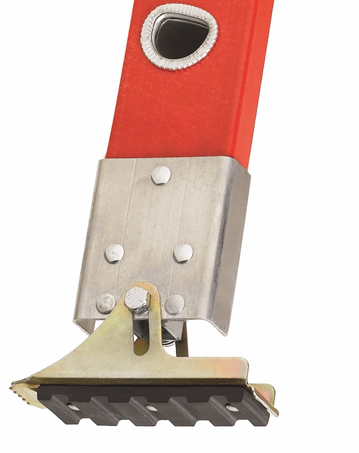

- Steel swivel safety shoes with metal shield for improved grip and protection

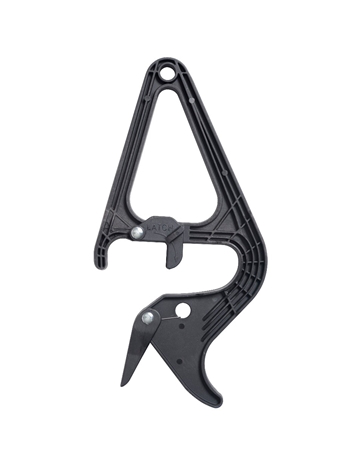

- Patented Quicklatch Runglock System enhances stability and secure locking
- MAXLOCK molecular polymer rung lock offers lightweight strength and durability

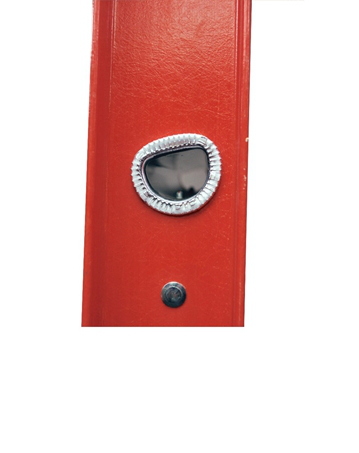

- D-shaped rungs with serrated, slip-resistant texture ensure comfortable footing

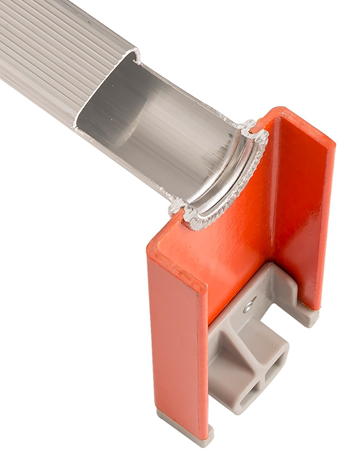

- Direct rung-rail connection improves structural strength and ladder stability
- Non-marring rail end caps protect surfaces from damage
- Outside slide guides reduce wear and extend ladder lifespan
- Length: 20 ft
- Load Capacity: 300 lb
- Duty Rating: Type IA
- Size: 20 ft
- Weight: 42 lb
- Closed Height: 125.5 in
- Closed Width: 17.812 in
- Closed Depth: 6.25 in
- Inside Width Base: 14.645 in
- Inside Width Fly: 13.688 in
- Outside Width Base: 17.063 in
- Outside Width Fly: 16.088 in
- Maximum Standing Height: 13.417 in
- Step Depth: 1.5 in
- Section Length: 10 ft
- Rail Depth: 3.25 in
- Material: Fiberglass
- Rung Type: D-rung
- Load Capacity: 300 lb
- Rung Texture: Serrated, Slip Resistant
- Rung Lock: MAXLOCK Molecular Polymer
- Safety Shoe: Steel Swivel with Metal Shield
- Rail End Caps: Non-marring
- Compliance: ANSI, OSHA
