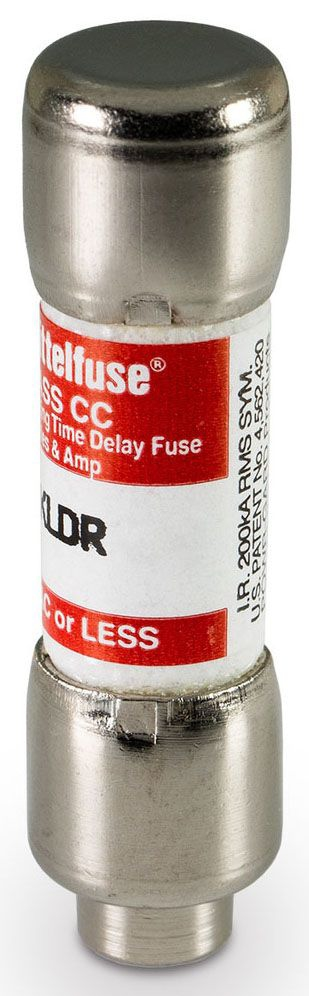

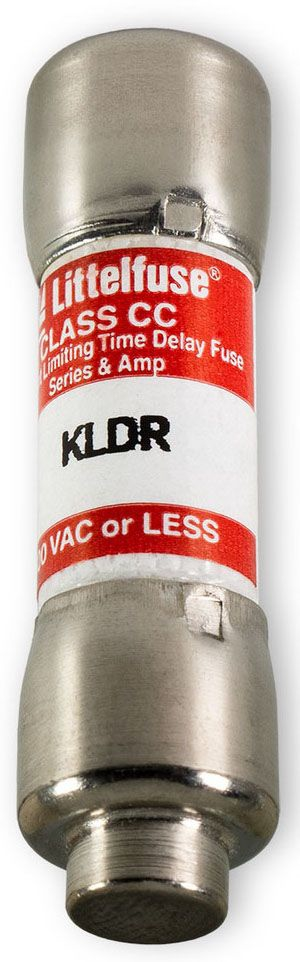

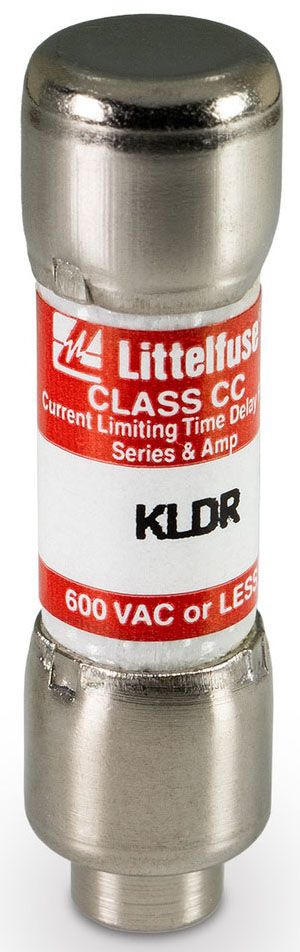

Littelfuse KLDR1.25TXP Class CC Time Delay Fuse 1.25A 600VAC 300VDC Ferrule Melamine Nickel-Plated Bronze

Engineered for exceptional performance in demanding applications, the KLDR1.25TXP Midget Fuse offers reliable interruption of overcurrents up to 200,000 Amps, ensuring robust protection for transformers. This time-delay fuse, part of the KLDR Series, is specifically designed to handle the high magnetizing inrush that transformers often encounter, effectively minimizing the risk of damage from heating and magnetic effects associated with short circuits. Constructed from durable melamine with a nickel-plated bronze cap, this fuse complies with RoHS requirements, reflecting a commitment to environmentally responsible engineering. With a current rating of 1.25 Amperes and a voltage rating of up to 600 VAC or 300 VDC, it serves as a compact yet powerful solution for branch circuit protection, earning approvals from UL, CSA, and CE standards.

• Interrupts overcurrents up to 200,000 Amps for robust circuit protection
• Time-delay design minimizes damage from transformer inrush currents
• Extremely current limiting reduces short circuit damage and heating
• Class CC rejection design prevents installation of lower rated fuses
• Constructed with melamine body for electrical insulation and durability
• Nickel-plated bronze caps provide corrosion resistance and secure terminal connection
• UL, CSA, and CE approved for safety and performance standards
• RoHS compliant for environmentally responsible use
• Compact 1.5-inch length enables easy installation in branch circuits
• Ferrule terminal type ensures secure electrical connection

• Voltage Rating: 600 VAC, 300 VDC
• Amperage: 1.25 Ampere
• Interrupting Rating: 200,000 Ampere (Symmetrical AC), 20,000 Ampere DC
• Characteristics: Time Delay
• Type: Class CC Rejection
• Current Limiting: Extremely Current Limiting
• Length: 1.5 in.
• Diameter: 0.41 in.
• Terminal Type: Ferrule
• Material: Melamine (Body), Nickel-Plated Bronze (Cap)
• Approval: UL 248-4, CSA, CE
• Series/Model: KLDR
• Country of Origin: Mexico
